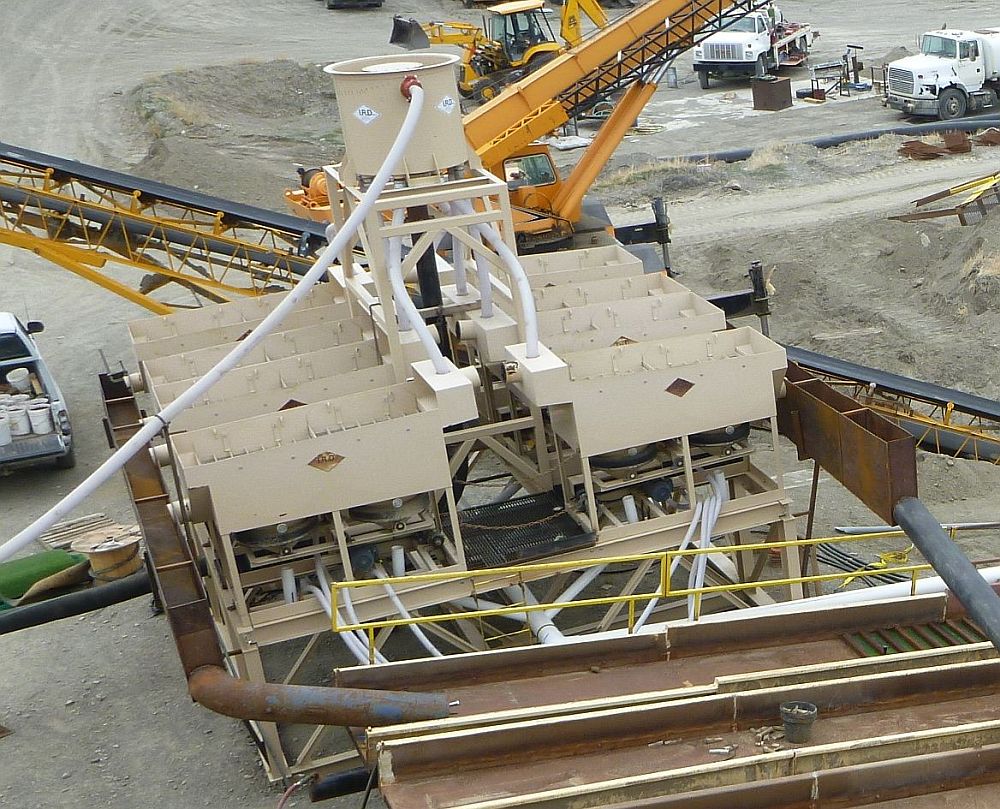

IRD 42 inch Duplex Mineral Jig System
Inventory ID: 373363
- Category: Mineral Jigs
- Availability: Sold
- 2 verified equipment photos
Equipment details
- 8 x IRD 42 x 42 Duplex Mineral Jigs
- Mounted on Operating Skid Complete with:
- Motors
- Feed Distributor
- Tailings Discharge Troughs
- Concentrate Discharge Piping
- Package in excellent overall condition.
- Specs per Jig as a Rougher:
- Max Capacity in Cubic Yards Per Hour: 30
- Average Hutch Water Requirement in Gal/Min/Cell: 80
- Average RPM Eccentric Shaft: 130
- Power Installed, HP: 3
- Approximate Power Consumed in Operation, HP: 1.8
- Specs Per Jig as a Cleaner:
- Max Capacity in Cubic Yards Per Hour: 12
- Average Hutch Water Requirement in Gal/Min/Cell: 50-70
- Average Length of Stoke in Inches: .5
- Average RPM Eccentric Shaft: 150
- Power Installed, HP: 3
- Approximate Power Consumed in Operation, HP: 1.8
- Location: Western USA
