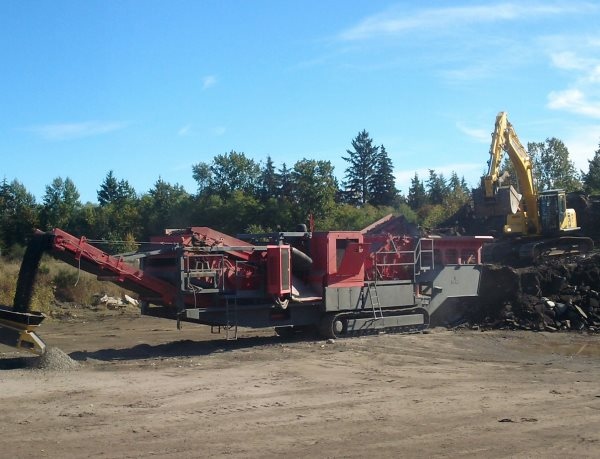

2007 GIPOKOMBI RC 130C Impact Crusher
Inventory ID: 522676
- Category: Crushing Plants
- Availability: Sold
- 4 verified equipment photos
Equipment details
Model: RC 130 C
Manufacture: GIPO
Year: 2007
Hours: 7,125
The GOPOKOMBI RC combination mobile tracked crusher is a highly efficient system combining and impact crusher and screener onto a single chassis. Ideal unit for any quarry or mining operation. GIPO will give your project a reliable and powerful machine to create results you need for a quality production.
Details:
- Tracked Plant
- 5 m³ Feed Hopper
- Feed channel: 1200 x 4300 mm
- Impact crusher inlet: 1270 x 925 (1100) mm
- Rotor diameter: 1300 mm
- Crusher capacity: up to 500 TPH
- Discharge chute: 1300 x 2300 mm
- Crusher discharge conveyor: 1600 x 8800 mm
- 2 -deck screen machine: 1800 x 4500 mm
- Main discharge conveyor belt: 1200 x 10500 mm
- Oversize recirculation conveyor: 650 x 9000 mm
- Powerful CATERPILLAR diesel engine (C15 ACERT / 433 kW)
Highlights:
- Clear and simple controls
- Fully hydraulic transmission concept
- Powerful CATERPILLAR diesel engine
- Strong two-pole magnet
- Continuously adjustable rotor RPM
- Hydraulically swinging return conveyor for oversized discharge
- Very robust rotor
Weight & Dimensions:
- Weight: 72000 kg
- Transport Length: 22,000 mm
- Transport Width: 3,400 mm
- Transport Height: 3,850 mm
Located: Western Canada
