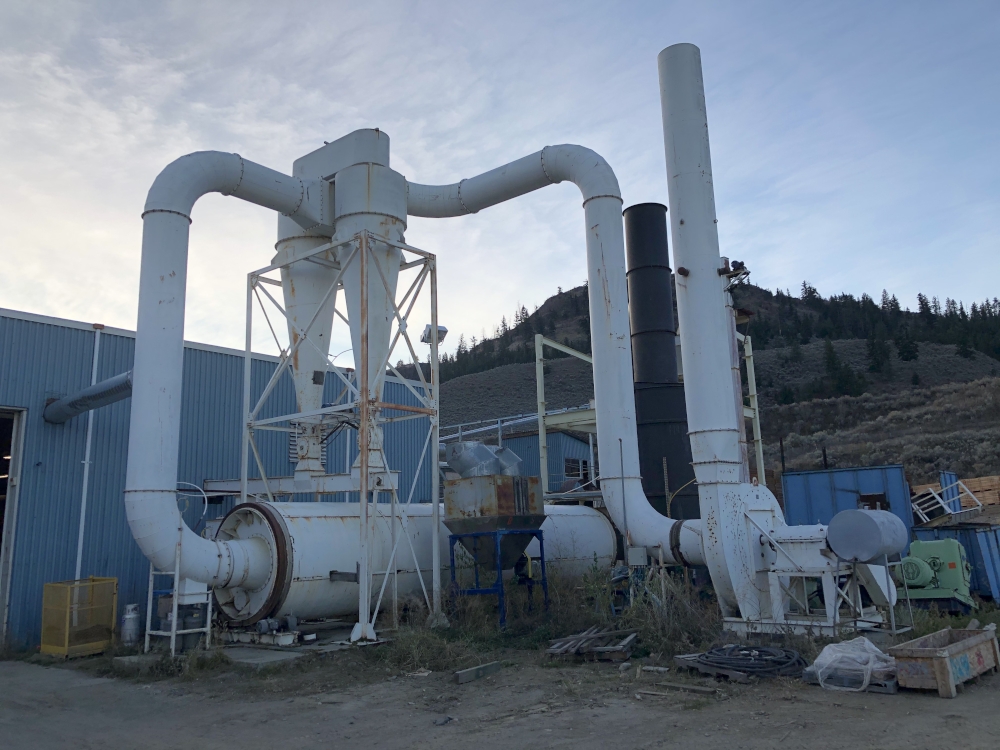

Rotary Drum Dryer System Complete with Burner
Inventory ID: 620827
- Category: Dryers
- Availability: Sold
- 15 verified equipment photos
Equipment details

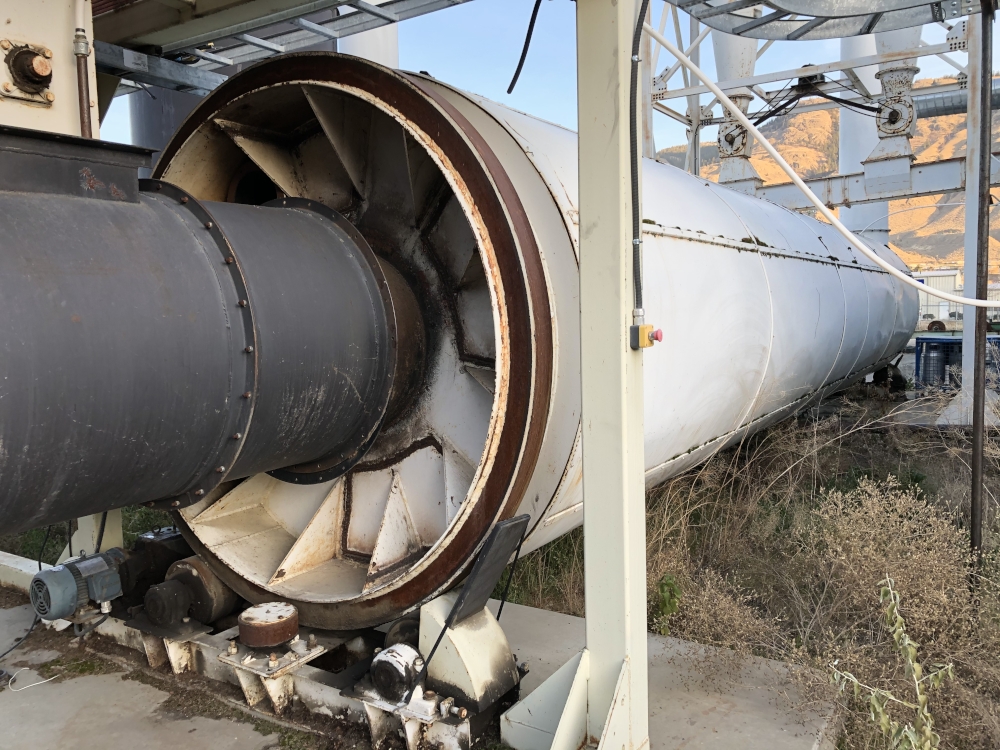

- 7 ft. Dia. x 40 ft. Long Triple Pass, indirect heat, Rotary Drum Dryer.

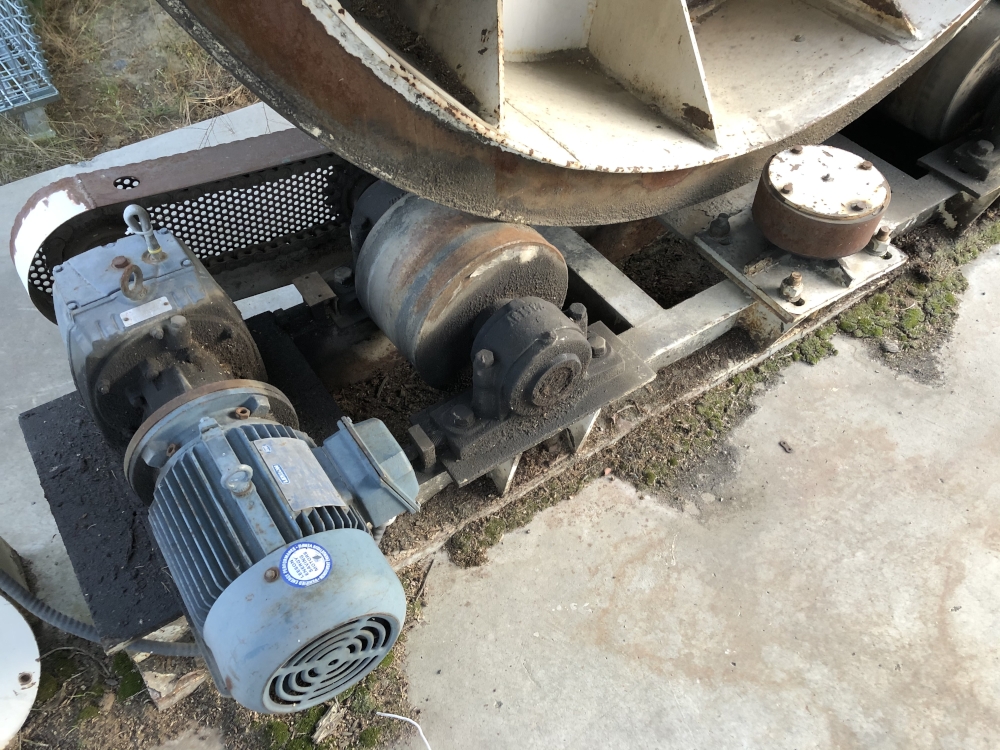

- Trunnion wheel mounted.
- Dual 5HP gearhead motors (one each end of drum).
- US Motor Gear reducer.
- Series 3000.
- 35 – 5 Ratio.

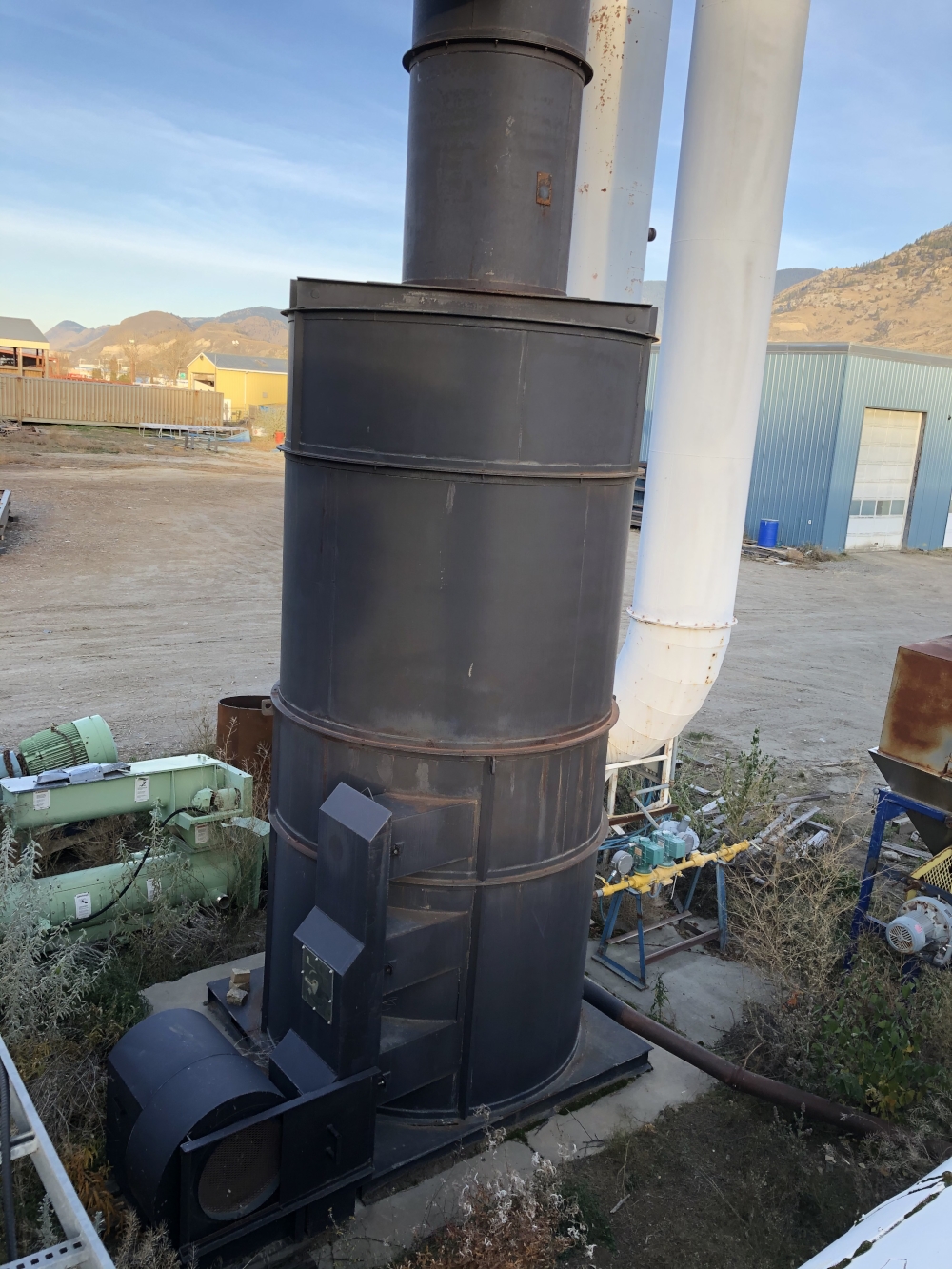

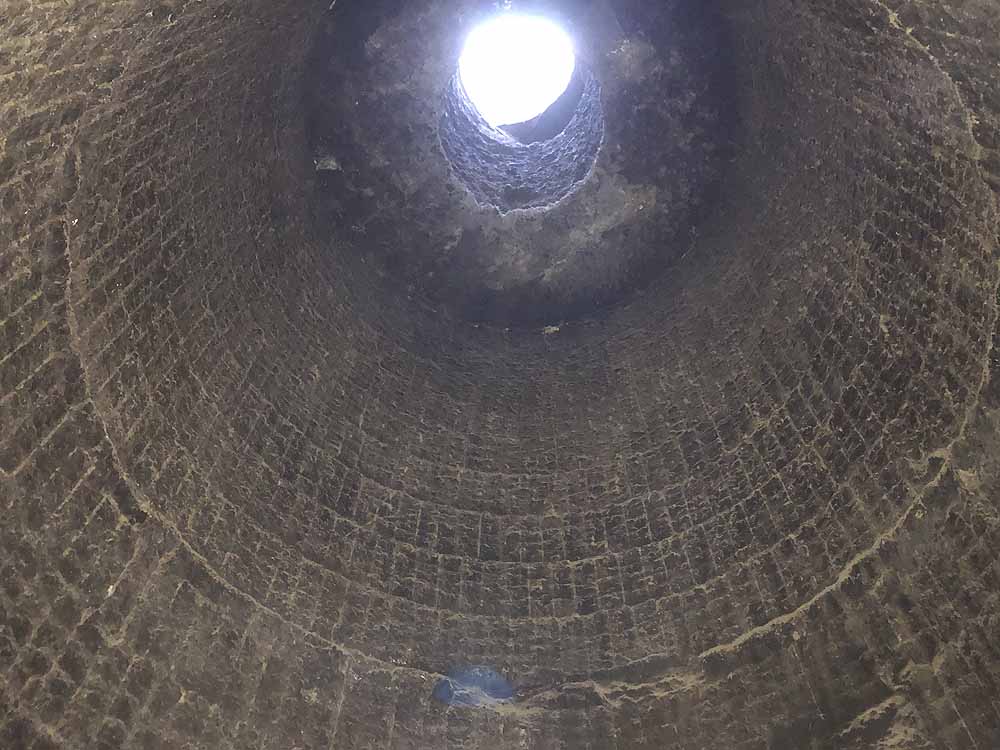

- 6’ dia. Refractory Lined fire box.

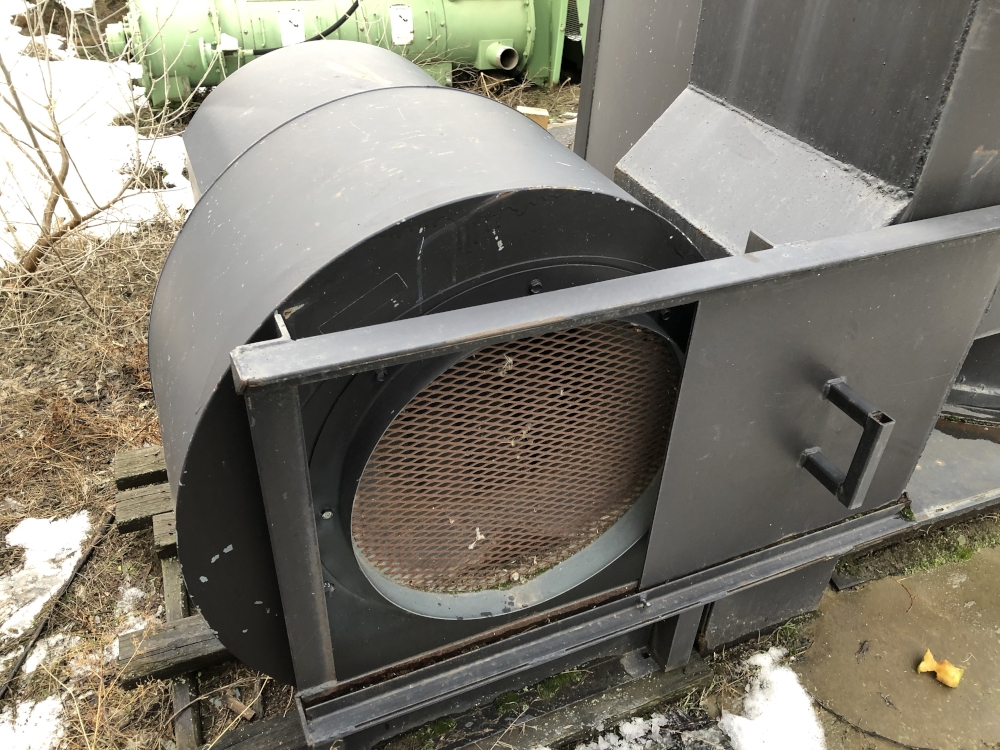

- Comes with 20” backward curved centrifugal forced air blower.
- 3 – feed points from ground level to approx. 8’.

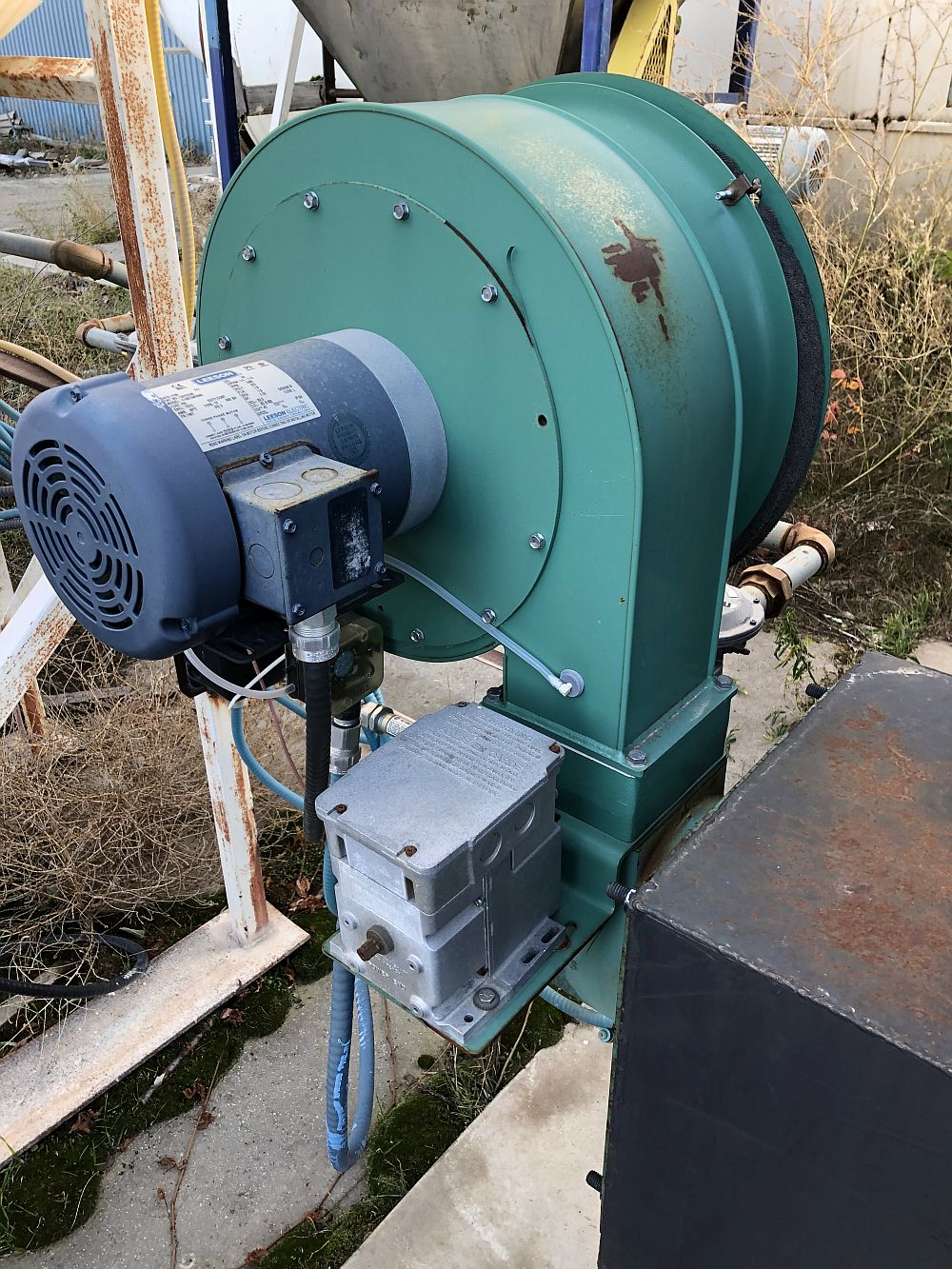

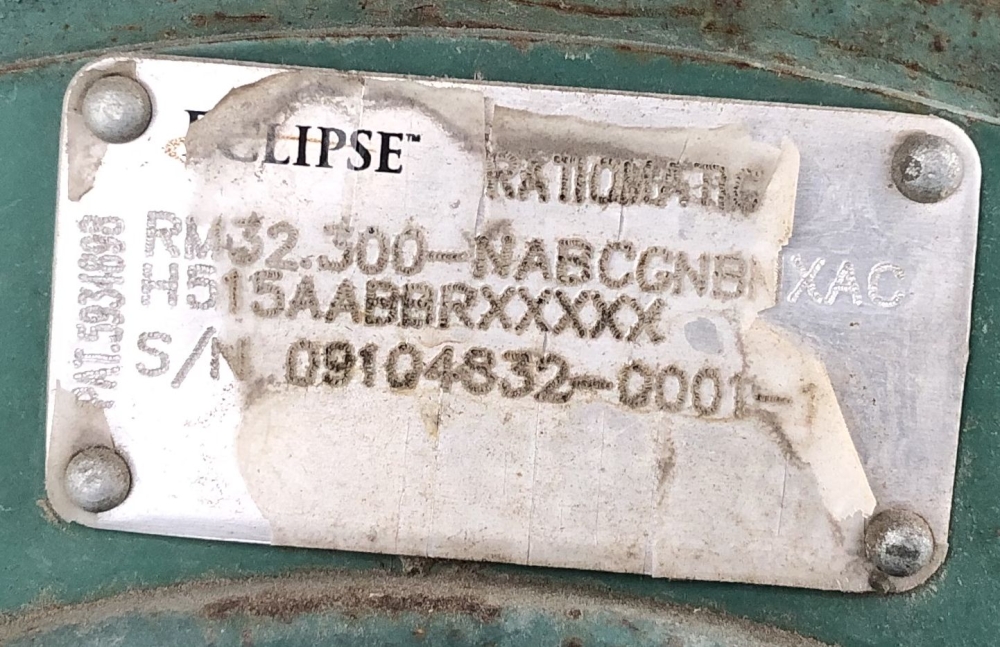

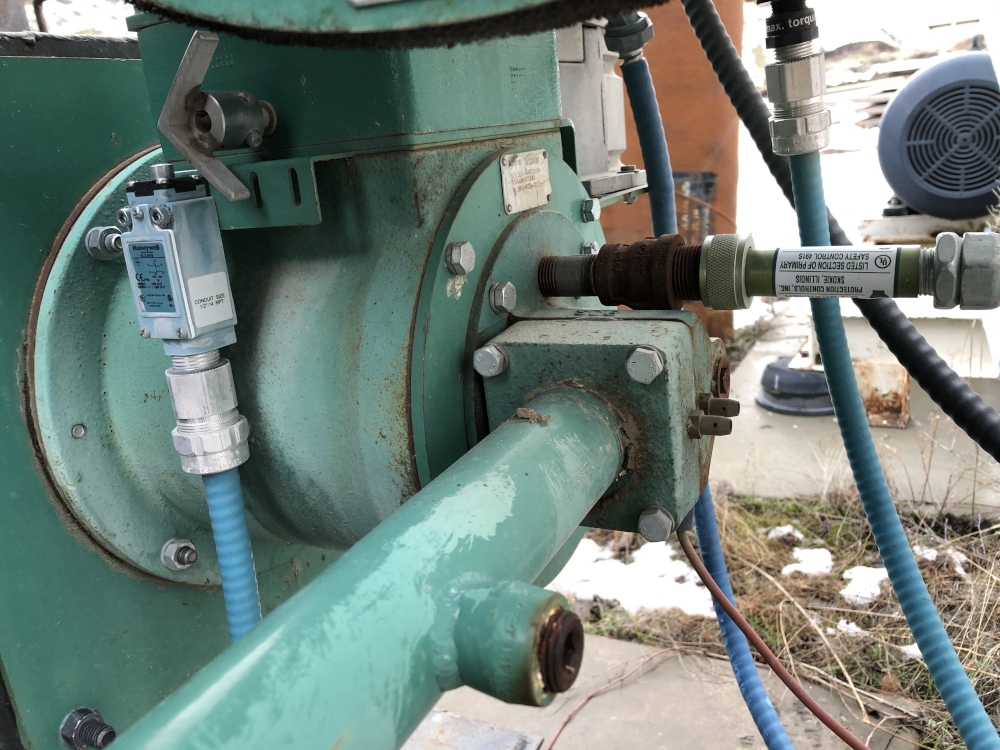

- Eclipse RatioMatic Burner assembly.
- Model: 32-300.

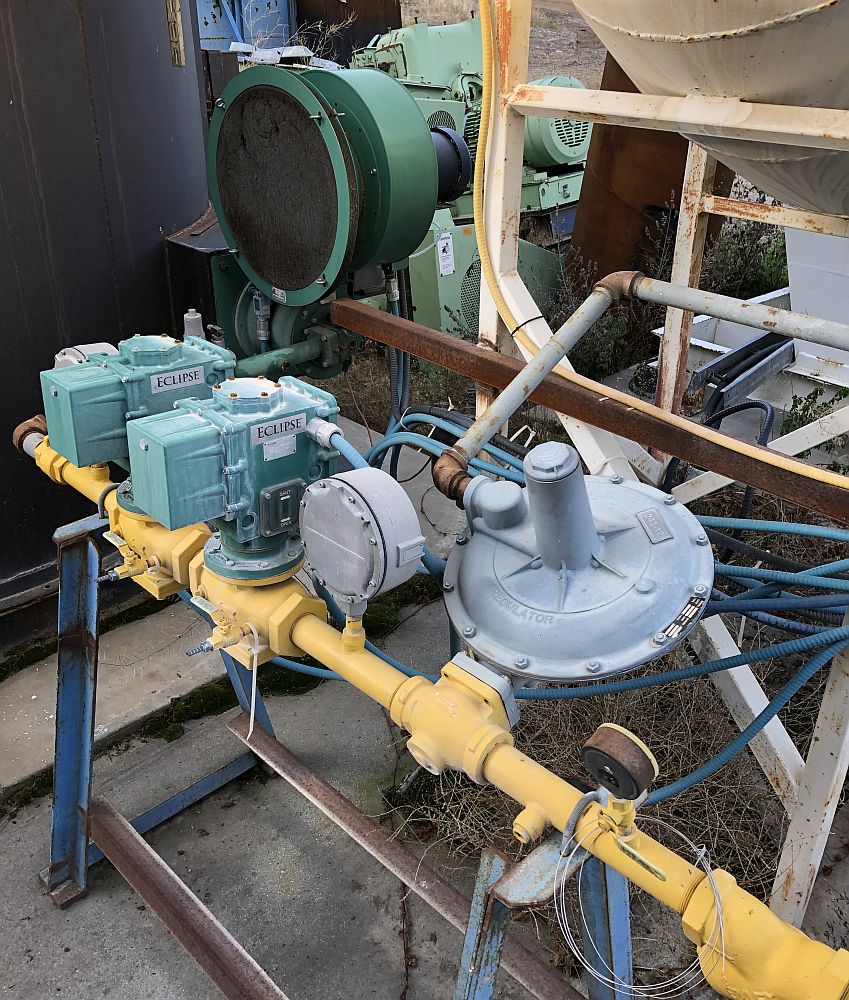

- 1½”Gas train.

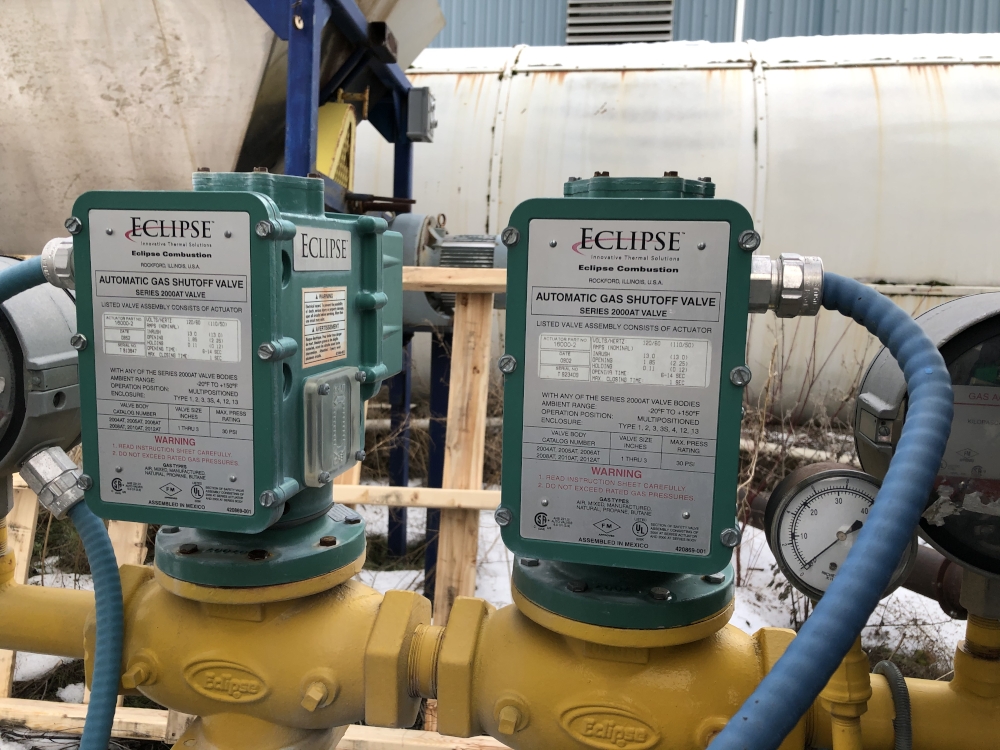

- Eclipse series 2000AT automatic shut off valves.

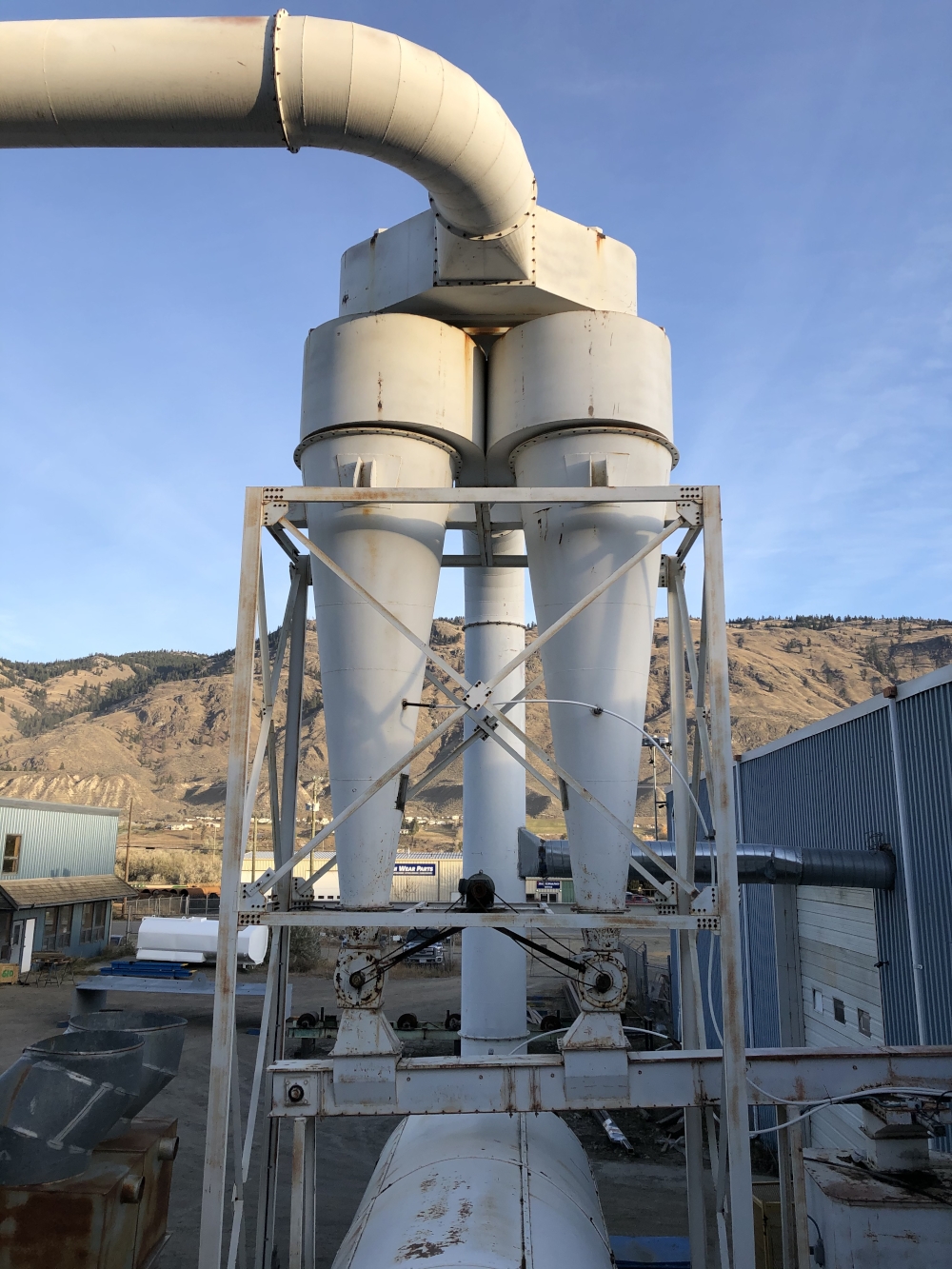

- Dual 48” dia. Classifier Cyclones with rotary valve Air Locks.
- 32” dia. Material transfer Piping.

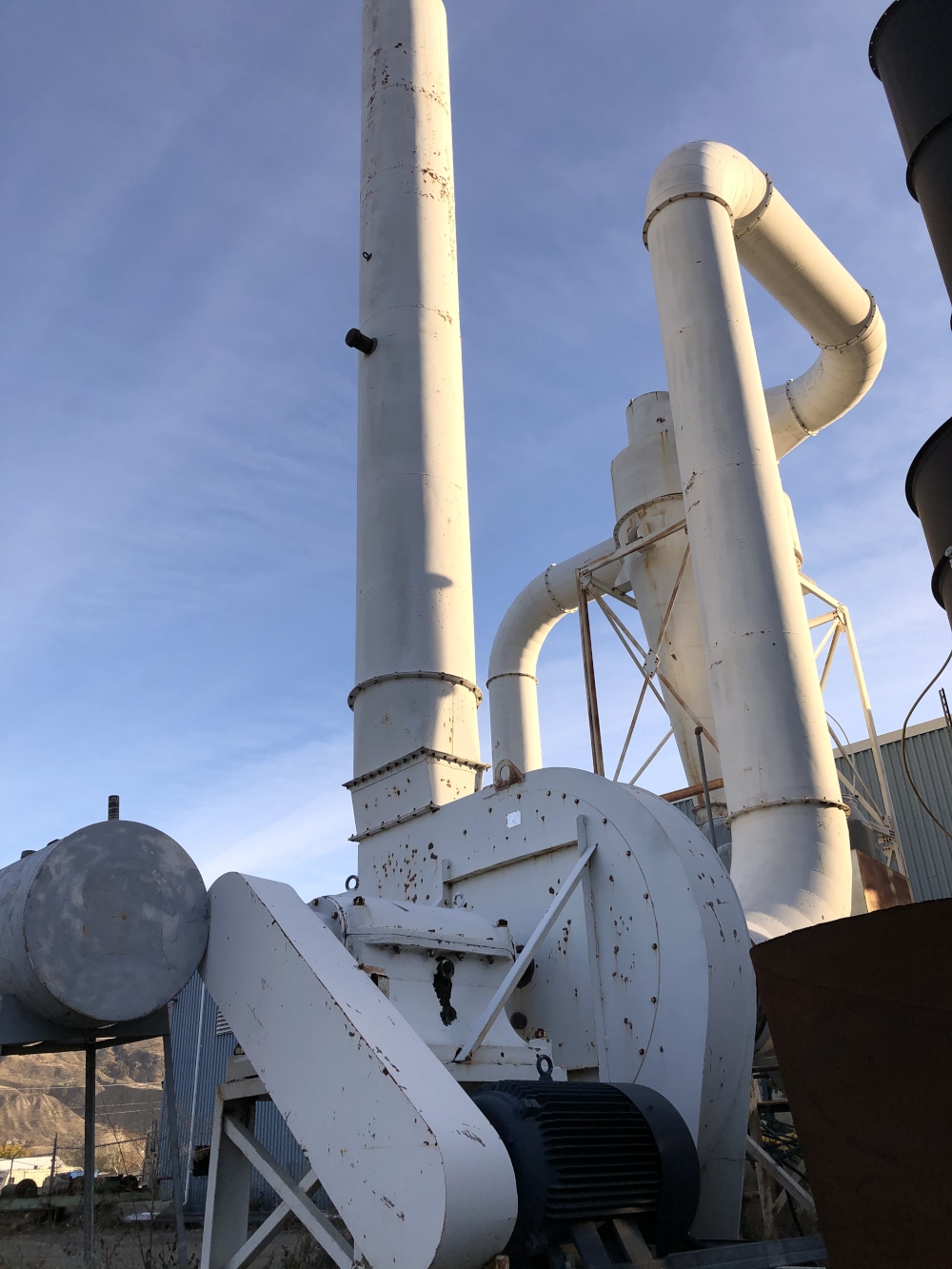

- Centrifugal exhaust blower.
- Belt driven by a 100 HP Leeson motor.
- 1150 RPM.
- 575 Volt.
- Location: Western Canada
