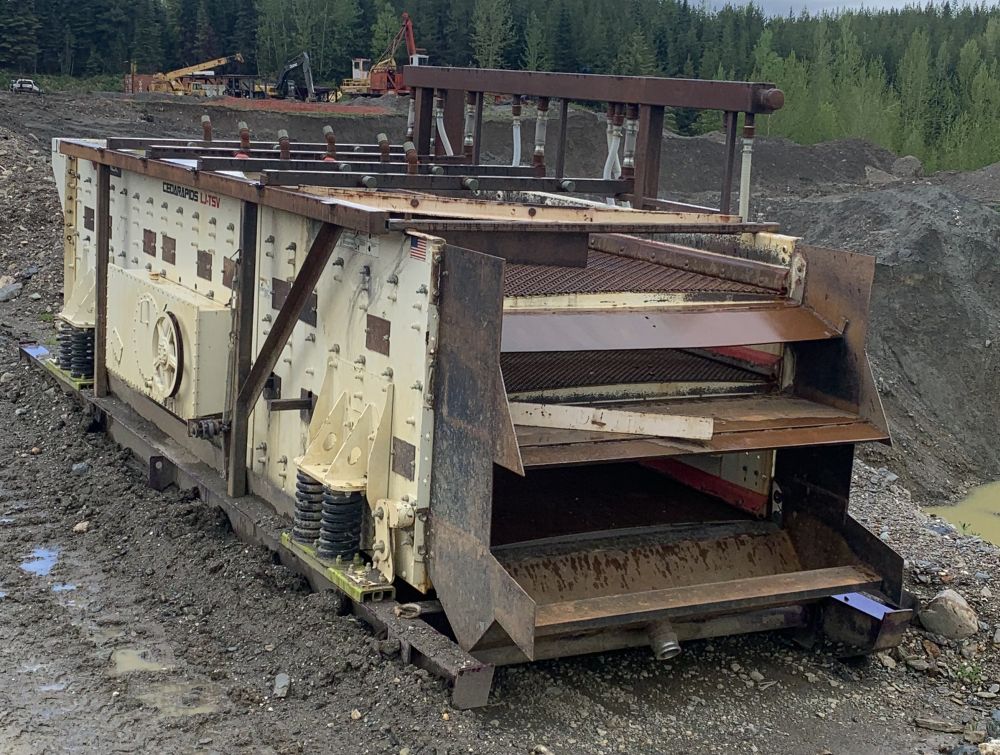

Terex 6 x 20 3 Deck Screen Wash Plant with Vibrating Grizzly and Apron Feeder All Skid Mounted
Inventory ID: 955280
- Category: Gold Wash Plants
- Availability: Sold
- 11 verified equipment photos
Equipment details
This skid mounted wash plant was set-up to wash rock and gravels plus screen down to -1/4” to feed a centrifugal concentrator for fine gold recovery. The concentrator is not included in listing but options are available on request.
Below is the main component list:

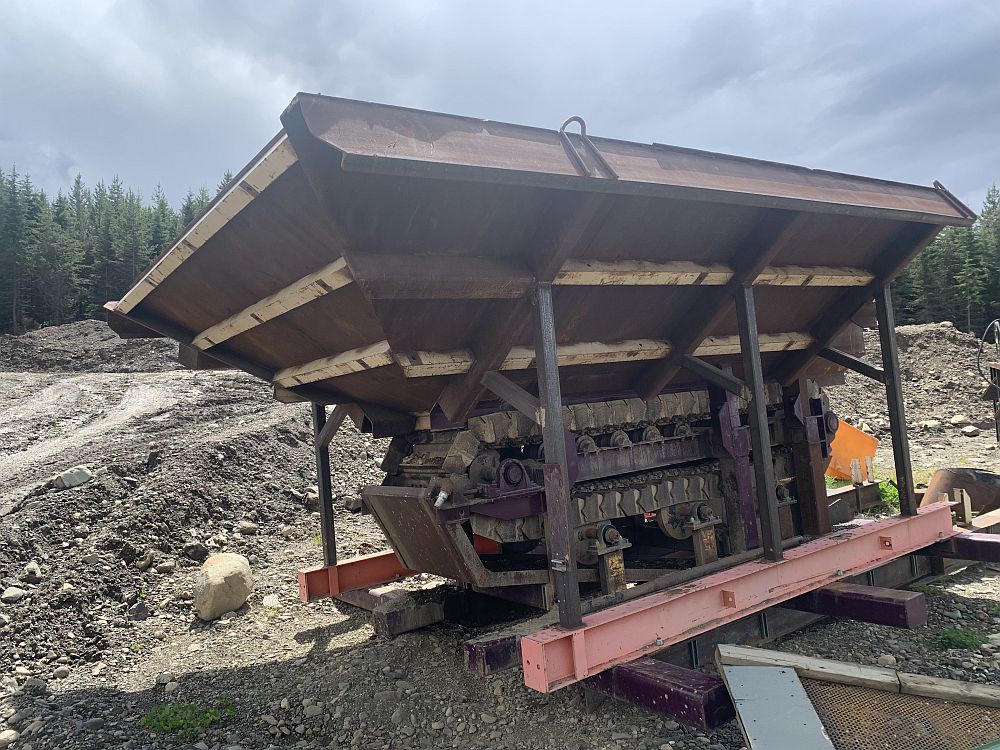

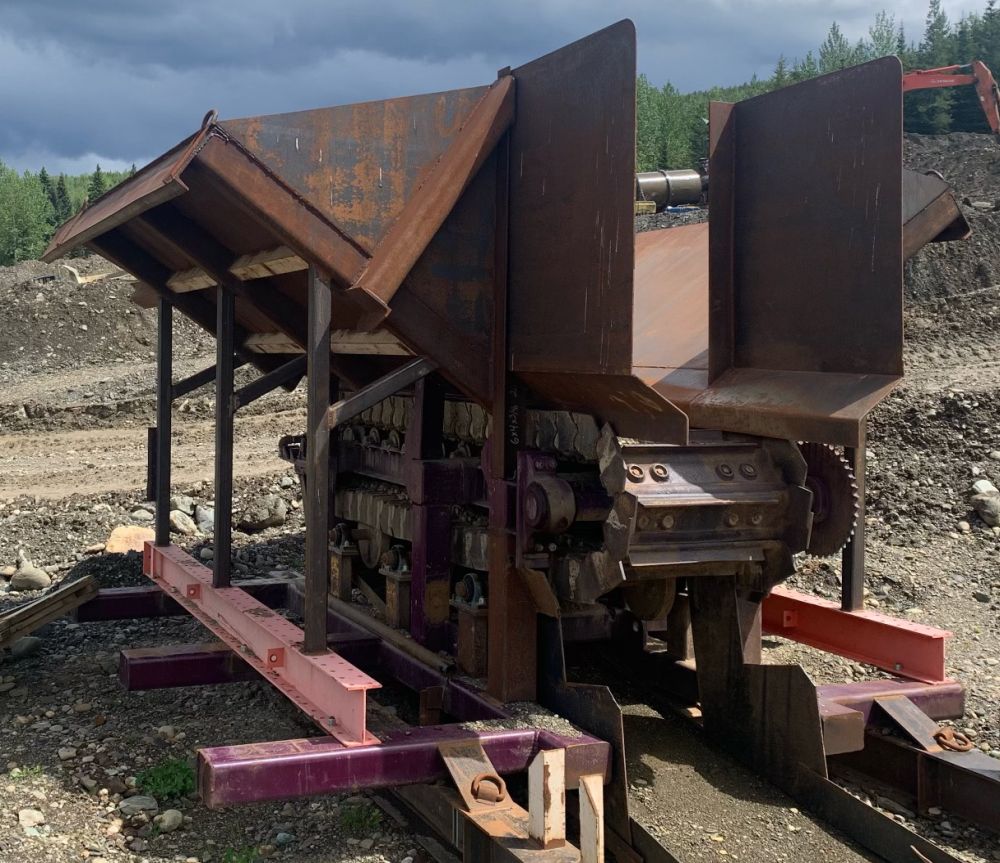

- 30” x 12’ Apron Feeder
- 20 Yard Feed Hopper
- Chain Driven through an inline gear reducer

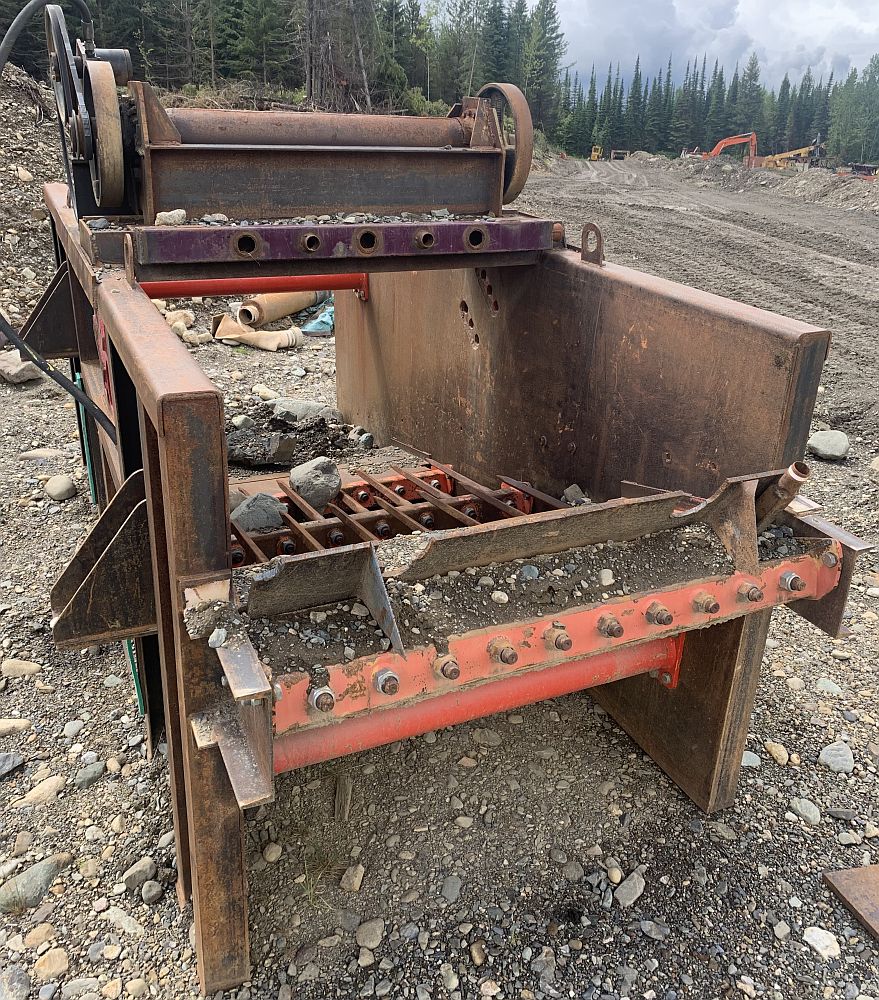

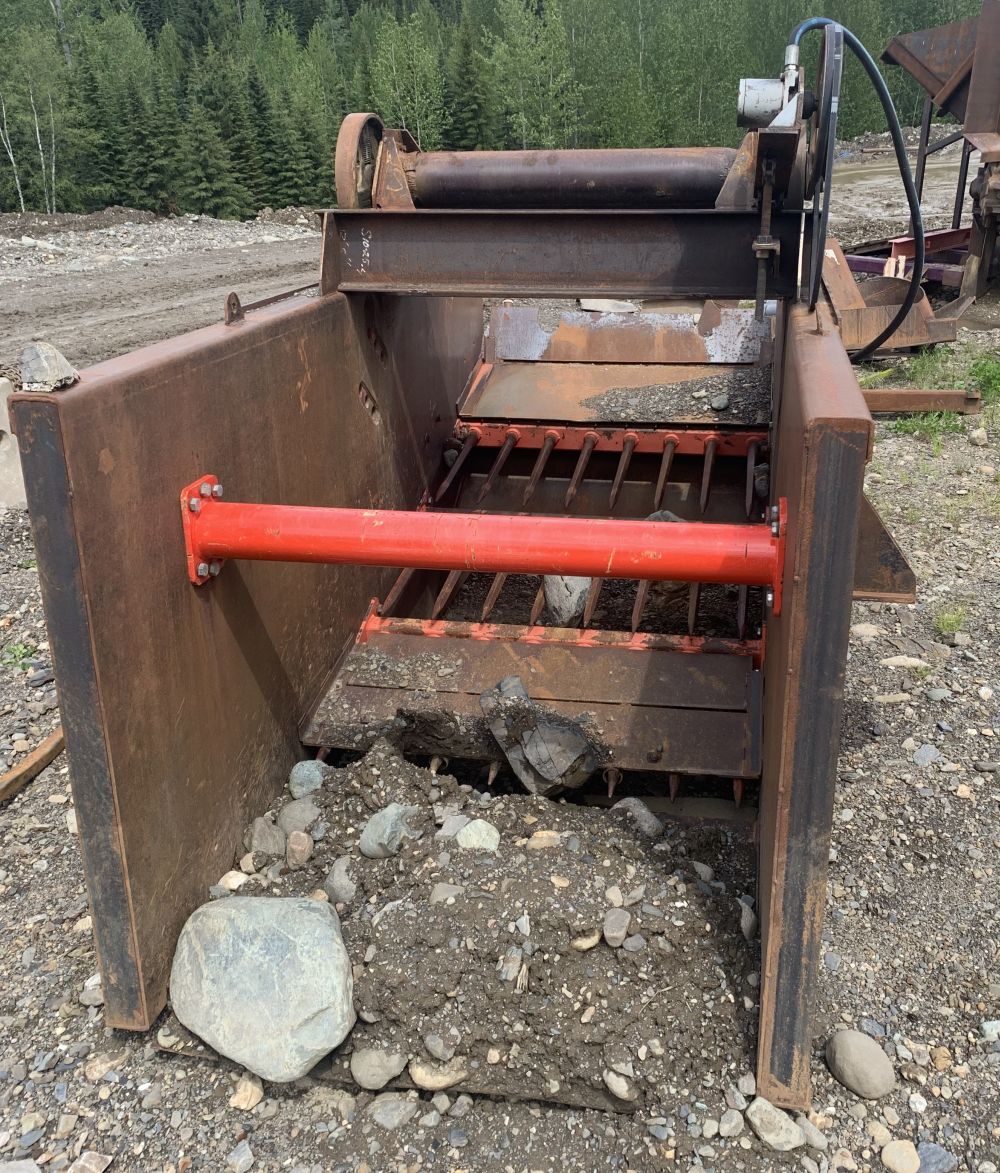

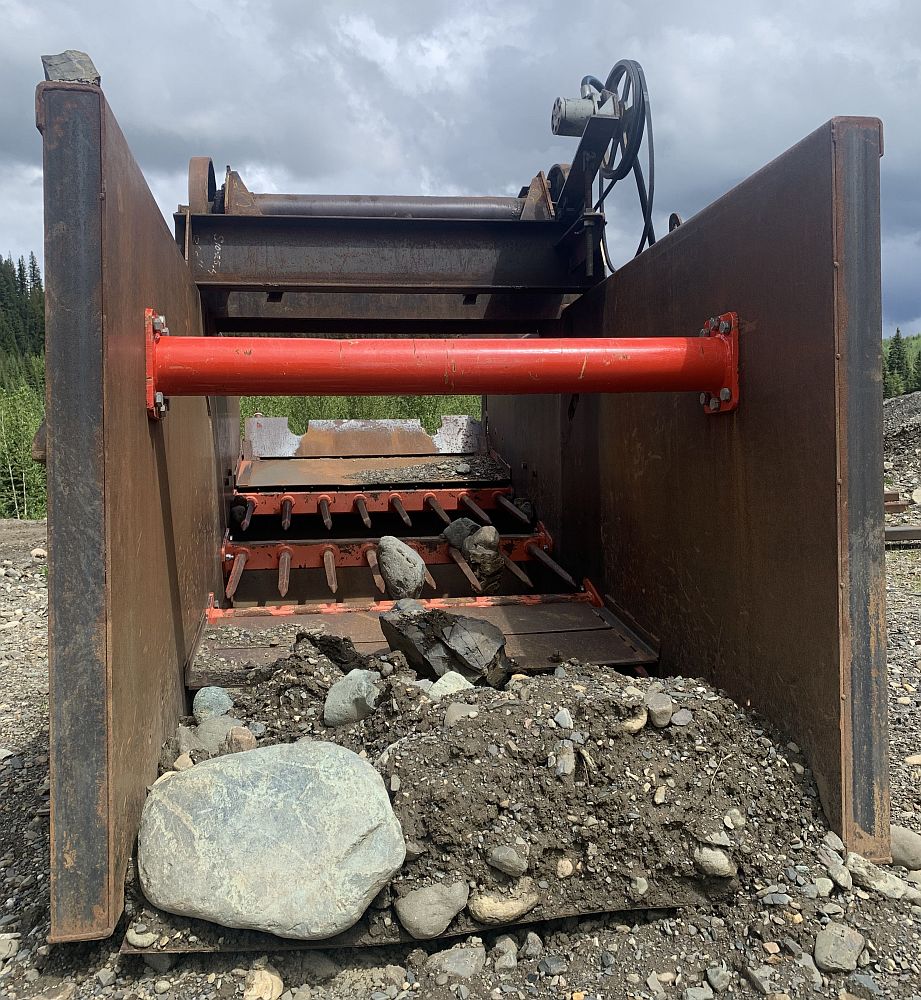

- 5’ x 16’ Grizzly Feeder
- 8” Spacing
- Hydraulic Drive Eccentric Vibrator

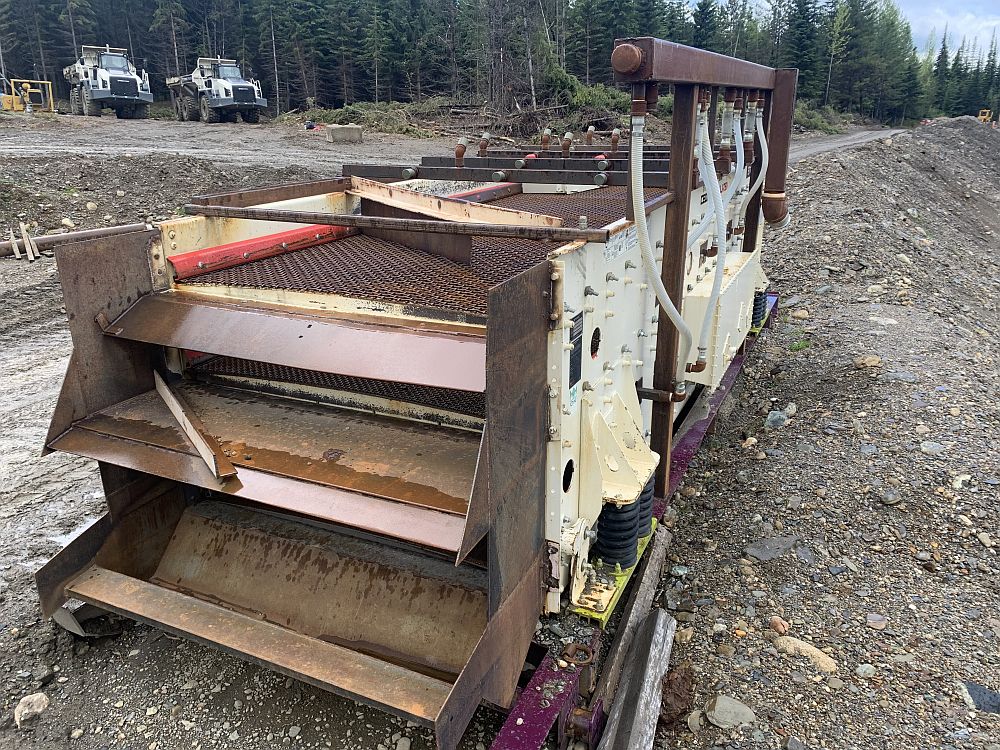

- Terex ELJAY Cedarapids TSV 6 x 20 x 3 Deck V Series Screen Deck

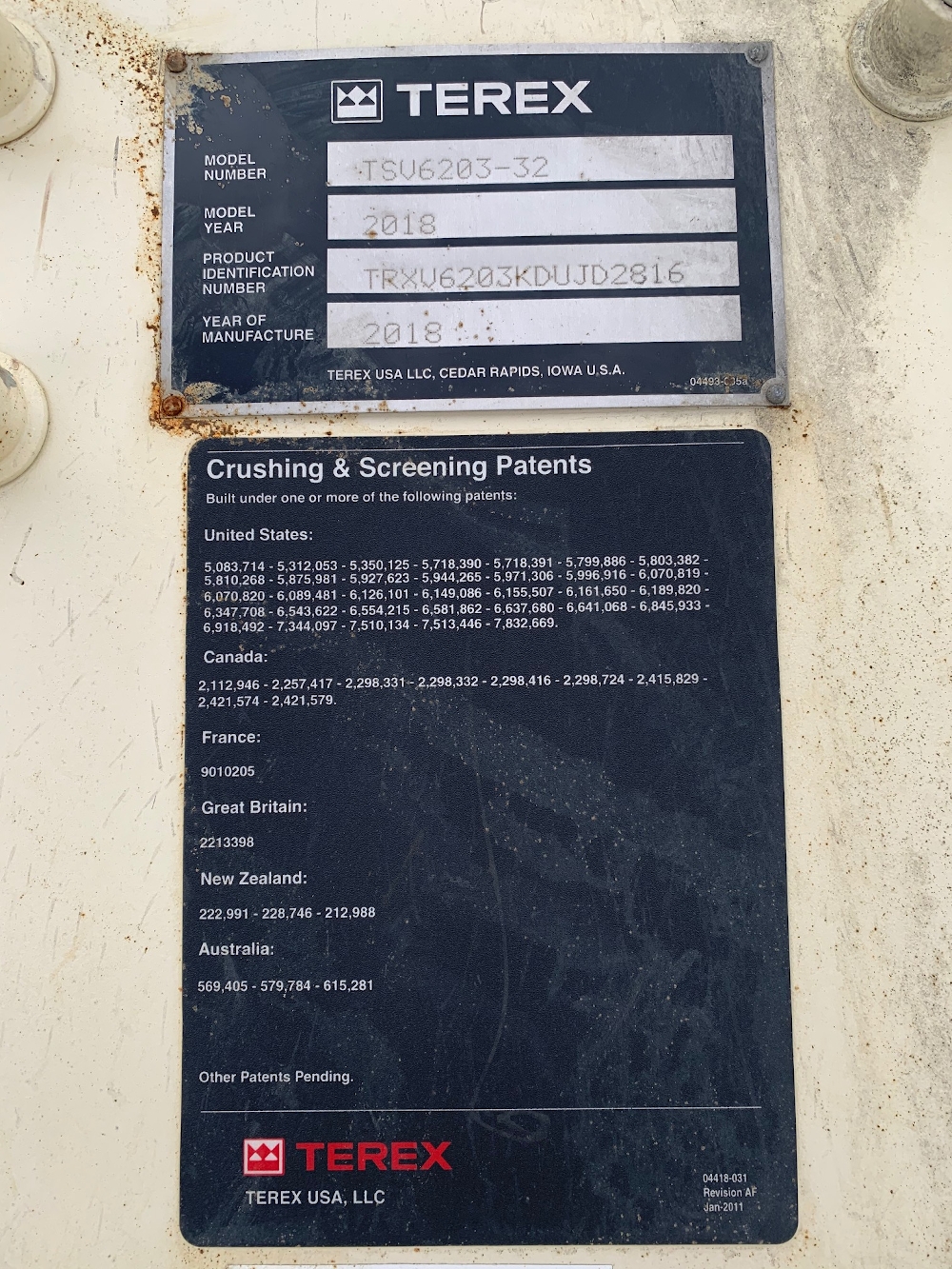

- Model: TSV6203-32
- Year: 2018
- Condition: Lightly Used.
- 3 Deck Screen:
- Top Deck 9/16" Screen.
- Middle Deck 5/32" screen.
- Bottom Deck 1/8" screen.
- Water Spray Bars and Nozzles.
- Screen Deck Mounted on Skids.

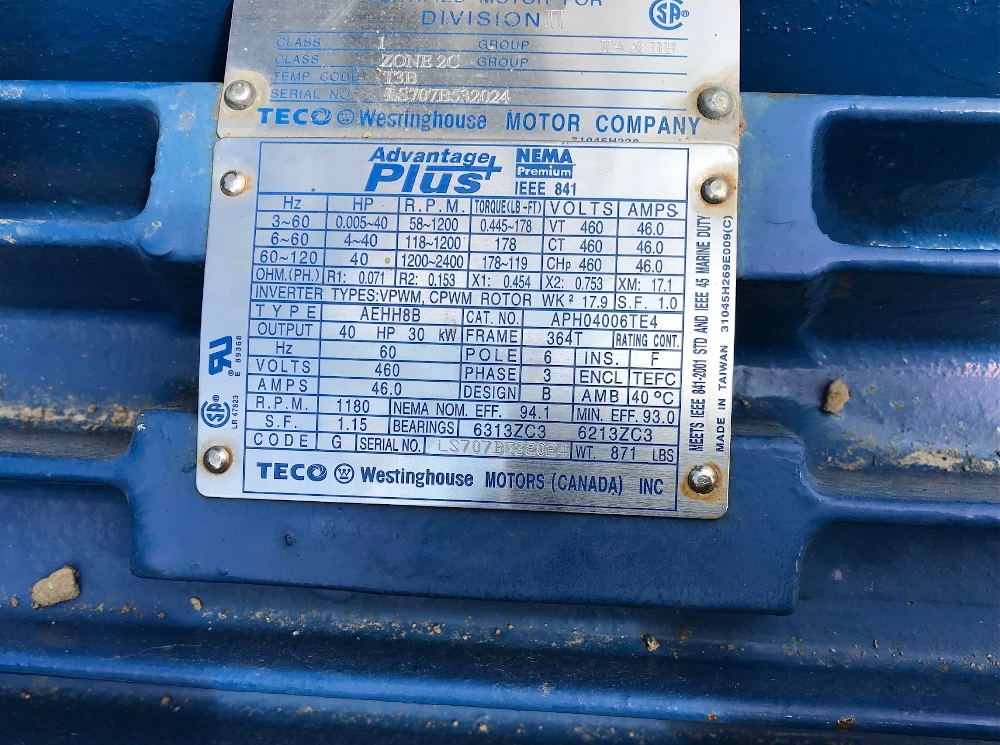

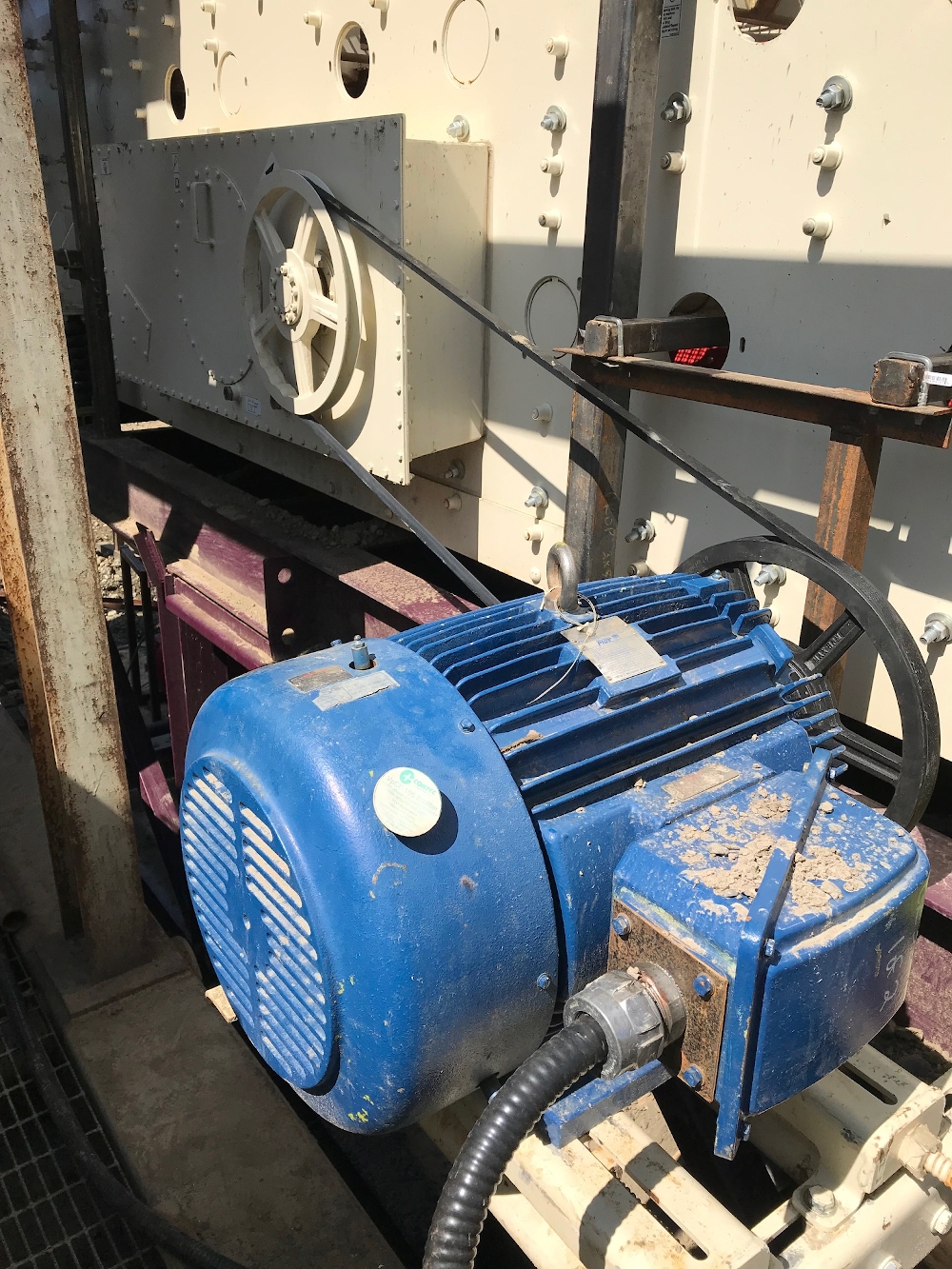

- Westinghouse 40 HP Electric Drive Motor,
- 480 volts,
- 60 Hz,
- 3 Phase,
- 364T Frame

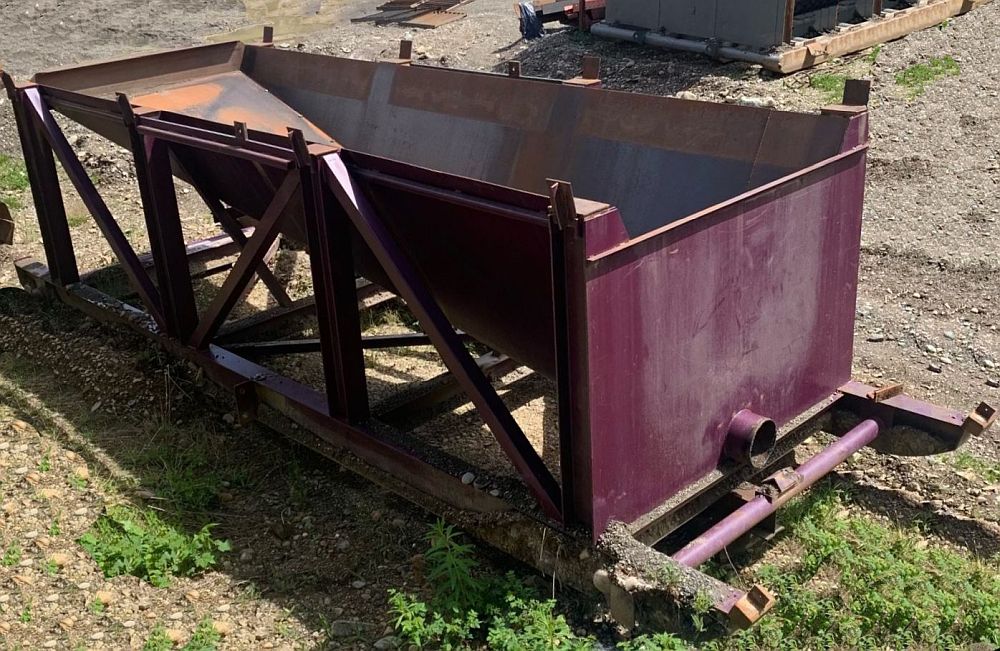

- Screen Operating Stand with Built-in Collection Hopper.
- Condition: Good Used
- Location: British Columbia, Canada
