Sold
This equipment has been sold
Contact us about sourcing a similar unit, or tell us if you have comparable equipment to sell.
Knelson KC-MD3 Concentrator
Inventory ID: 1178462
- Category: Gold Concentrators
- Availability: Sold
- 4 verified equipment photos
Equipment details

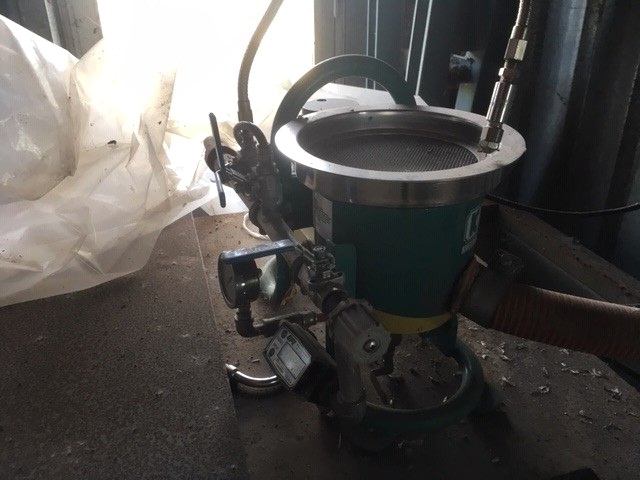

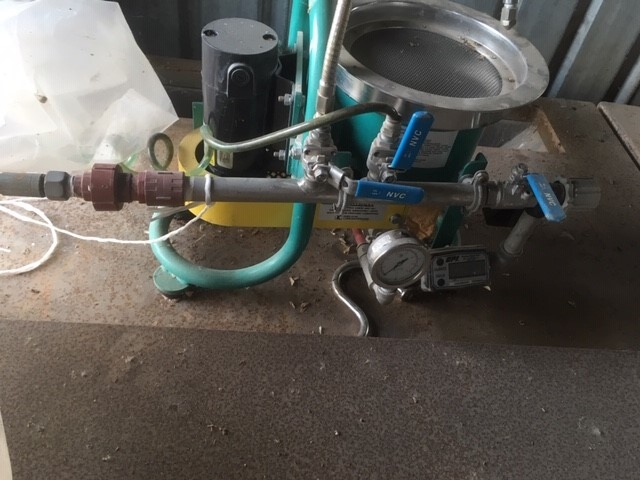

Knelson KC-MD3 Concentrator
- Make: Knelson
- Model: KC-MD3
- Type: Manual Discharge
- Solids Feed Capacity: 0-45kg/hr. (0-100lbs/hr.)
- Fluidization Water Required: 0.7-4.5 LPM (0.2-1.1 US GPM)
- Max Volumetric Throughput: 8 LPM (2 US GPM)
- Active Capture Area: 48cm² (7.4in²)
- Feed Size: Max 1.7mm (10 Mesh)
- Concentrate Volume: 58ml
- Concentrate Weight: 80-150g (0.13-0.33 Lbs.)
- Motor Power: 1/6HP
- Variable Speed Drive Included
- Overall Dimensions:
- Length: 470mm (18.5")
- Width: 344mm (13.5625")
- Height: 400mm (15.75")
- Weight: 61 Lbs
- Location: Uruguay
