Macon Industries SD-300 Screen Plant
Inventory ID: 1216724
- Category: Gold Wash Plants
- Availability: Sold
- 8 verified equipment photos
Equipment details

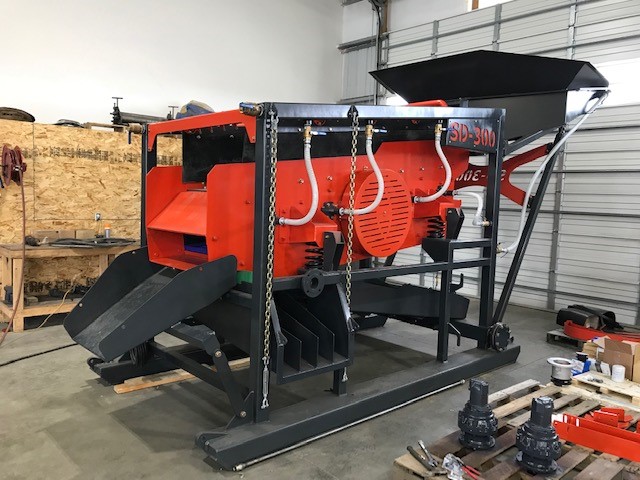

Macon Industries SD-300 Screen Plant
- Make: Macon Industries
- Model SD-300
- Capacity: 75 - 100 TPH (50yd³ Per Hour)
- Hours: Less Than 400 on Generator, Plant and Water Pump
- Condition: Good, Used
- Includes:

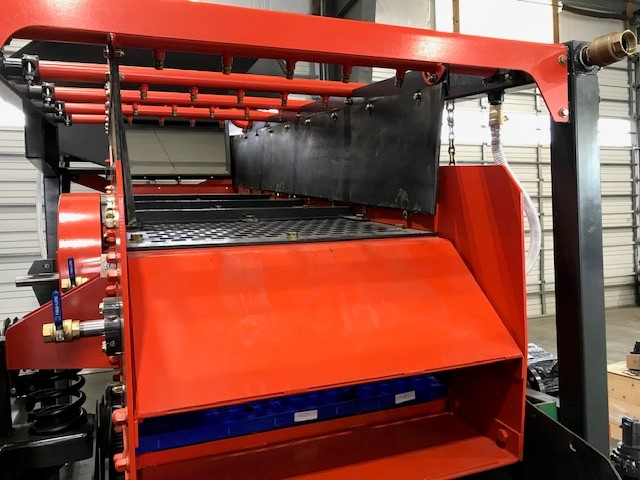

- 3ft X 8ft Inclined Double Screen Deck
- Top-Deck .375" Hardox Plate, with Custom Openings
- 5 Top Deck Spray Bars

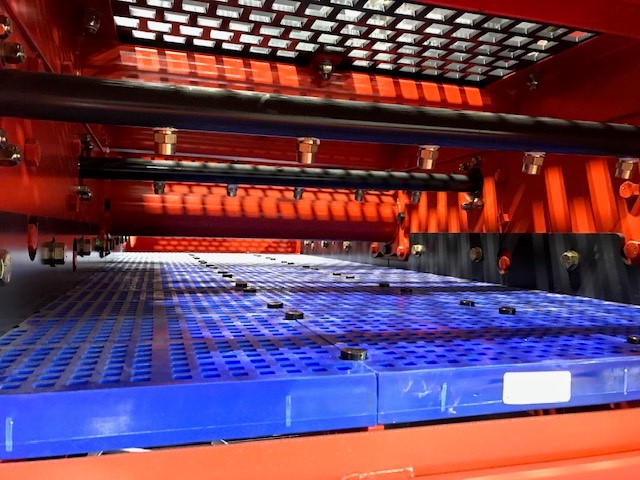

- Bottom-Deck TEMA Urethane Media with Custom Openings
- Tapered Discharge Lip with Wear Plates
- 7-Degree Decline Slope Setting
- Primary Sluice Run in Catch Tray with Riffles and 3M Matting
- Secondary 4ft X 6ft Recovery Table, Adjustable and 3M Matting

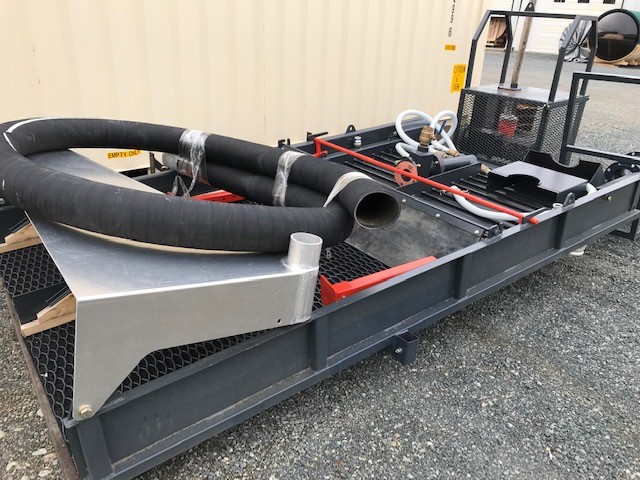

- Upgrade to 61in Wide x 10ft Long Sluice Run
- With Nugget Trap and Hydraulic Riffles
- Right-Hand Motor Drive
- 6in x 10in Diameter Tube Skids with 400F Wear Plates
- Tow Lugs on Four Corners
- Fully Welded Main Frame with Reinforced Deck Mounts
- 10HP Electric Motor with Belts, Pulley and Guarding
- Electrical Panel with Start and Stop Button
- Reinforced Hopper Body with Built-In Spray Bar
- Chain Fall for Hanging Distributor

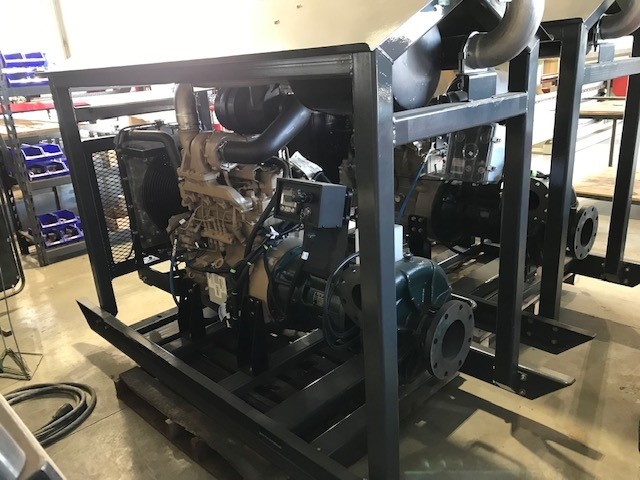

- 6in x 4in High Pressure Diesel Water Pump
- Bypass Valve at Water Inlet

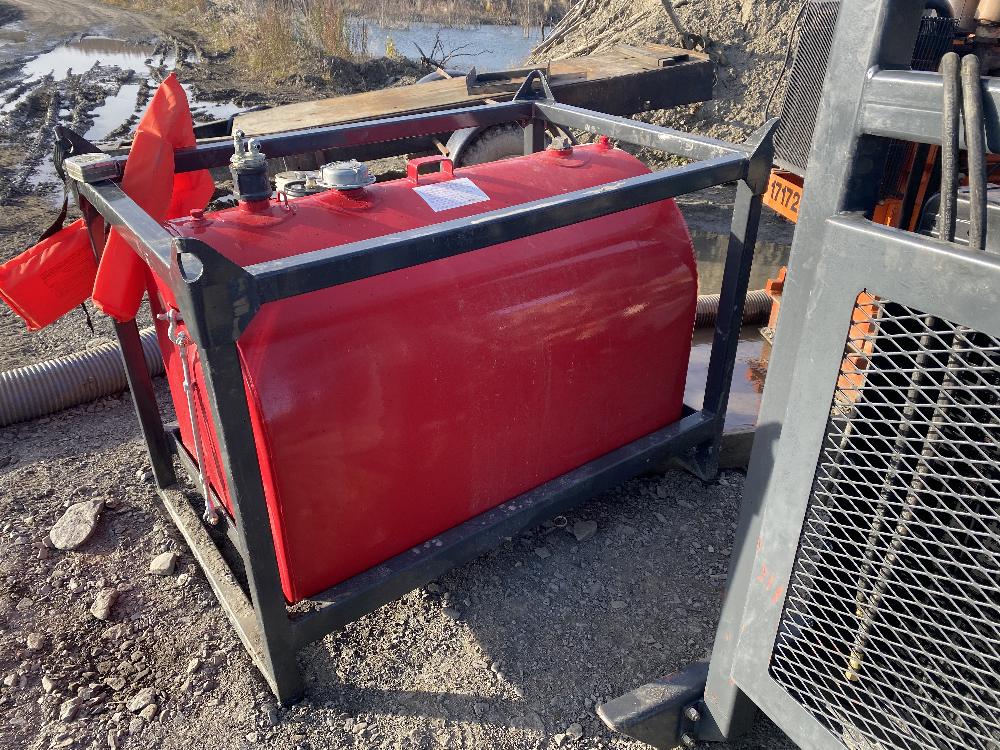

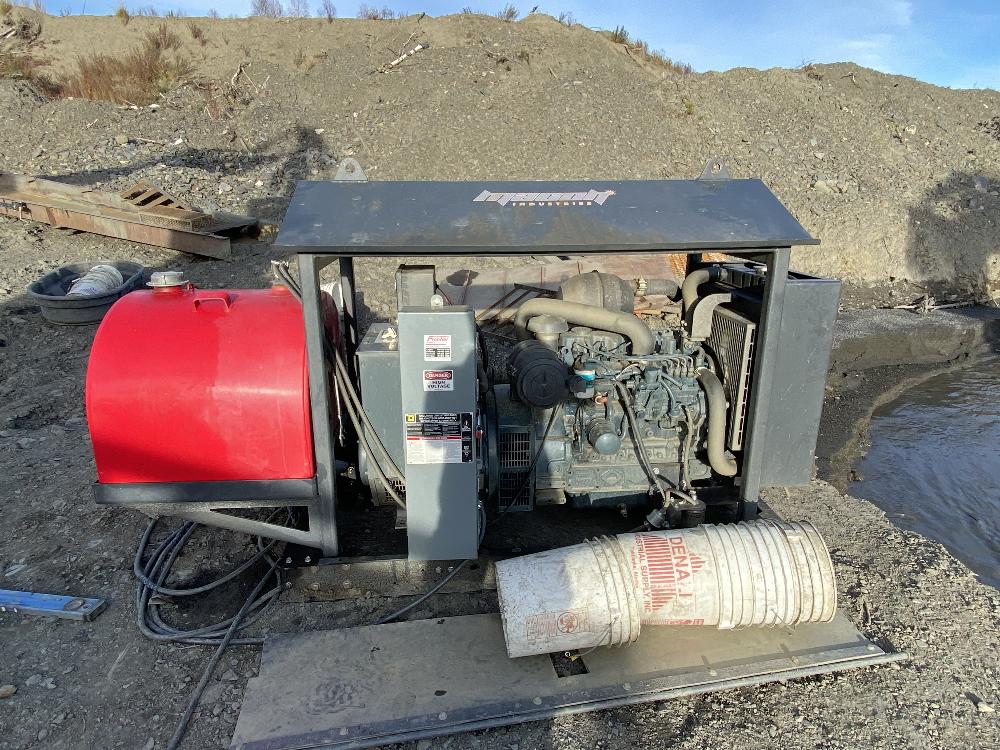

- 20kW Generator with Fuel Tank
- Location: Northwest USA
