Sold
This equipment has been sold
Contact us about sourcing a similar unit, or tell us if you have comparable equipment to sell.
IRD 42in Duplex Mineral Jig
Inventory ID: 1394557
- Category: Mineral Jigs
- Availability: Sold
- 2 verified equipment photos
Equipment details

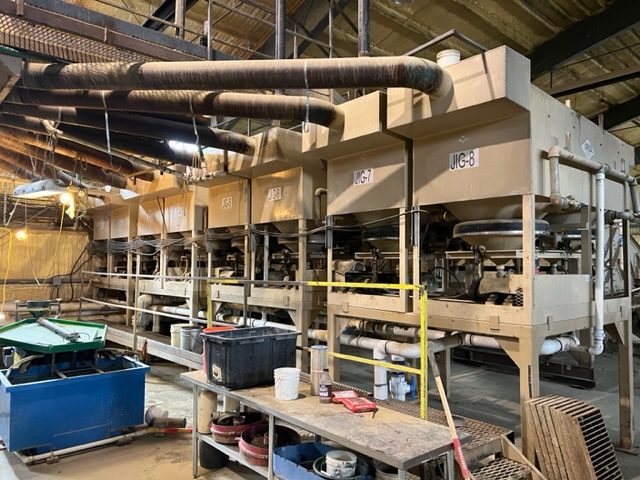

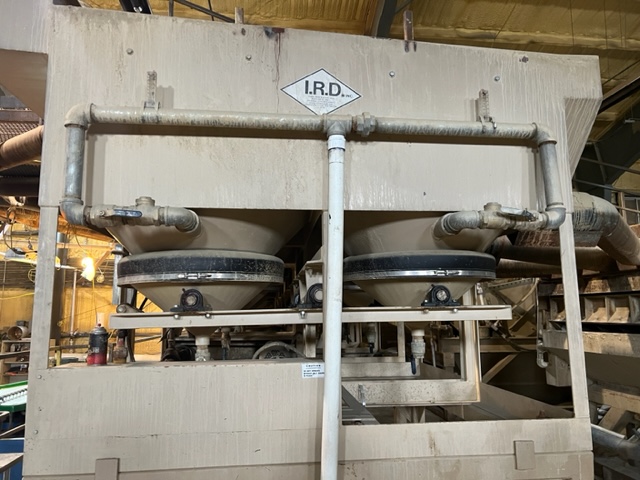

IRD 42in Duplex Mineral Jig
Quantity: 8 Units (To be Sold in Pairs)
- Make: IRD
- Size: 42in x 42in
- Type: Duplex Mineral Jig
- Style: Pan-American
- Condition: Used, In Good Working Order
- With Jig Shot
- Mounted on Stand in Pairs
- Specifications if Used as Rougher Jig:
- Max Capacity: 30 YPH
- Average Hutch Water Requirement: 80 GPM Per Cell
- Average Length of Stroke: 1.25 Inches
- Average RPM Eccentric Shaft: 130
- Power Installed: 3HP
- Approx. Power Consumed in Operation: 1.8HP
- Net Weight: 3,285 Lbs.
- Specifications if Used as Cleaner Jig:
- Max Capacity: 12 YPH
- Average Hutch Water Requirement: 50-70 GPM Per Cell
- Average Length of Stroke: 1/2 Inch
- Average RPM Eccentric Shaft: 150
- Power Installed: 3HP
- Approximate Power Consumed in Operation: 1.8HP
- Net Weight: 3,285 Lbs.
- View Spec Sheet Below
- Location: Central USA
