Netzsch NM125BY Progressive Cavity Pump
Inventory ID: 1401436
- Category: Positive Displacement Pumps
- Availability: Sold
- 13 verified equipment photos
Equipment details

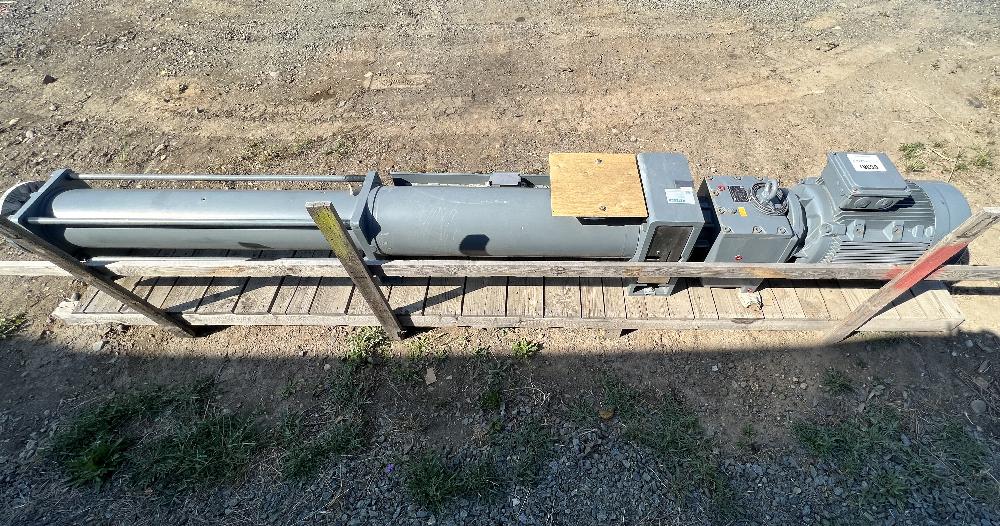

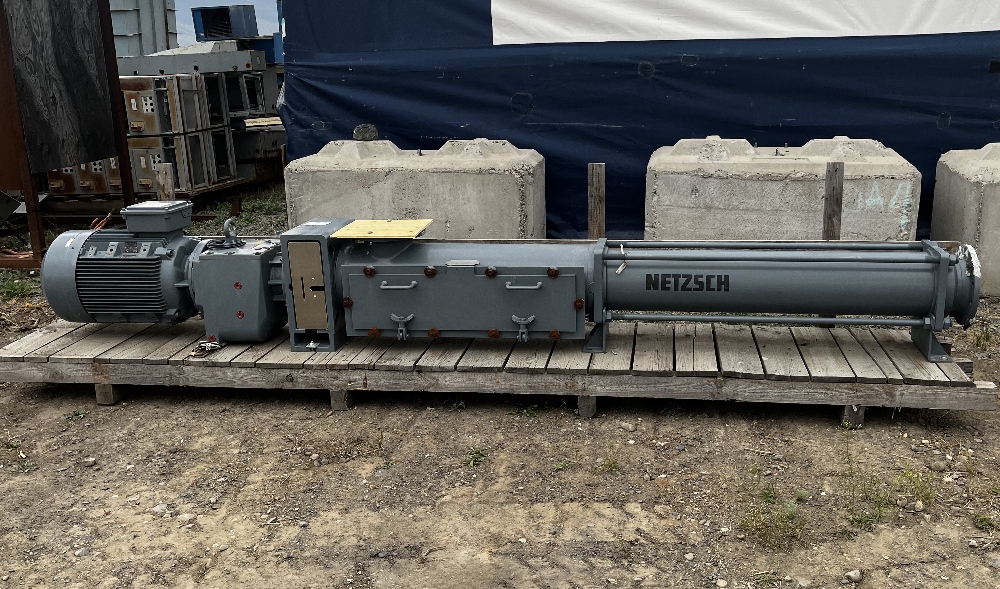

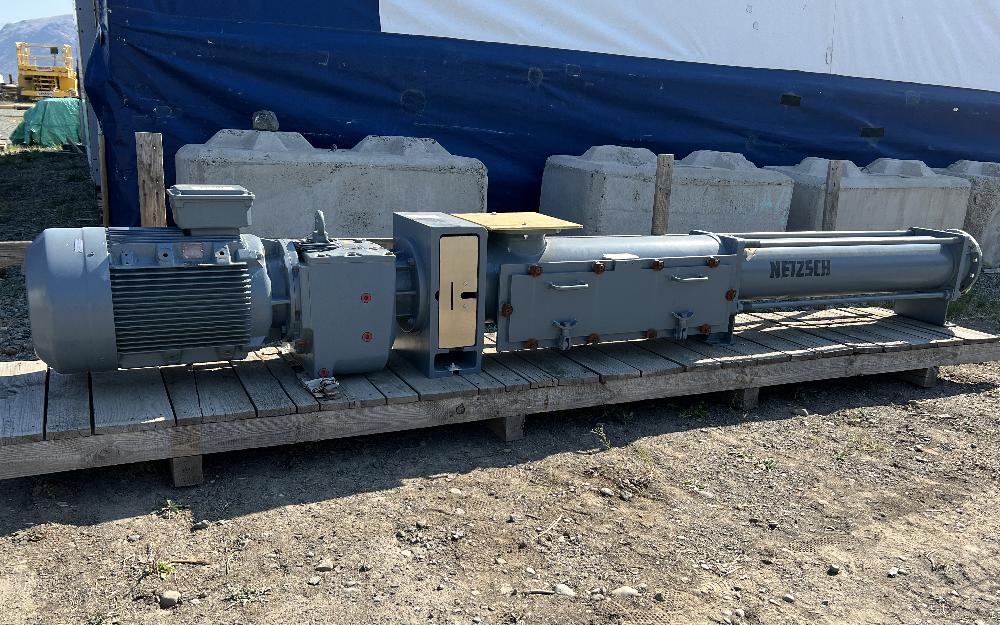

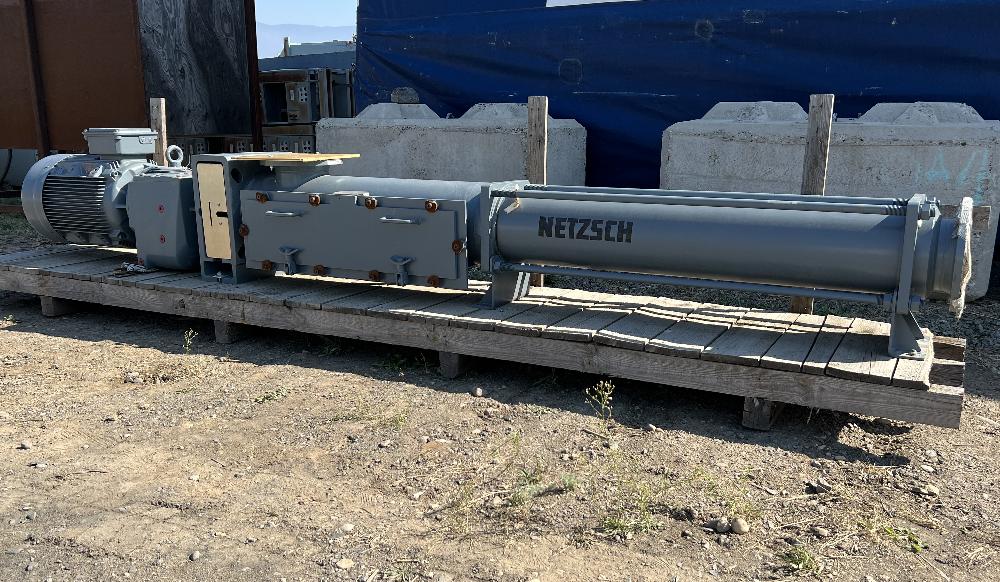

Netzsch NM125BY Progressive Cavity Pump
- Make: Netzsch

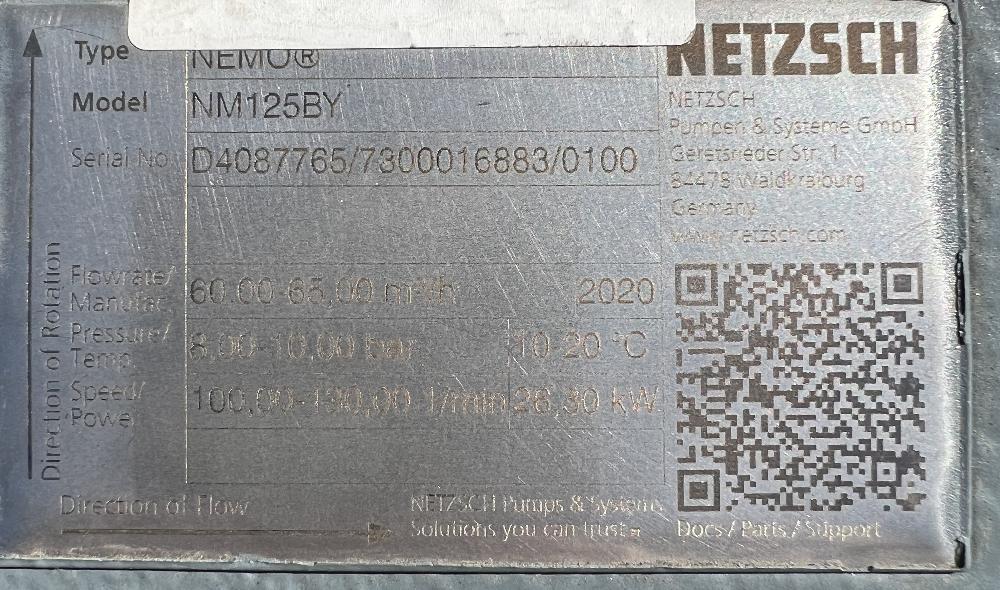

- Model: NEMO NM125BY
- Type: Progressive Cavity Pump
- Year: 2020
- Condition: New Surplus
- Flow Rate: 60-65m³/hr. (264-286 GPM)
- Pressure Rating: 8.0-10.0 bar (116-145 PSI)

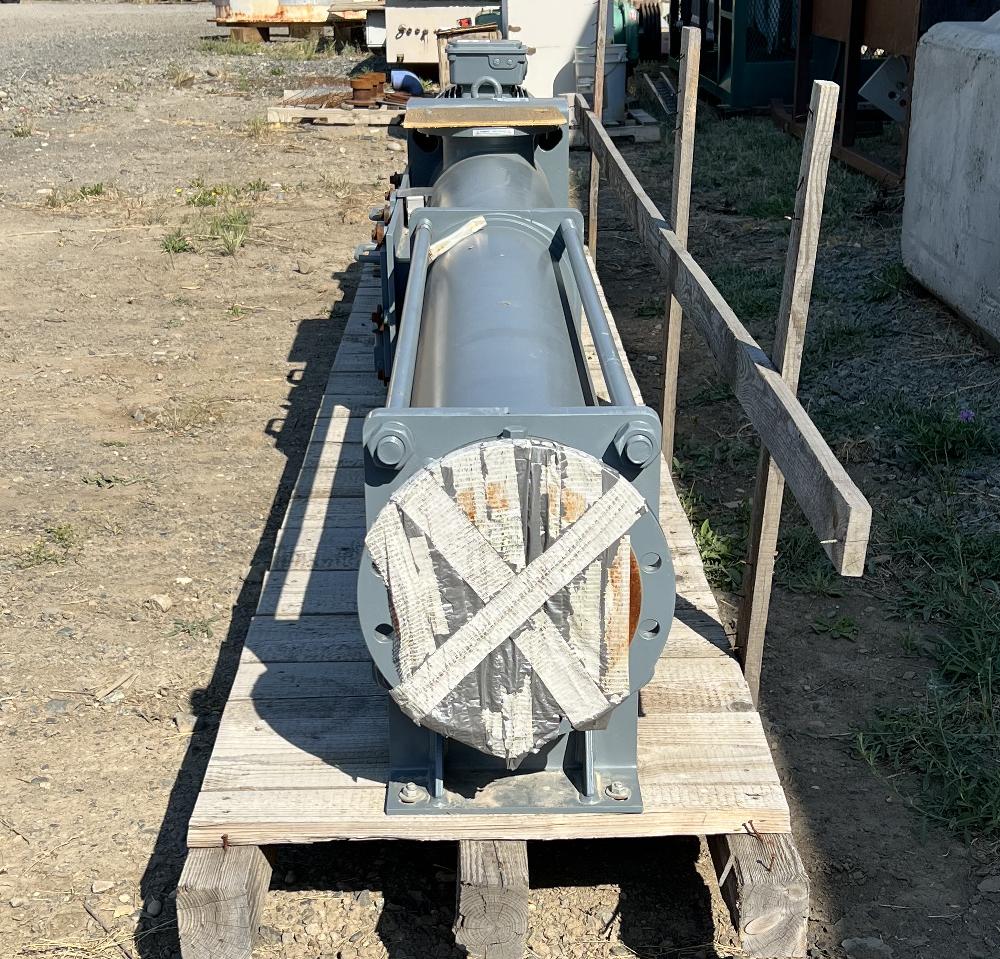

- Intake: 8in (Flanged 13.25in)
- Discharge: 8in (Flanged 13.25in)

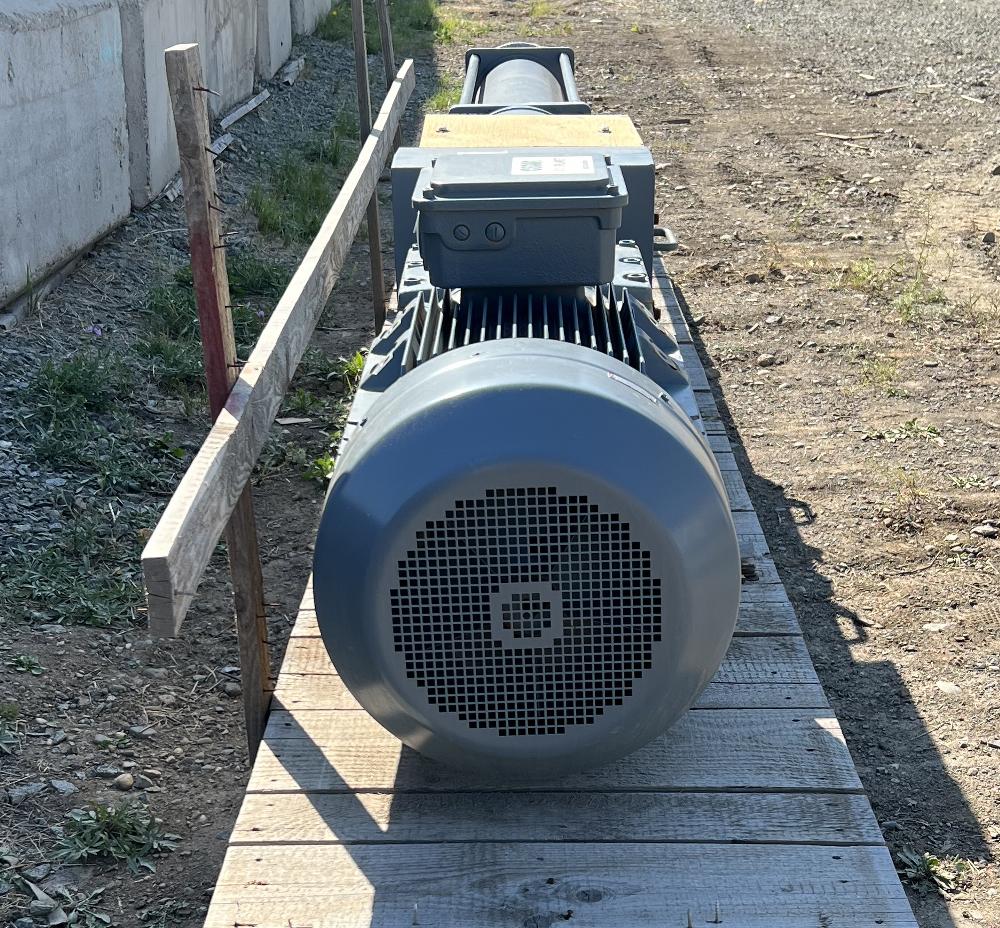

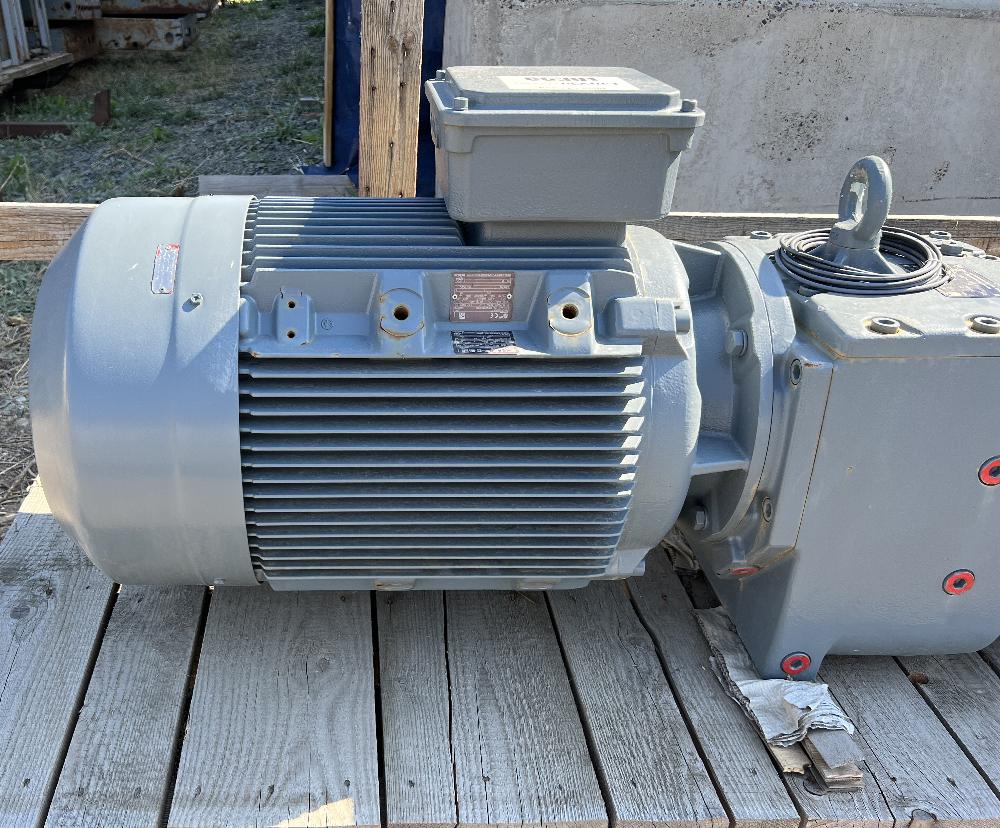

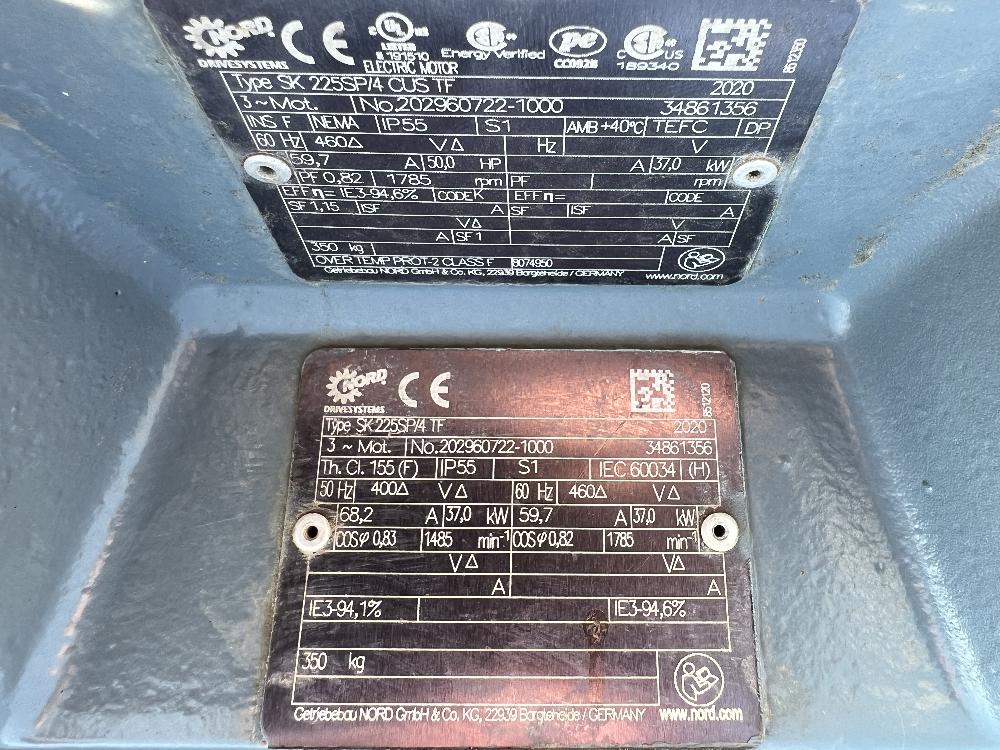

- Drive: Nord Drivesystems Electric Motor
- Model SK 225SP/4CUSTF
- Power Output: 50HP (37kW)
- Speed: 1785 RPM (1485 RPM @50Hz)
- Voltage: 460 Volts (400 Volts @50Hz)
- Current: 59.7 Amps (68.2 Amps at 400 Volts)
- Frequency: 60Hz or 50Hz

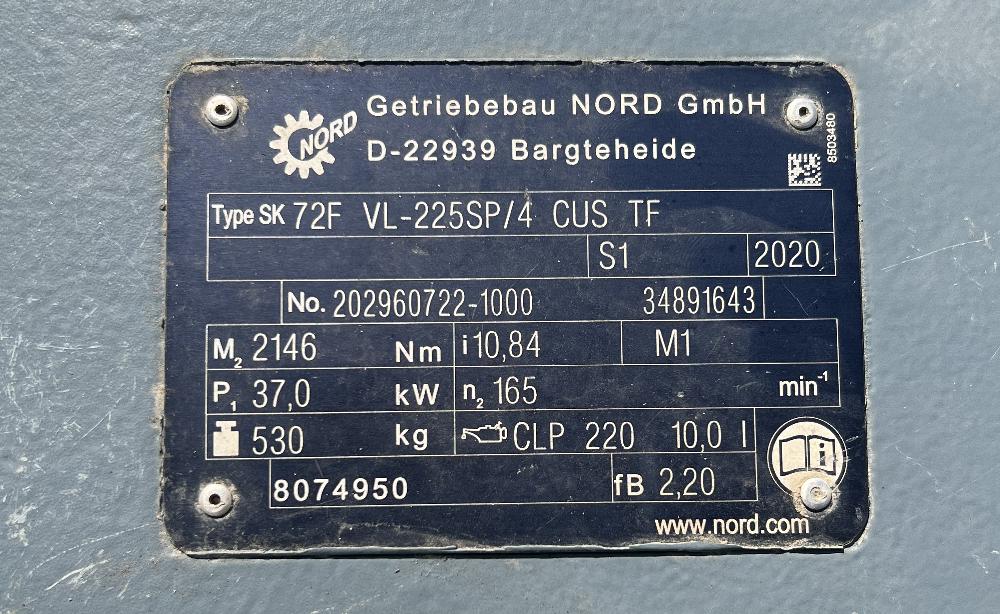

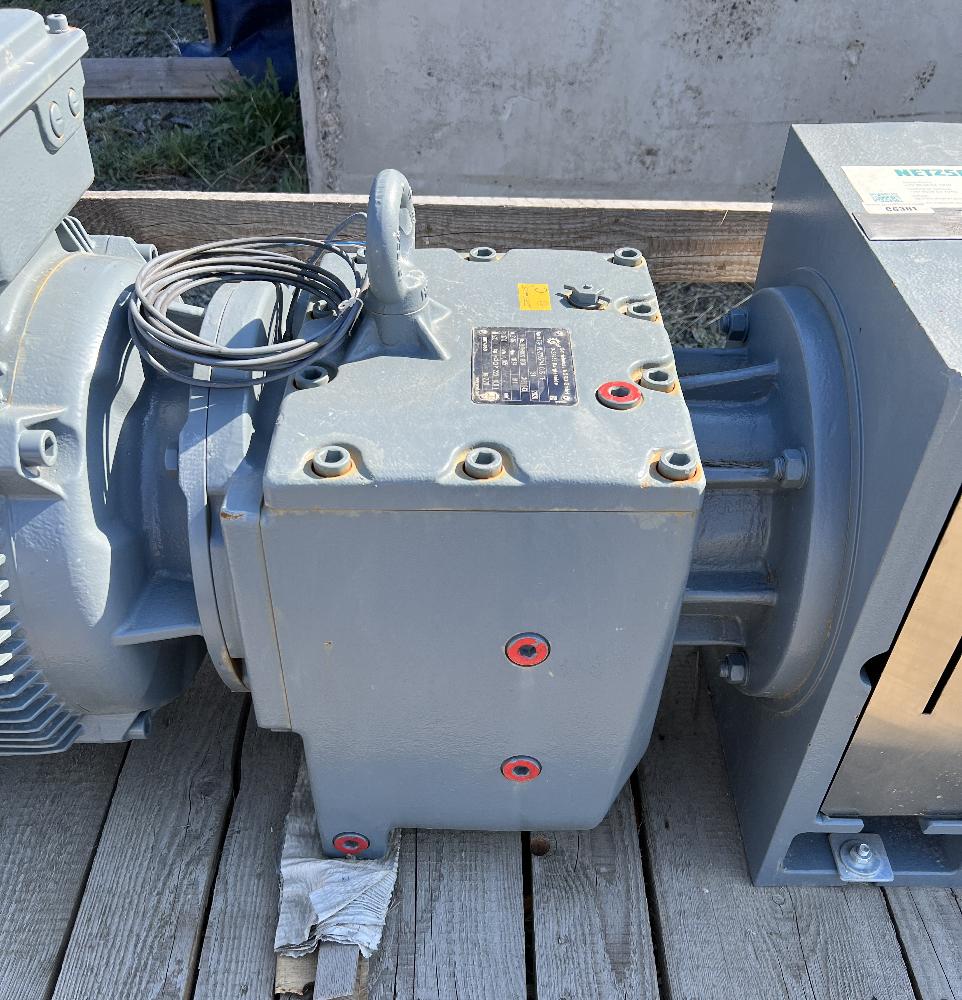

- Gearbox: Nord SK72F VL-225SP/4CUSTF
- Ratio: 10.84-1
- Ratio: 10.84-1
- Overall Dimensions:
- Length: 164in
- Width: 16.25in
- Height: 26in
- Location: Savona, British Columbia, Canada
