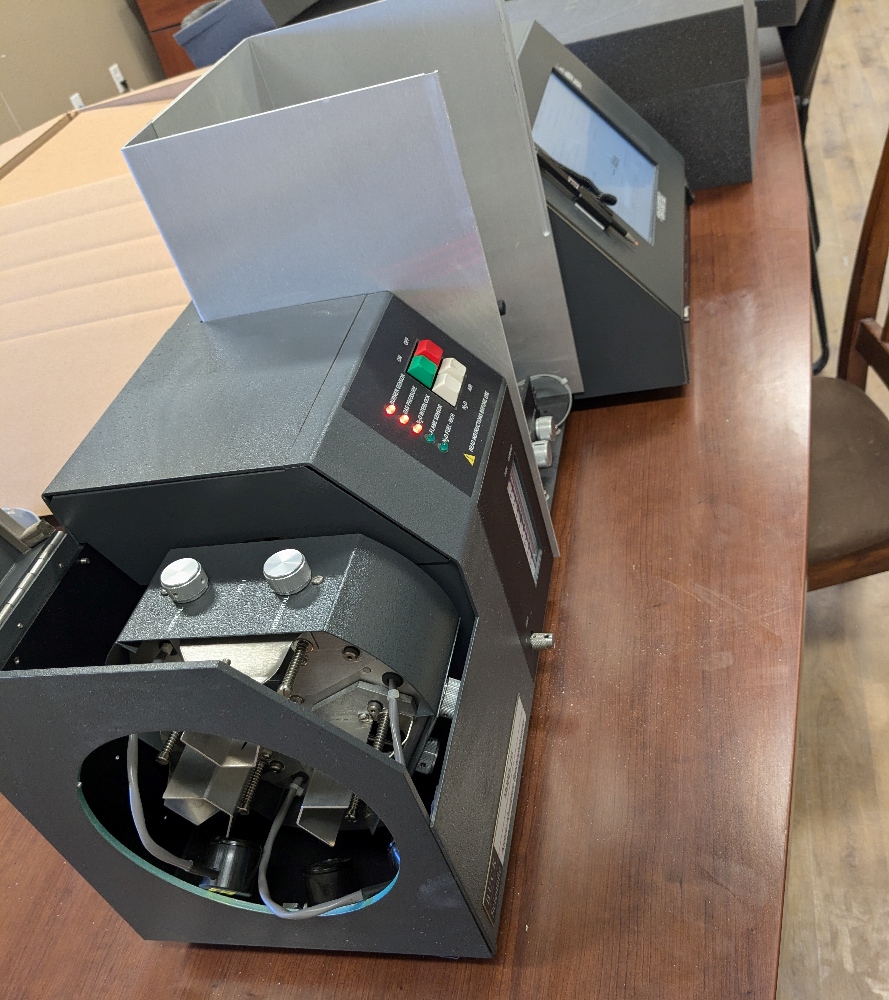

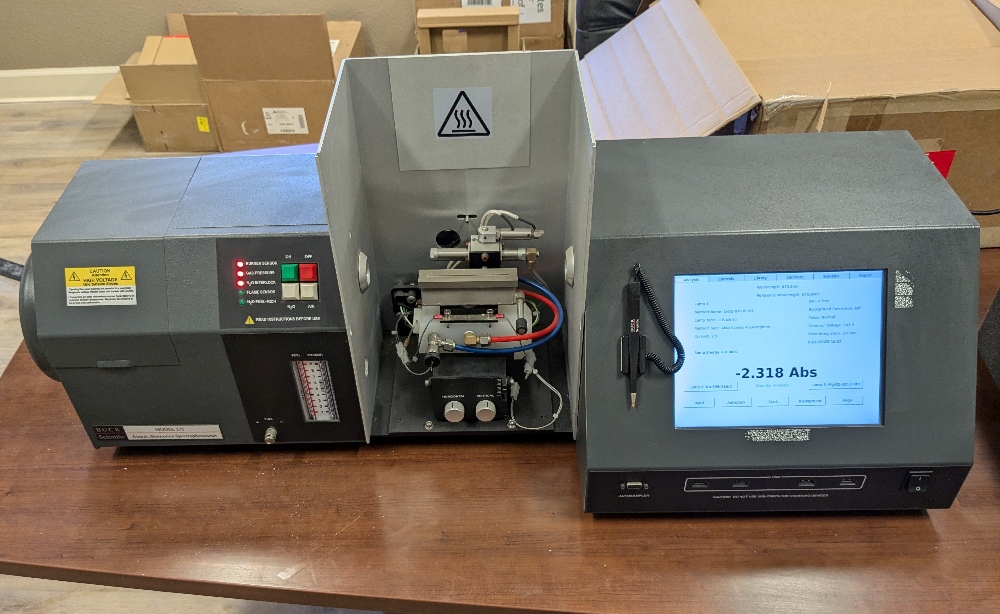

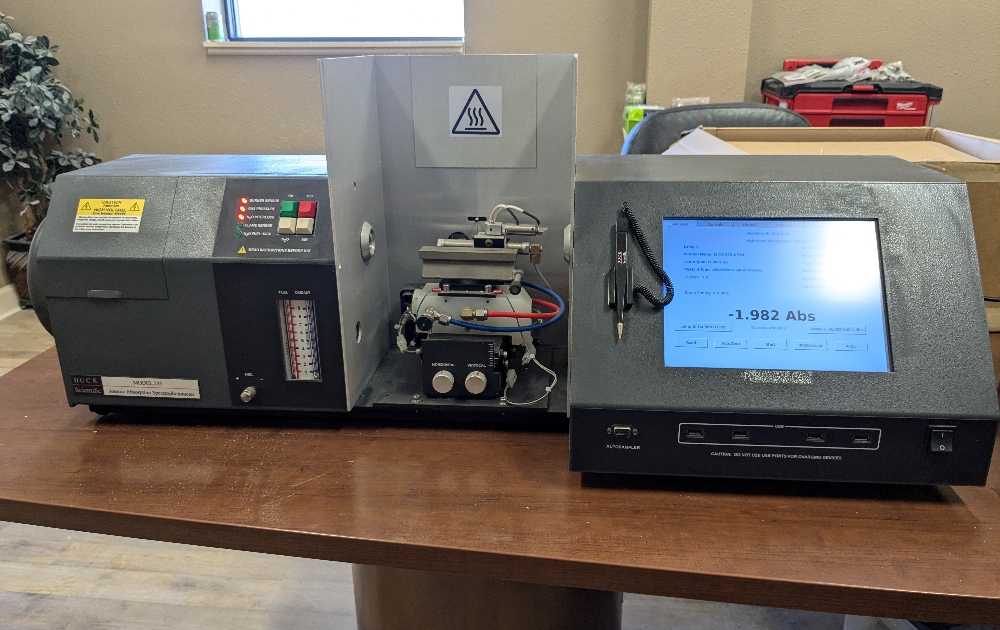

Buck Scientific 235ATS Atomic Absorption Spectrophotometer (AA Machine)

Equipment details

Buck Scientific 235ATS Atomic Absorption Spectrophotometer (AA Machine)

• Make: Buck Scientific
• Model: 235ATS
• Type: Atomic Absorption Spectrophotometer - AA Machine
• Style: ATS (Automated Touch Screen)
• Condition: Used Condition
  • Ran (1) Year - Approx. 300 Samples
  • In Storage for 1.5 Years

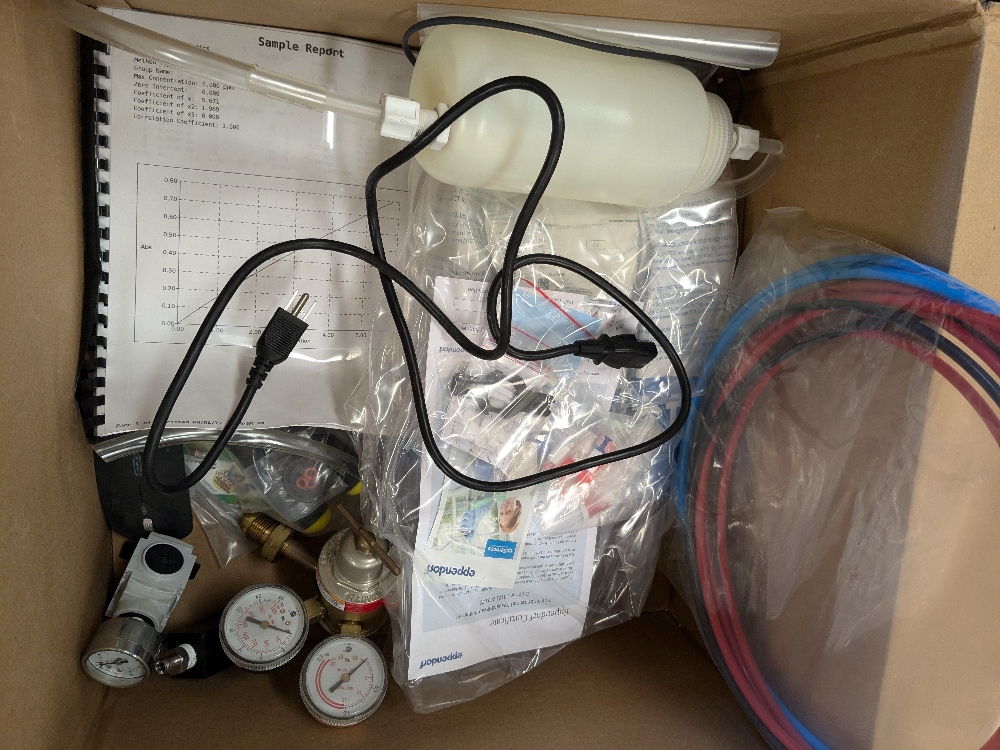

• Included:
  • BS303-0106 - Acetylene Regulator & Flash Arrestor

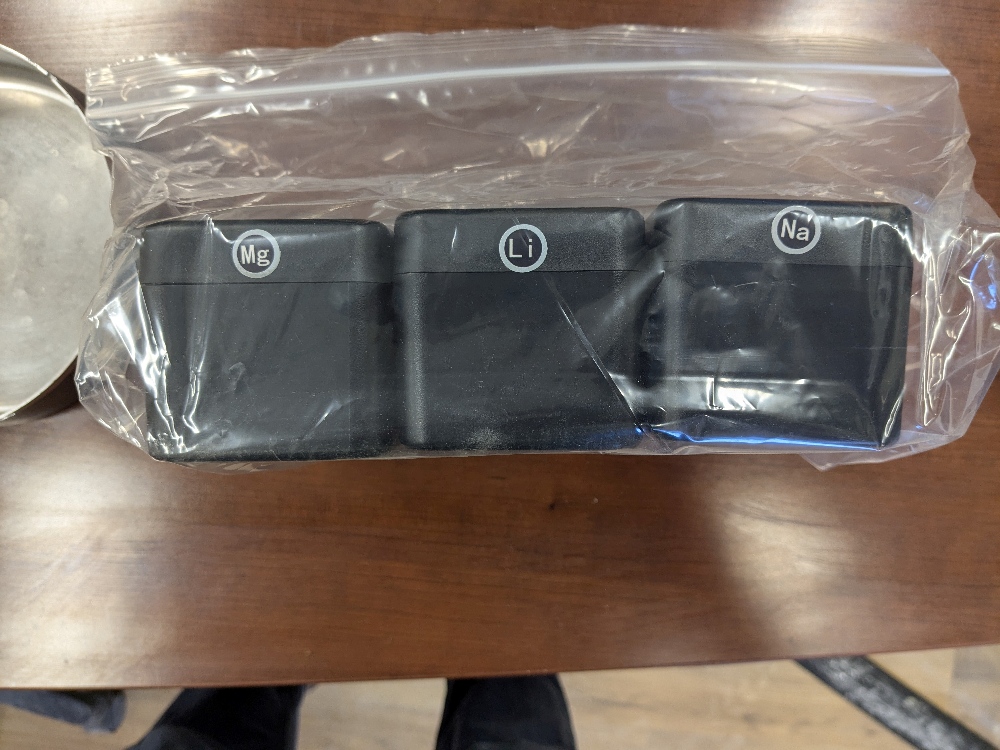

  • (3) 41-xx - Hollow Cathode Lamps (Li, Mg, Na)
  • BS30042 - Minor AA Spares Kit

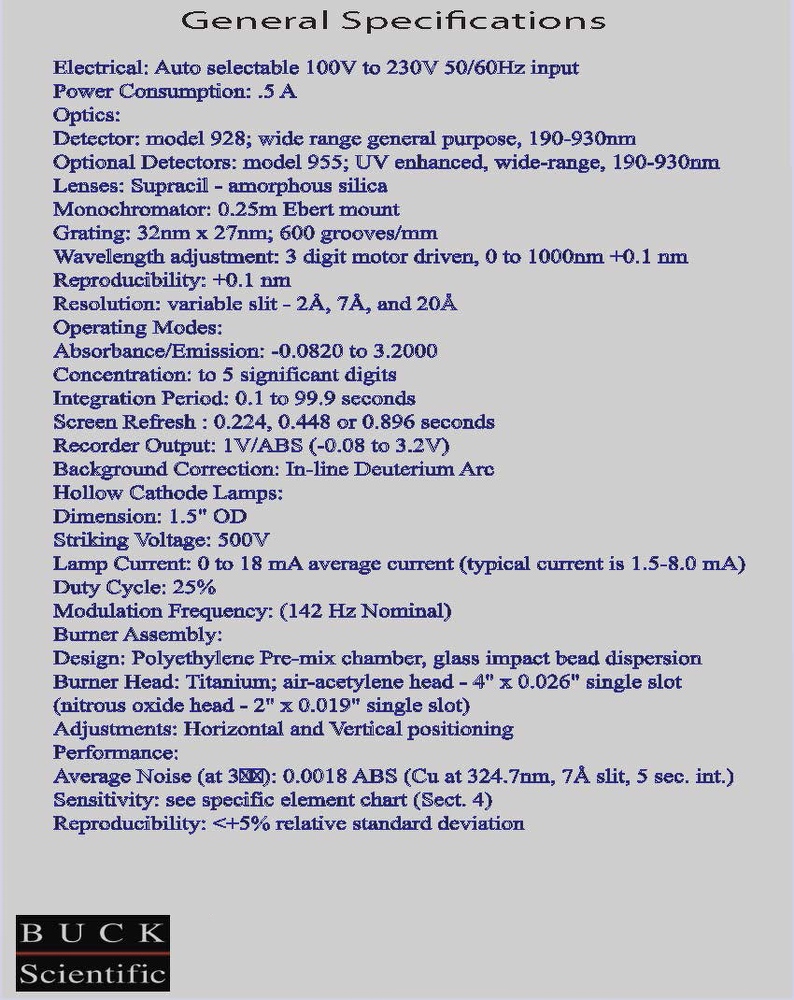

• General Model Specifications:

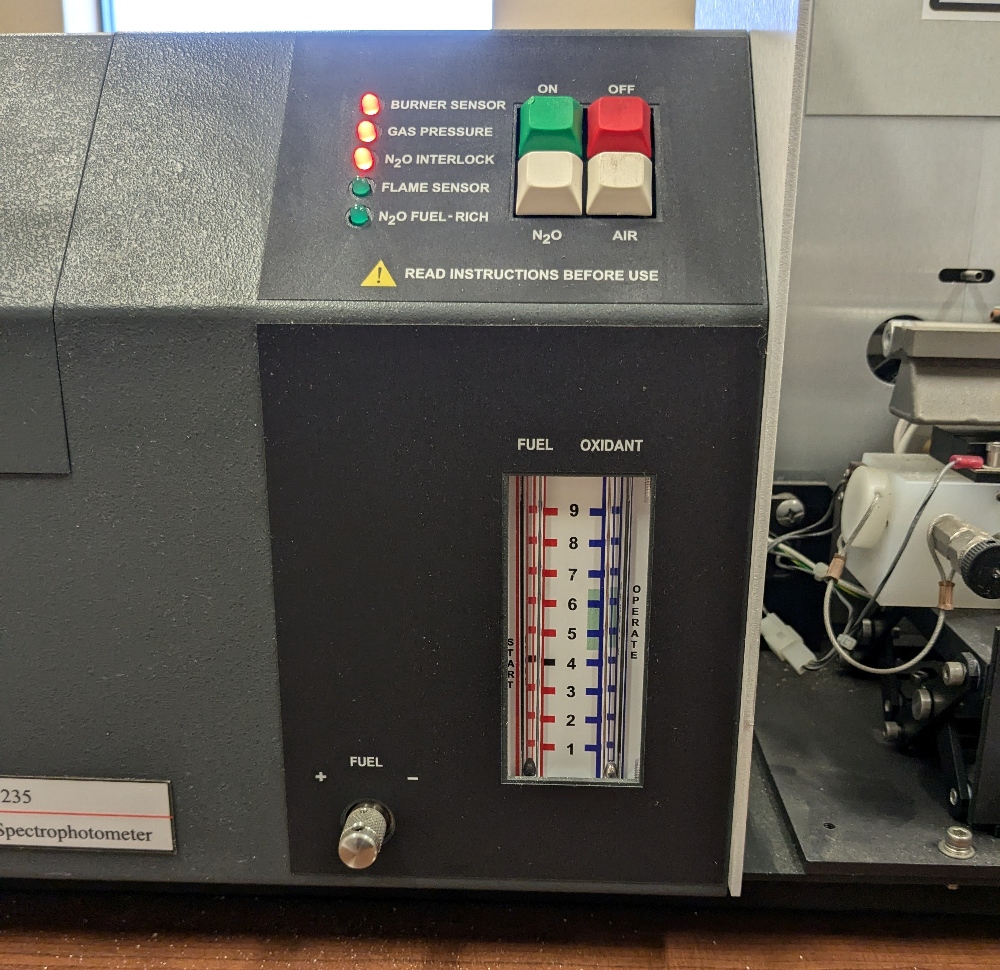

  • Usage: For analysts requiring nitrous oxide to run Al, Si, Ga, Ge Ba, Be, Ti, Va, Zr, Nb, Mo, Hf, Ta, and W. The automated gas box allows for push button oxidant change-over, from Air to Nitrous oxide for safety. The 235ATS also features a flame detector, which will turn the gases off shall the flame extinguish.
  • Wavelength Range: 190 to 900nm, Accuracy ± 0.2nm, Precision ± 0.1nm
  • Monochromator/Optics: 250mm Ebert mount, 600 lines/mm grating, 0.2-0.7-2.0nm bandpass
  • Hollow Cathode Lamp Supply: Triple HCL power supply; 3 to 75 mA peak.
  • Background Correction: Deuterium - In-Line (see-through) configuration, pulsed illumination, hot cathode, variable frequency, corrects from 190-350nm (0.7nm slit).

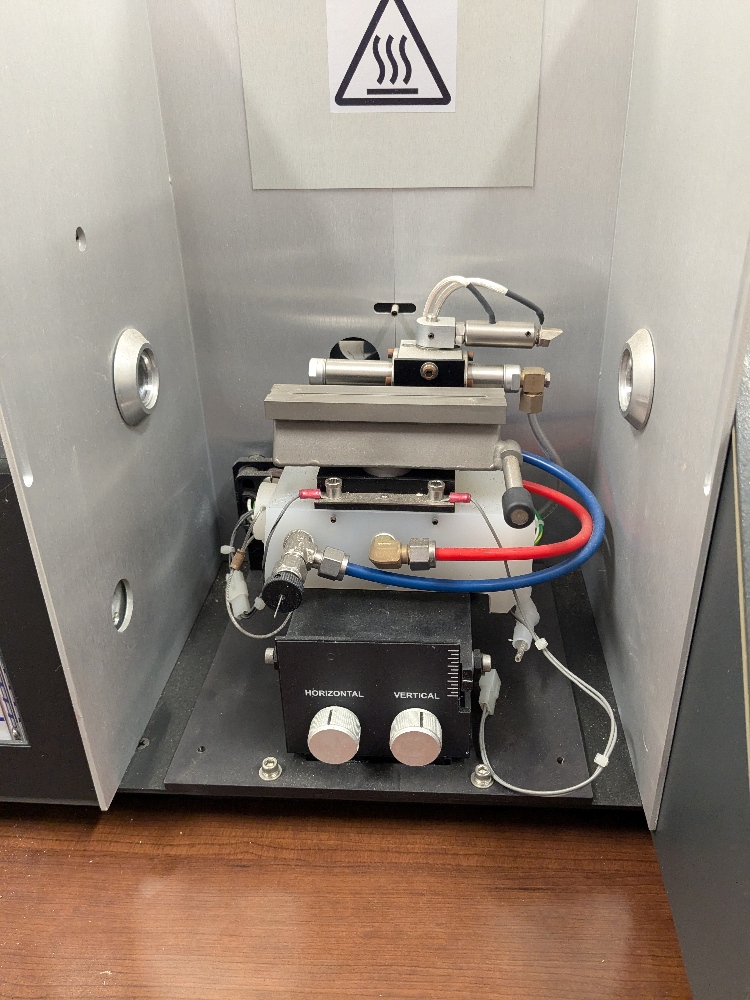

  • Burner/Nebulizer: Polypropylene spray chamber with pre-mix burner and high efficiency adjustable nebulizers (SS), Titanium burner heads for Air/Acetylene, Argon/Hydrogen and Nitrous Oxide/Acetylene operation.
  • Microprocessor: Computer control by 80C188 chip, 8/16 bit operation, 12/24 MHz clockspeed; non-volatile SRAM storage of >200 method files.
  • Integration/Response Range: User selectable times from 0.5 to 10 seconds for continuous (flame) and transient (furnace, hydride) signals.
  • Calibration: Automatic, weighted least squares fit to 1st, 2nd, 3rd, or 4th order functions, up to 8 points.
  • Display: 10" Color touchscreen
  • Output Modes: USB x 4
  • Dimensions / Weight: 39" L x 11" W x 12" H; 50 lbs (81 lbs. shipping weight)

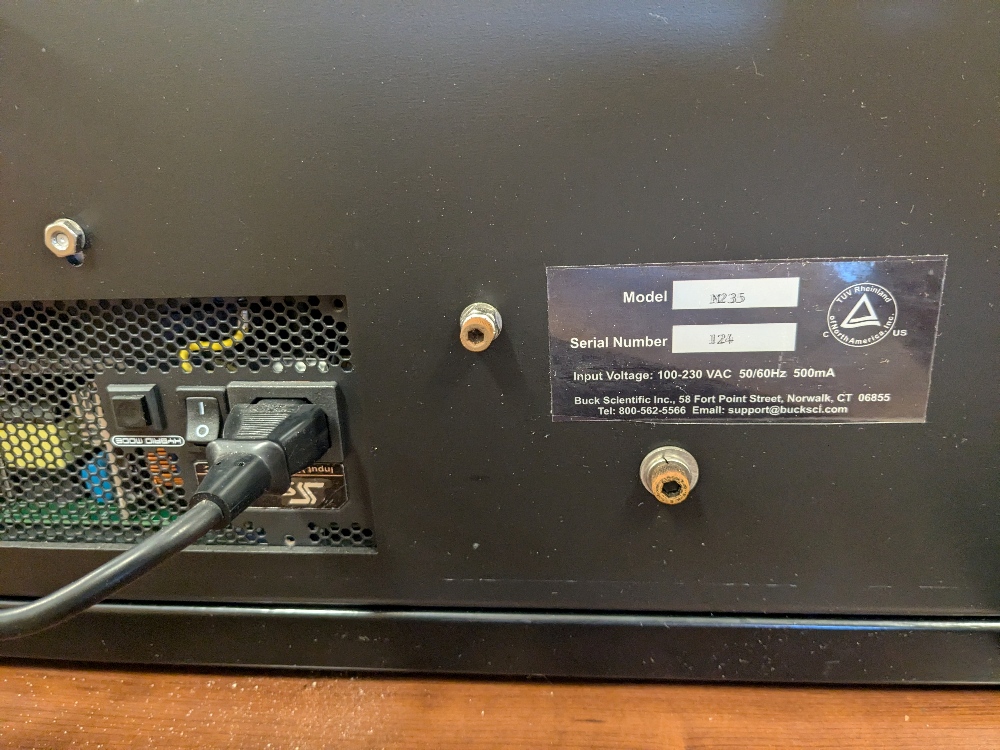

  • Power Supply: 100-240 VAC operating range, 50/60 Hz AC, <150 watts


• Location: Central USA
