Allen Bradley 10 Bank Center Line 2100 Series MCC Panel

Equipment details

• Bank of 10.
• Vertical amps: 300.
• Horizontal amps: 1,000.
• Bank 1:

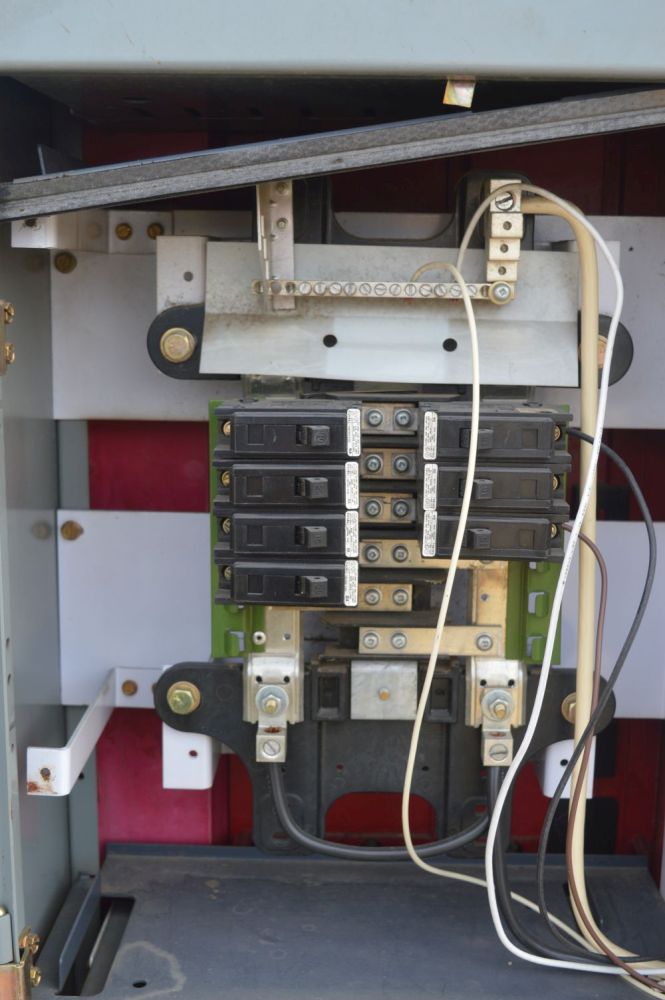

  • 12 circuit breaker panel:
    • 2 – 30 amp single pole breaker.
    • 1 – 20 amp single pole breaker.
    • 1 – 20 amp single pole breaker.
    • 4 – 15 amp single pole breaker.
  • 30 amp fusible disconnect.
    • 2 – 20 amp fuses.

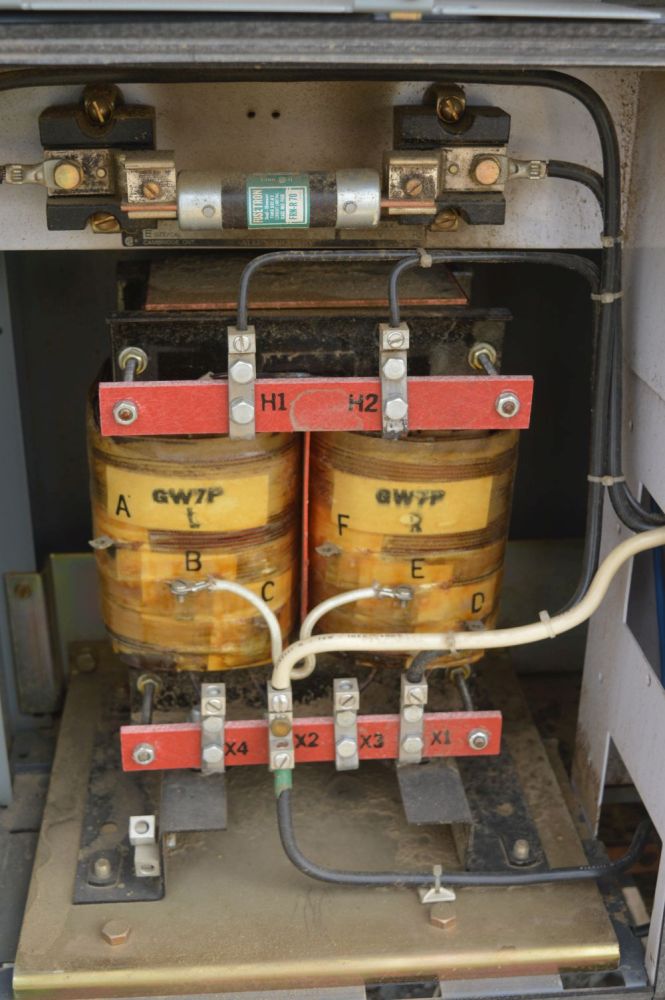

  • Includes transformer.
• Bank 2:
  • 60 amp fusible disconnect.
  • Size 2 starter.
    • 60 amp fusible disconnect.
    • 3 – 50 amp fuses.
    • Overload: W64.
• Bank 3:
• Size 3 starter.
• 100 amp fusible disconnect.
• Bank 4:
  • 100 amp fusible disconnect.
• Bank 5:
• Size 1 starter.
• 30 amp disconnect.
• 6 – 20 amp fuses.
• Bank 6:
  • Size 1 starter.
    • 30 amp disconnect.
    • 6 – 30 amp fuses.
  • 30 amp fusible disconnect.
• Bank 7:
  • Size 1 starter.
    • Qty: 4.
  • 30 amp fusible disconnect.
• Bank 8:
  • Westinghouse 600 amp interrupter breaker.
• Bank 9:
  • 30 amp fusible disconnect.
• Bank 10:
  • 30 amp fusible disconnect.
• Location: British Columbia, Canada.
