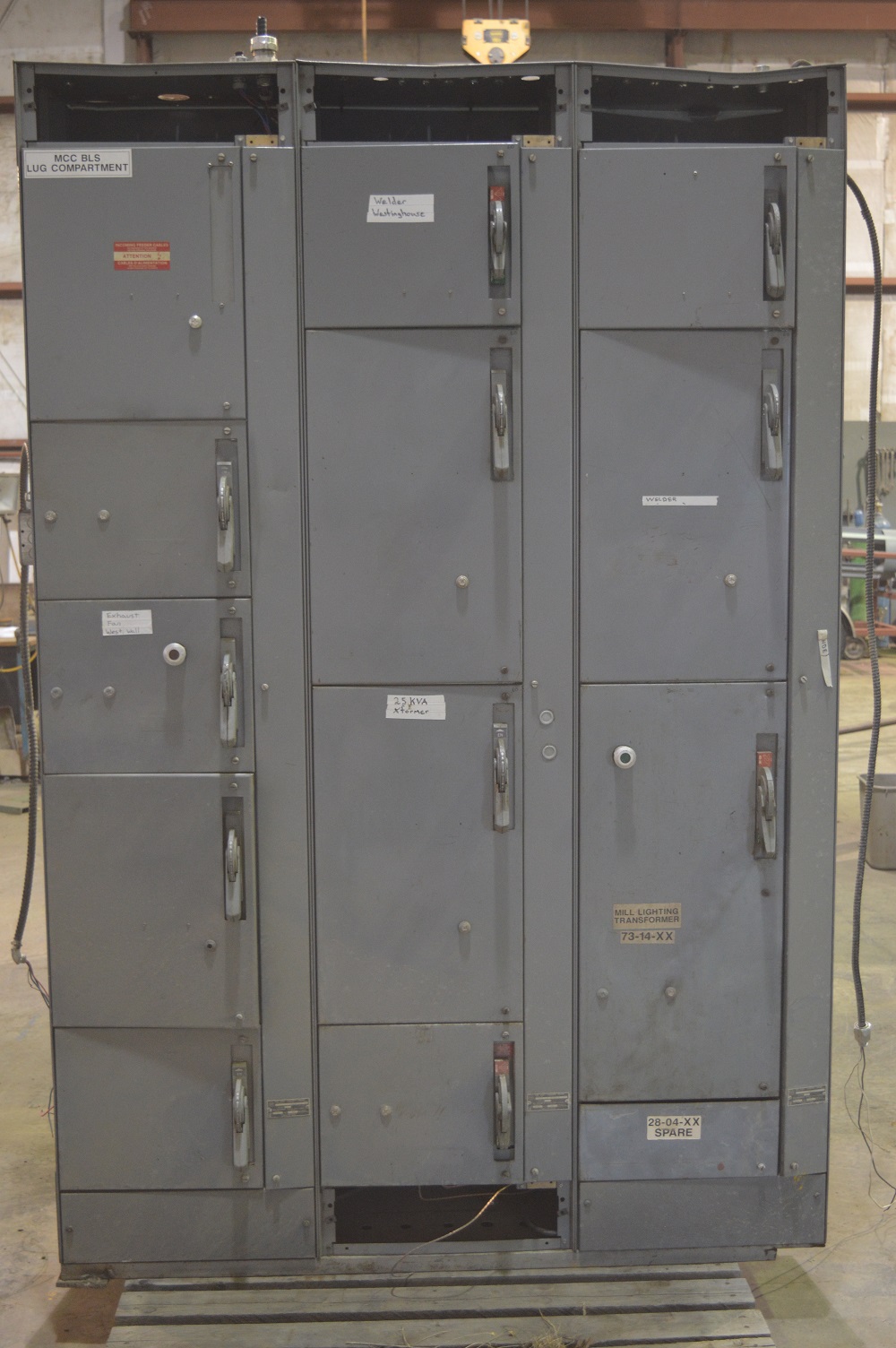

Allen Bradley 2100 Series MCC Panel

Inventory ID: 227688

Category: MCC Sections
Availability: Available
14 verified equipment photos

Equipment details

Bank of 3

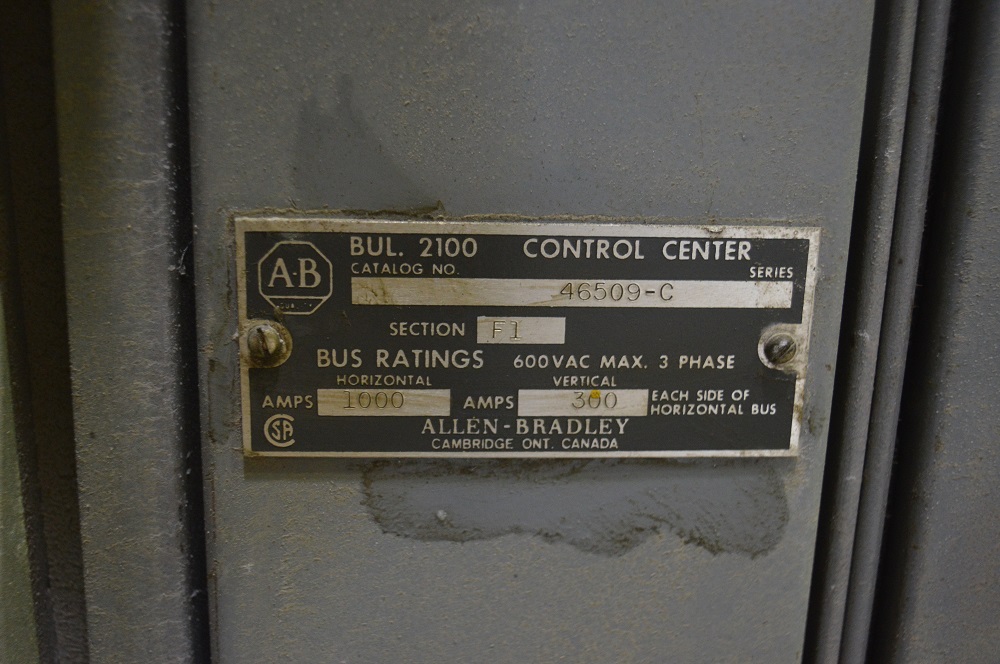

Vertical Amps: 300
Horizontal Amps: 1000

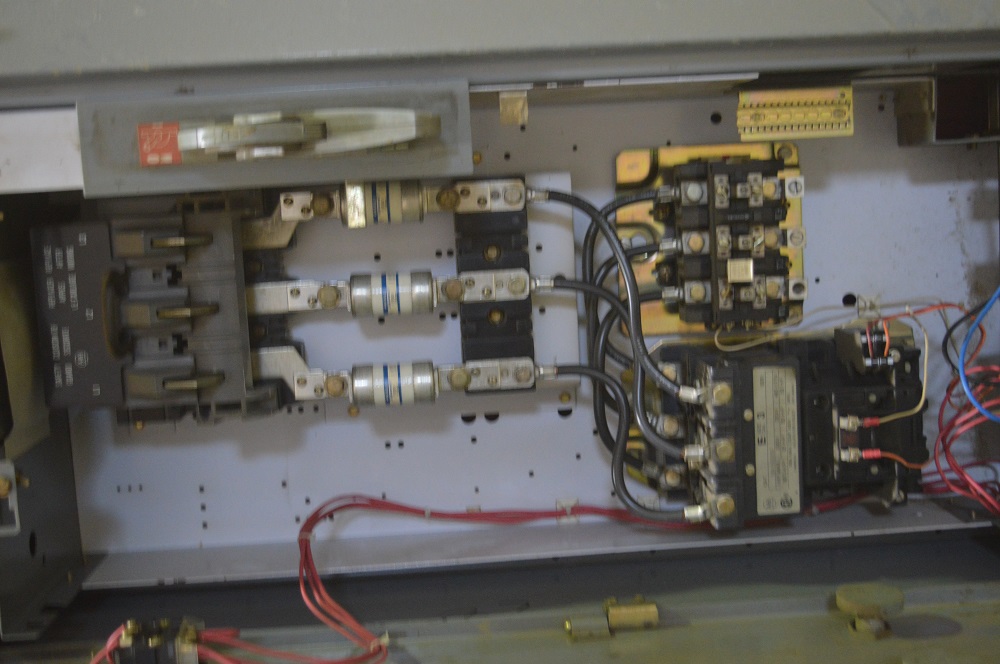

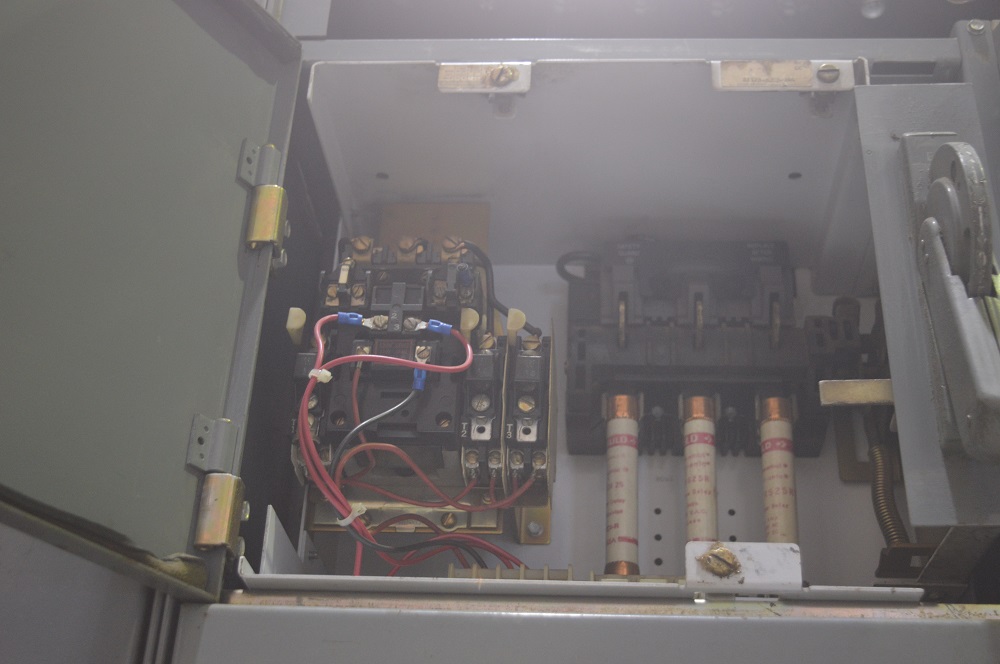

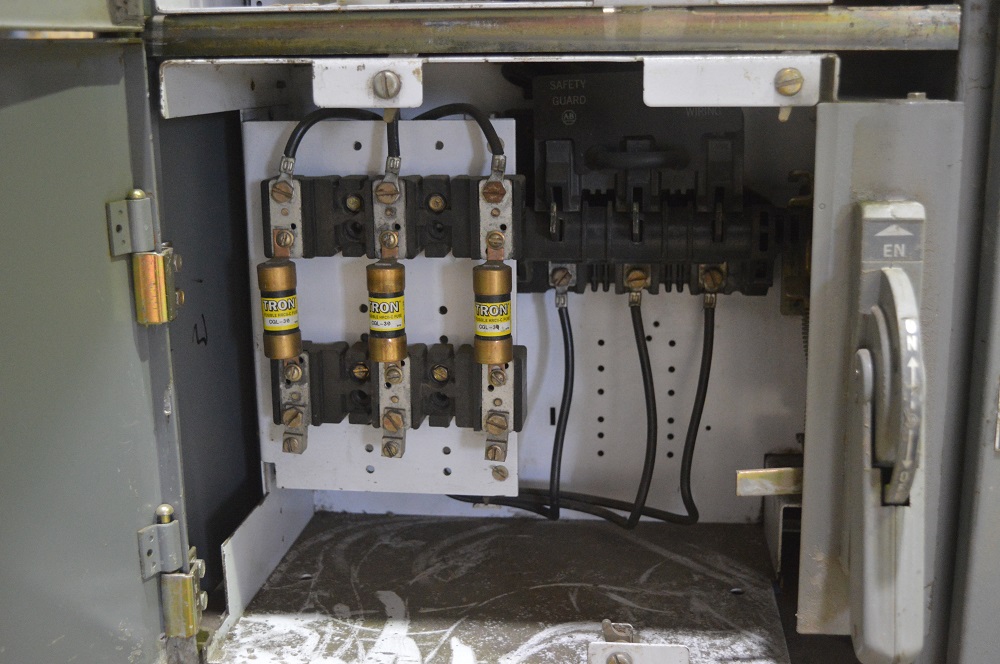

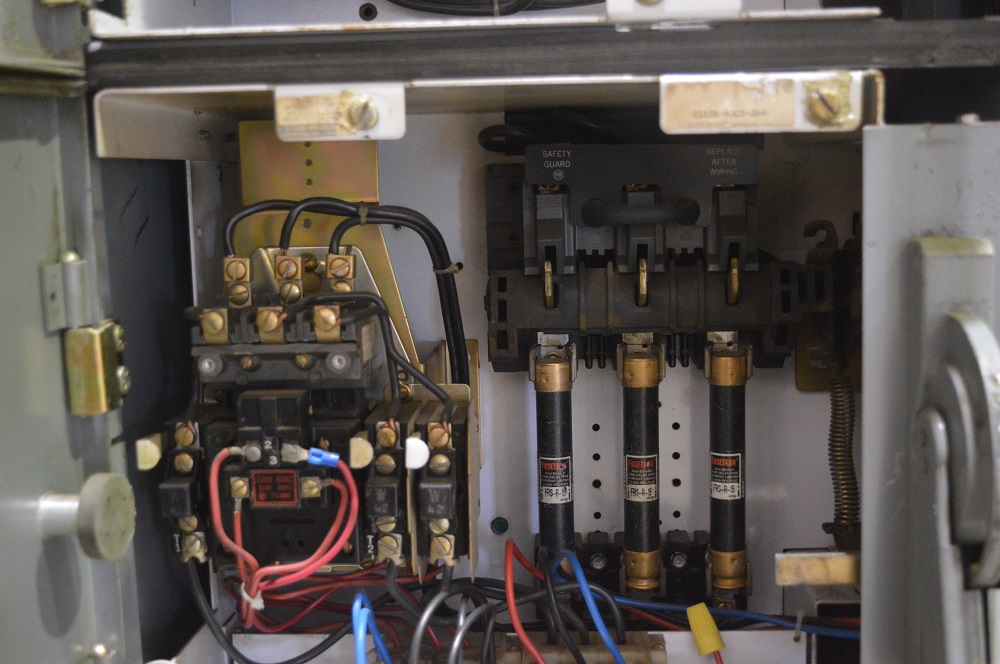

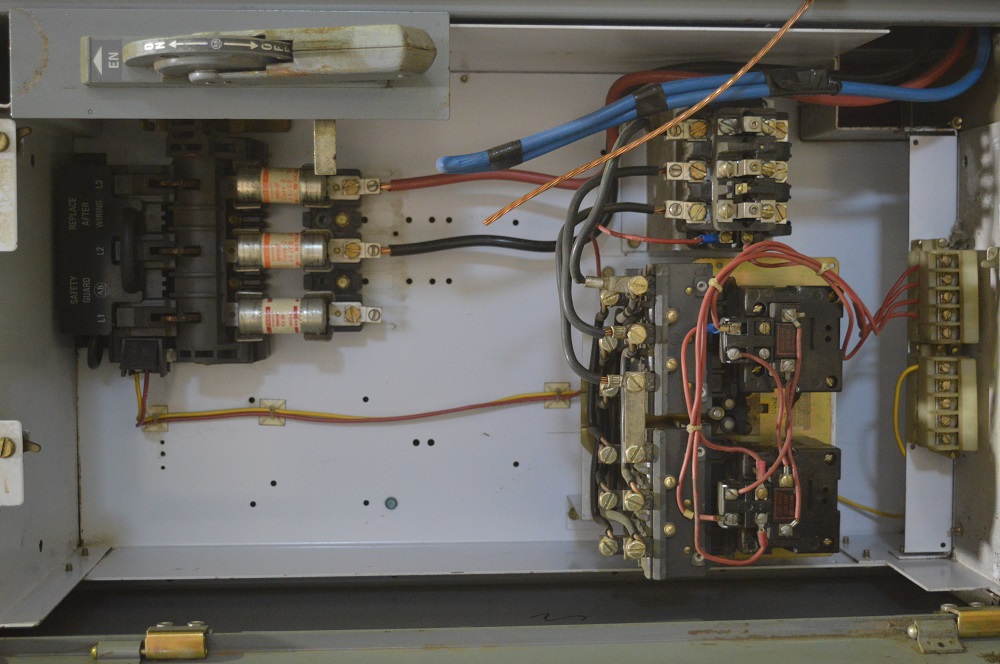

Section 1
- 30 Amp Fusable Disconnect
  - Quantity: 2
- Size 1 Starter 709 style
  - Overload: W42
  - Fusable Disconnect
  - 15 Amp Fuses

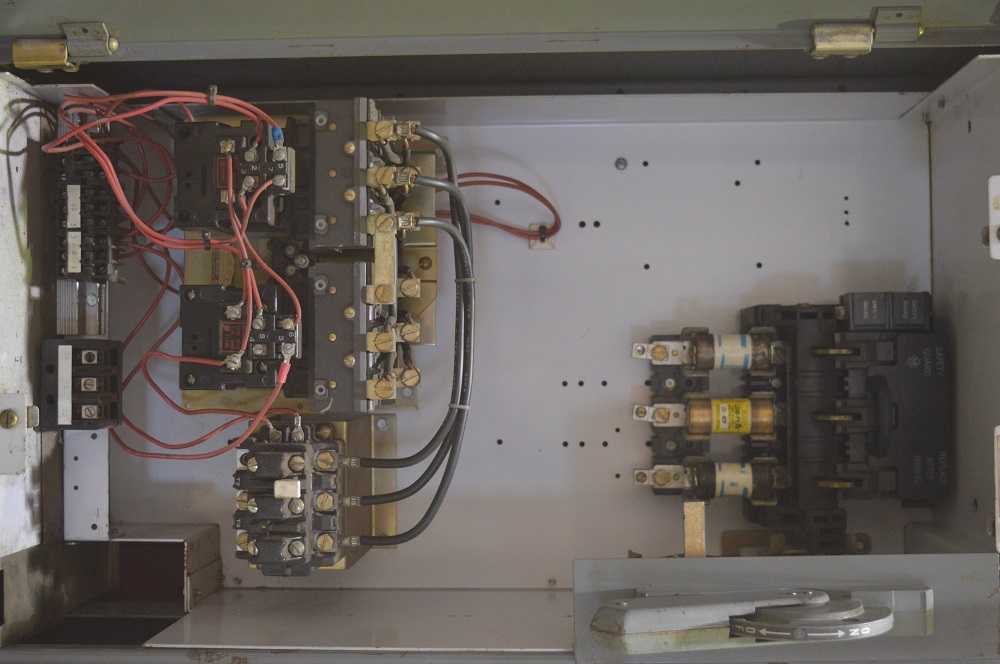

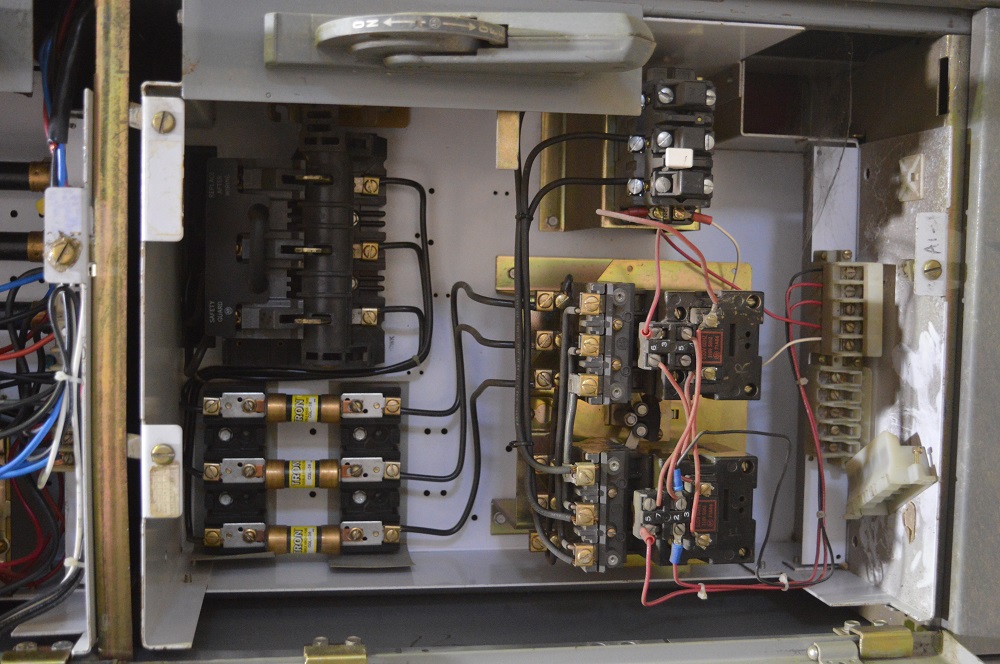

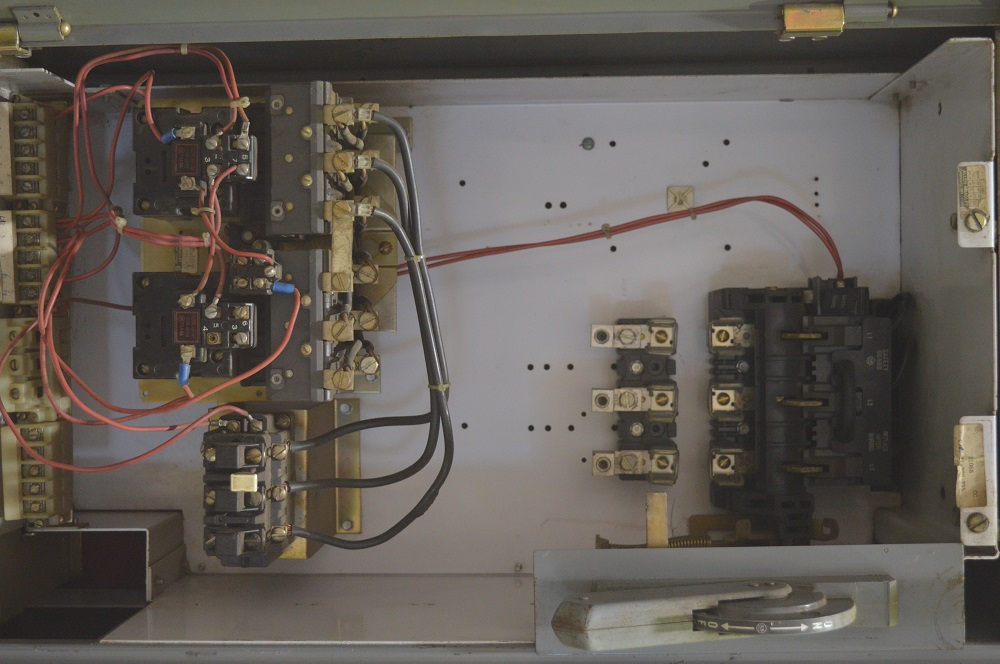

- Size 1 Reversing Starter 709 Style
  - Fusable Disconnect
  - 15 Amp Fuses
  - Overload: W54
- 30 Amp fuses
Section 2

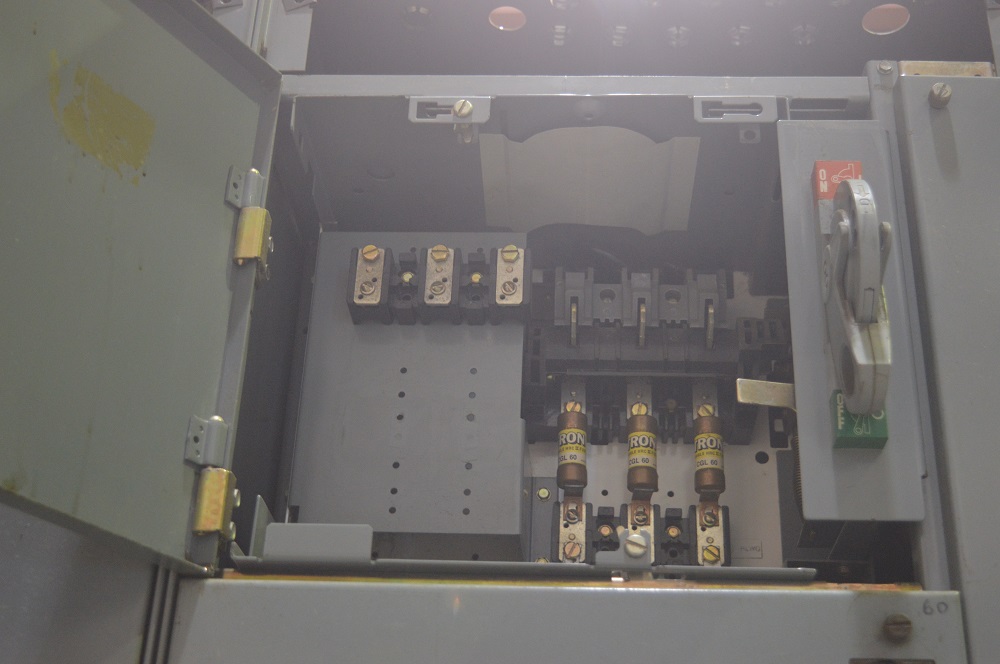

- 60 Amp Fusable Disconnect
- 60 Amp fuses
- Size 2 Reversing Starter 709 Style
  - Fuseable Disconnect
  - Overload: W56
- Size 2 Reversing Starter 709 Style
  - Fuseable Disconnect
  - 60 Amp Fuses
  - Overload: W59
- 30 Amp Fuseable Disconnect
Section 3
- Size 1 Starter 709 Style
  - Fuseable Disconnect
  - 25 Amp Fuses
  - Overload: W44
- Size 2 Reversing Starter 709 Style
  - Fuseable Disconnect
  - 40 Amp Fuses
  - Overload: W36
- Size 3 Starter 509 Style
  - Fuseable Disconnect
  - 80 Amp Fuses
  - Overload: W63
Location: British Columbia, Canada
