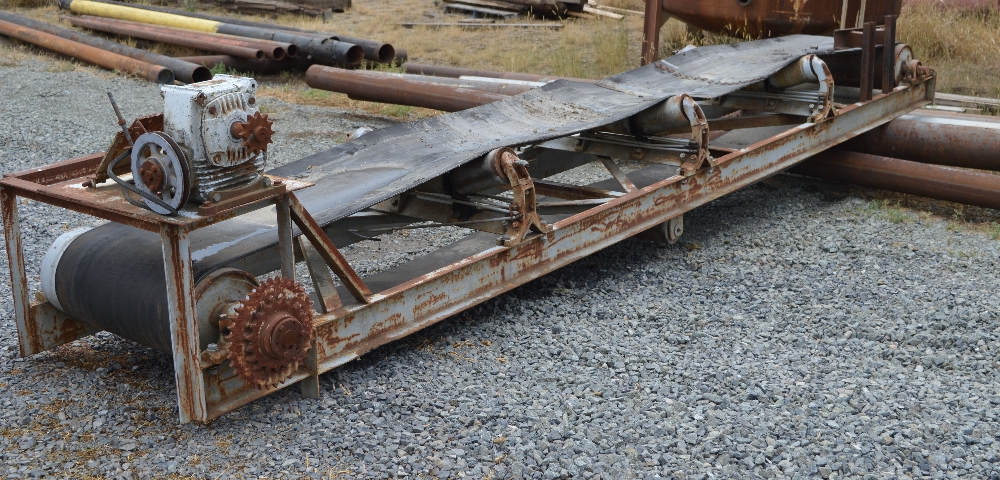

24in. x 16ft. Channel Conveyor

Equipment details

24in. x 16ft. Channel Conveyor

• Dimensions: 24" Wide x 16' Long

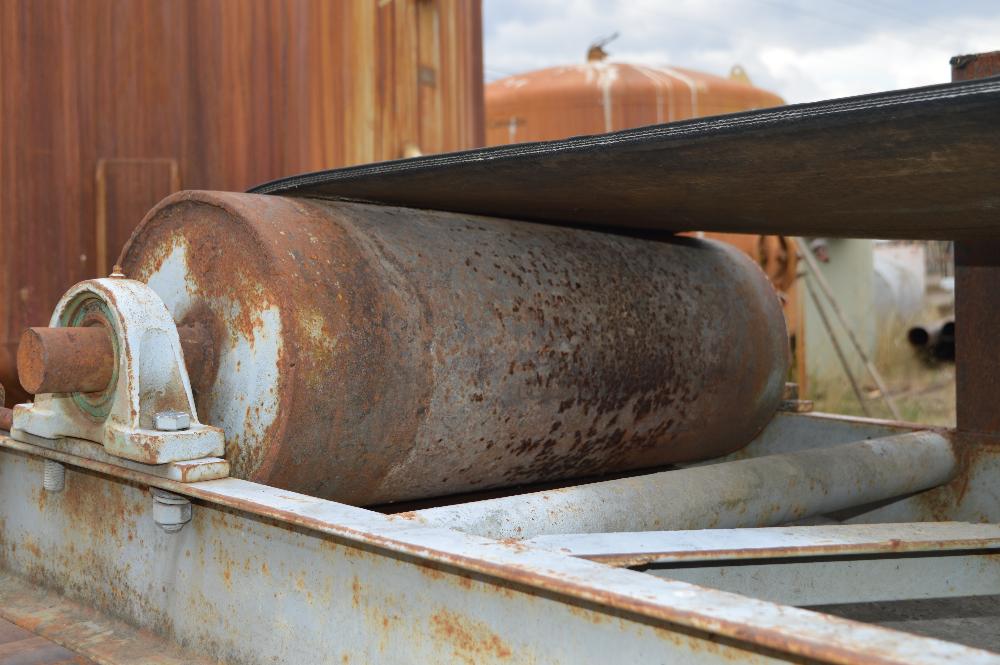

• Head Pulley:
  • 10.5" Diameter x 28" Wide
  • Smooth Steel
  • Sprocket: 12in Diameter x 36 Tooth

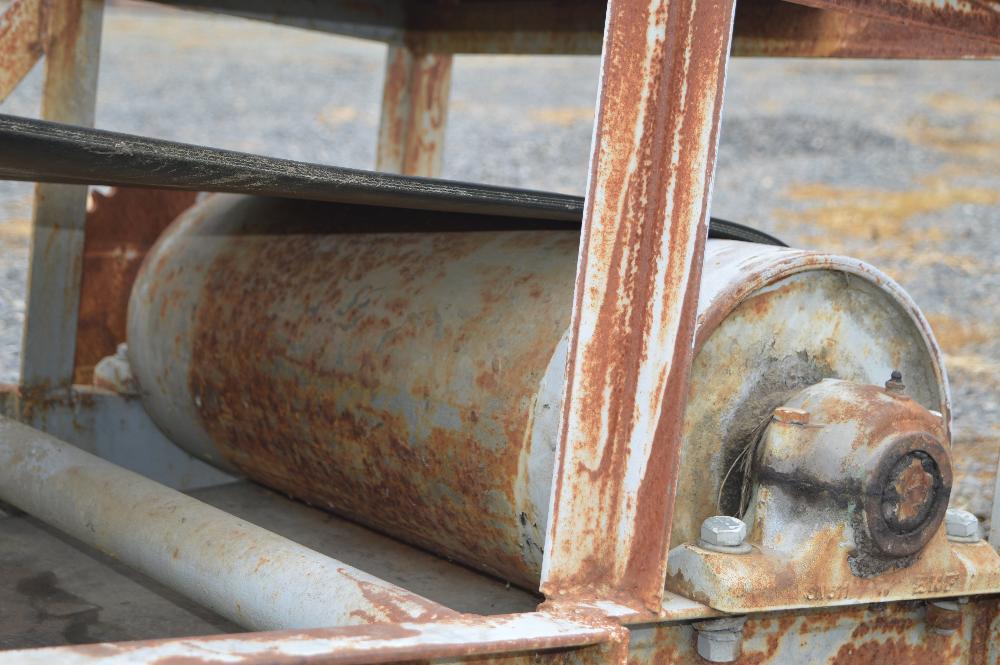

• Tail Pulley:
  • 10.5" Diameter x 28" Wide
  • Steel

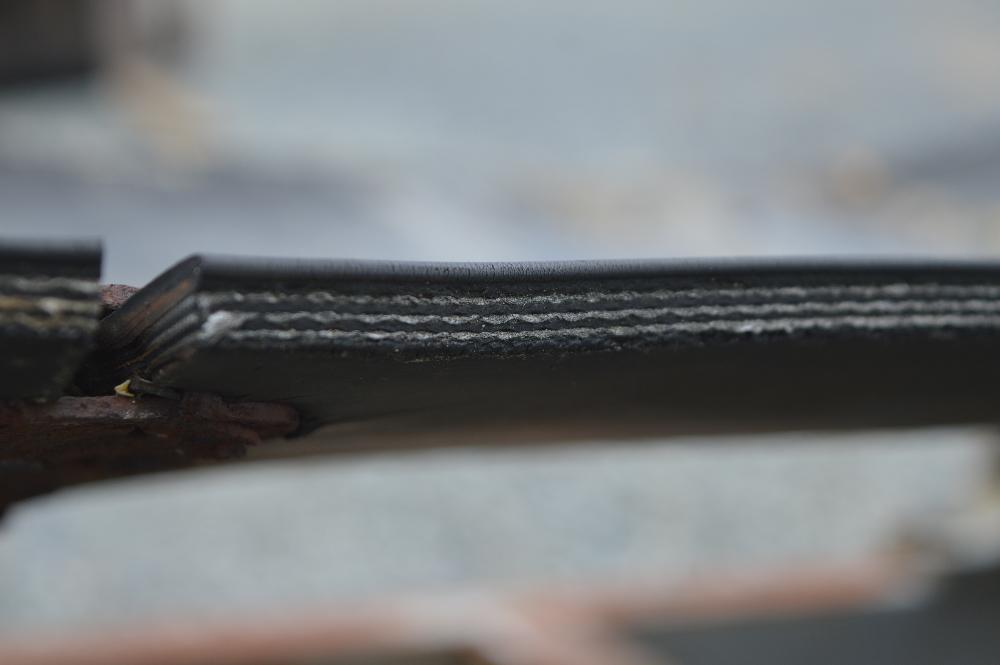

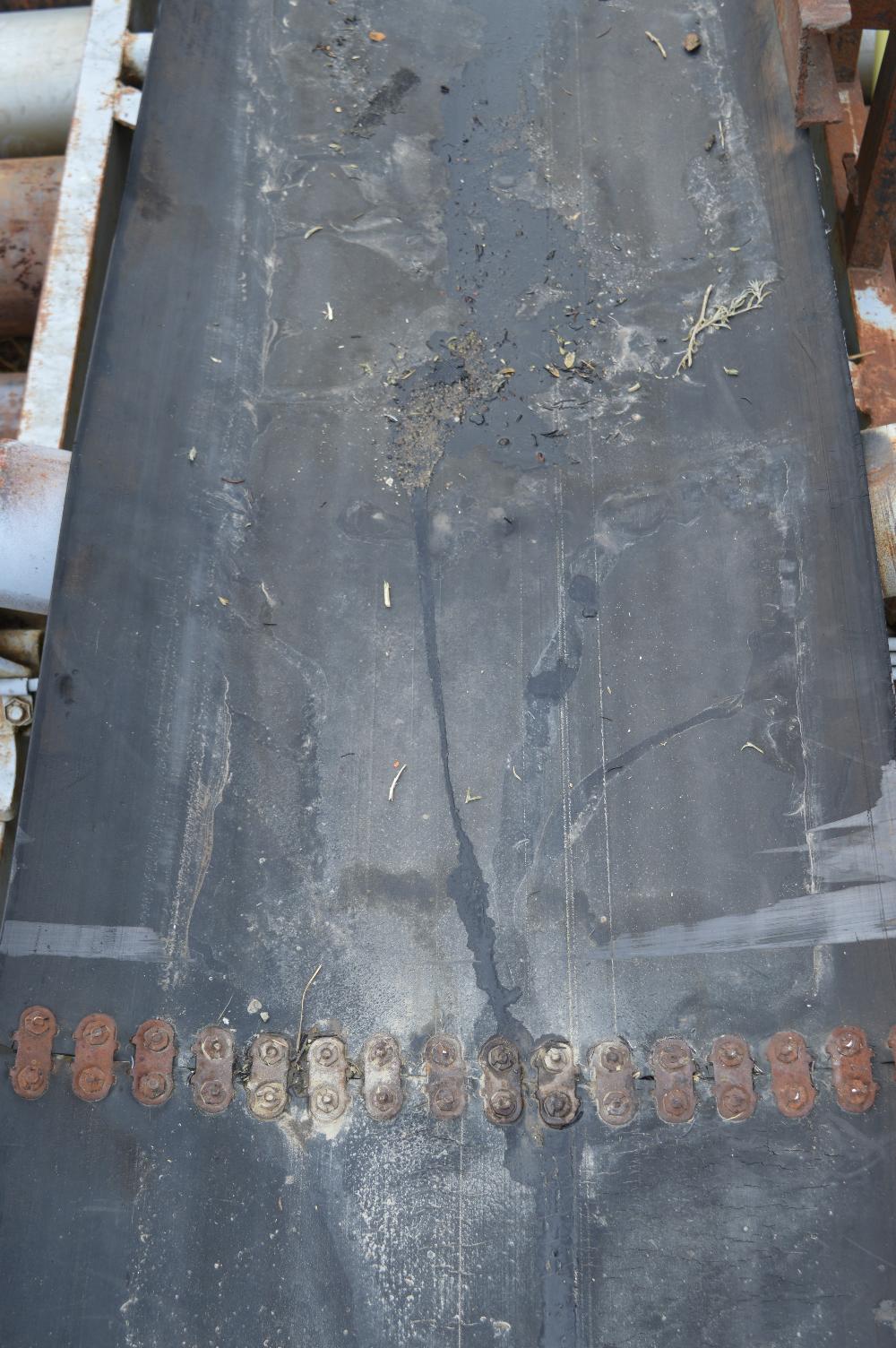

• Belt
  • 24" Wide x 0.3125" Thick
  • 3 Ply

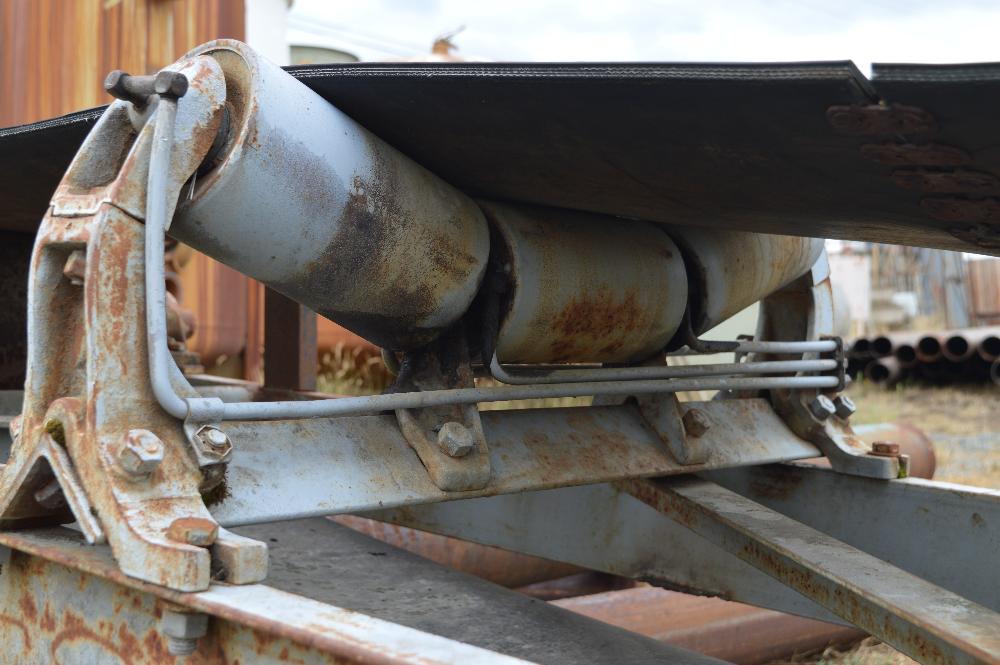

• Idlers
  • 10°

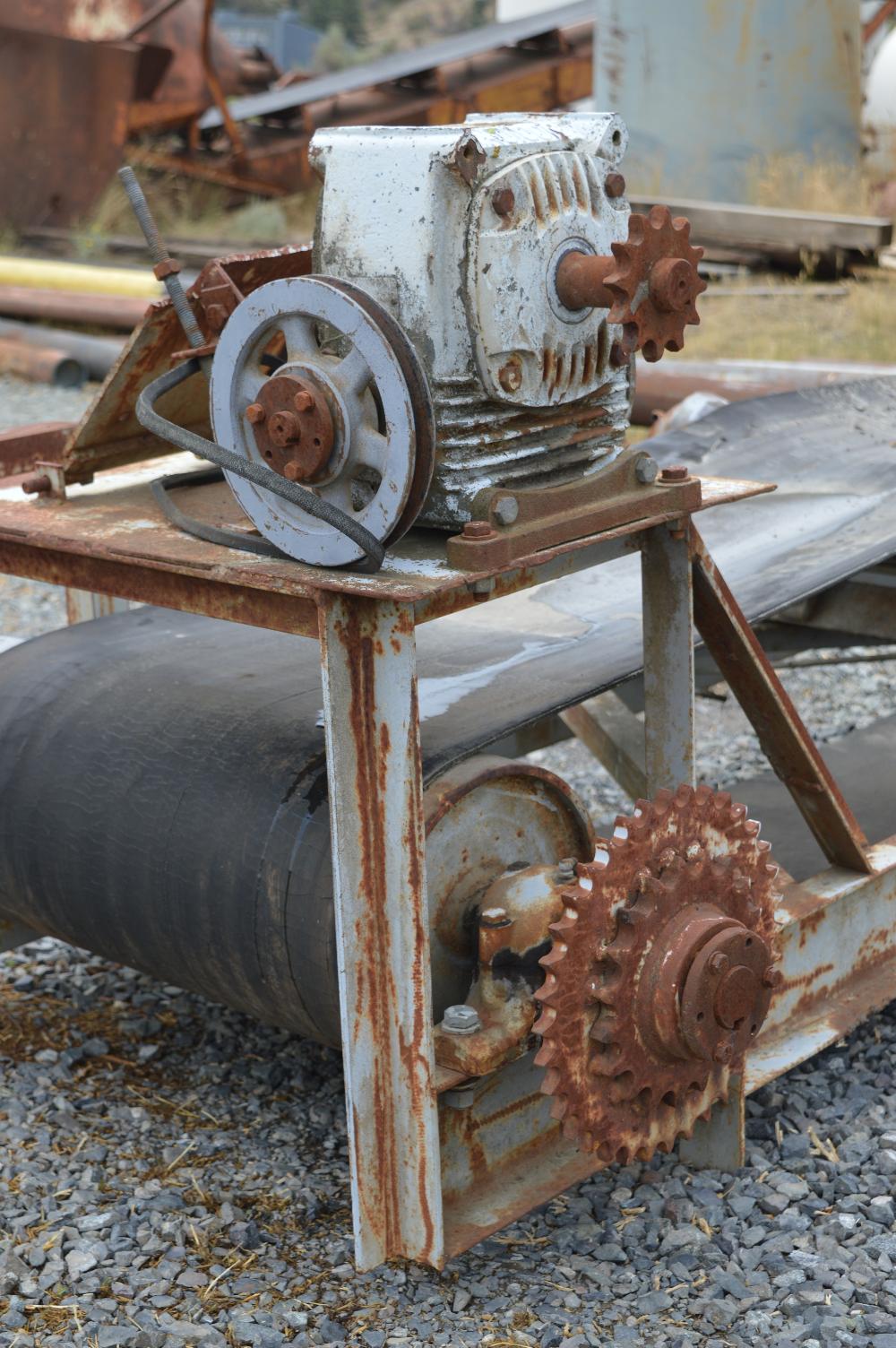

• Radicon Reducer
  • Sprocket: 4in Dia. x 12 Tooth

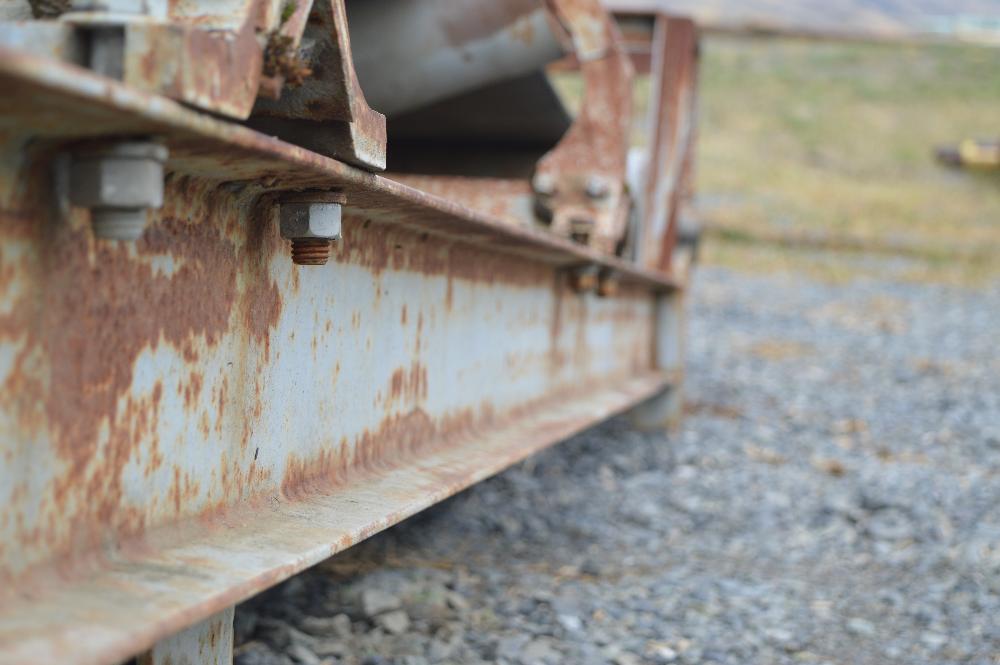

• Made from 6" x 2" Channel


• Overall Dimensions:
  • Length: 17ft 4in
  • Width: 41in
  • Height: 39in


• Location: Savona, British Columbia, Canada
