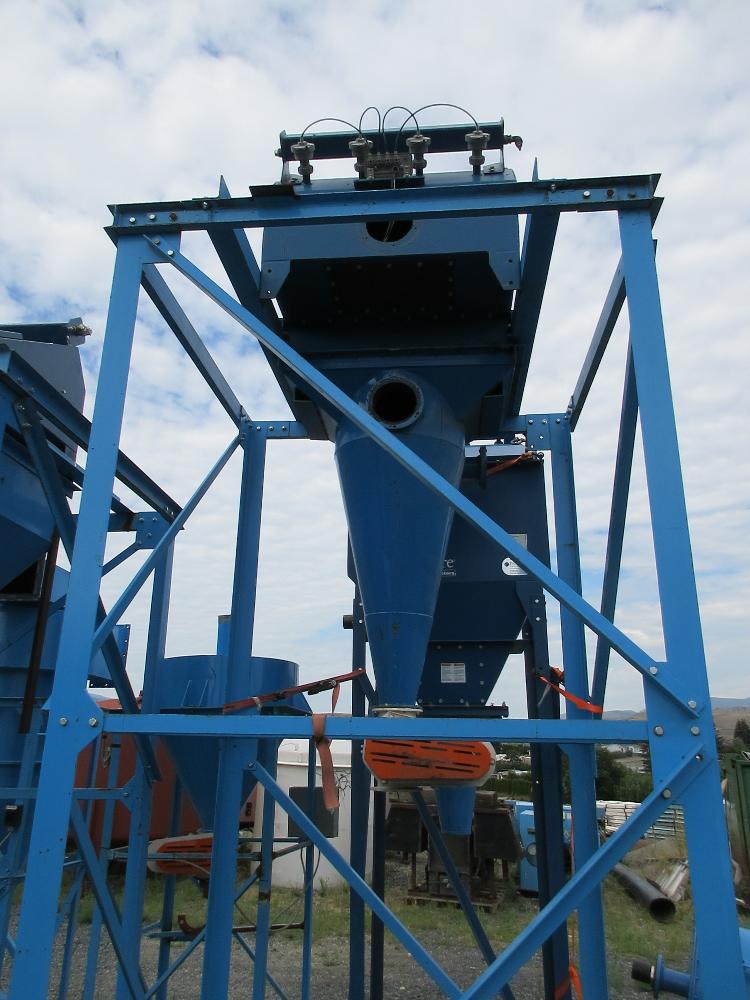

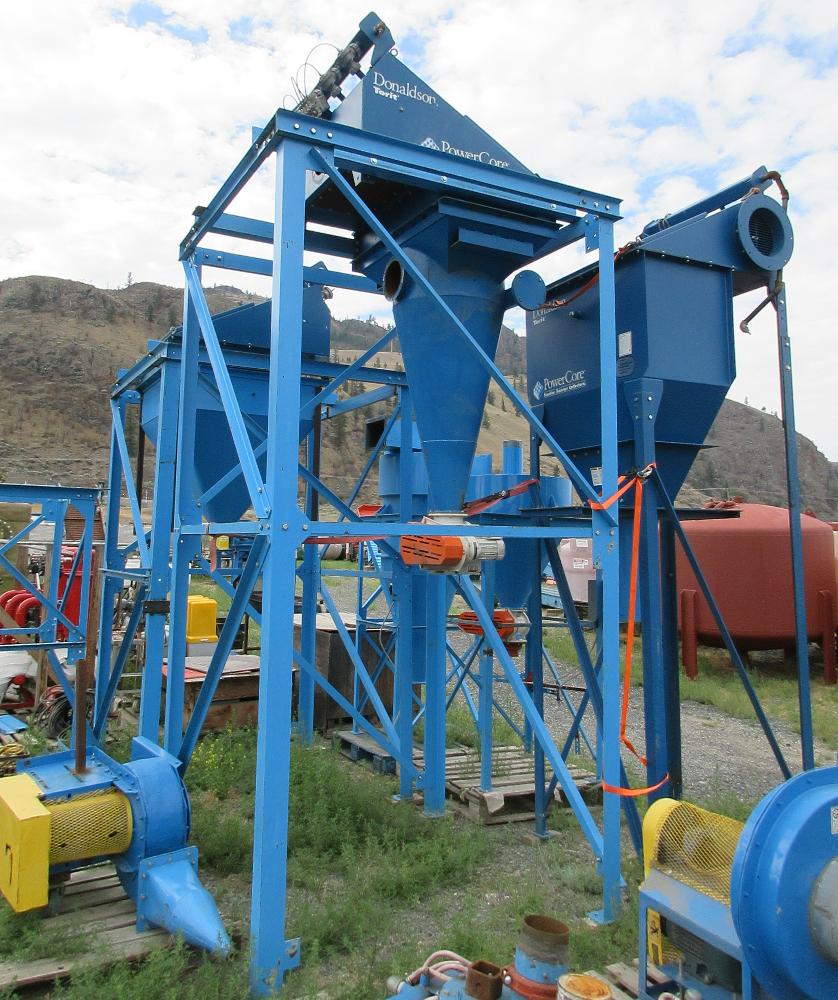

Donaldson Power-Core CPC-4R Dust Collector
Inventory ID: 1264607
- Category: Dust Collectors
- Availability: Available
- 11 verified equipment photos
Equipment details
Donaldson Power-Core CPC-4R Dust Collector
- Make: Donaldson Torit
- Model: CPC-4R

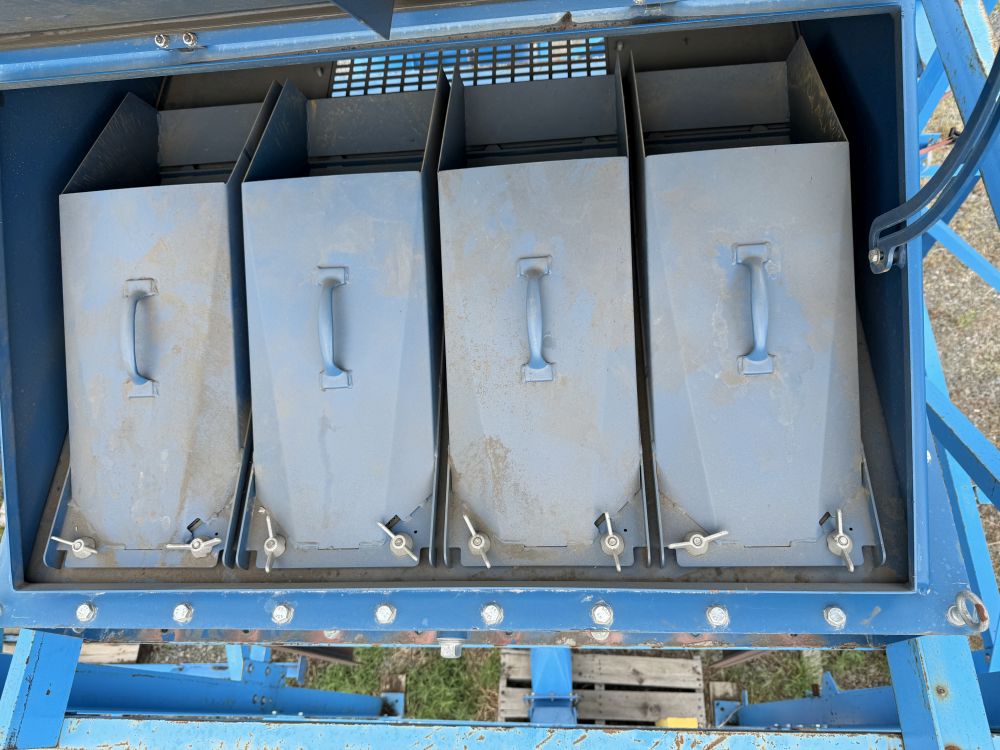

- Filter Packs: 4 Packs
- Filtration Area: 24.8m²

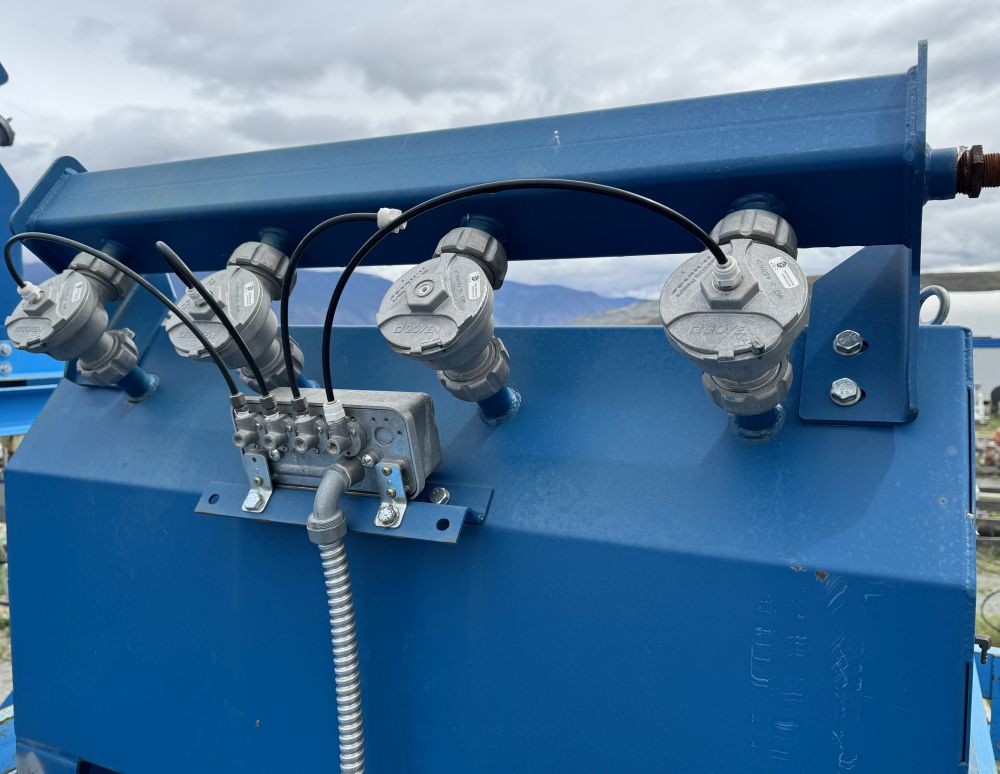

- Valves:
- 4 Goyen Air Operated.

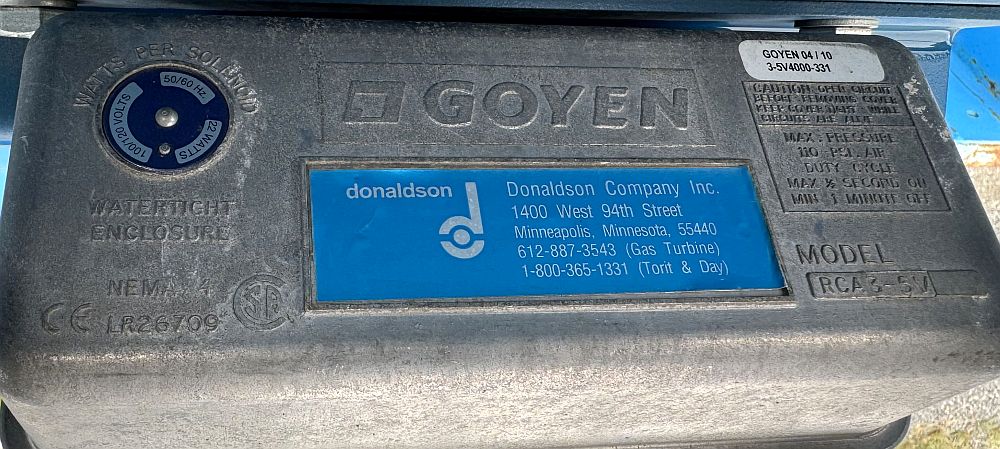

- With Goyen RCA3-5V Pilot Solenoid Valve Controller
- Dirty Air Inlet: 8in Diameter
- Clean Air Outfeed: 8in Diameter
- Range: 1,400 - 2,700 CFM
- Working Compressed Air Pressure: 6.2 bar (90 PSIG)
- Atmospheric Air Volume (F.A.D. at 12s Intervals): 20m³/h (11.8 CFM)
- Pulse Duration: 100ms
- Dust Disposal Outlet: 5.5in Diameter
- Disposal Cone Hopper: 24in Diameter x 48in Long

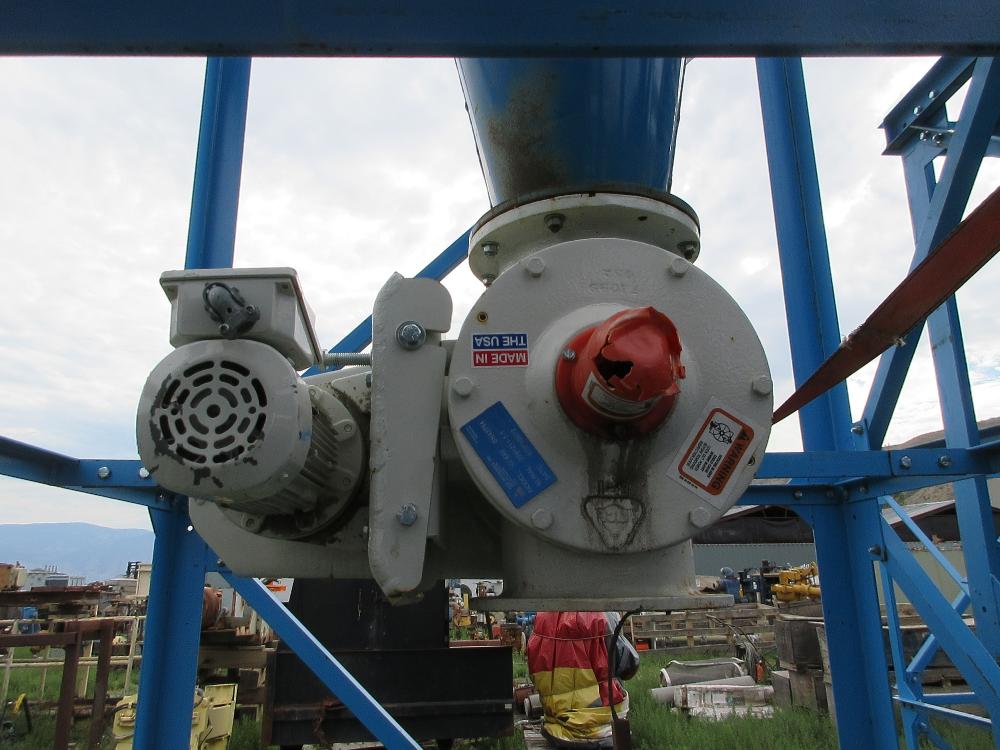

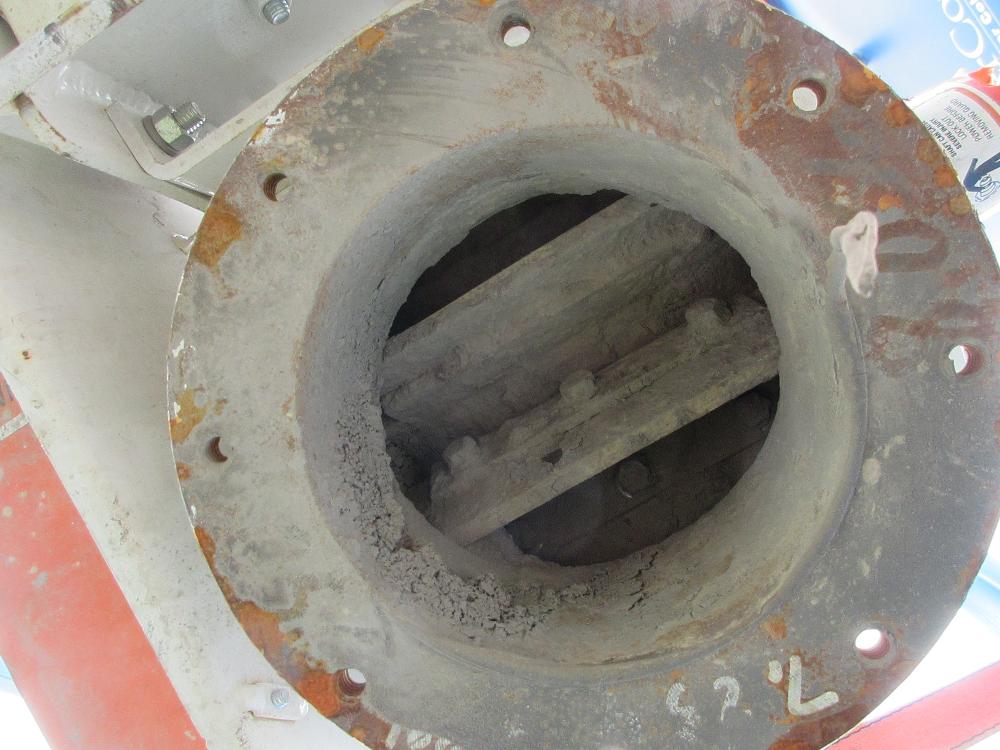

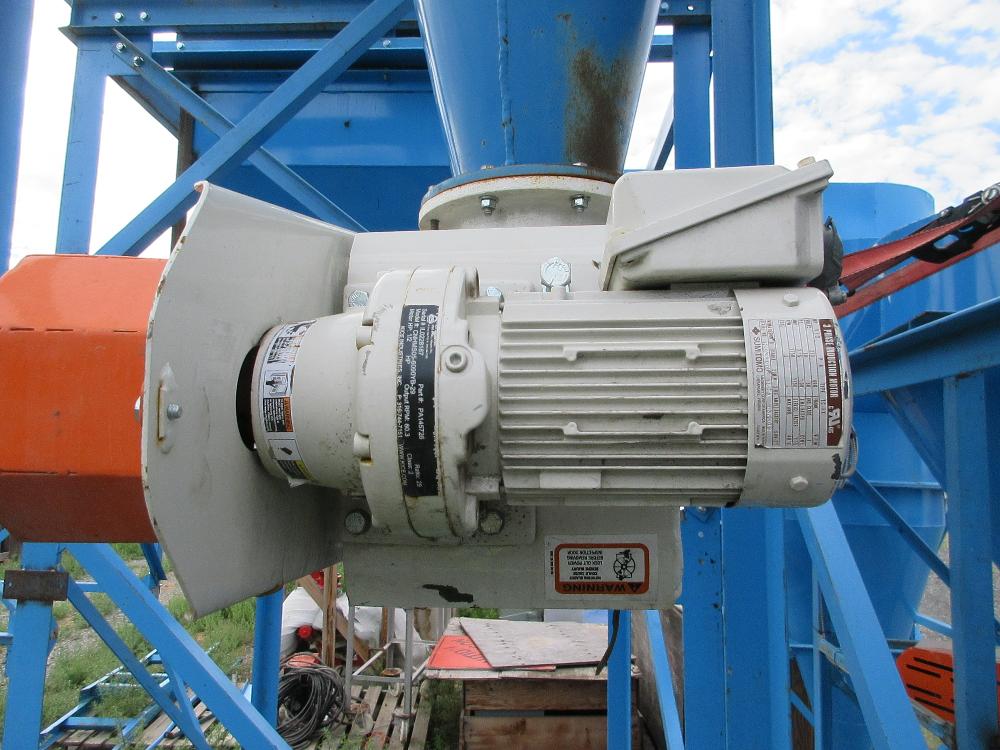

- Rotary Valve on Disposal Feed:

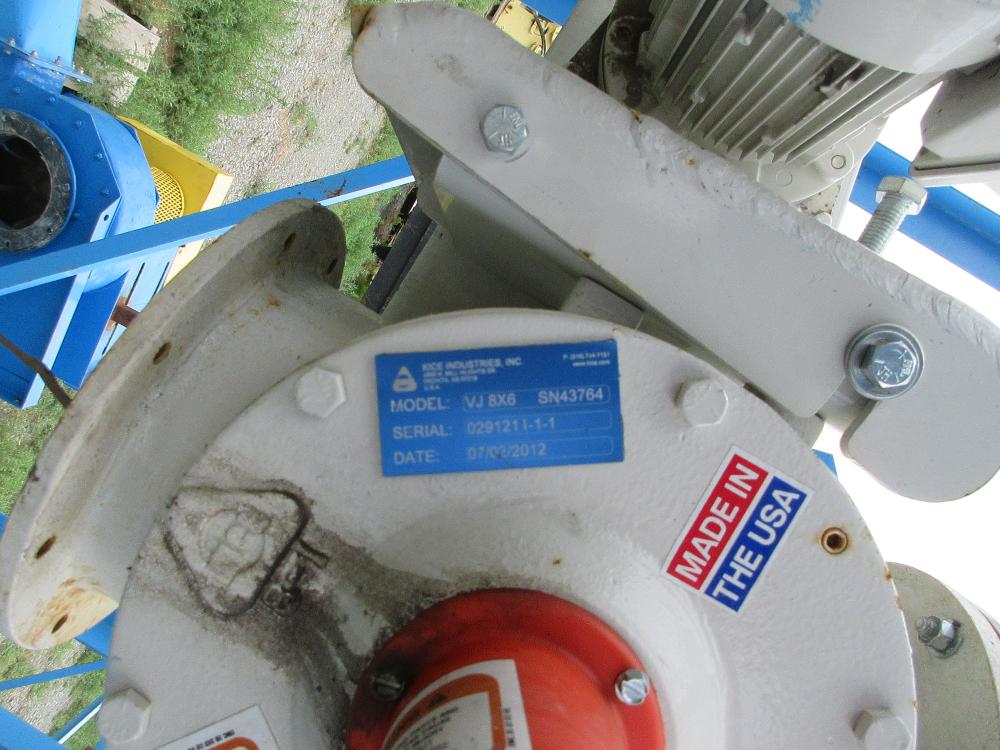

- Make: Kice
- Model: VJ 8x6
- Size: 8in x 6in

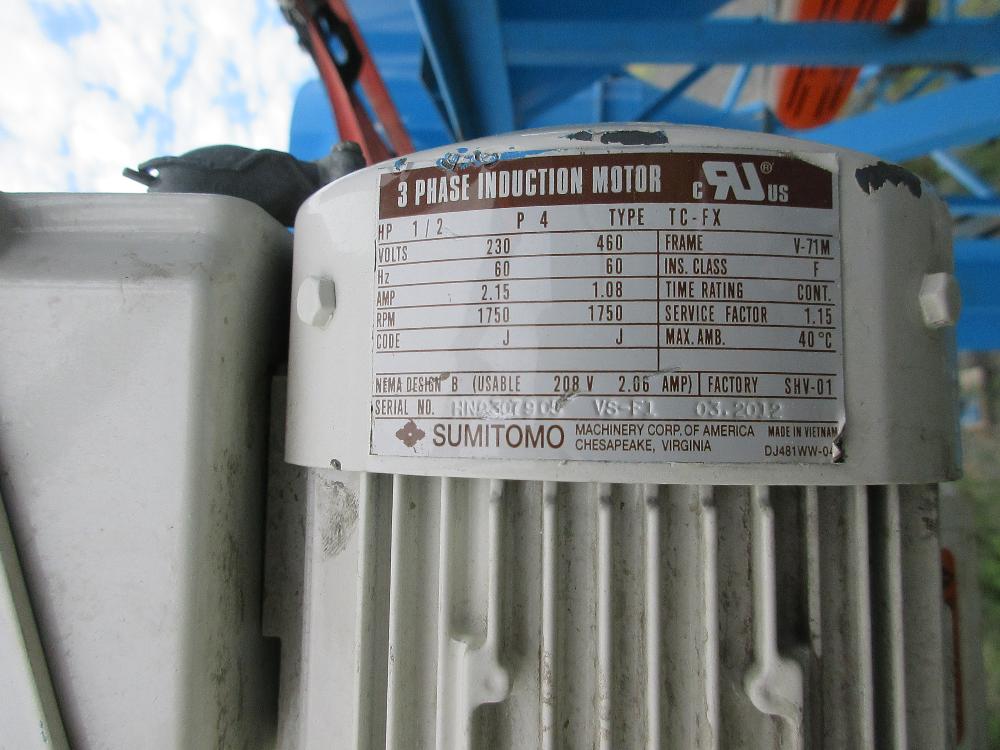

- Motor: Sumitomo TEFC Motor
- Power Output: 0.5HP
- RPM: 1750
- Voltage: 230/460 Volts

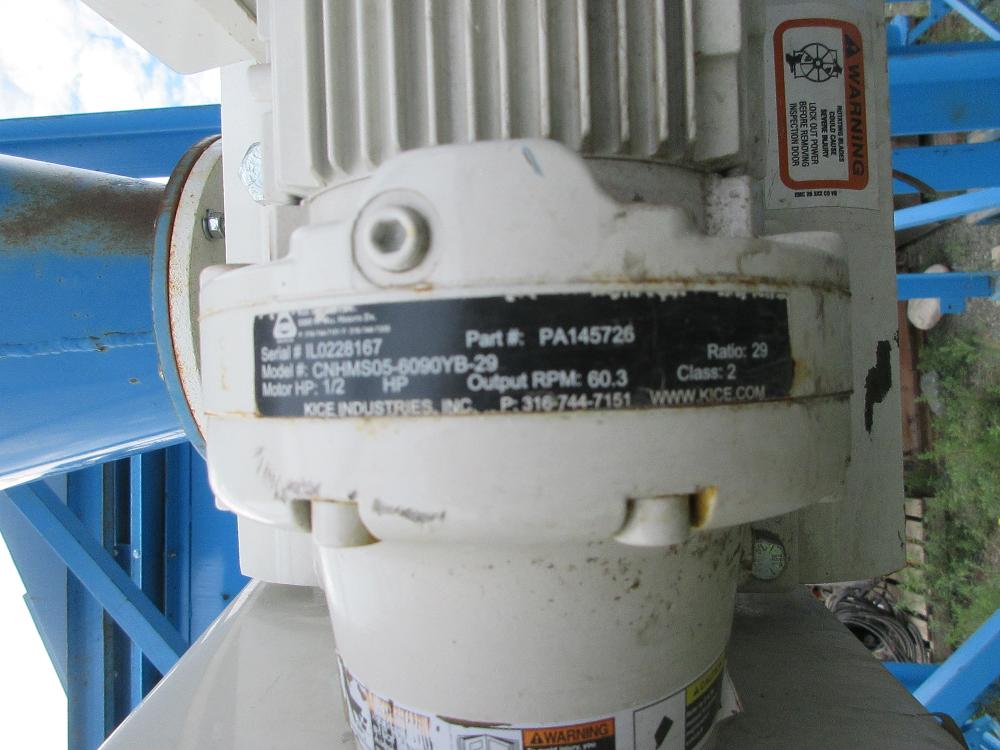

- Gearhead: Kice
- Model: CNHMS05-6090YB-29
- Input HP: 0.5HP
- Output RPM: 60.3
- Ratio: 29-1
- Mounted on 4in x 4in Angle Iron Frame
- Overall Dimensions:
- Height: 13ft 11in
- Width: 6ft
- Depth: 6ft
- Weight: 563 Kg (Approx.)
- Location: Savona, British Columbia, Canada
