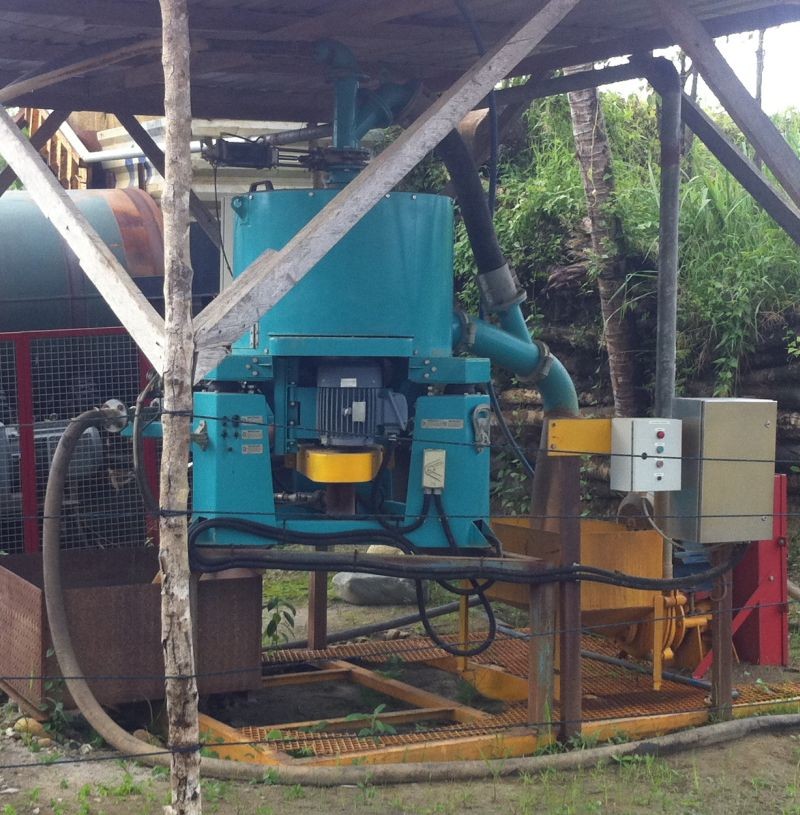

Knelson KC CD20 Centrifugal Gravity Concentrator

Equipment details

• Includes ICS Jr. automation package.
• Maximum feed capacity - 80 tonnes/hr solids.
• Maximum total volumetric throughput - 110m³/hr (480 US gpm).
• Feed size - Maximum: 6mm; Recommended: 2mm.
• Feed density - 0 - 75% solids by weight.
• Minimum air flow required (Auto piping only) - 5.1 m³/hr (3 ft³/min) @ 600 kPa (90psi).
• Concentrator installation weight - 900 kg (2000 lbs).
• 5.5-7.5 kW (7.5-10 hp) electric motor.
• Manual available.
• Very good overall condition.
