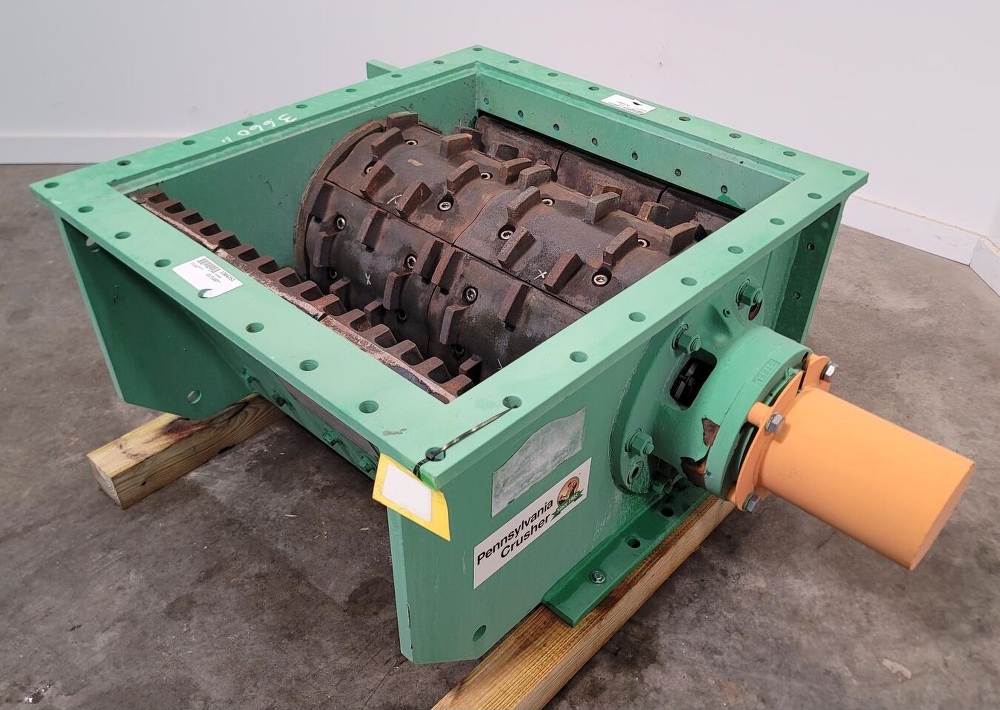

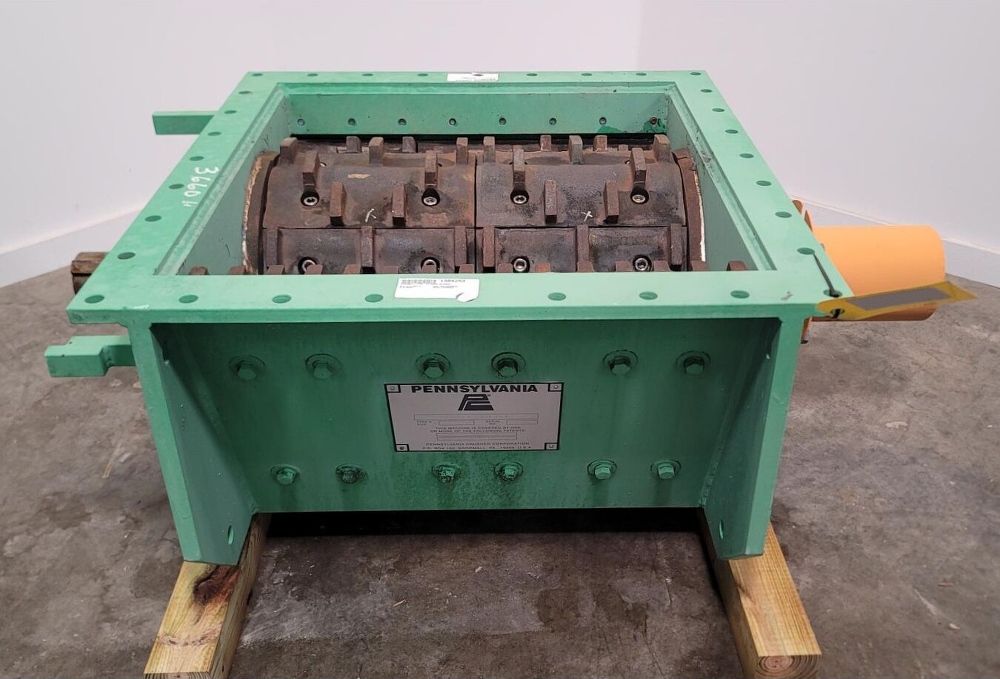

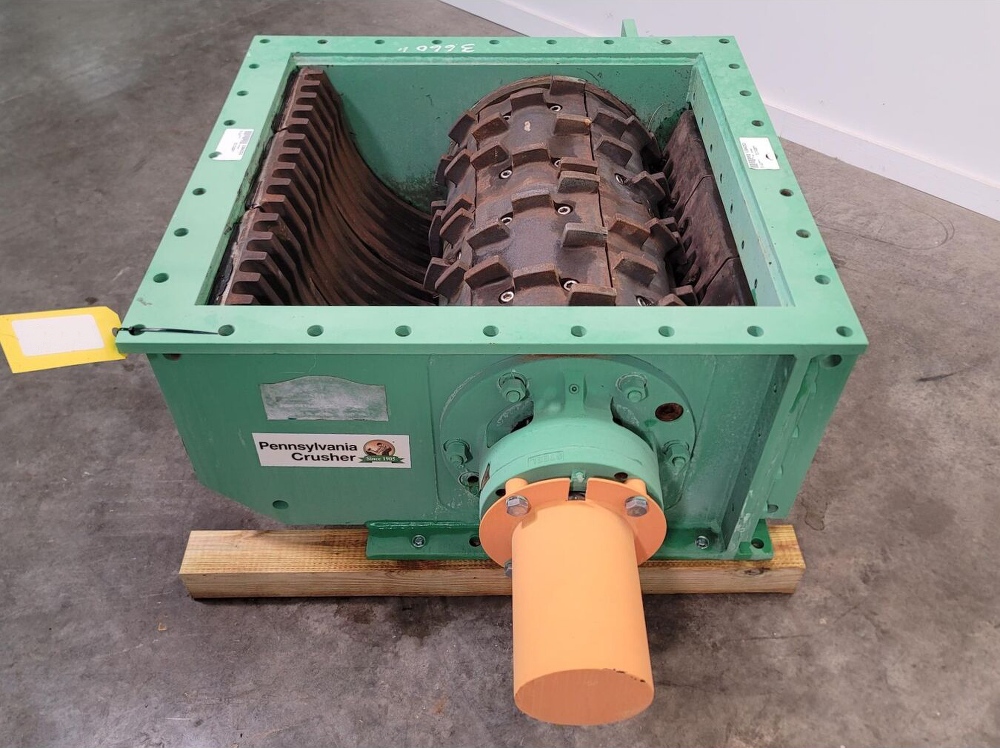

Pennsylvania CGA Clinker Roll Crusher

Equipment details

Pennsylvania CGA Clinker Roll Crusher

Quantity: (5) Units Available (3) Units Available

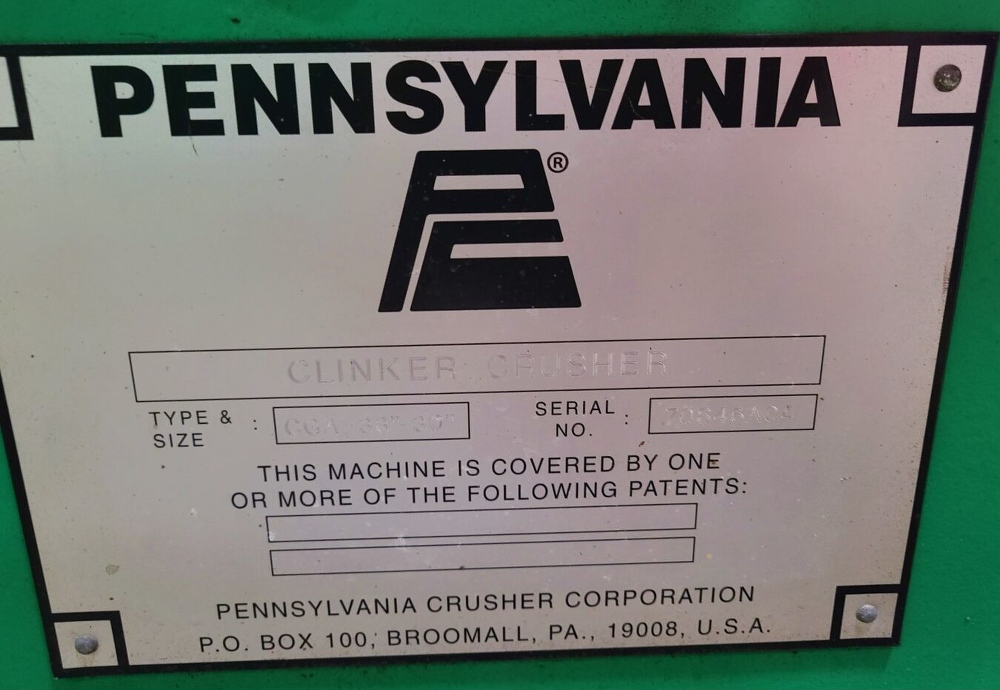

• Make: Pennsylvania Crusher
• Model: CGA 33"-30"
• Type: Roll Crusher - Clinker
• Condition: Unused Condition
• Rolls: Single Roll
• Feed Inlet: 30in Wide x 33in Long
• Output Size: 1.25in to 1.5in
• Frame: Heavy-Duty Welded Construction Using 3/4in Plate Steel with Bolted Back Plate
• Liners: Equipped with Front and Rear Internal Wear Liners

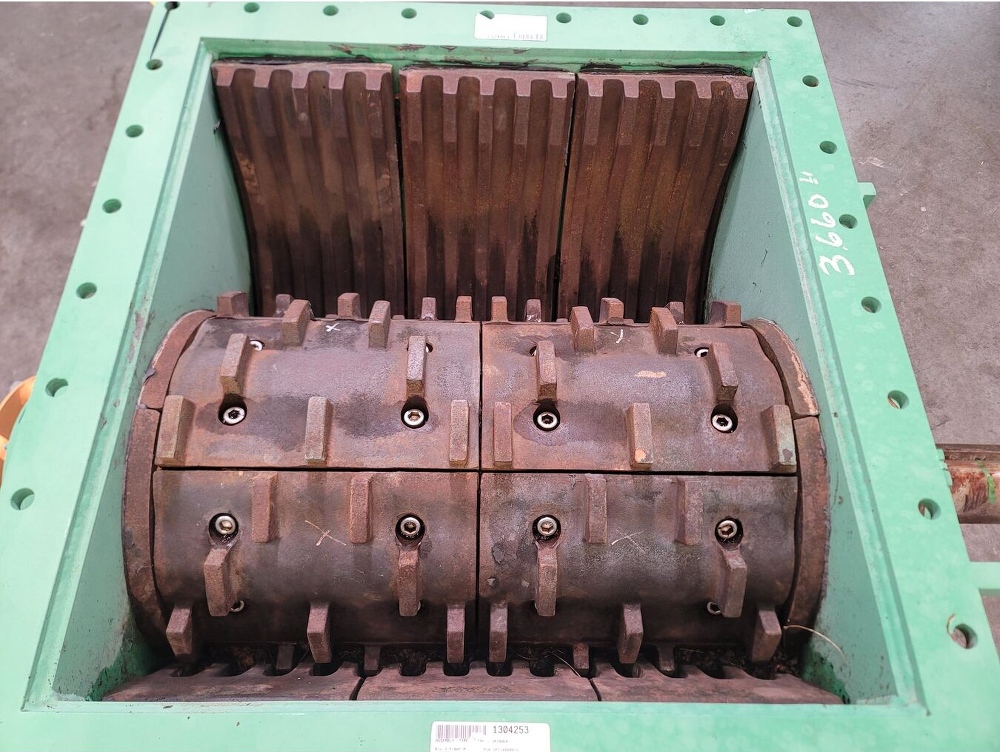

• Roll Shell: Made of Hardened Steel Radial Segments (Replaceable and Reversible to Extend Wear Life)
• Drive: Typically Powered by a 10HP Drive (Not Included)
  • Nominal Operating Speed: 16 RPM


• Overall Dimensions:
  • Length: 43in
  • Width: 63in
  • Height: 25in
  • Weight: 3,485 Lbs.


• Location: Eastern USA
