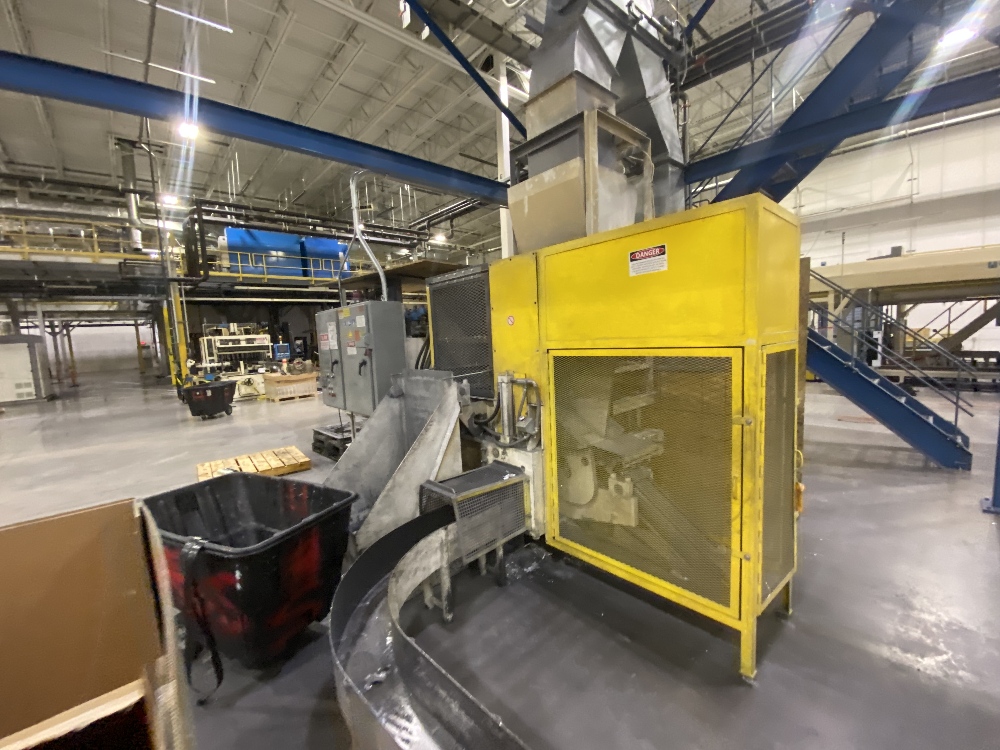

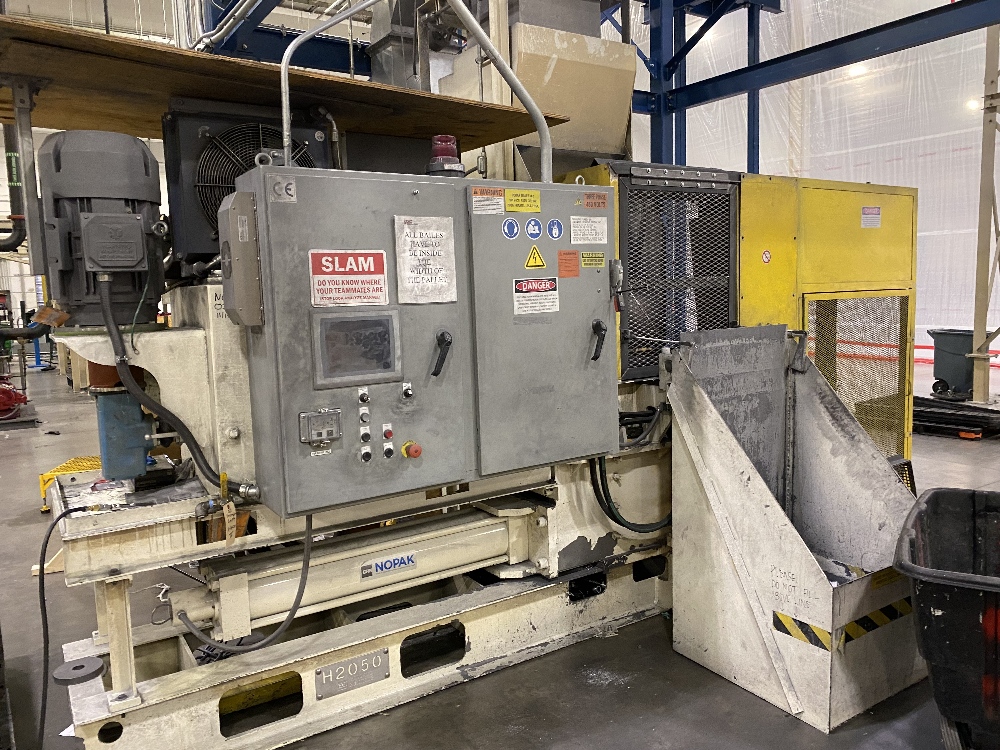

Galland Henning 12DC Horizontal Baler

Inventory ID: 1458319

Category: Waste Compactors and Sorters
Availability: Available
6 verified equipment photos

Equipment details

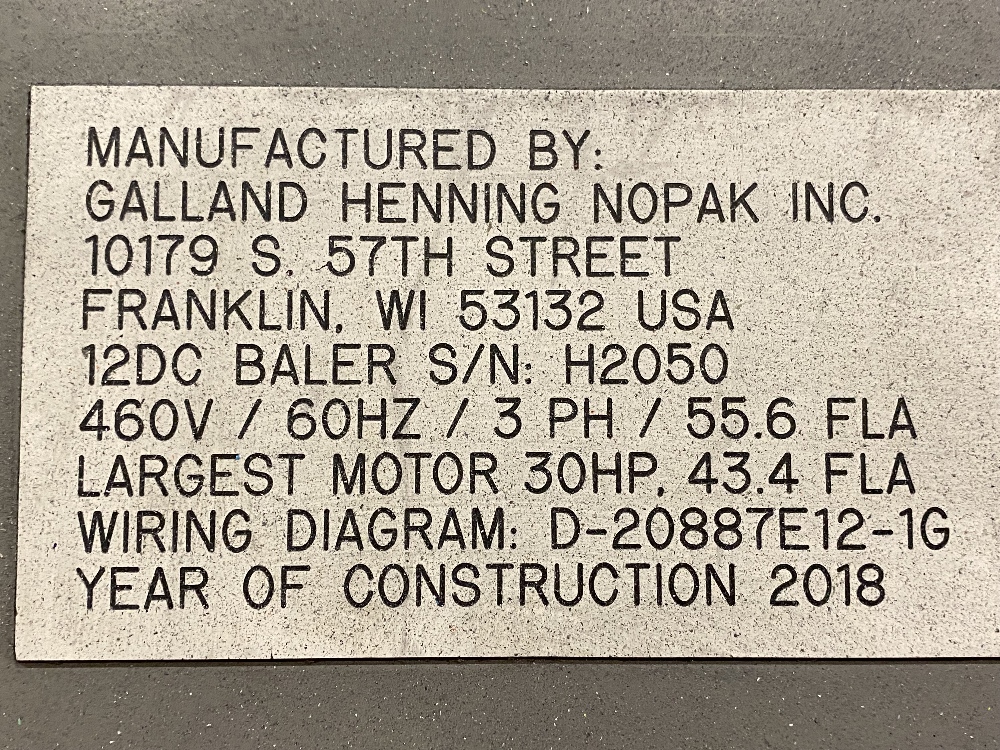

Make: Galland Henning Nopak Inc.
Model: 12DC
Type: Baler
Year: 2018
Condition: Used Condition
Design: Dual Compression
Bale Size: 12” x 6” x Variable
Bale Weight:
- Aluminum: 20 lbs.
- Steel: 40 lbs.
Cycle Time: 45 Seconds
Output: 80 Bales per Hour
Motor: 30HP
General Model Specifications:

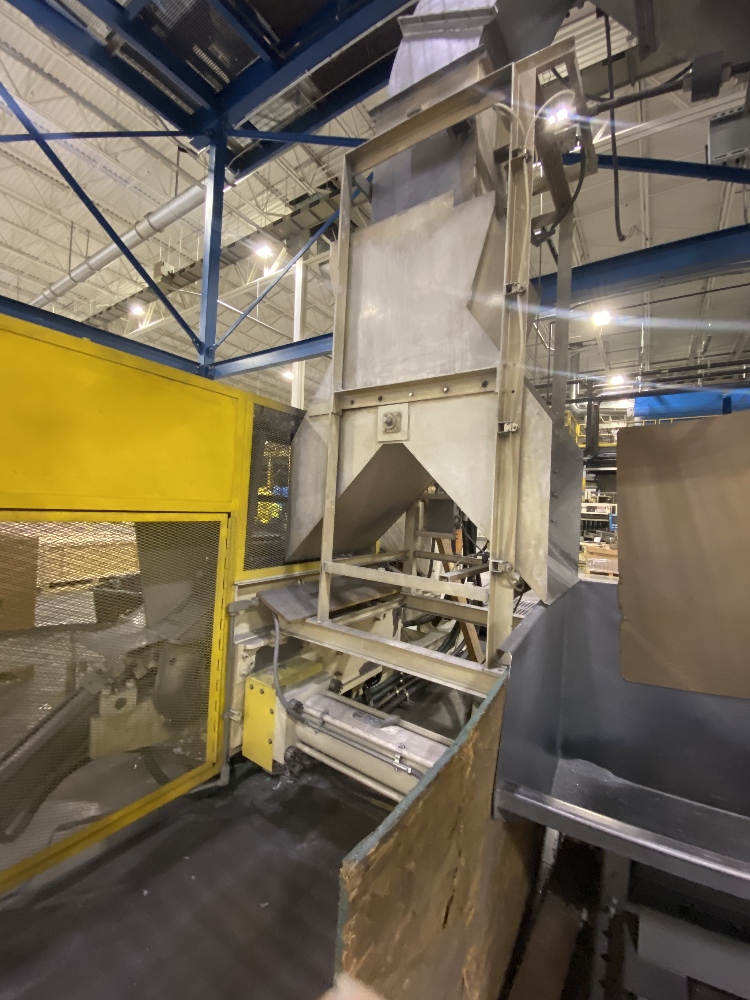

- Charging Box:
  - Charging Box Dimensions: 48" L x 21" W x 32" Deep - High Side
  - Charging Box Volume: 12 Cubic Feet (18 Cubic Feet - High Sides)
  - Charging Box Clear Opening: 48" L x 21" W
- Bales:
  - Bale Size: 12" x 6" x Variable
  - Bale Weight:
    - Steel: 40 - 70 Lbs. (Depending on Material Type)
    - Aluminum: 20 - 30 Lbs.
  - Complete Operational Cycle: 45 Seconds (Approx.)
  - Cycles per Hour: 80 Bales
- 1st Compression Cylinder:
  - Piston Diameter: 8" Dia.
  - Force in Tons (US, short tons): 50 Tons (at 2000 PSI)
  - Ramhead Face Pressure: 400 PSI (27.6 bar)
- 2nd Compression Cylinder:
  - Piston Diameter: 8" Dia.
  - Force in Tons (US, short tons): 50 Tons (at 2000 PSI)
  - Ramhead Face Pressure: 1390 PSI (95.8 bar)
- Gate Cylinder:
  - Piston Diameter: 2.5" Dia.
  - Force in Tons (US, short tons): 4.9 Tons (at 2000 PSI)
- Cover Cylinder:
  - Piston Diameter: 6" Dia.
  - Force in Tons (US, short tons): 28 Tons (at 2000 PSI)
- Side Hopper Cylinder:
  - Piston Diameter: 3.25" Dia.
  - Force in Tons (US, short tons): 8.3 Tons (at 2000 PSI)
- Total HP of Motors:
  - (1) 30HP, 1775 RPM, 460 Volt, 3 Phase, 60HZ,

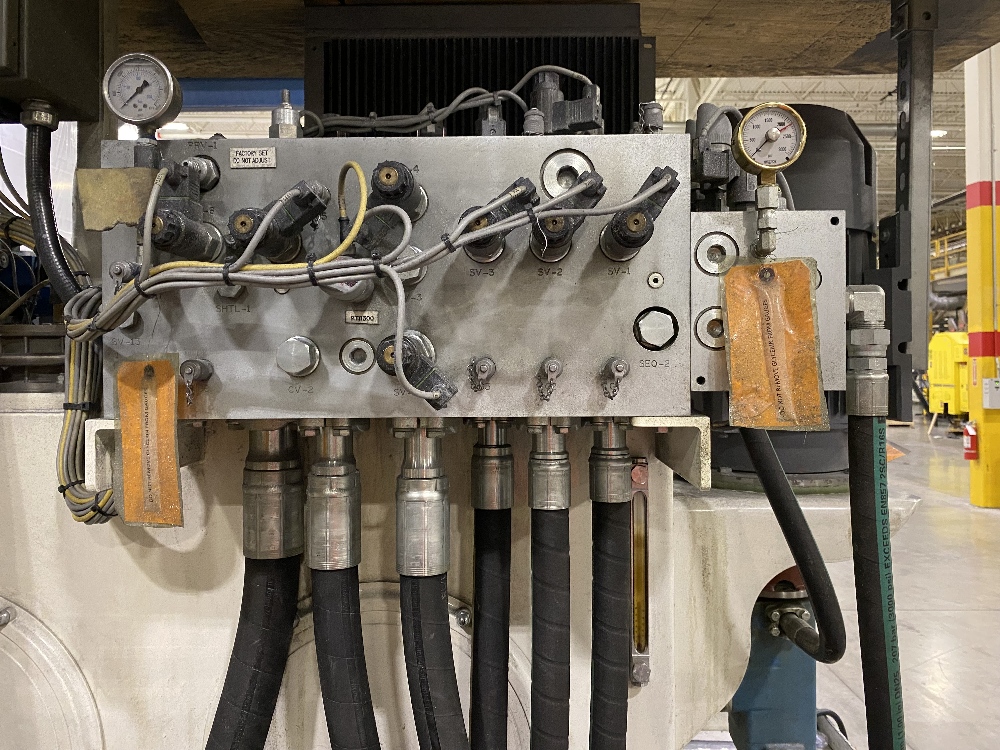

- Hydraulic System:
  - Gallons Required for System: 150 Gallons (180 Gallons Total Capacity)
  - System Relief Pressure: 2000 PSI (138 bar)
  - Flow Rate: 60 GPM
- Floor Area for Baler: 10'-0" x 15'-0"
- Shipping Weight: 18,500 lbs.
Location: East Central USA
