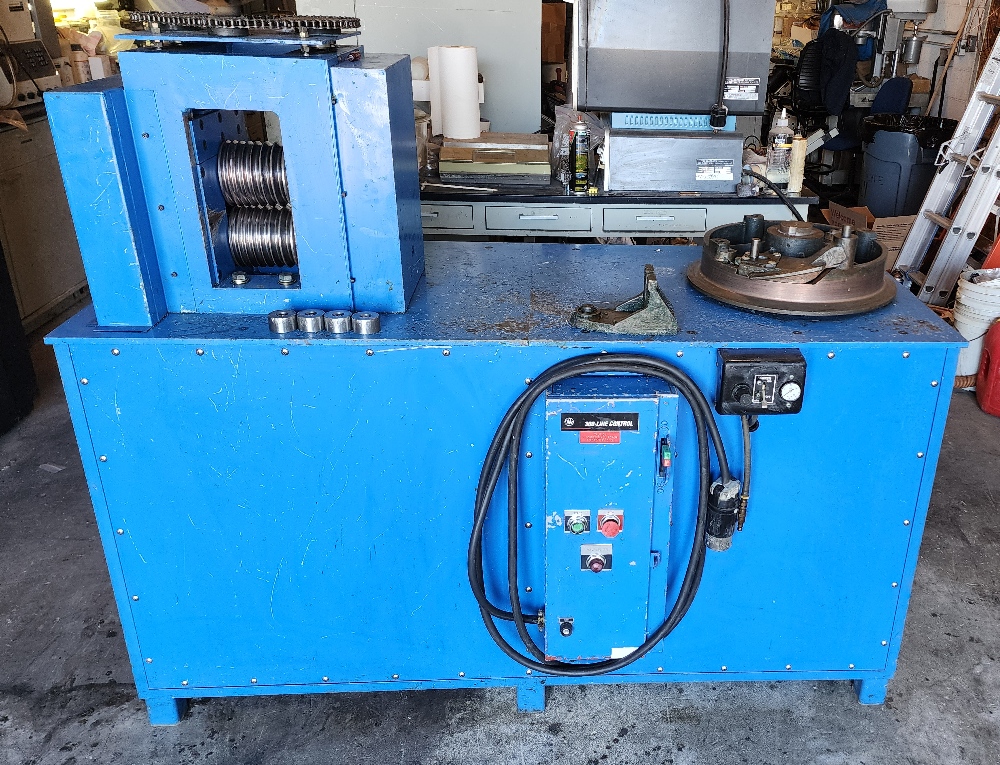

Swage and Draw Wire Machine

Equipment details

Swage and Draw Wire Machine

• Make: Custom Fabricated (Based on ASARCO Technical Services Center Wire Machine)
• Condition: Used Condition
• Used For:
  • Preparing Wire for Physical Testing and Chemical Analysis
  • Producing Test Strands for Physical Testing - Elongation, Tensile Strength, Etc.
  • University Metallurgical Programs
  • Steel Wire and Cable Manufacturers

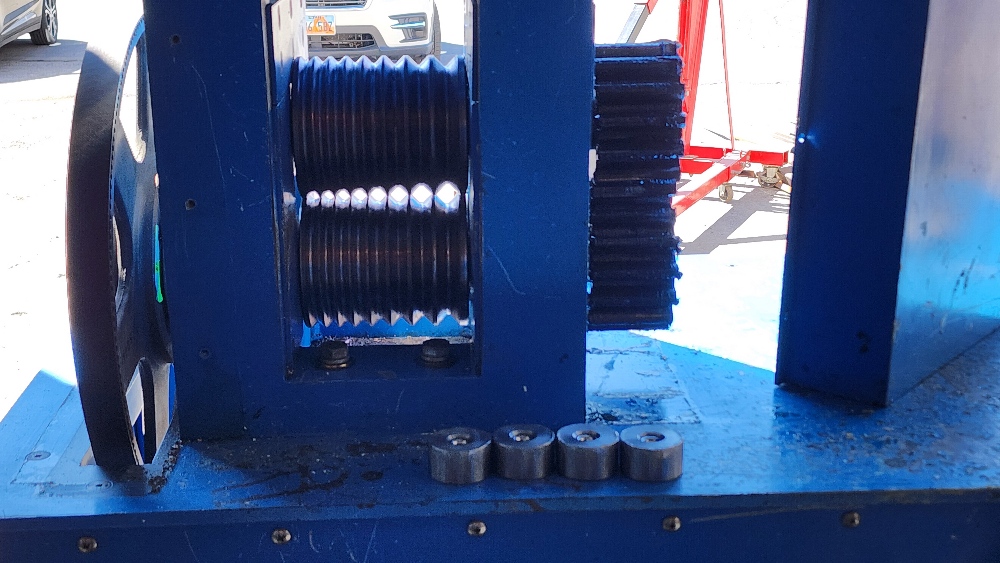

• Equipped with Adjustable Hardened Diamond Rolls
• Progressive Contours are of Critical Dimensions
• Swaging: Capable of Swaging 3/4" Rod to Nominal 3/8"
• Drawing: Drawing to Any Gauge or Diameter

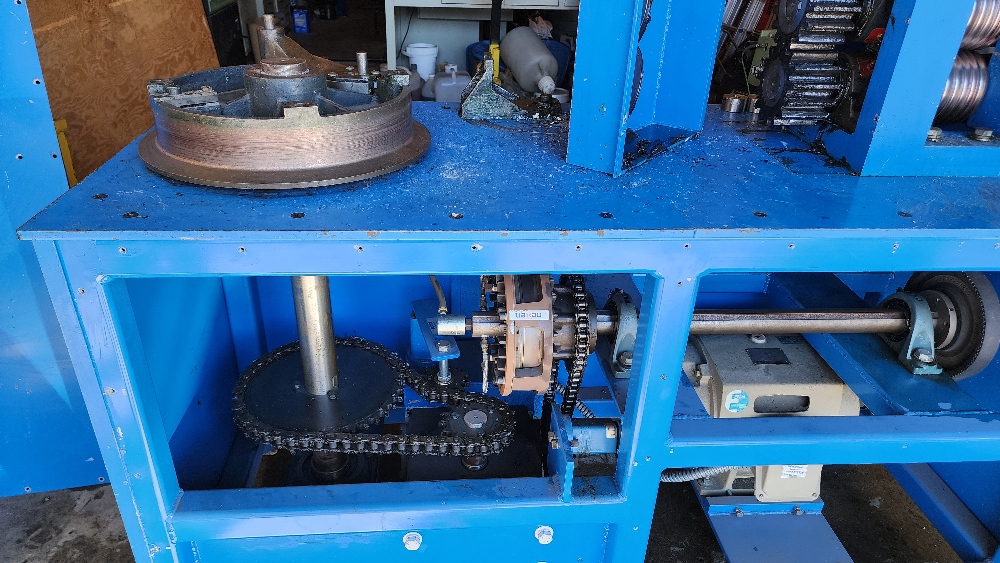

• Drive: Electric Motor
  • Power Output: 5HP
  • Voltage: 240 Volt
  • Frequency: 60Hz
  • Phase: 3-Phase
  • Wired with SO Cable and Appropriate NEMA Plugs


• Location: Western USA
