Roots Dresser 616 RAM-J Rotary Lobe Blower
Inventory ID: 1473598
- Category: Positive Displacement Blowers
- Availability: Available
- 5 verified equipment photos
Equipment details

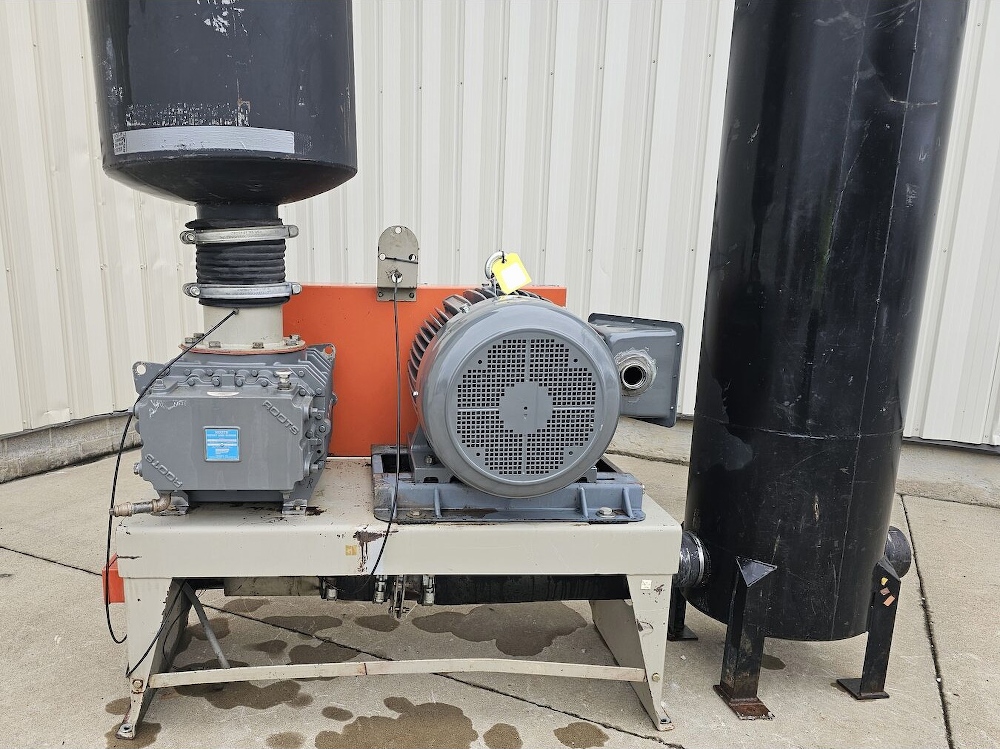

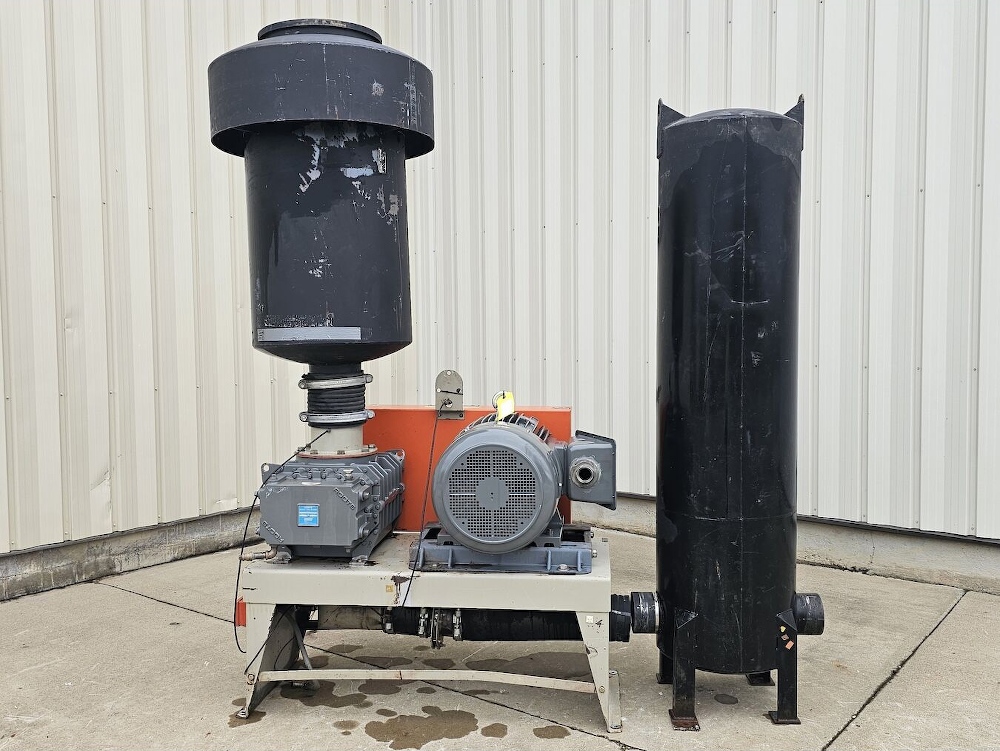

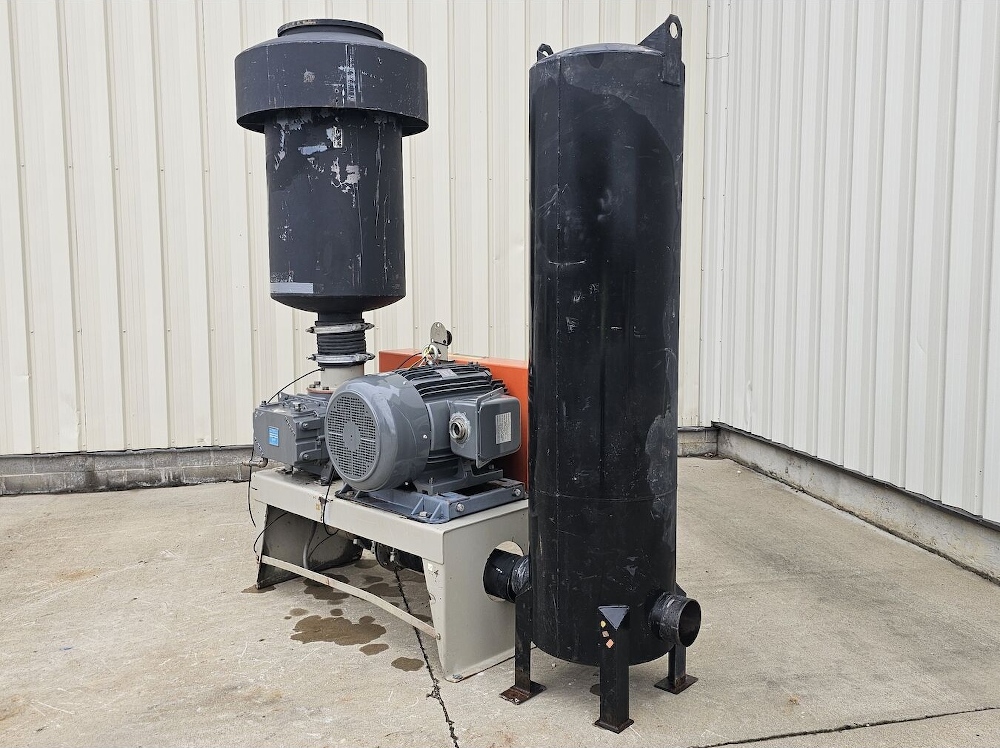

Roots Dresser 616 RAM-J Rotary Lobe Blower

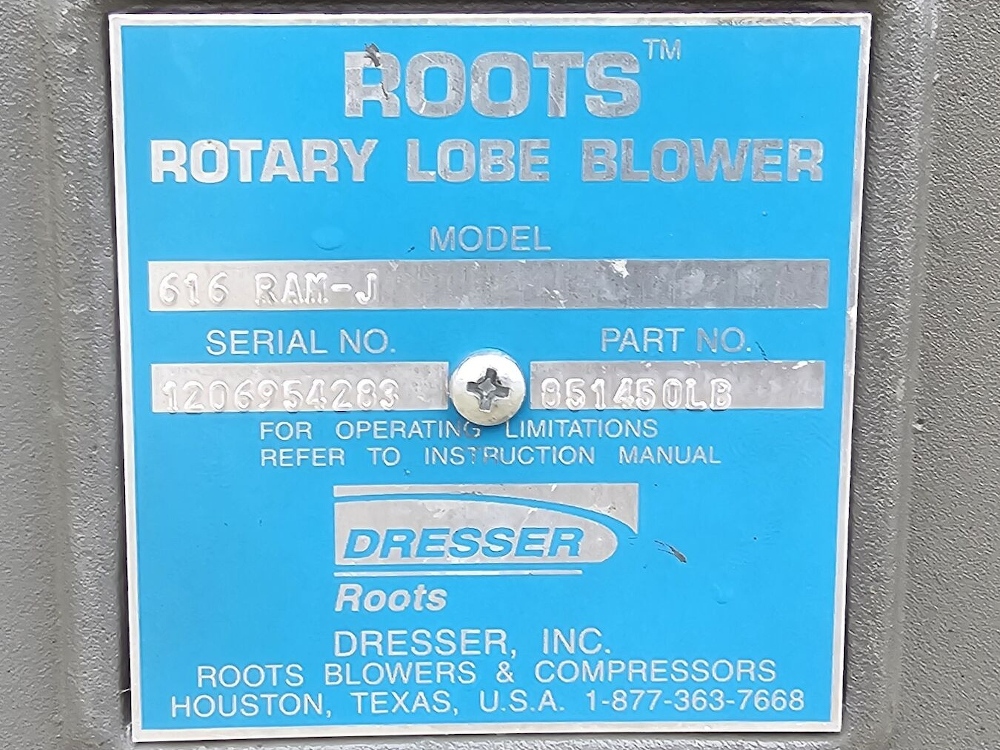

- Make: Roots Dresser
- Model: 616 RAM-J
- Type: Positive Displacement Blower
- Condition: Used Condition
- Max Capacity: 2,162 CFM
- Max Pressure: 15psi
- Max Rotation Speed: 3,000RPM
- Inlet: 8in Dia. with Chamber-Absorptive Silencer
- Discharge: 6in Dia. with Pressure Relief Valve and Chamber-Absorptive Silencer

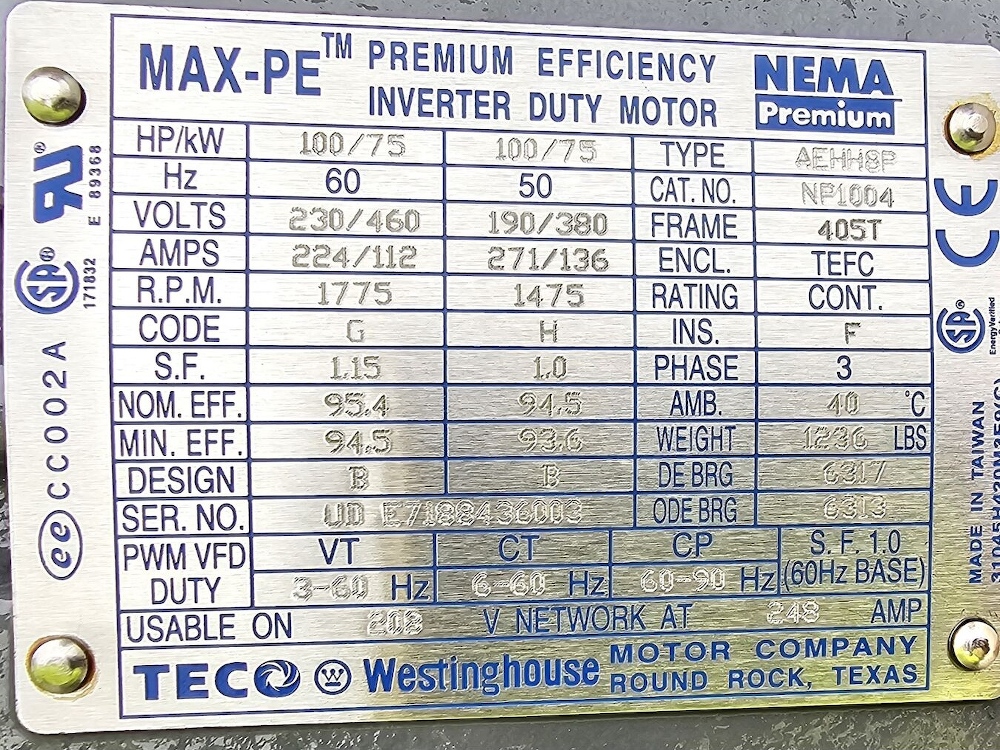

- Drive: Westinghouse Inverter Duty Motor, V-Belt
- Power Output: 100HP
- Rotation Speed: 1,775RPM
- Voltage: 230/460 Volts
- Frequency: 60Hz
- Phase: 3-Phase
- Mounted on 27in x 60in Steel Frame
- Speed Controllers Sold Separately
- Location: Eastern USA
