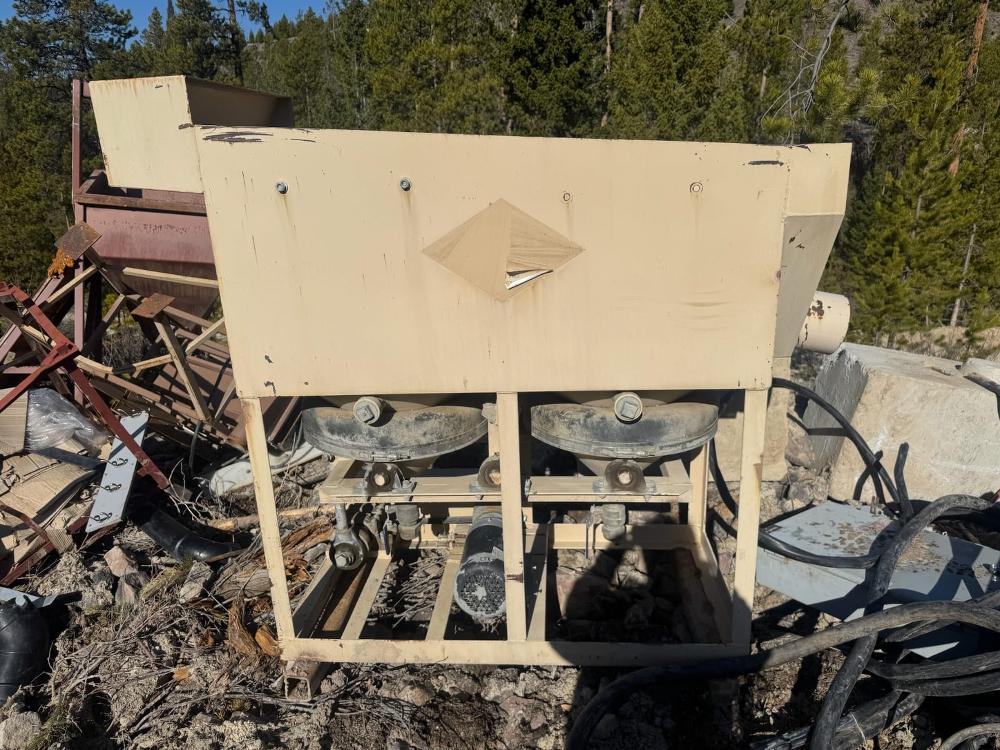

26in IRD Pan American Duplex Mineral Jig

Equipment details

IRD 26in x 26in Duplex Mineral Jig

• Make: I.R.D Inc.
• Size: 26in x 26in
• Type: Duplex Mineral Jig
• Style: Pan American Jig
• Condition: Used Condition
• Max Capacity:
  • Rougher: 10yd³ Per Hour
  • Cleaner: 3yd³ Per Hour
• Average Hutch Water Required:
  • Rougher: 30 Gallons Per Minute Per Cell
  • Cleaner: 20-25 Gallons Per Minute Per Cell
• Average Length of Stroke:
  • Rougher: 1in
  • Cleaner: 0.5in
• Average RPM Eccentric Shaft:
  • Rougher: 140 RPM
  • Cleaner: 170 RPM
• Inlets: 2in Diameter
• Outlets: 4in Diameter
• Approx. Power in Operation: 1HP


• Overall Dimensions:
  • Length: 86in
  • Width: 34in
  • Height: 67in
  • Net Weight: 2,300 Lbs.


• Location: Western USA
