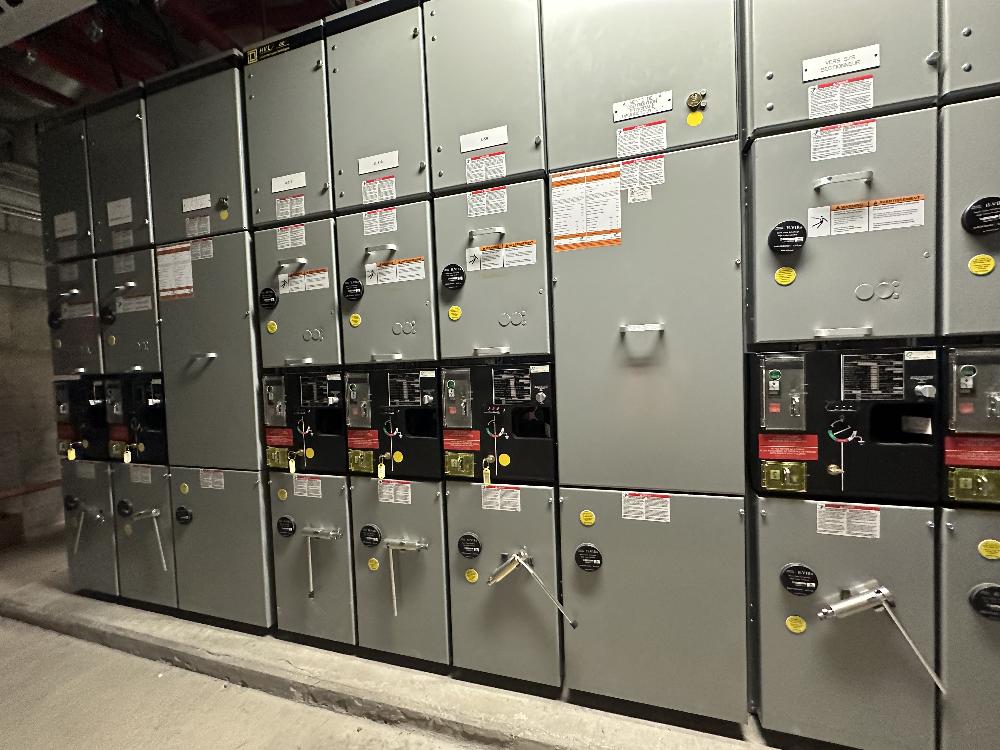

Square D 600 Amp HVL/cc Switchgear
Inventory ID: 1504120
- Category: Switch Gear Modules
- Availability: Available
- 4 verified equipment photos
Equipment details
Square D 600 Amp HVL/cc Switchgear
Quantity: (56) Units Available
- Make: Square D
- Type: HVL/cc Load Current Interrupter Switchgear
- Year: 03/2011
- Condition: Used Condition

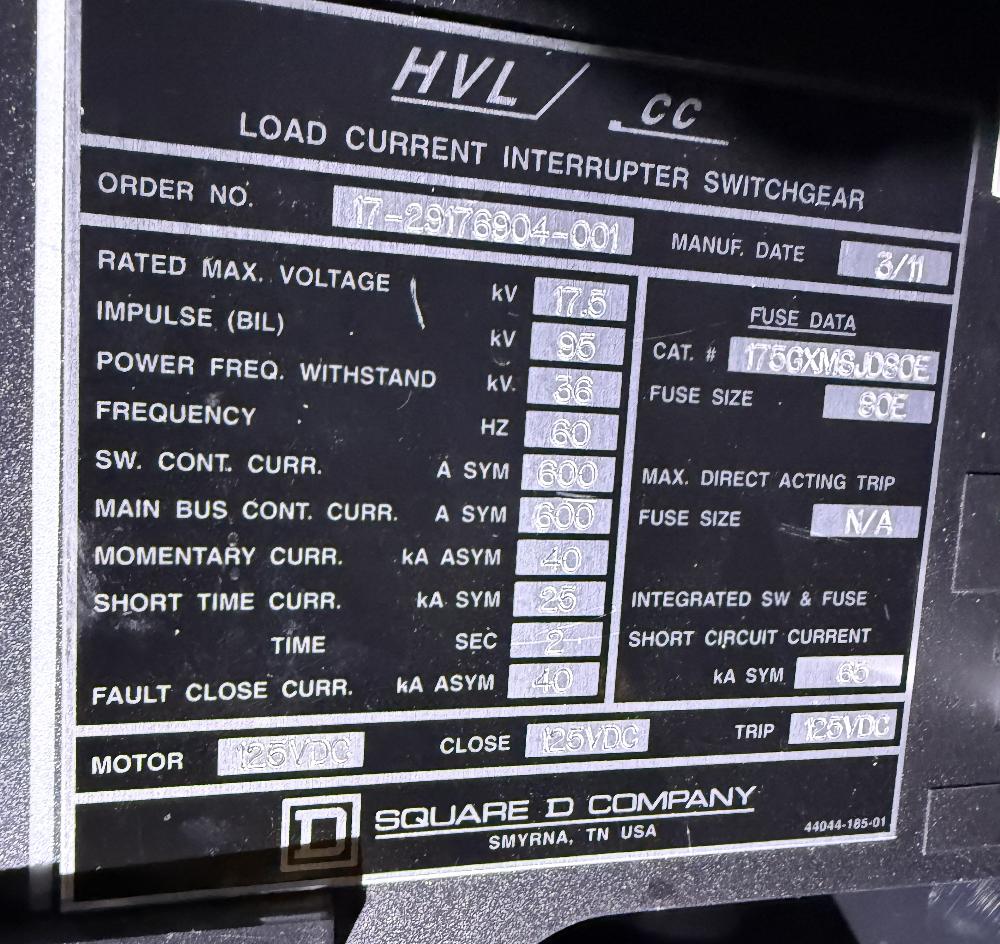

- Rated Max Voltage: 17.5kV
- Impluse (BIL): 95kV
- Power Frequency Withstand: 36kV
- Frequency: 60Hz
- SW Cont. Current: 600 Amp Sym.
- Main Bus Cont. Current: 600 Amp Sym.
- Momentary Current: 40kA Asym.
- Short Time Current: 25kA Sym.
- Time: 2 Seconds
- Fault Close Current: 40kA Asym.
- Motor: 125VDC
- Close: 125VDC
- Trip: 125VDC
- Fuse Data:
- CAT #: 175GXMSJD80E
- Fuse Size: 80E
- Max Direct Acting Trip: N/A
- Integrated SW & Fuse Short Circuit Current: 65kA Sym.
- Location:
