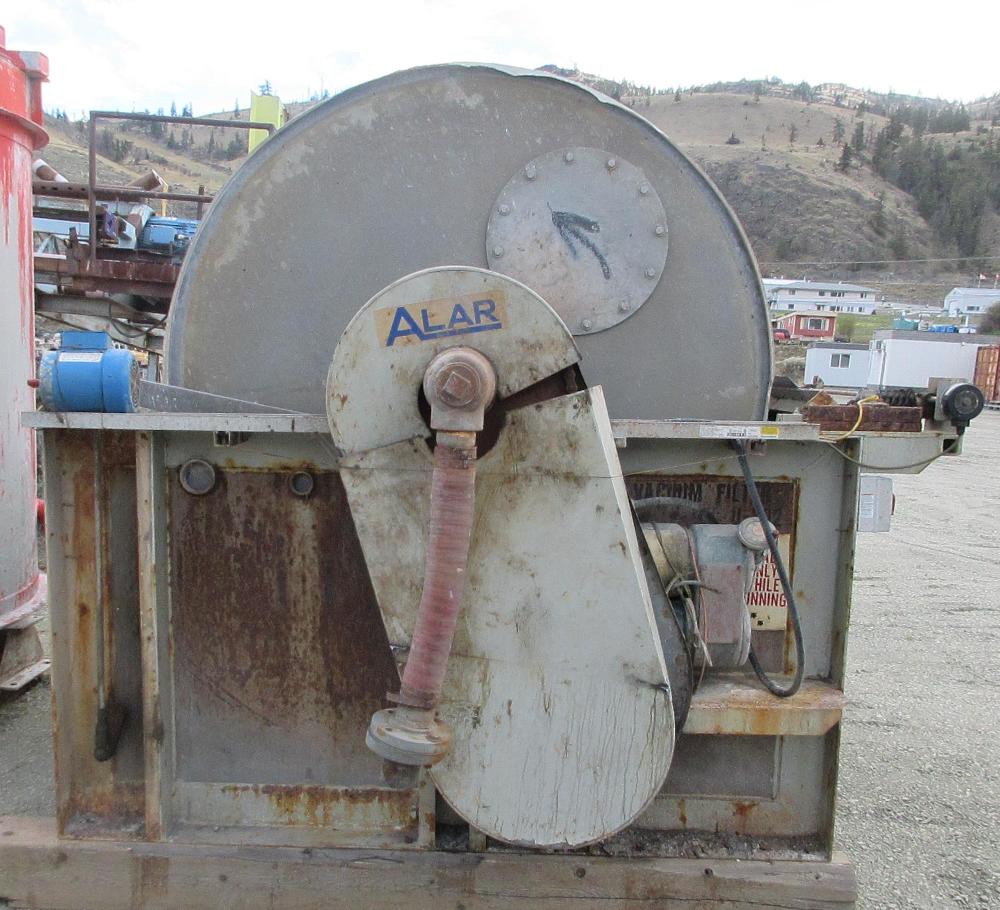

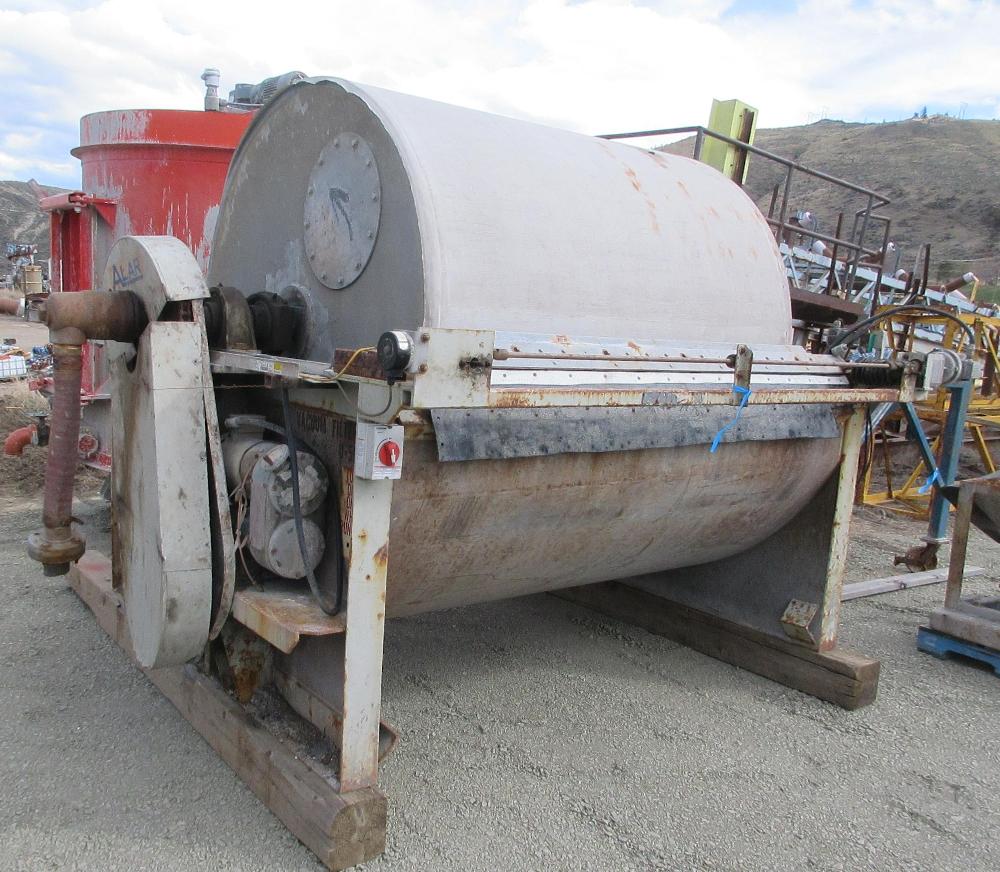

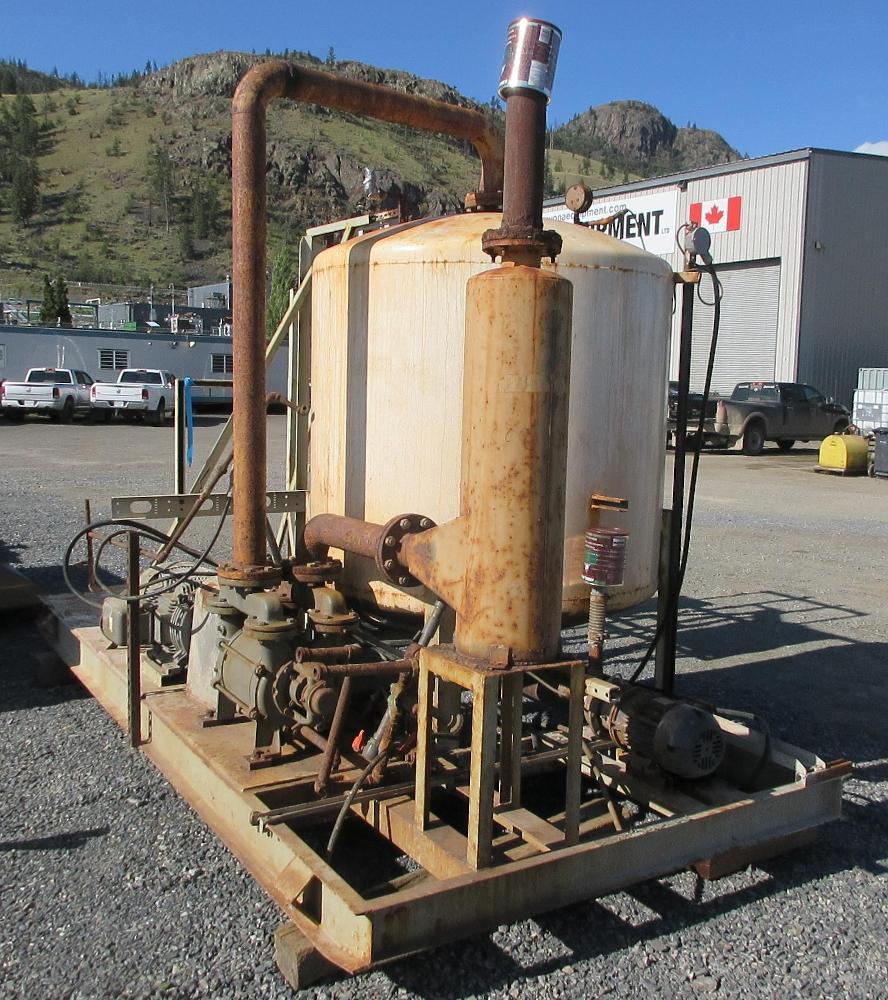

Alar 6ft Dia. x 6ft Long Rotary Vacuum Filter System

Inventory ID: 1505314

Equipment details

Make: Alar
Type: Rotary Drum Vacuum Filter
Condition: Used Condition

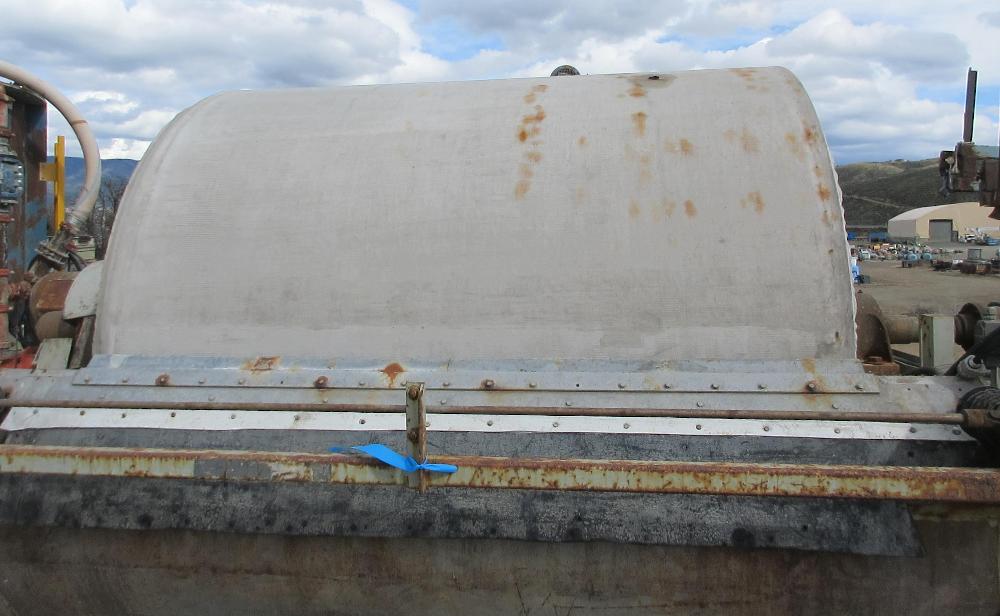

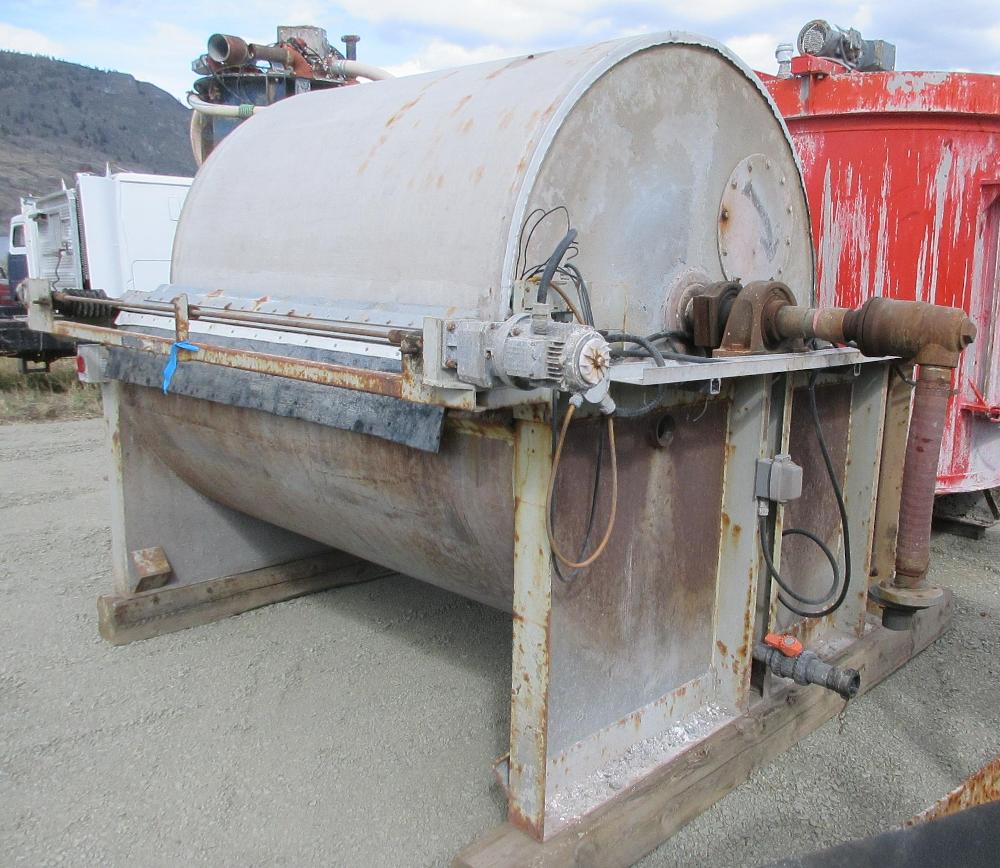

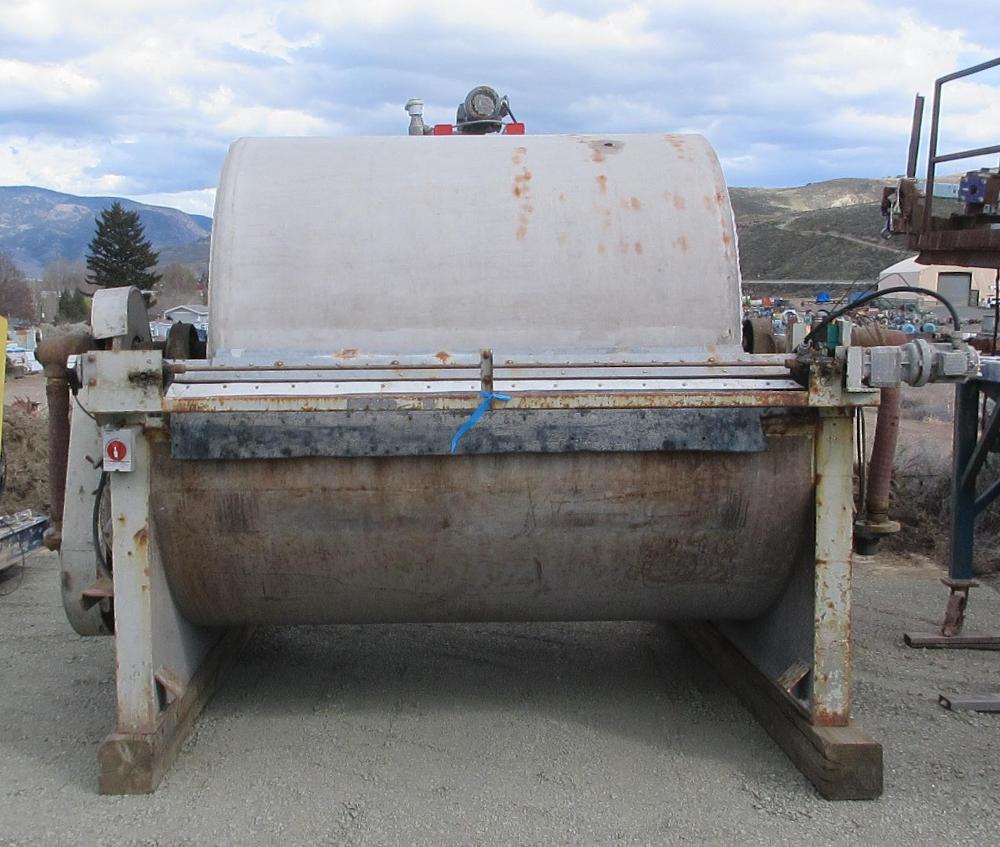

Drum Filter:
- Drum Size: 6ft Dia. x 6ft Long
- Approx. Filtering Area: 113ft²
- Construction For Tank, Drum Agitator: Stainless Steel

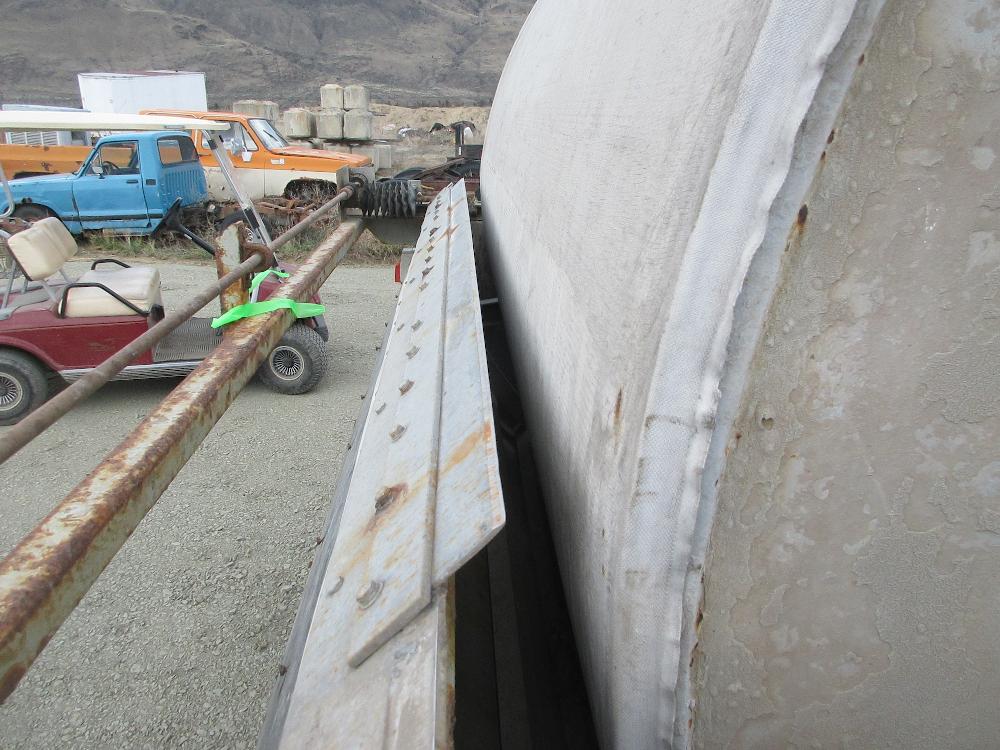

- Adjustable Knife: 74in Long x 3in Wide
  - Drive: Electric Motor and Reducer

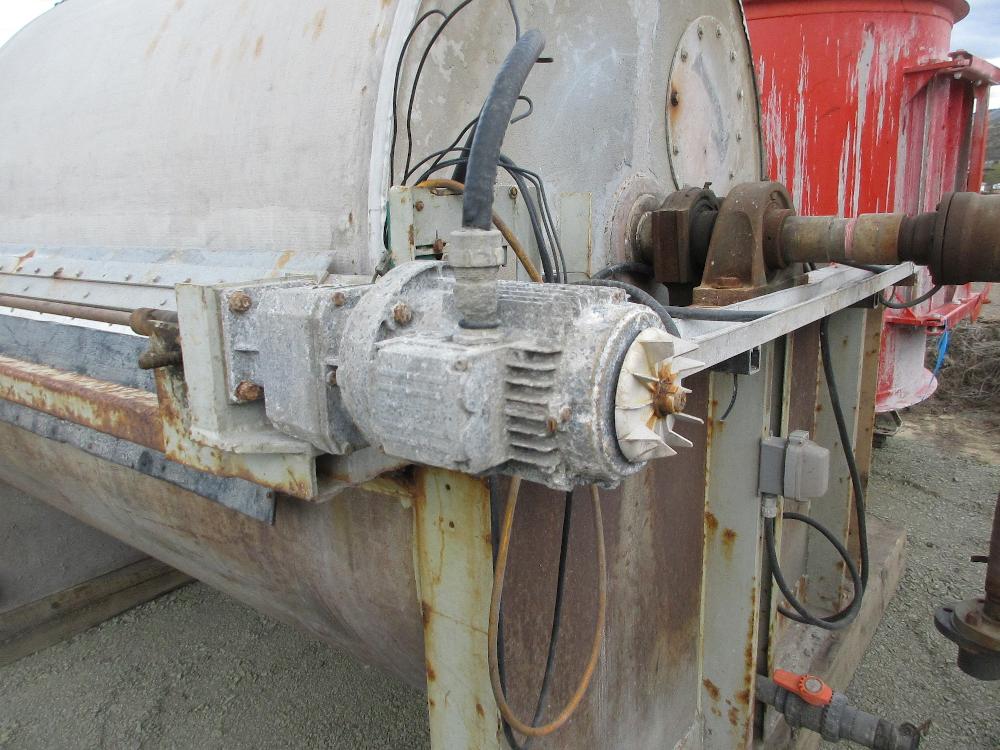

- Agitator:

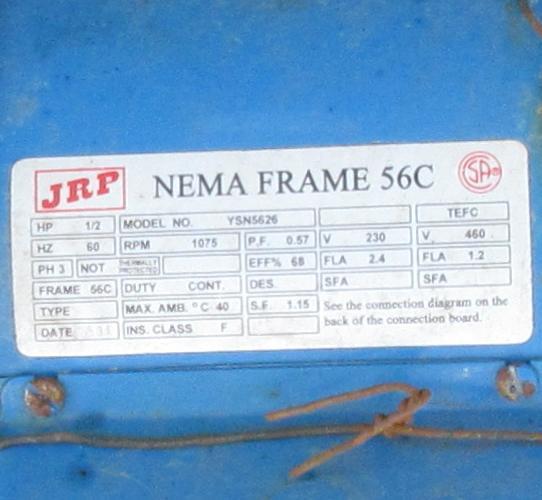

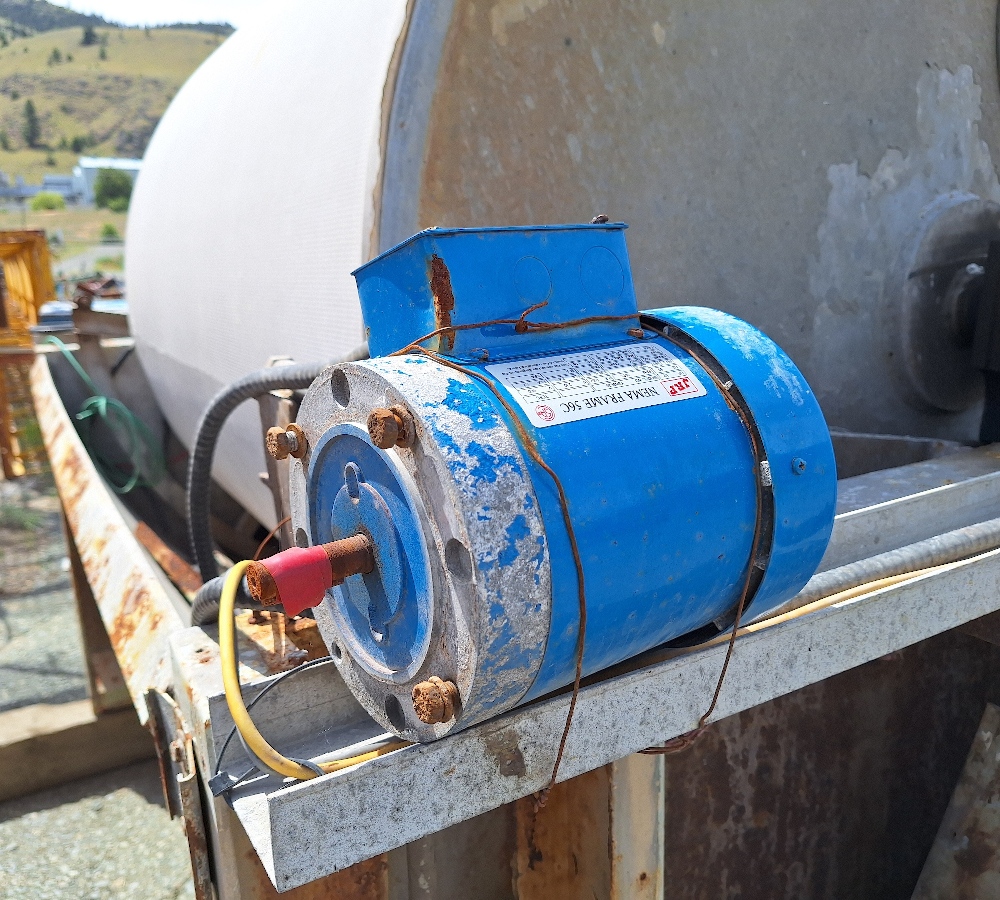

  - Drive: JPR Electric Motor
    - Power Output: 0.5HP
    - Rotation Speed: 1075RPM
    - Voltage: 230/460 Volt
    - Phase: 3-Phase

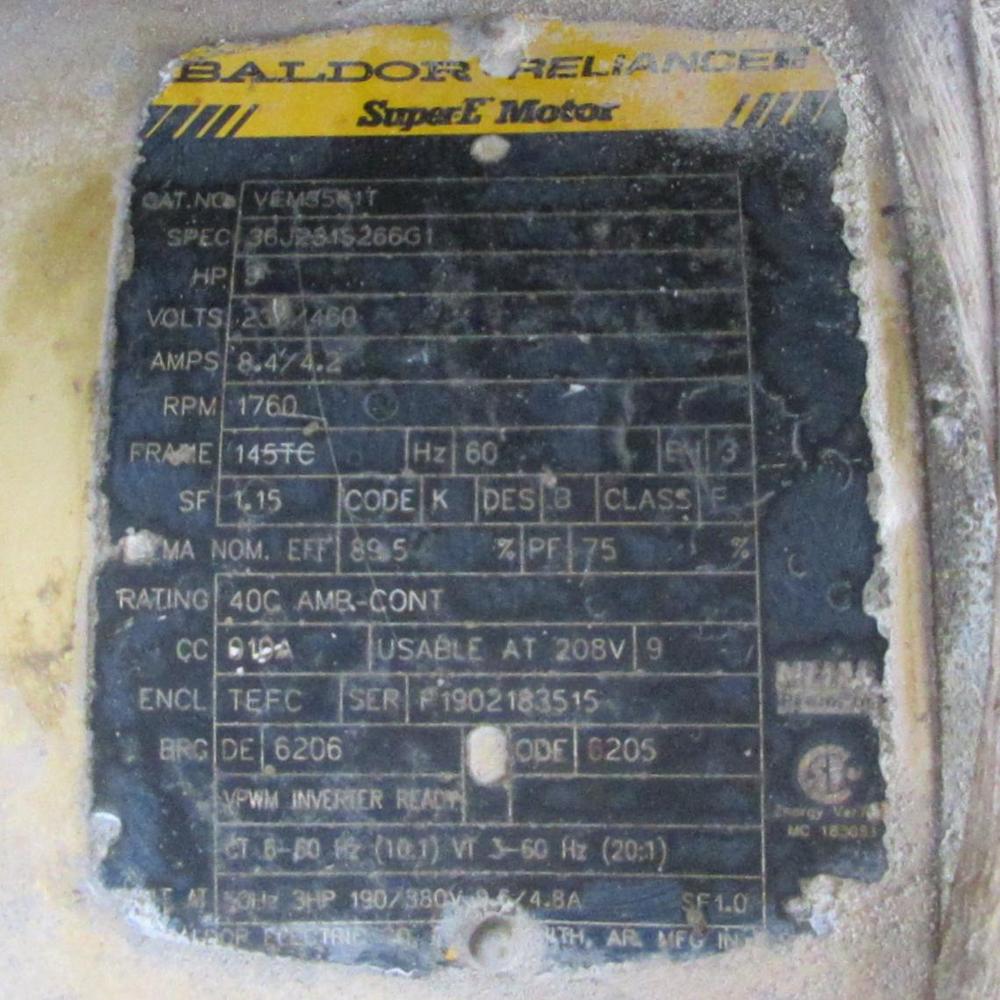

- Drum Drive: Baldor Reliance Electric Motor
  - Power Output: 3HP
  - Rotation Speed: 1760RPM

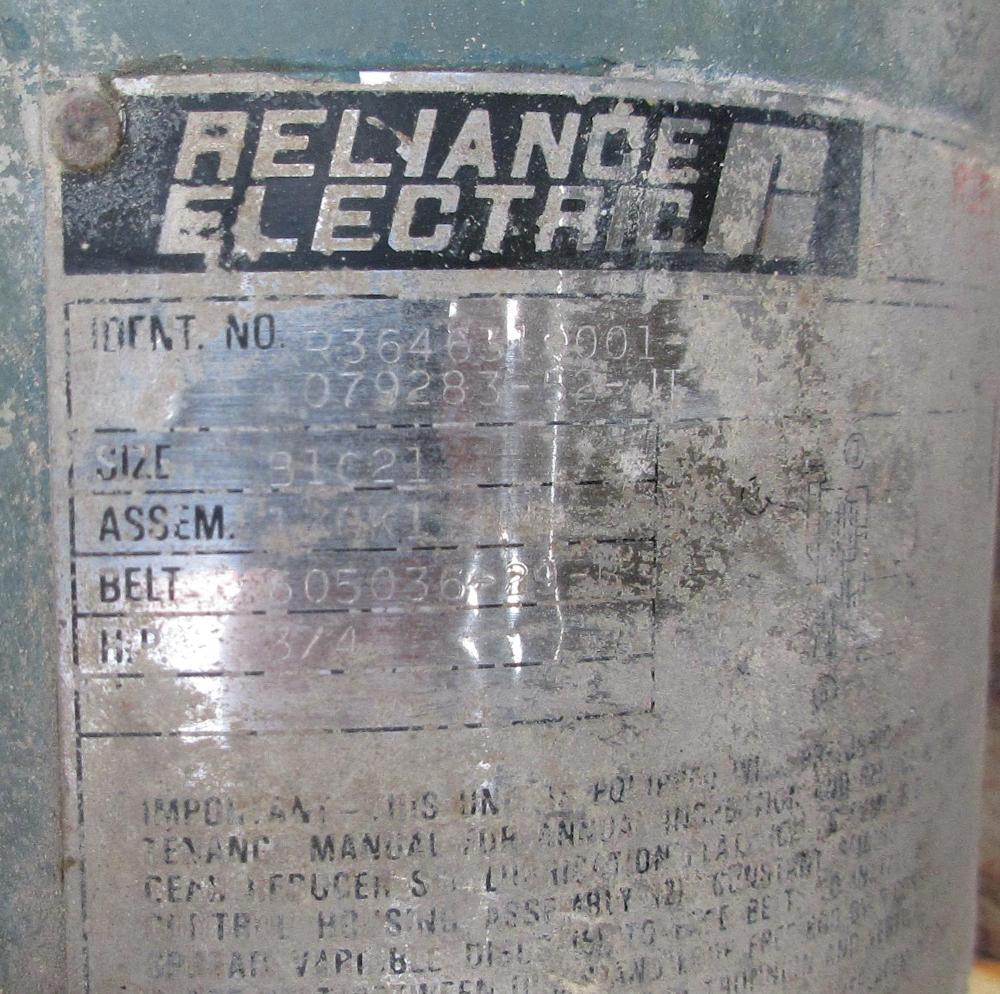

- Speed Reducer: Reliance Electric
  - Size: BIC21
  - Power Output: 3/4HP

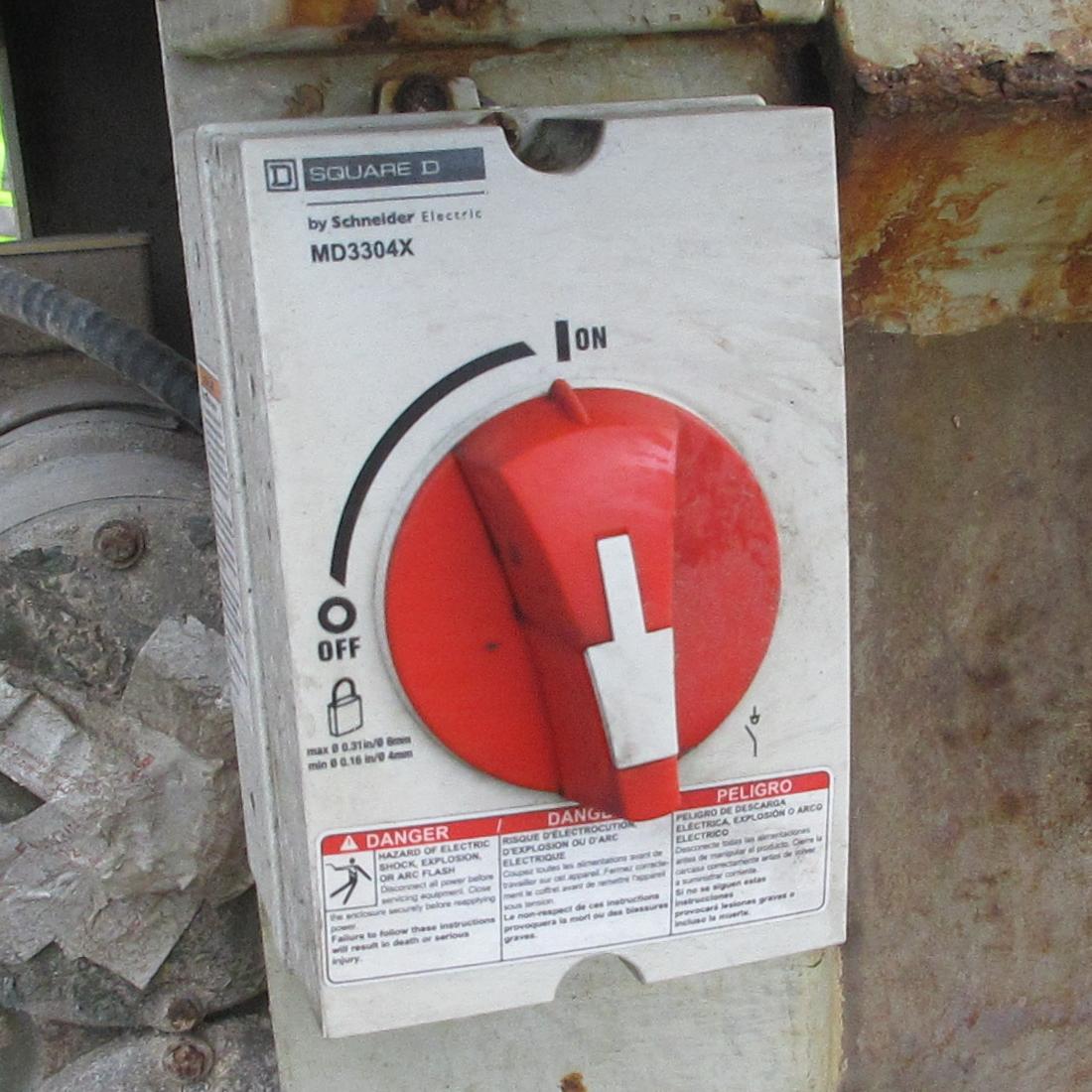

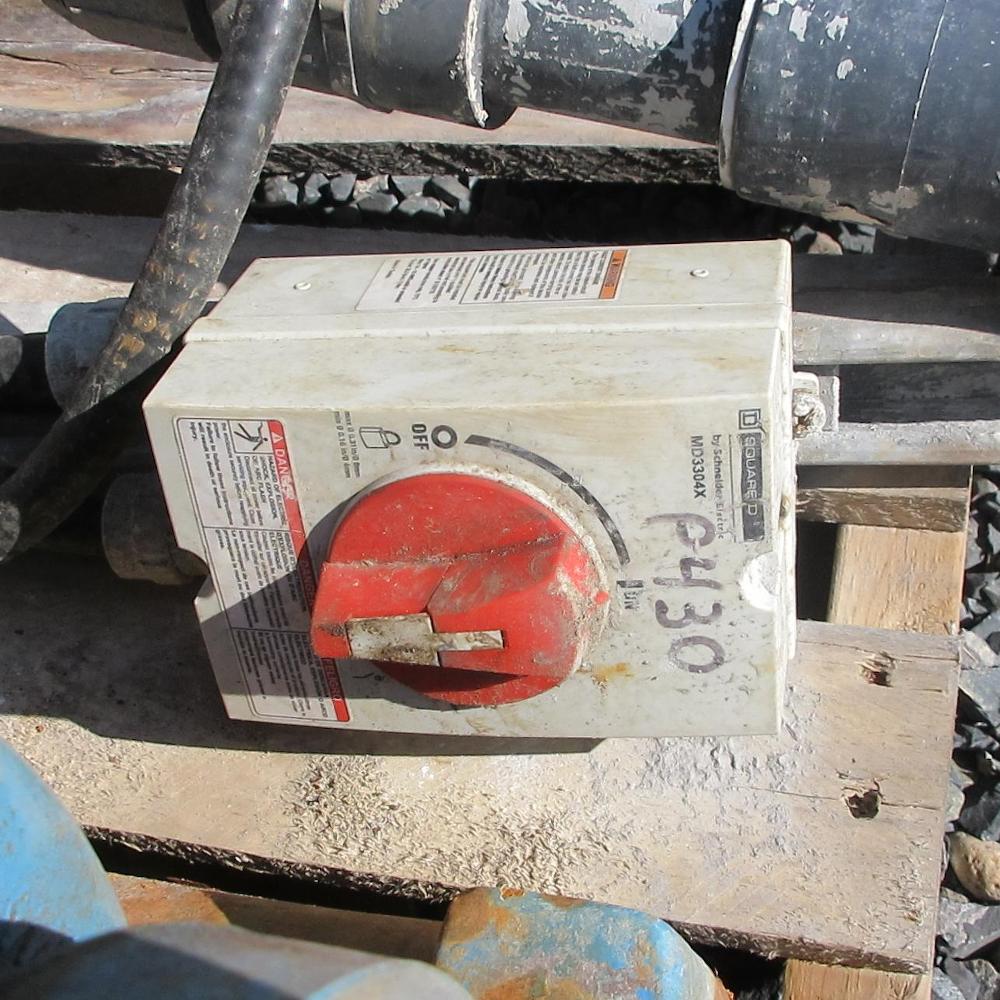

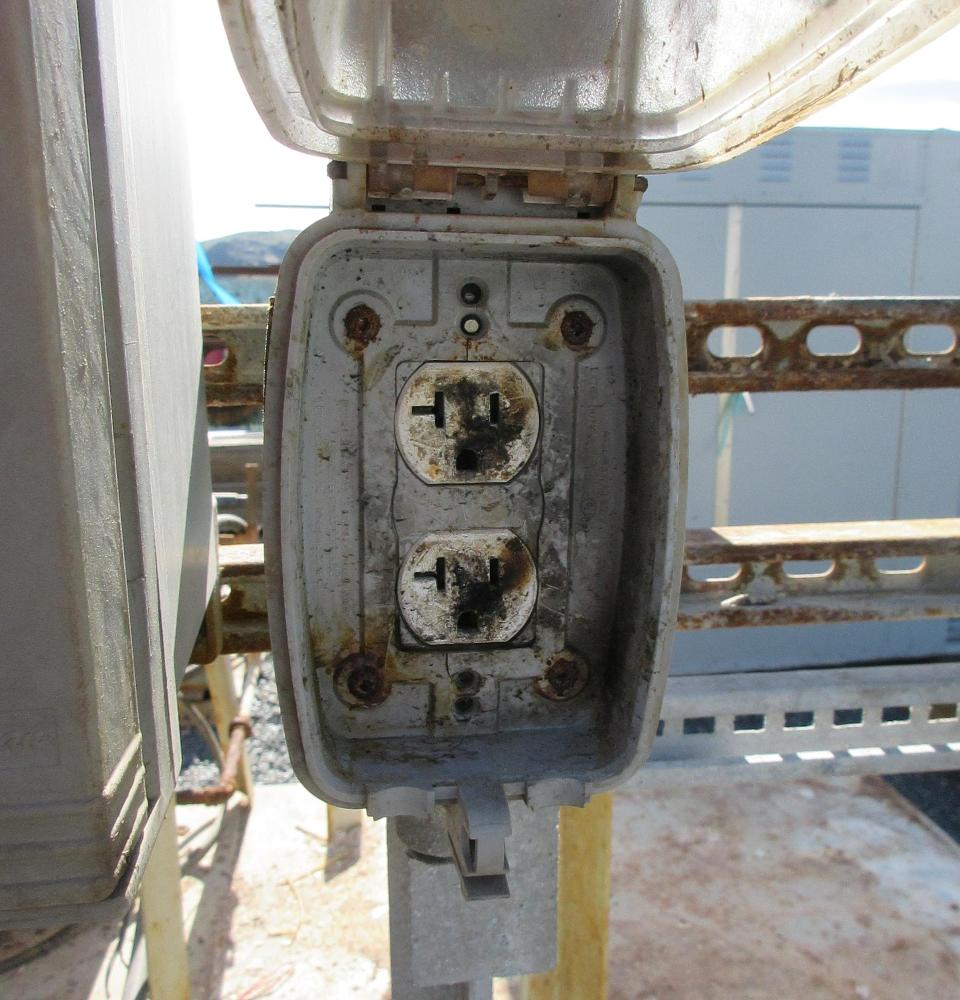

- On/Off Switch: Square D MD3304X

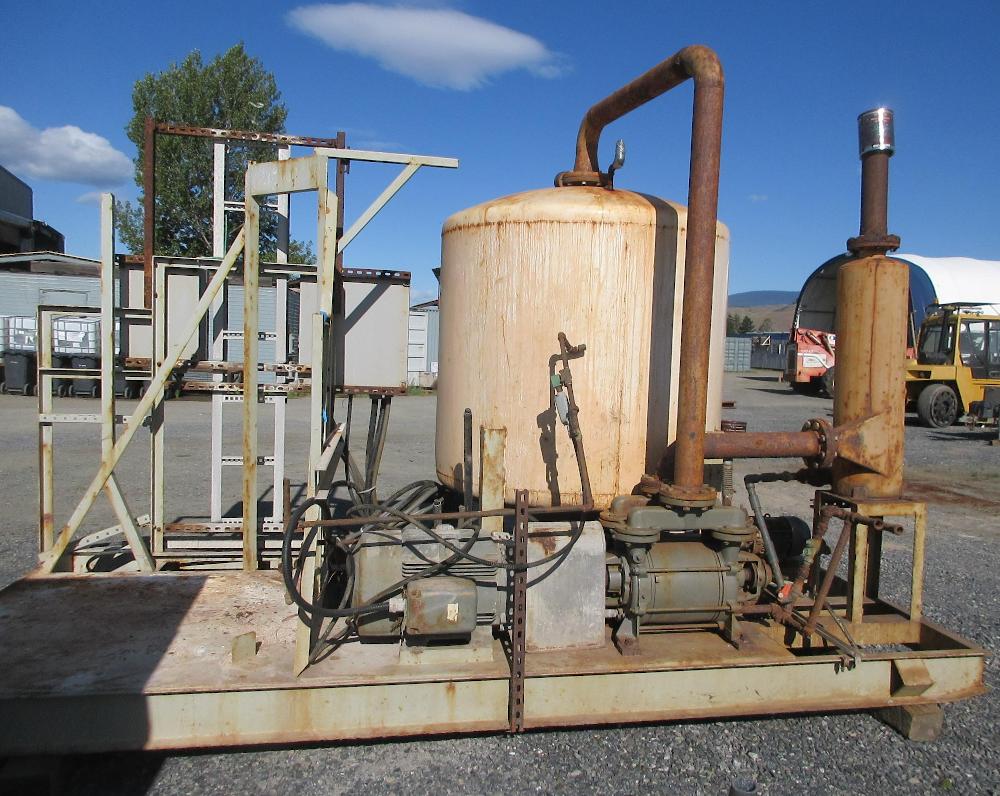

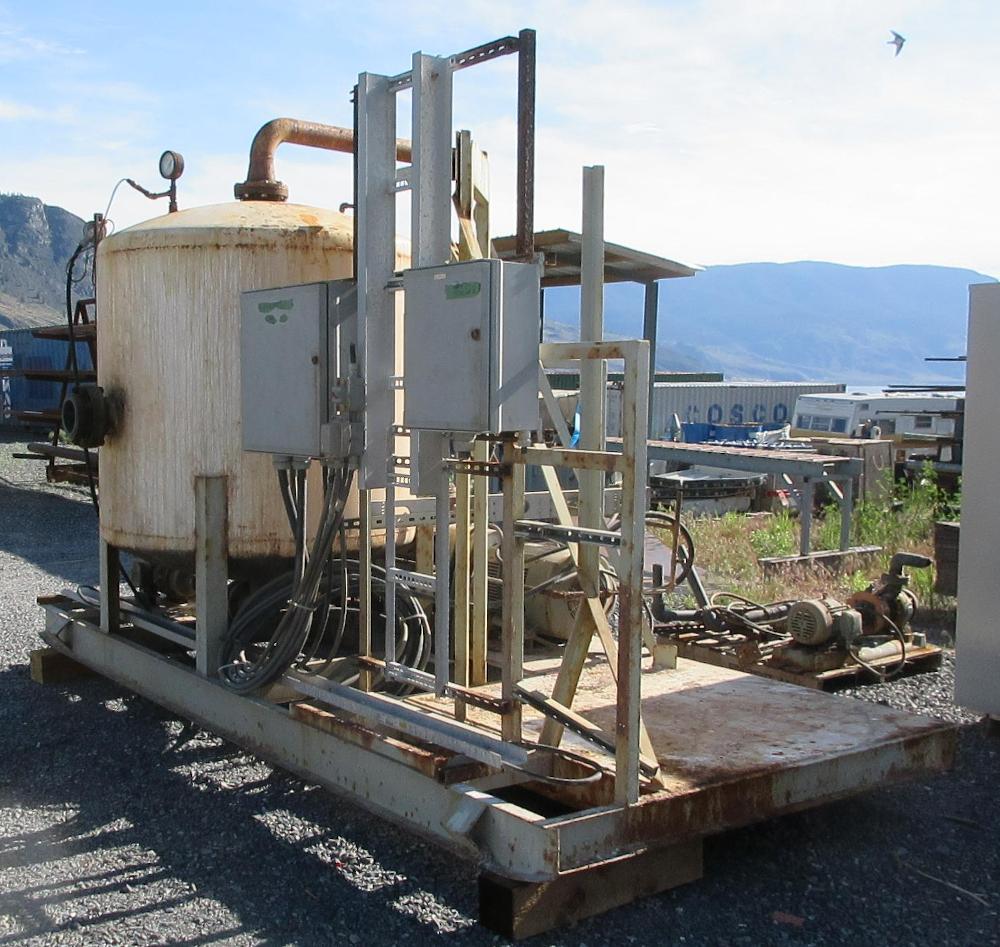

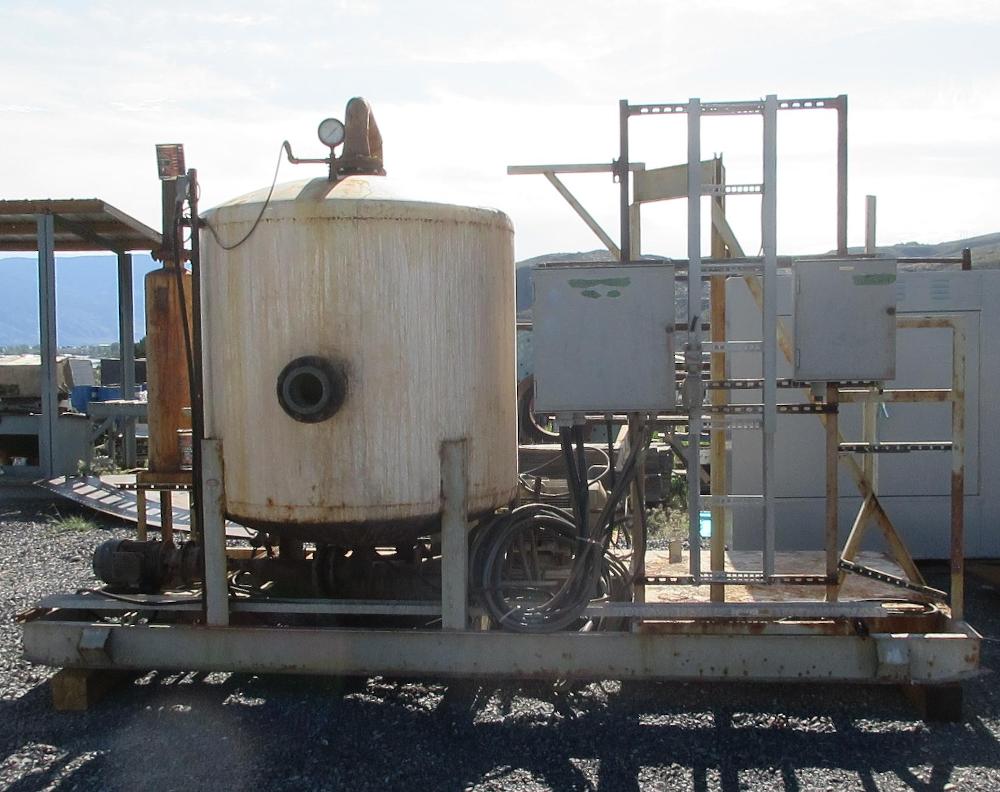

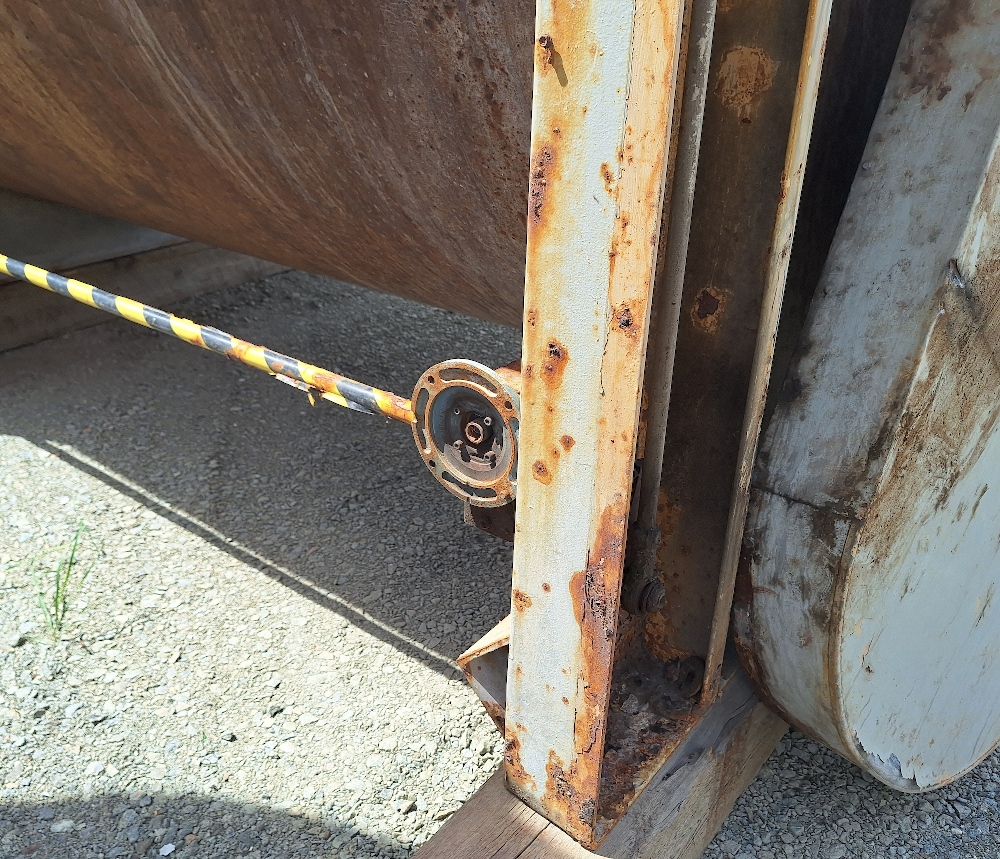

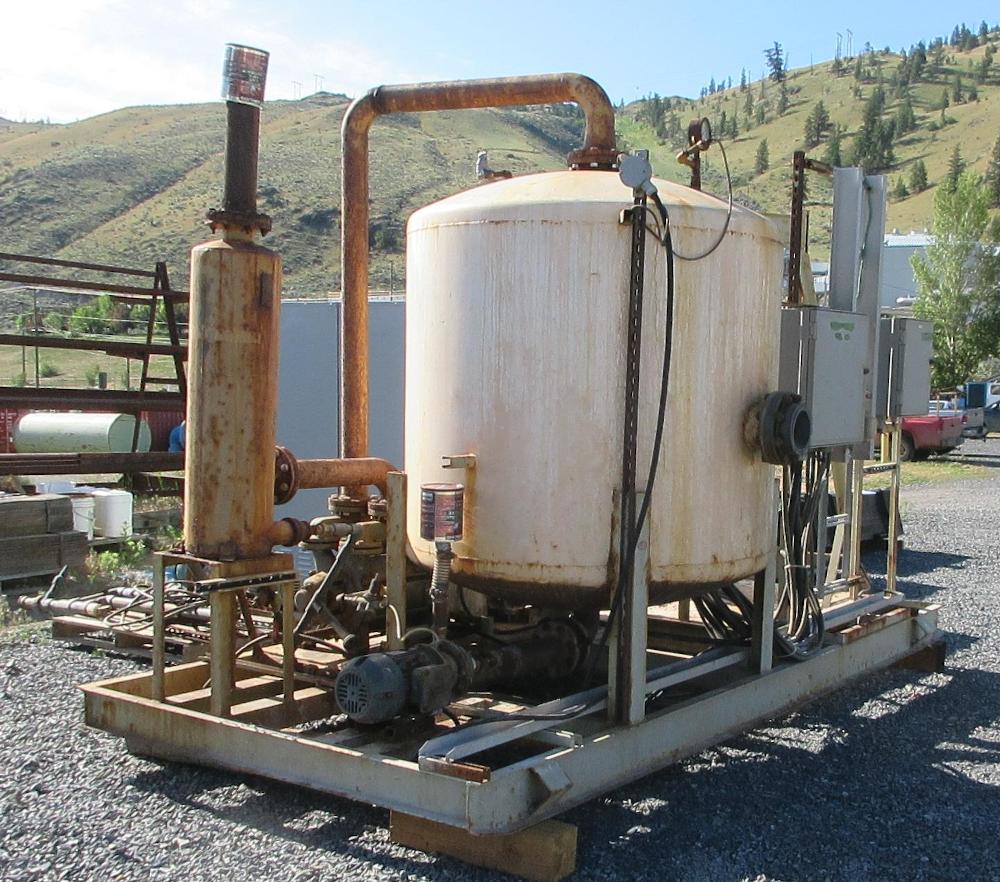

Receiver Tank:
- Side Opening: 6in Dia. with 8in Flange Mount
- Top Opening: Approx. 5in Dia.
- Bottom Opening

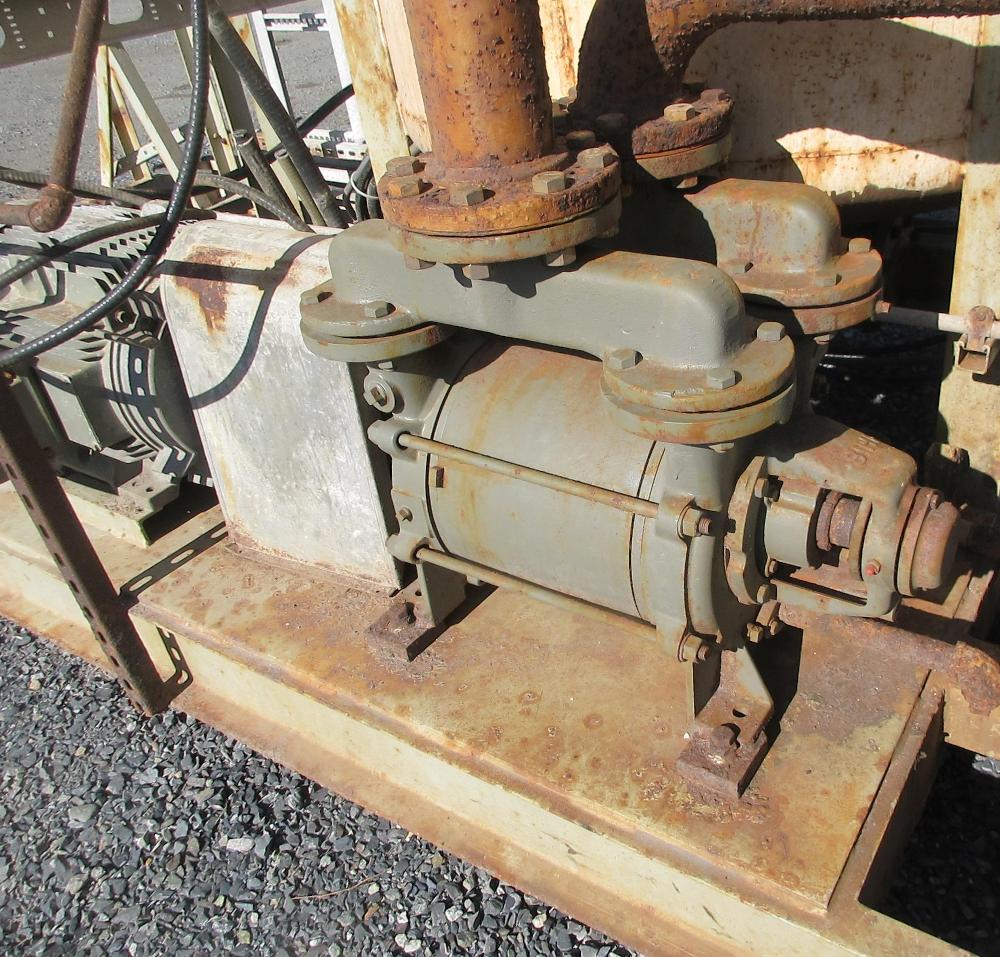

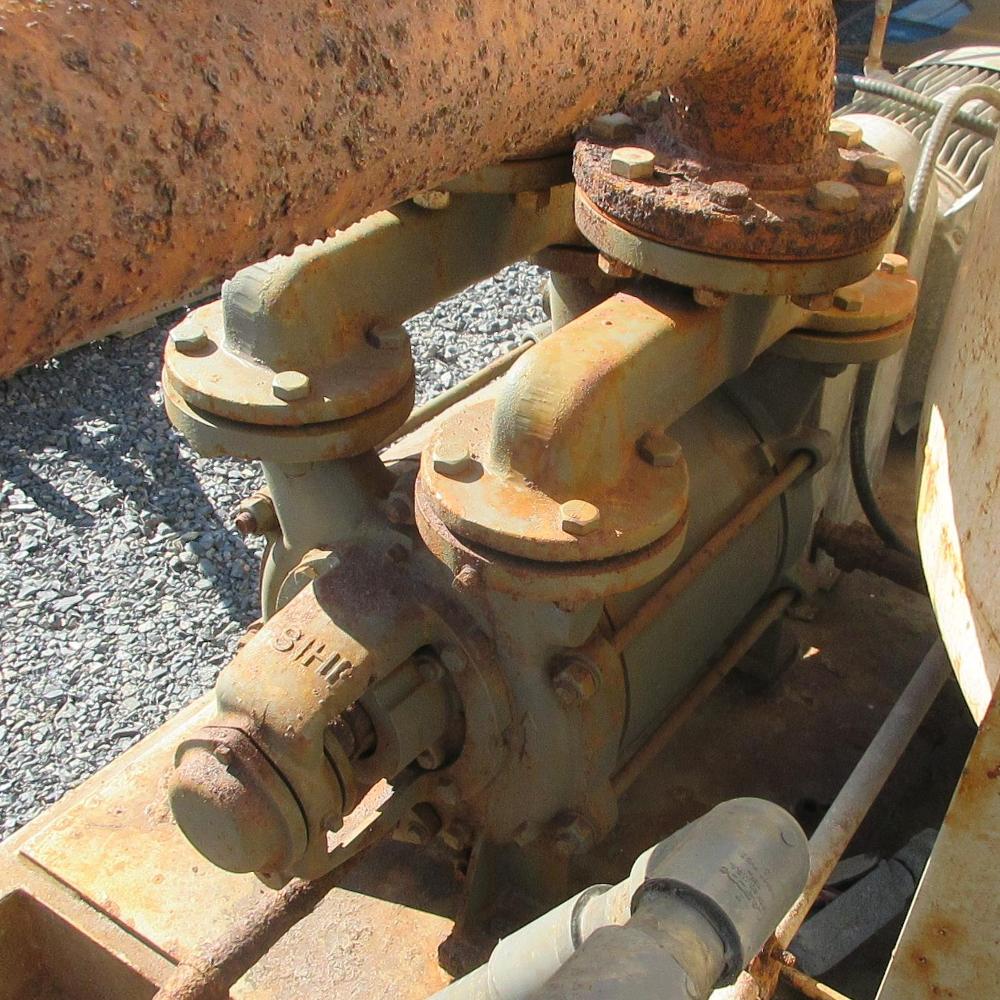

Vacuum Pump: SIHI

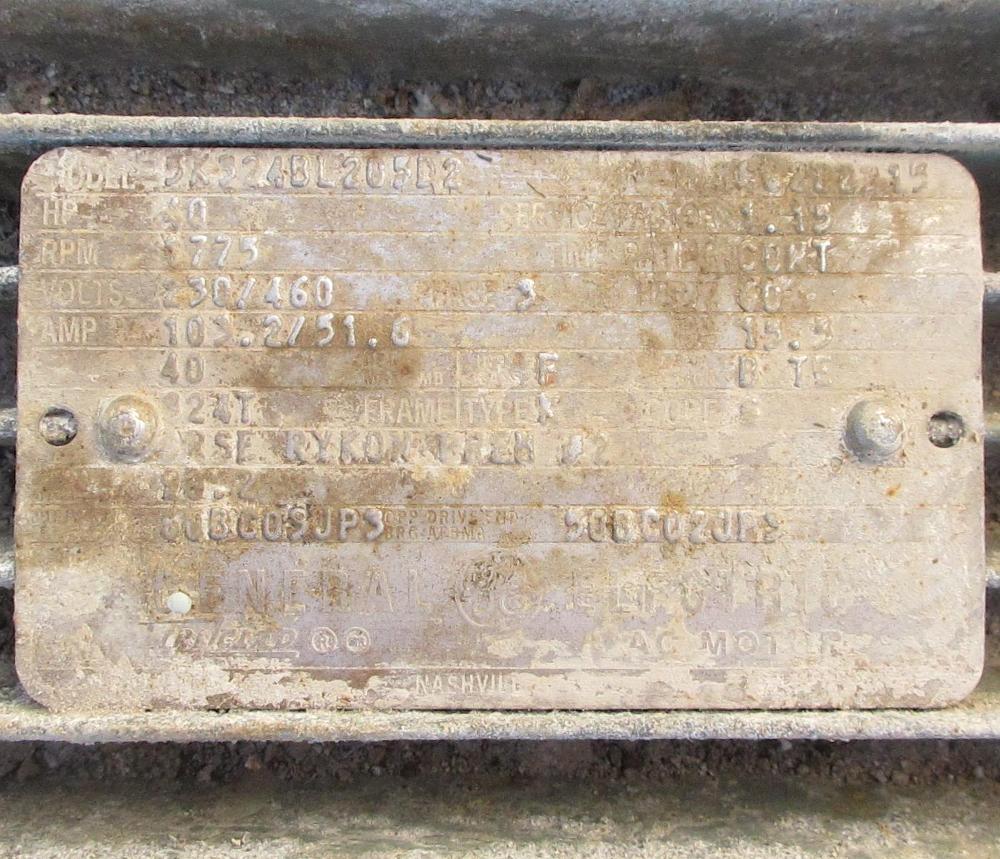

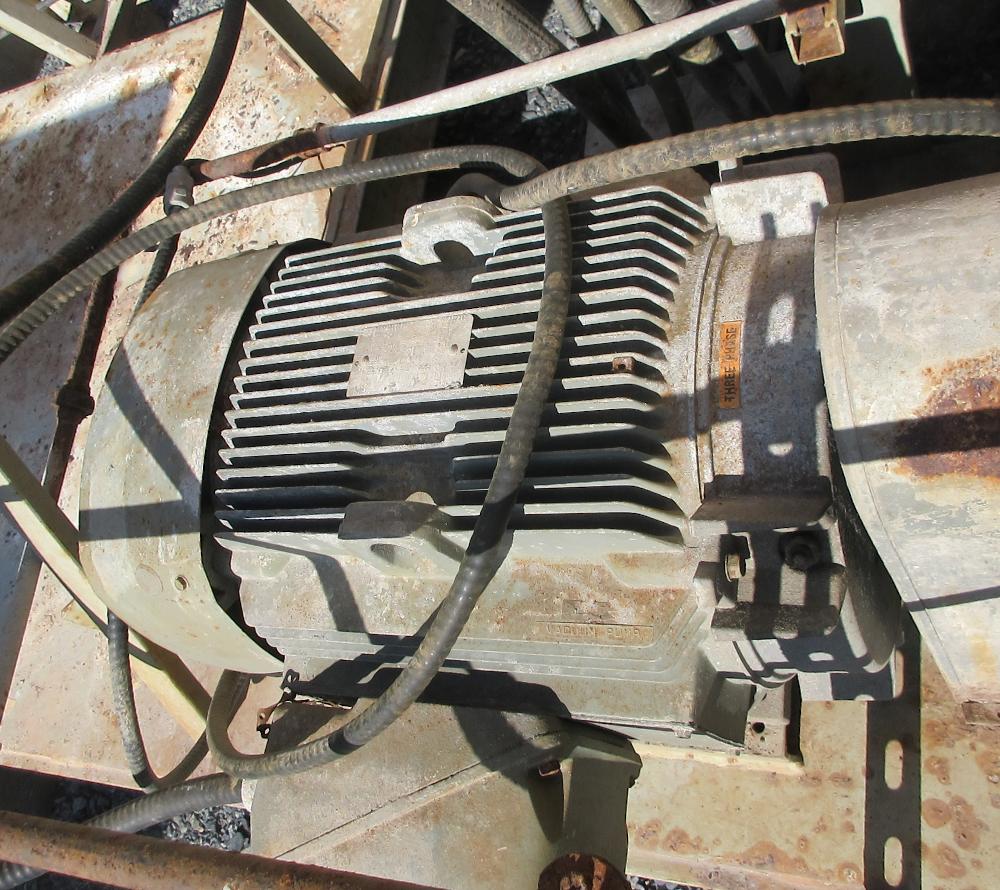

- Drive: GE Electric Motor
  - Power Output: 40HP
  - Rotation Speed: 1775RPM
  - Voltage: 230/460 Volt
  - Phase: 3-Phase

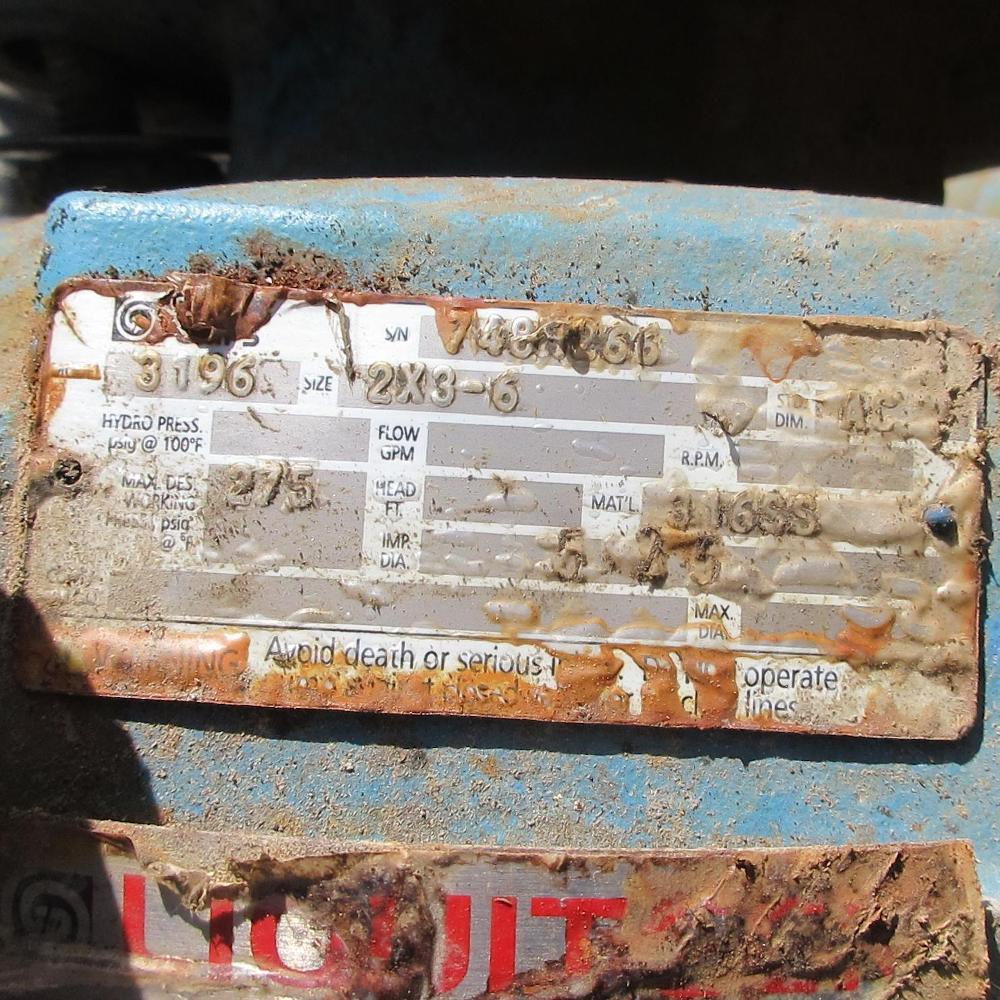

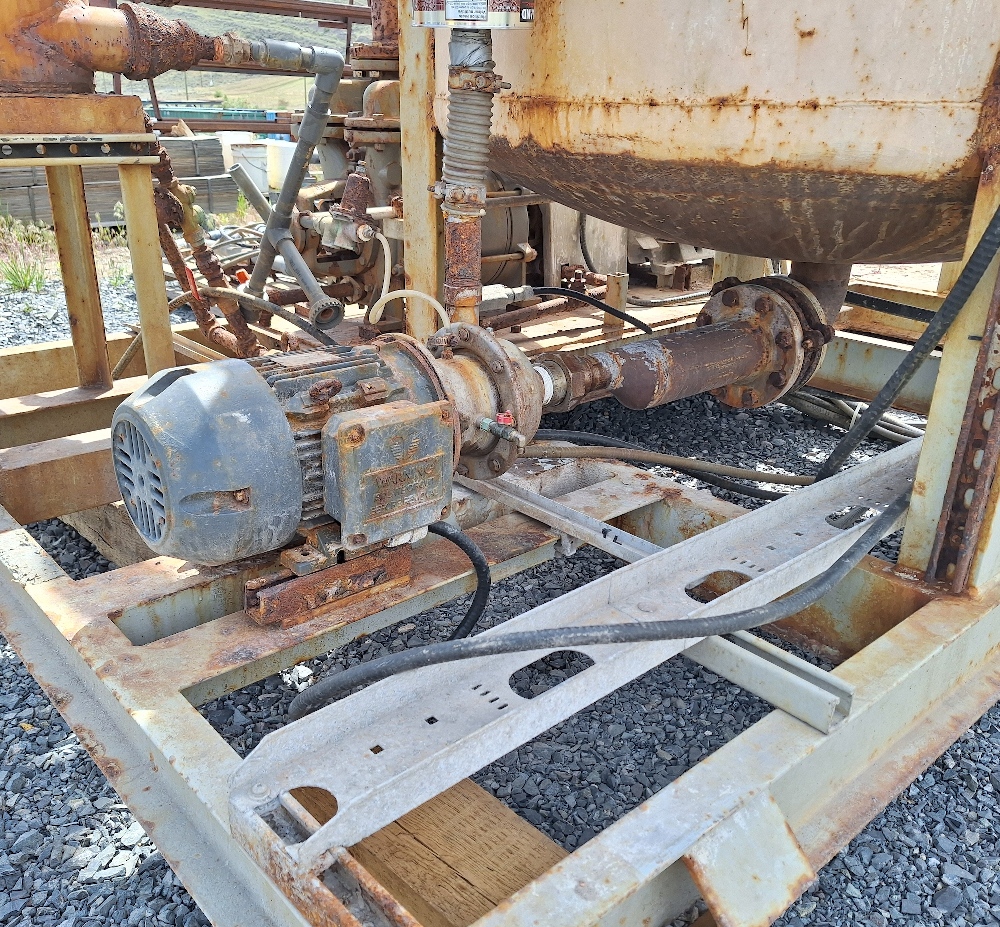

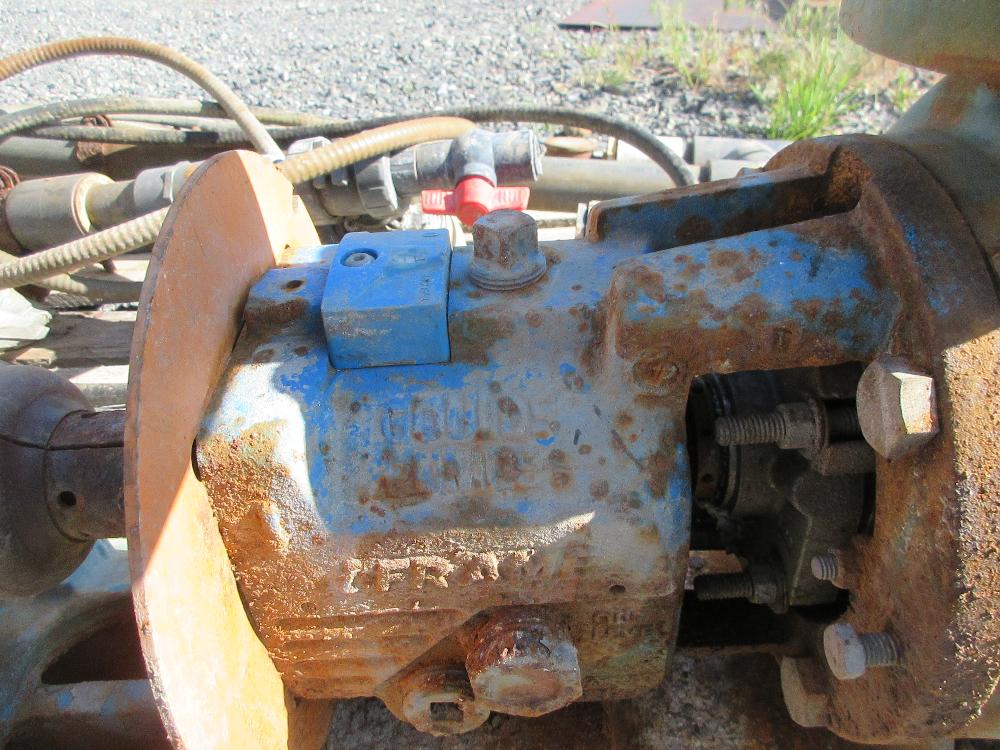

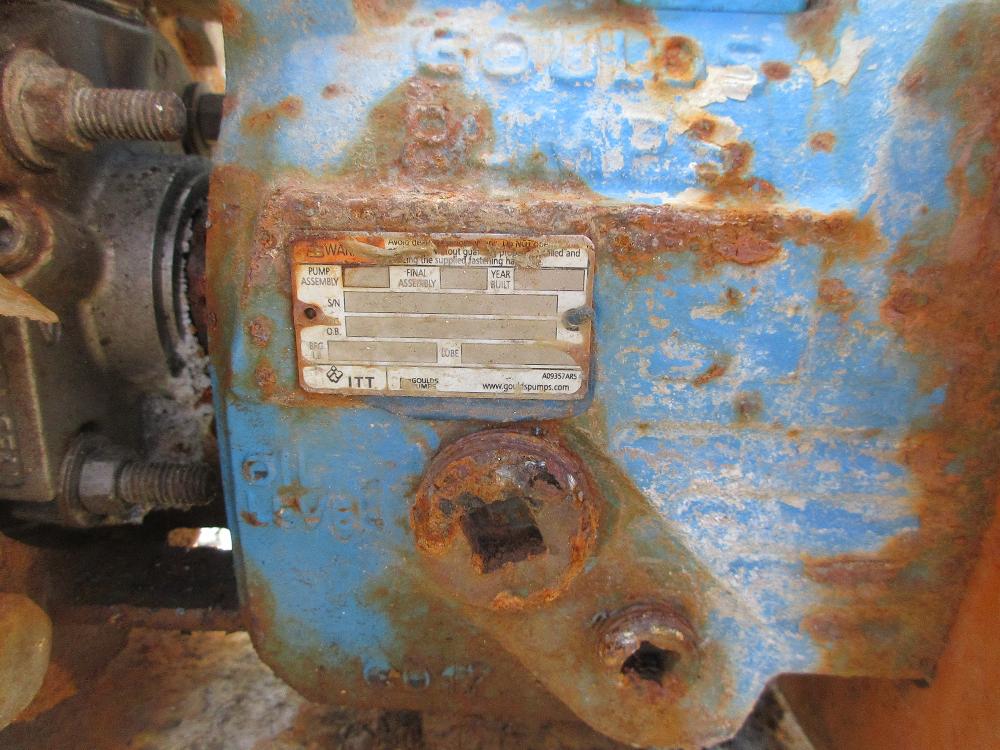

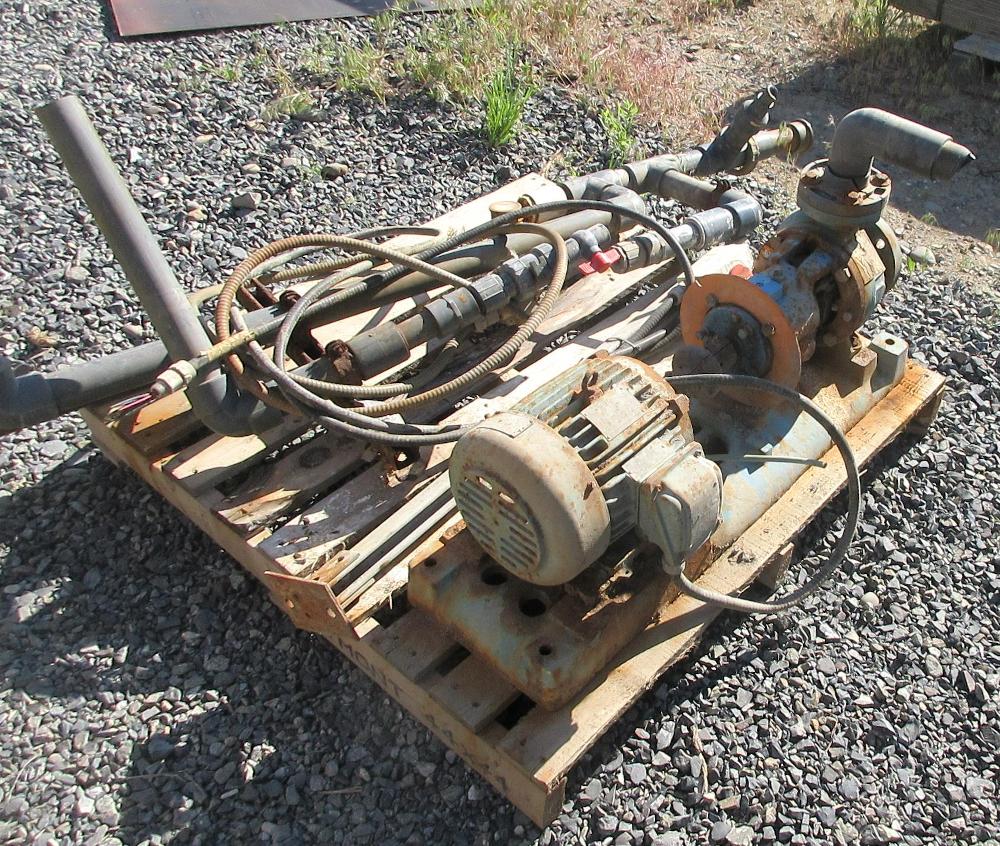

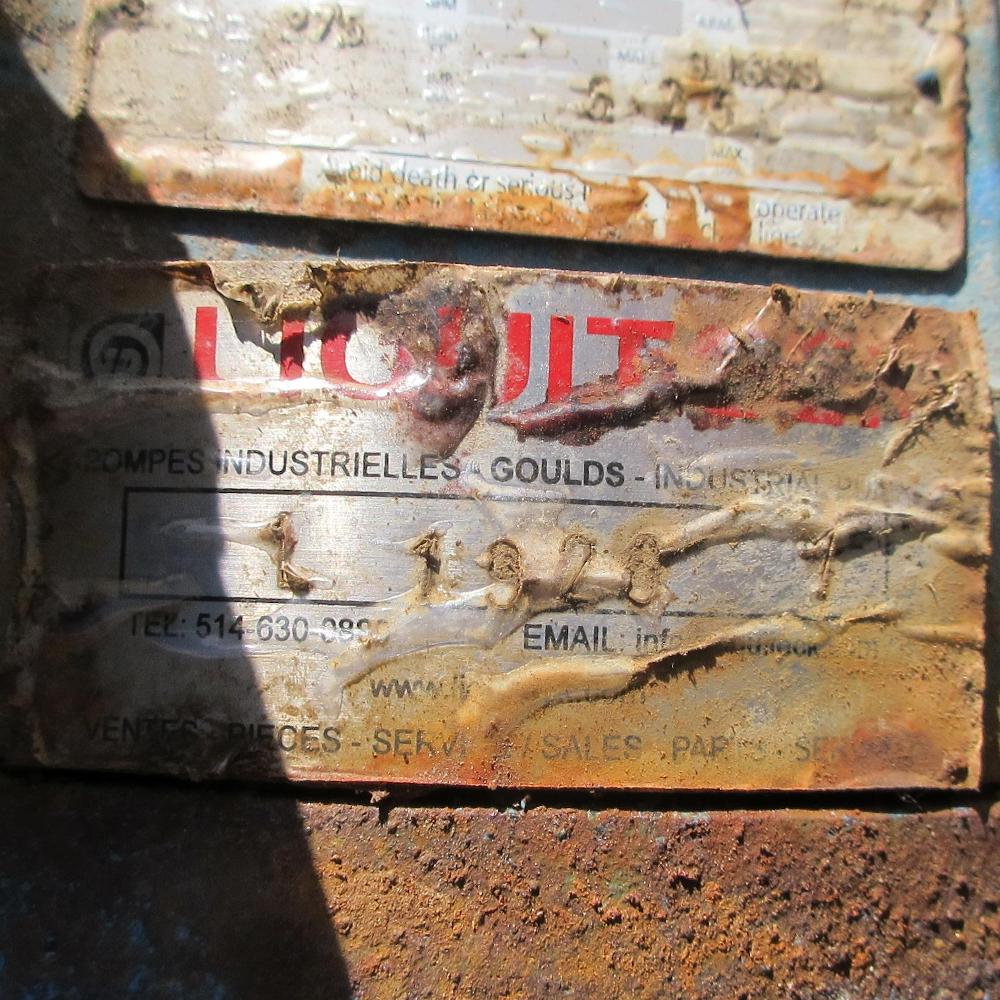

Filtrate Feed Pump: Goulds 3196 2x3-6 Centrifugal Pump
- Construction: 316 Stainless Steel
- Suction: 2in Dia.
- Discharge 3in Dia.
- Impeller: 5.25in Dia.
- Max Working Pressure: 275 psi

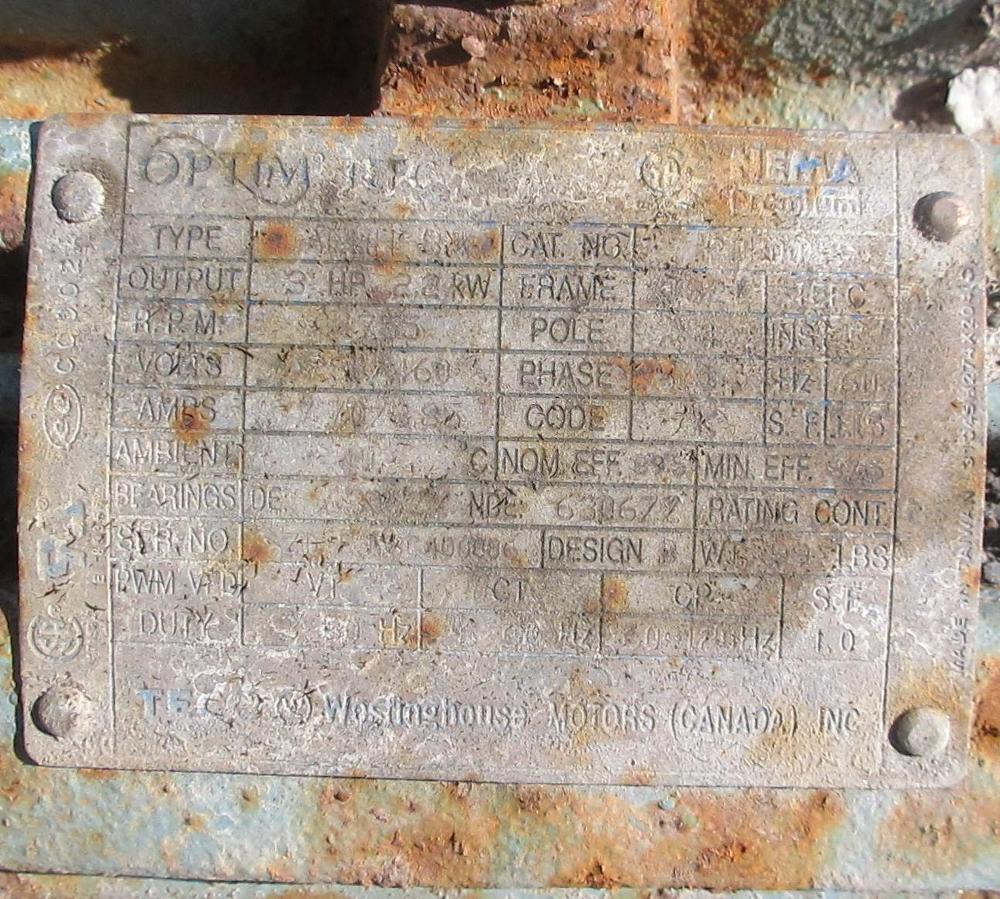

- Drive: Optim TEFC Electric Motor
  - Power Output: 3HP
  - Rotation Speed: 1755RPM
  - Voltage: 230/460 Volt
  - Frequency: 60Hz

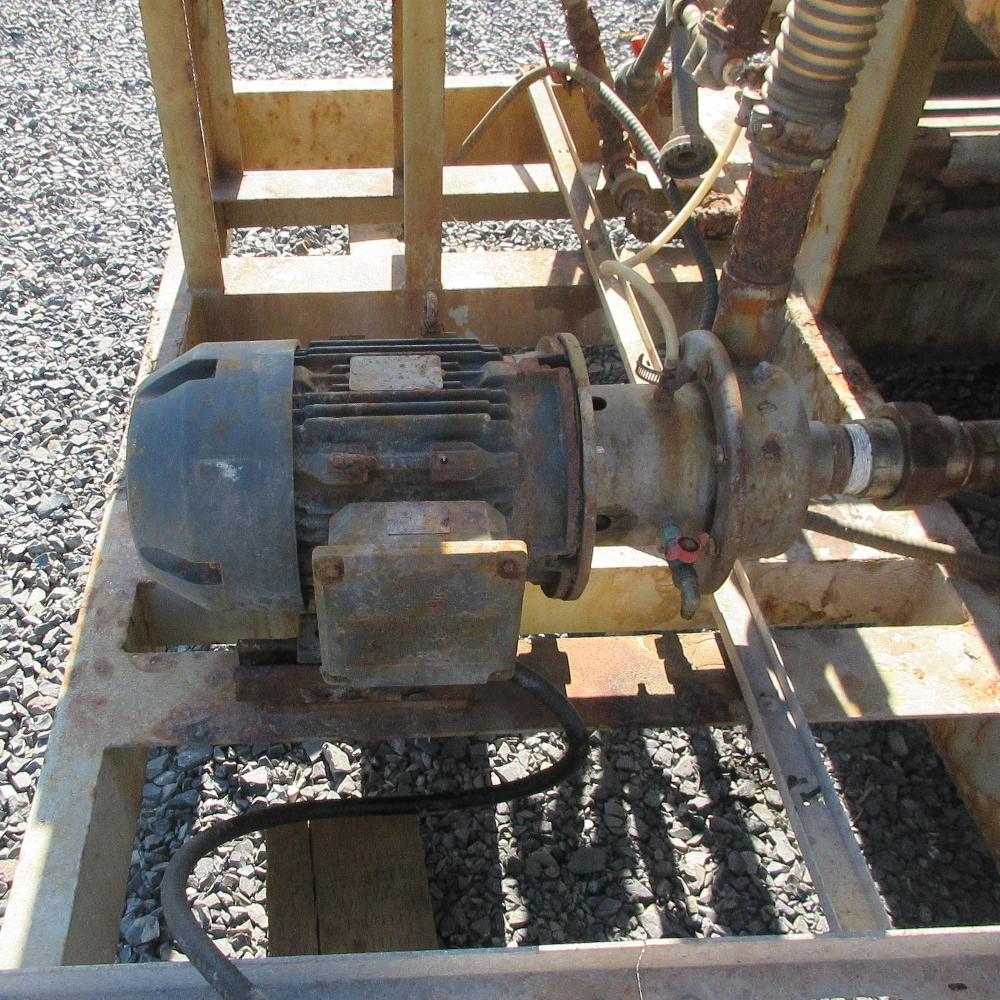

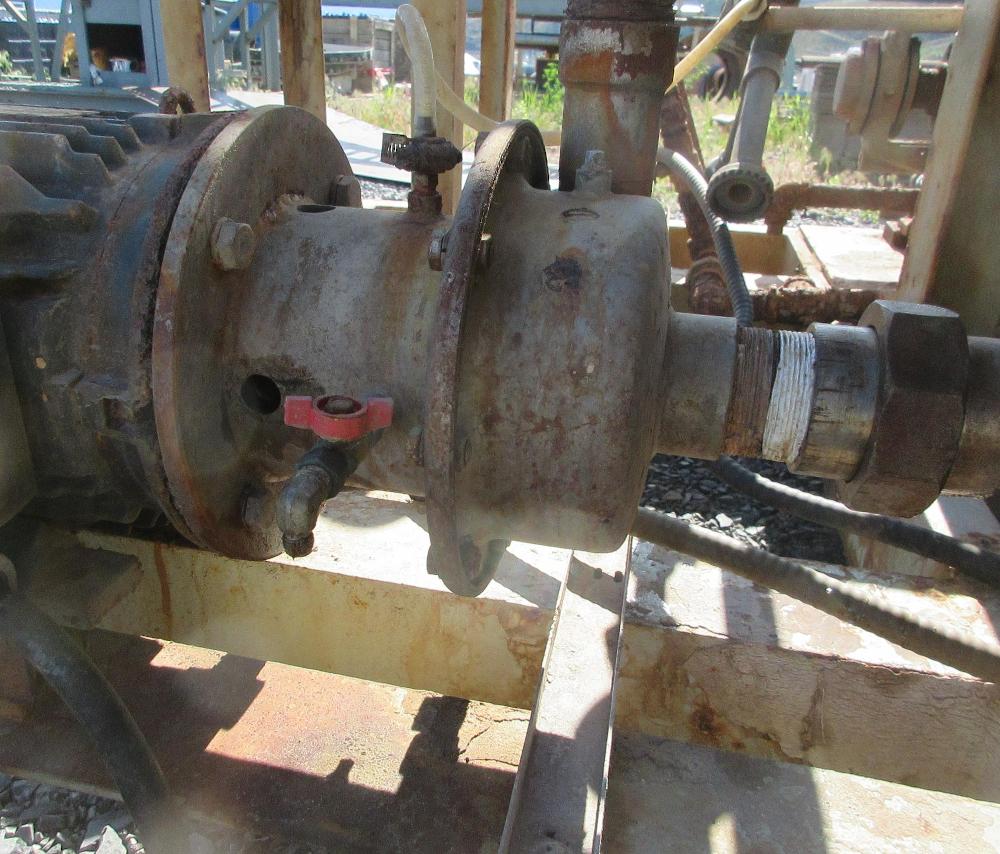

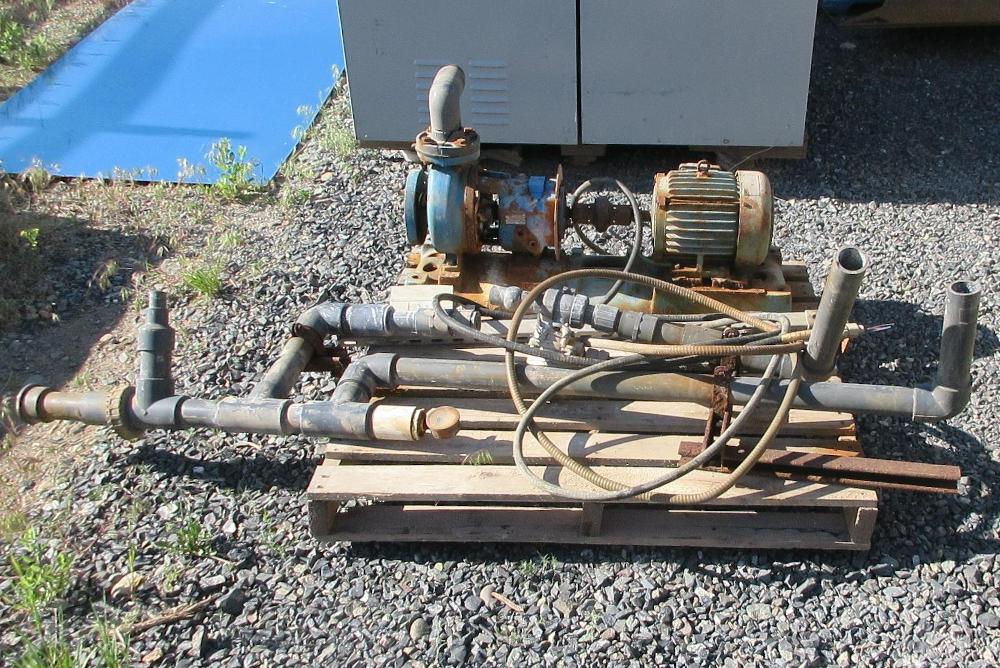

Filtrate Discharge Pump: Corcoran 3000DH 2x1-1/2 Pump
- Closed Couple
- Suction: 2in Dia.
- Discharge: 1.5in Dia.
Location: Savona, British Columbia, Canada
