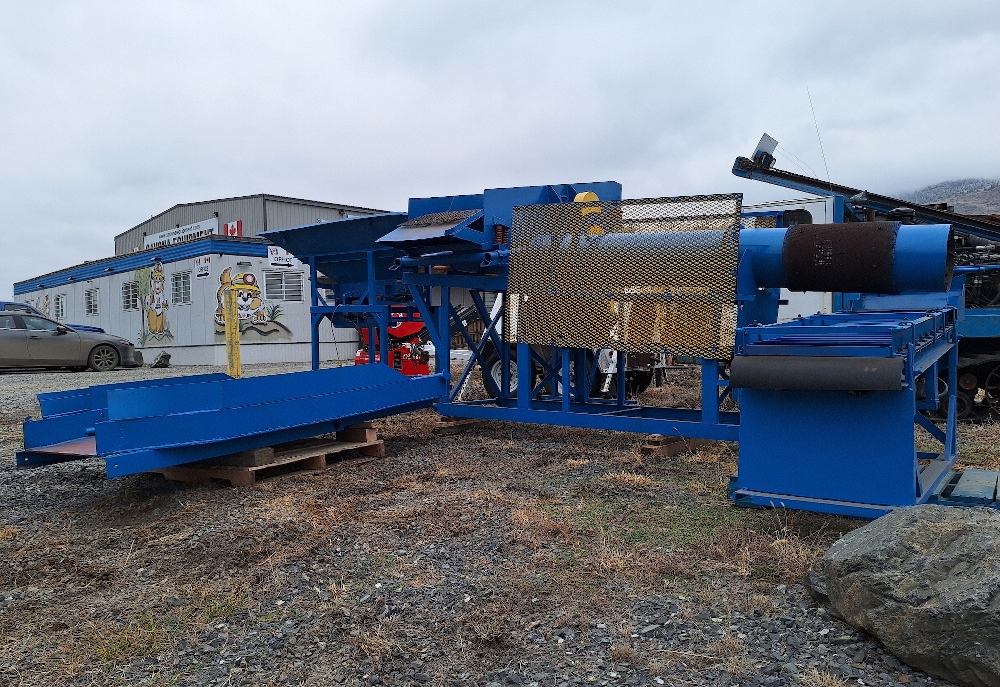

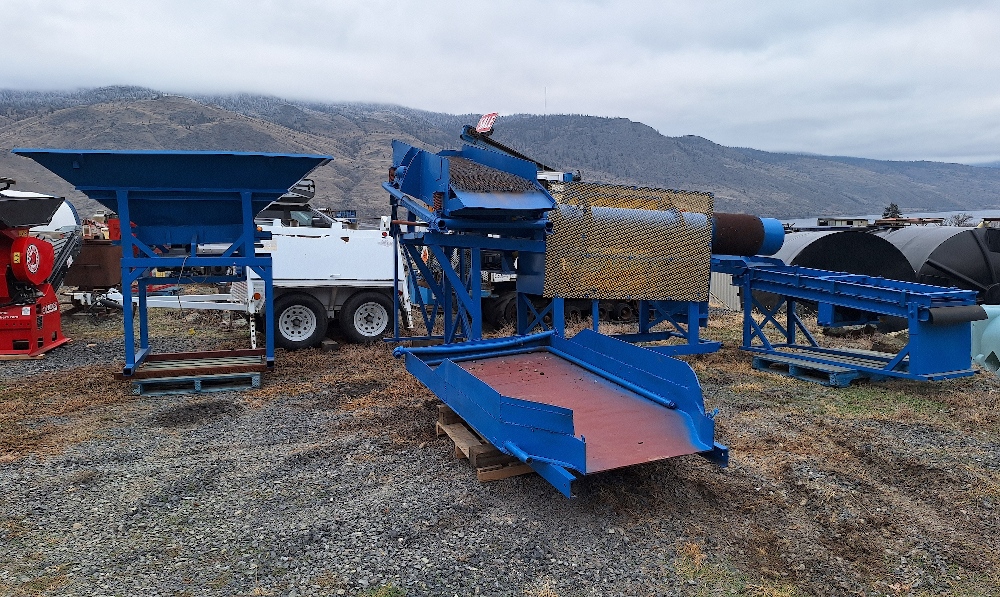

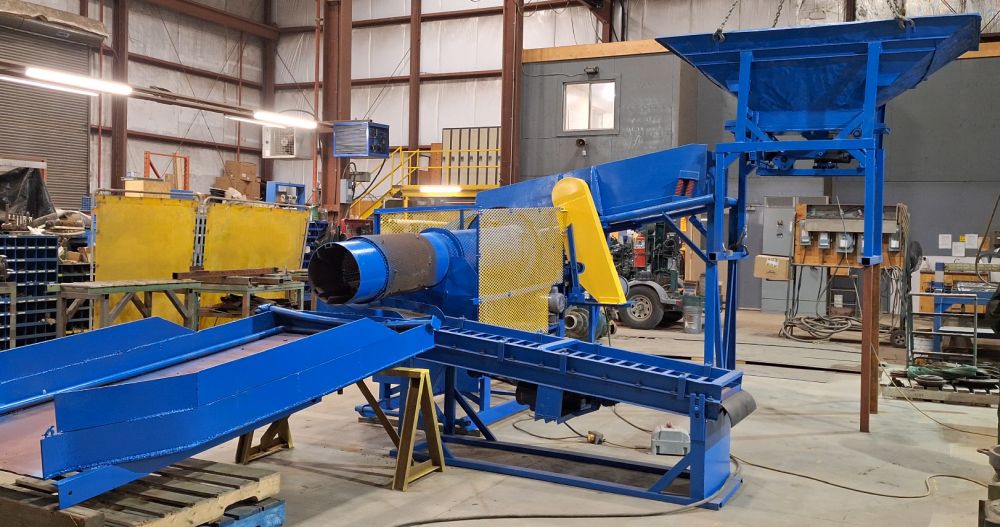

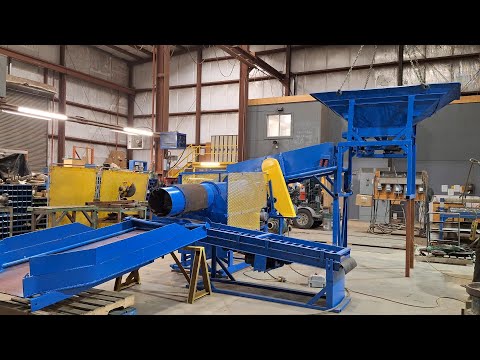

16in Dia. x 9.5ft Long Trommel Wash Plant

Inventory ID: 1539301

Category: Trommels
Availability: Available
9 verified equipment photos

Equipment details

Type: Trommel Wash Plant
Condition: Used Condition - Recently Refurbished
Feed Pan:
- Size: 48.5in Wide x 8ft Long
- Discharge: 29-5/8in Wide
  - 1ft Tall Side Walls Near Discharge
- Top Spray Bar: 2in Threaded
- Lower Spray Bar: 1.5in Hose Barb Connection
- Support Legs: 74-5/8in Tall x 32.5in Wide Frame x 43.5in Wide Base
- Module Dimensions: 8ft Long x 55in Wide x 20in Tall

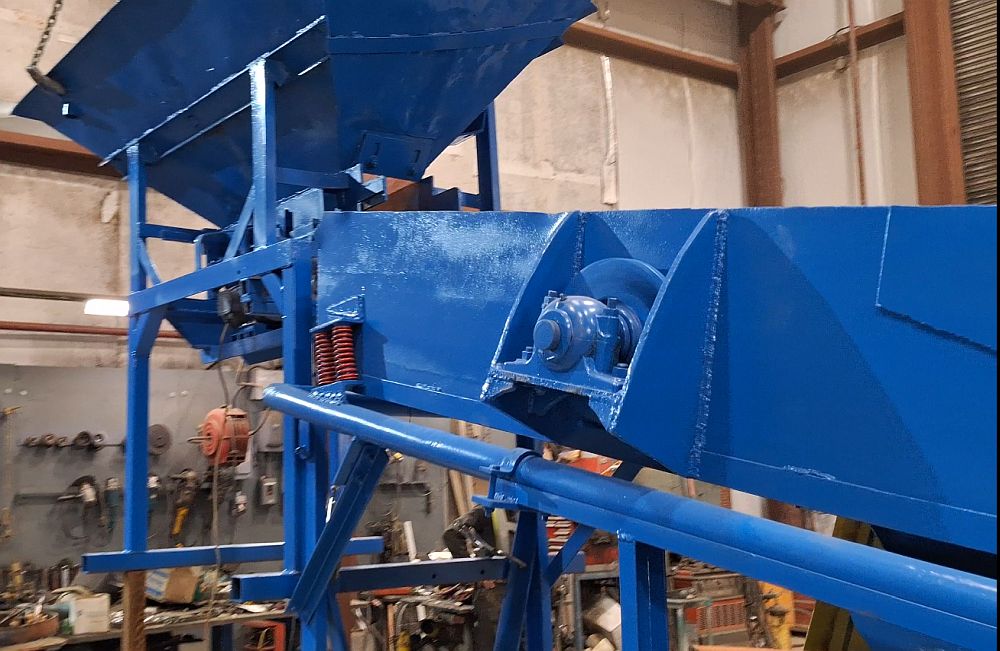

Screen:
- Type: Inclined Screen
- Size: 31in Wide x 8ft Long
- Decks: Single Deck
- Screen Spacing:
  - Top Mesh: 0.5in Spacing
  - Bottom Mesh: 2in Spacing
- Spray Bars: (2) 2in Plastic Pipe Spray Bars
- Bearing Housings: (2) Steyr S 611
- Drive Pulley: 8in Dia.
- Module Dimensions: 109in Long x 52in Wide x 35in Tall

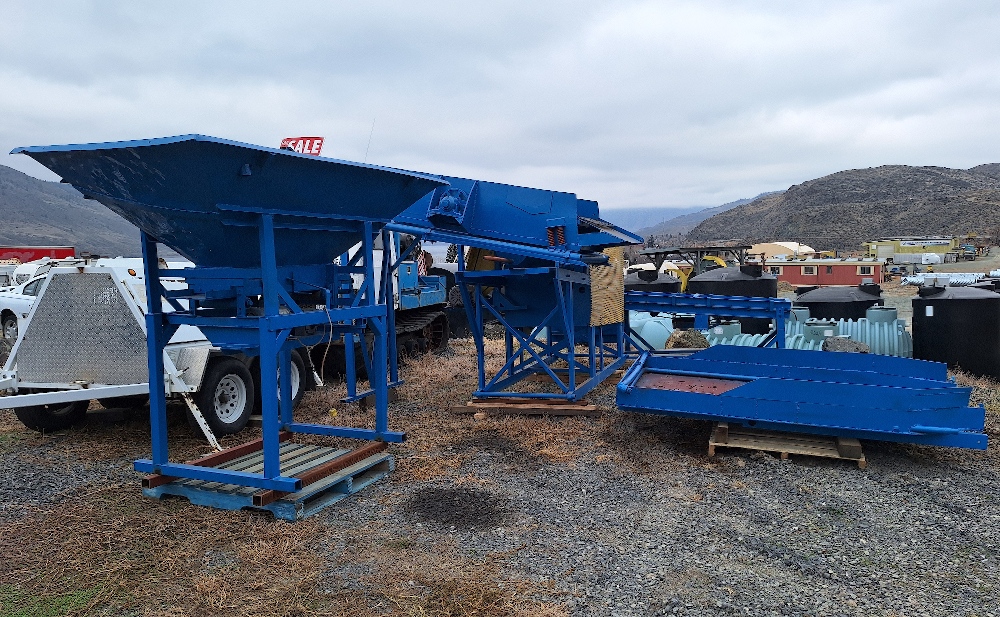

Hopper:
- Hopper Dimensions:
  - Top: 34in Wide x 8ft Long
  - Bottom: 10in Wide x 34in Long

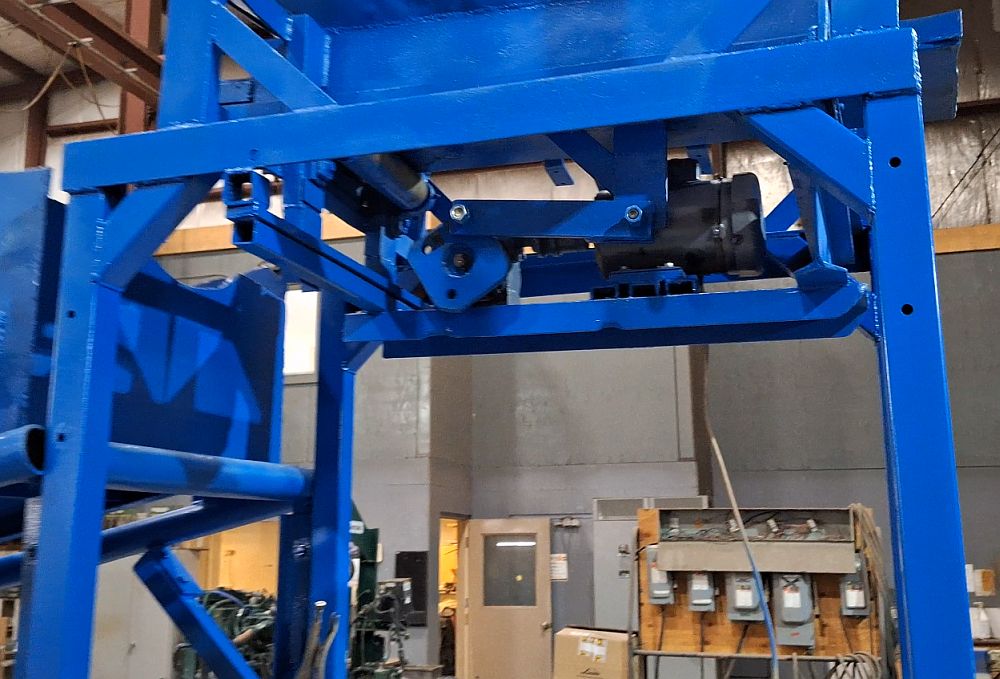

- Reciprocating Plate Feeder Discharge
- Discharge Opening: 6in x 10.5in
- Speed Reducer
- Hose Inlet: 2in Threaded
- Hose Outlet: 1in Barbed Hose Fitting
- Module Dimensions: 8ft Long x 50in Wide x 47in Long

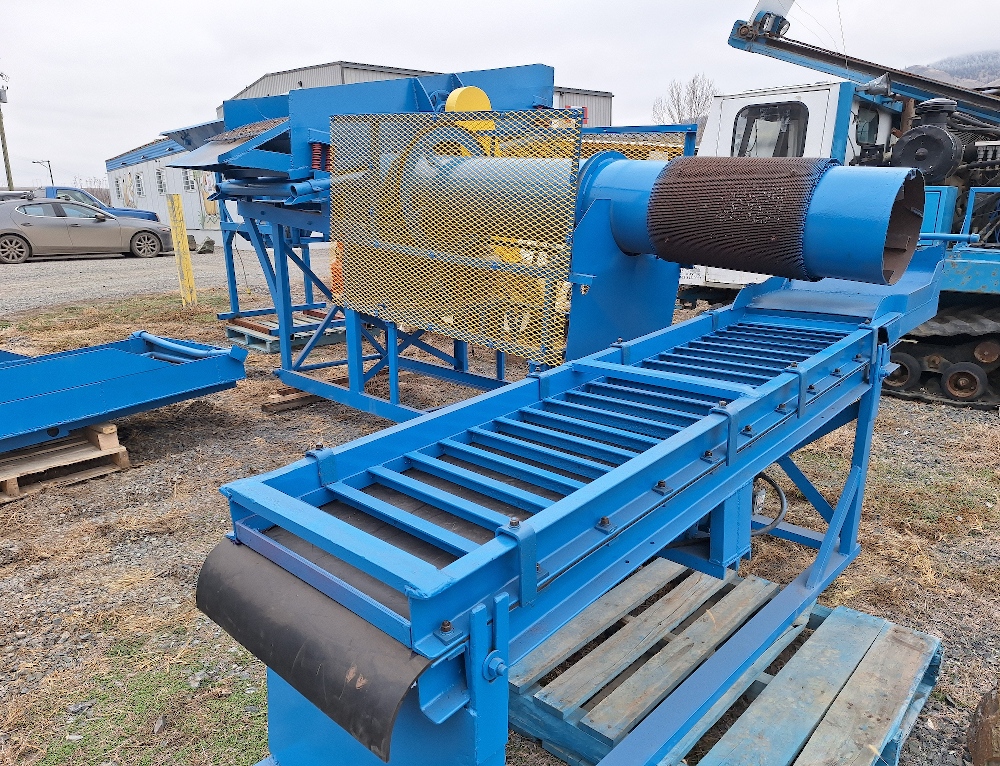

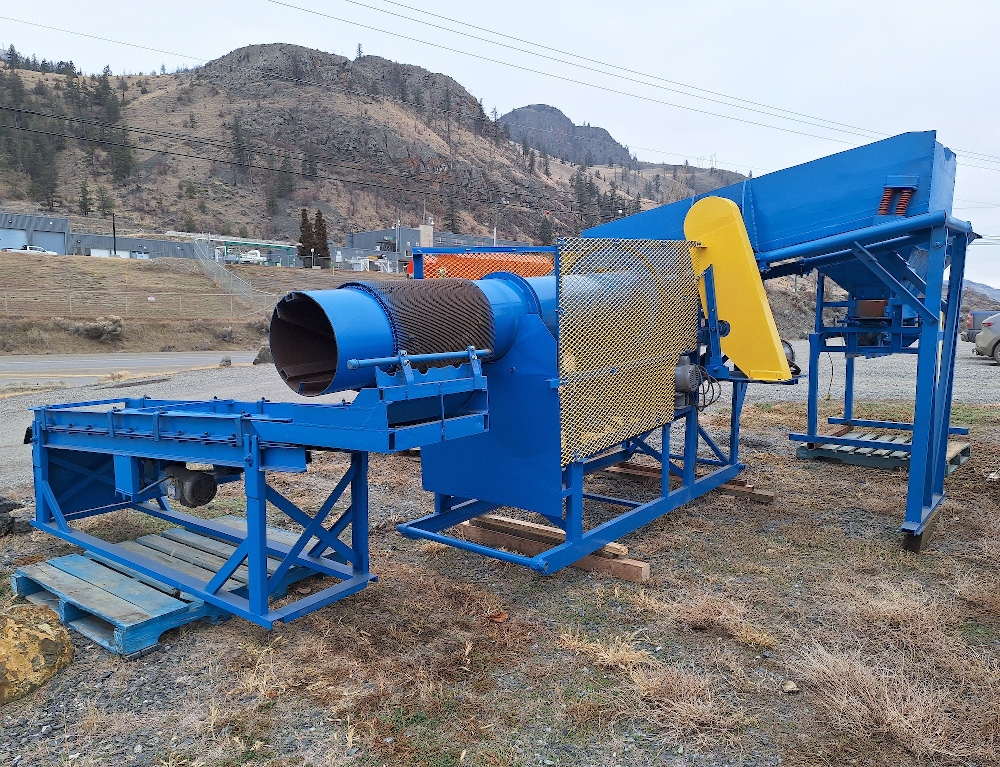

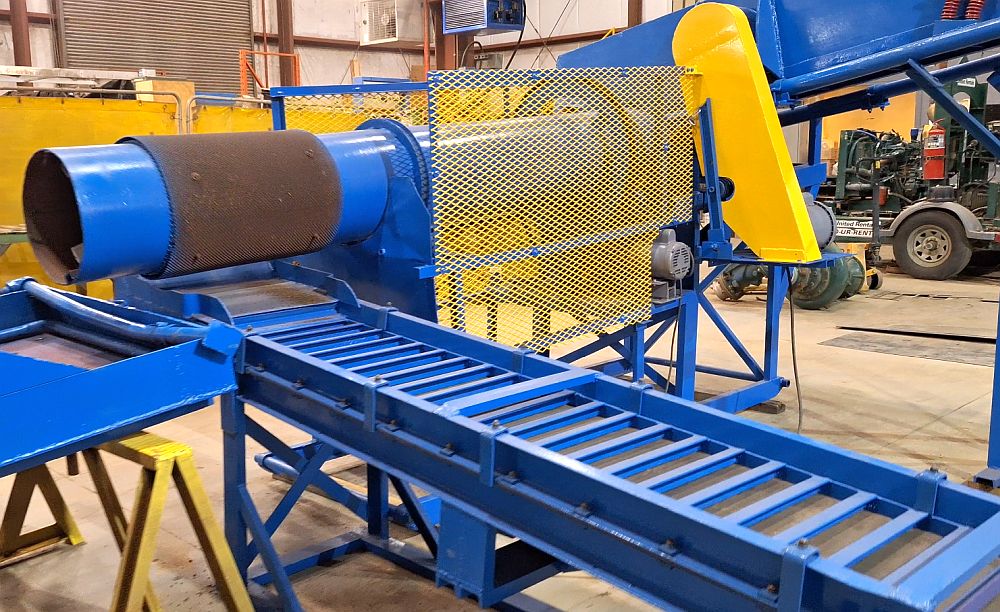

Trommel:
- Feed Trough: 11in Wide x 38in Long
- Barrel Size: 15-3/8in Dia. x 114in Long
- Screen Section: 18in Long
- Drive: Baldor Electric Motor To Chain Drive
  - Power Output: 0.5HP
- Sprocket: 4in Dia., 16-Tooth
- Module Dimensions: 160in Long x 70in Wide x 71in Tall
Sluice Box:
- Feed Pan: 23.5in Wide x 21.5in Long
- Sluice: 20in Wide x 7ft Long
- Legs: 5in Height Adjustment Front and Back Legs
- Spray Bar: Steel, 1in Threaded Connection
- Drive: Electric Motor
  - Power Output: 1/3HP
- Module Dimensions: 112in Long x 31in Wide x 49in Tall
Location: Savona, British Columbia, Canada
