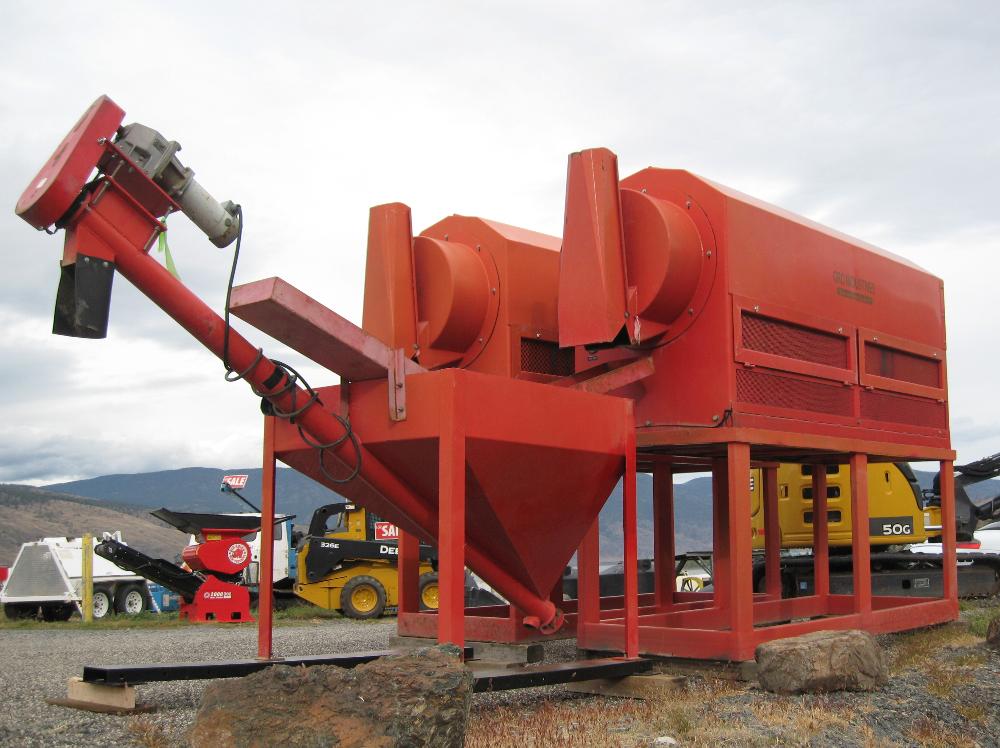

Oro Industries Centrifuge and Concentrator Package

Inventory ID: 1543309

Category: Gold Concentrators
Availability: Available
25 verified equipment photos

Equipment details

Make: Oro Industries
Type: Gold Concentrating
Condition: Used Condition
Consists Of:
- (2) 30in Dia. Oro Industries Low-G Horizontal Centrifuges
- (1) 16in Dia. Oro Industries Reverse Spiral Concentrator
- (1) Oro Industries Auger Feeder

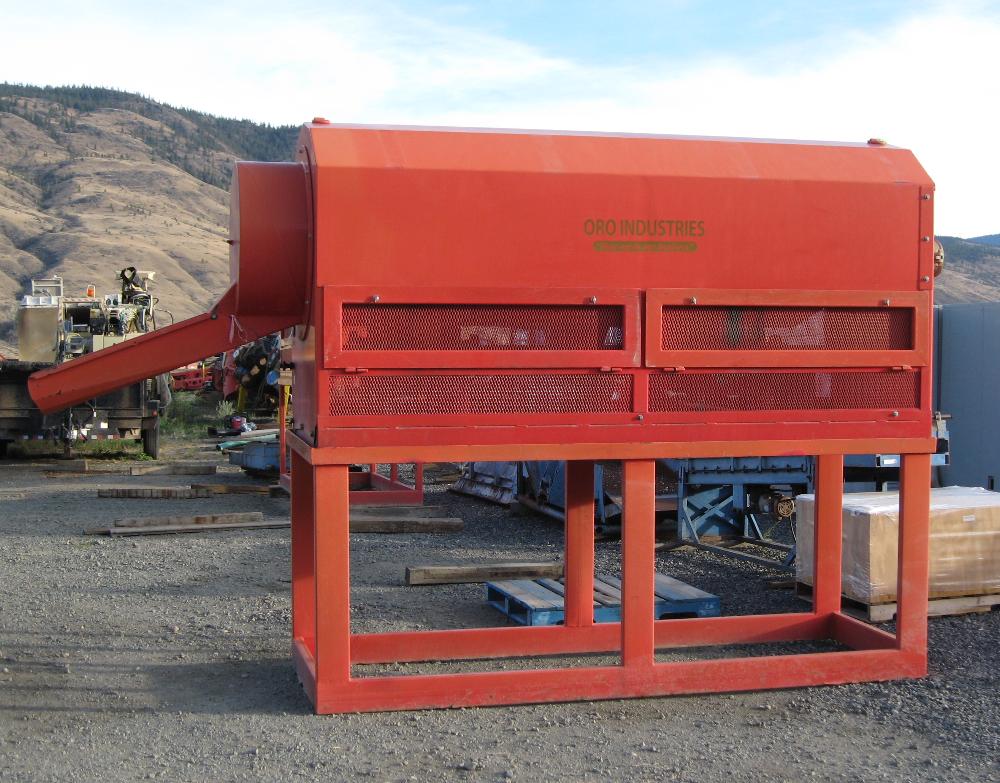

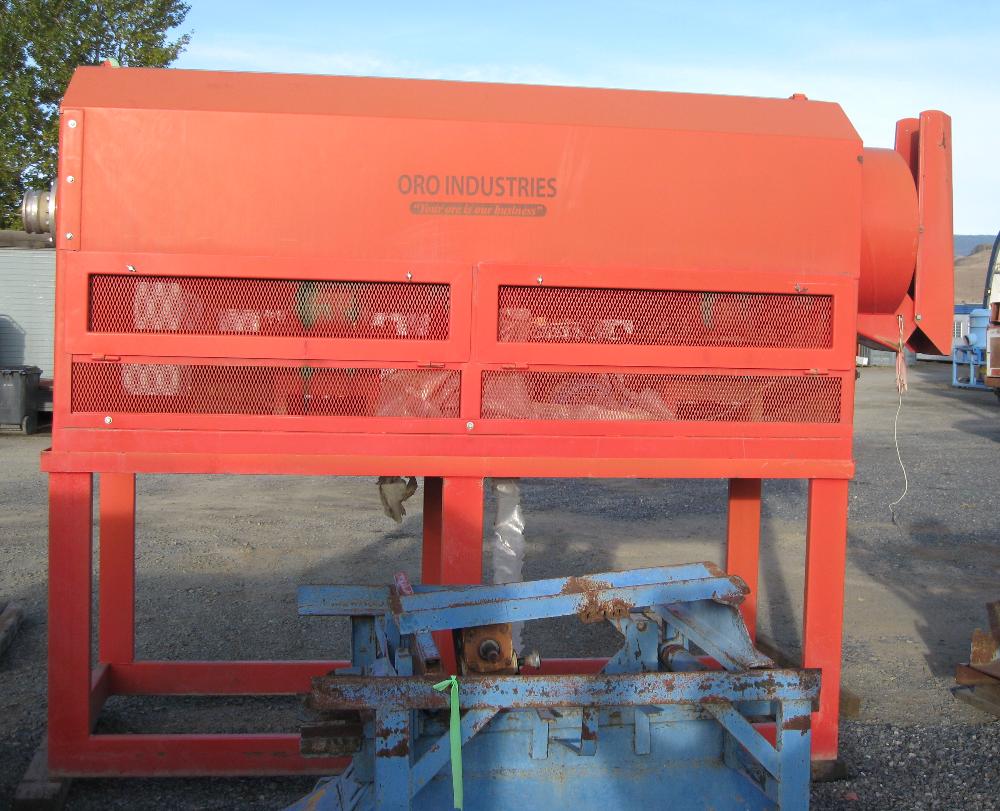

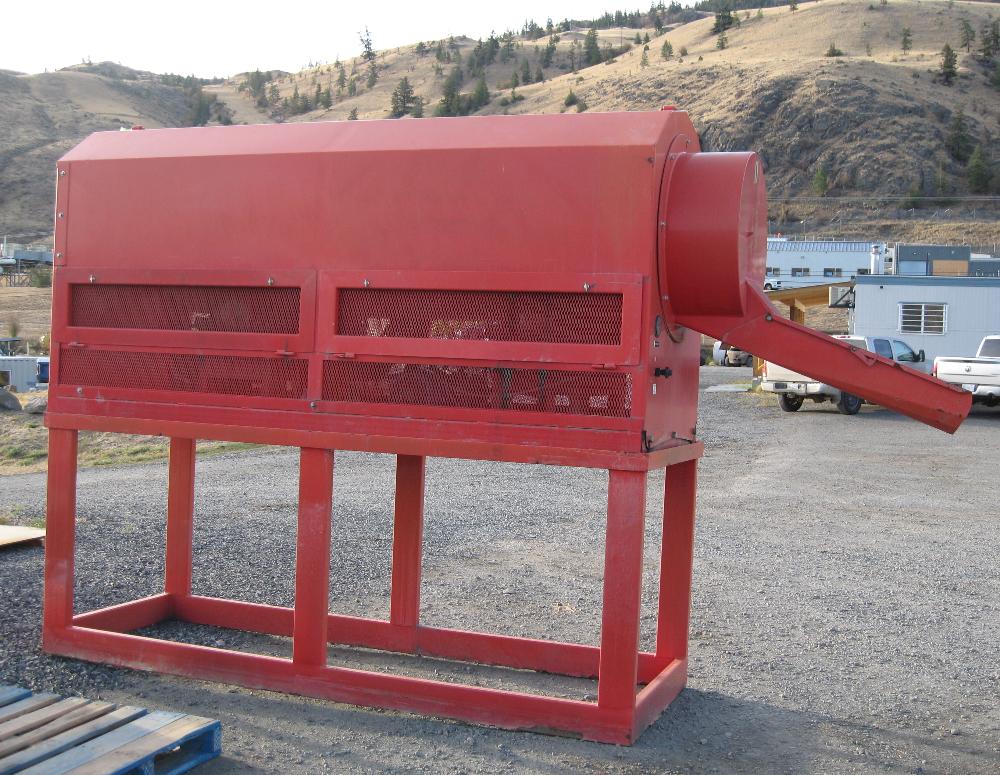

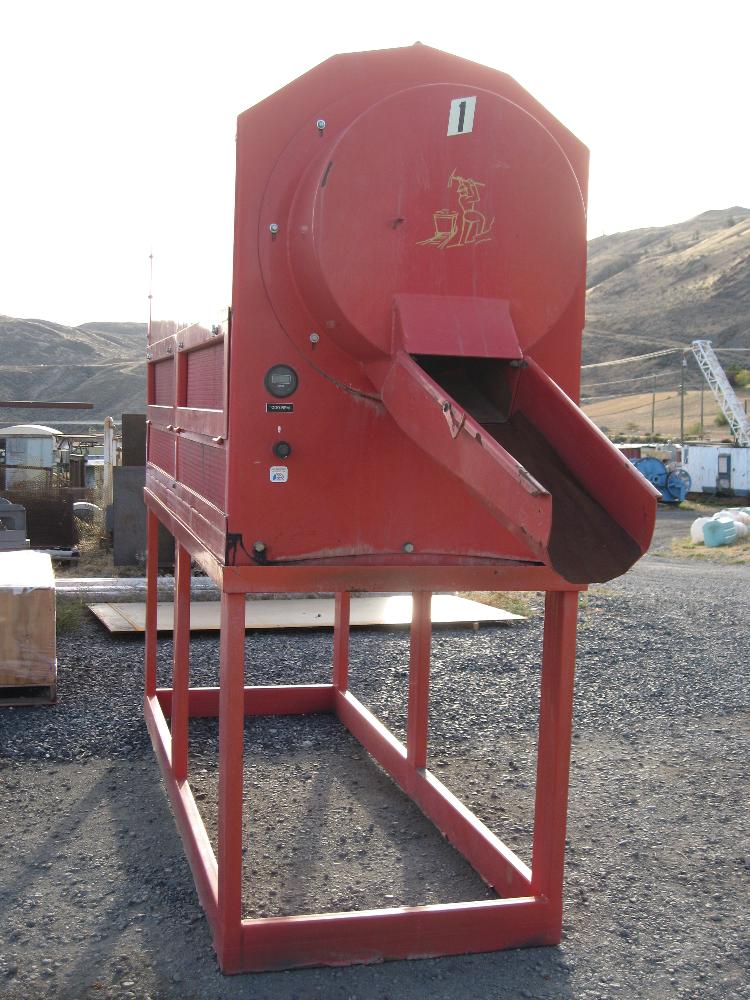

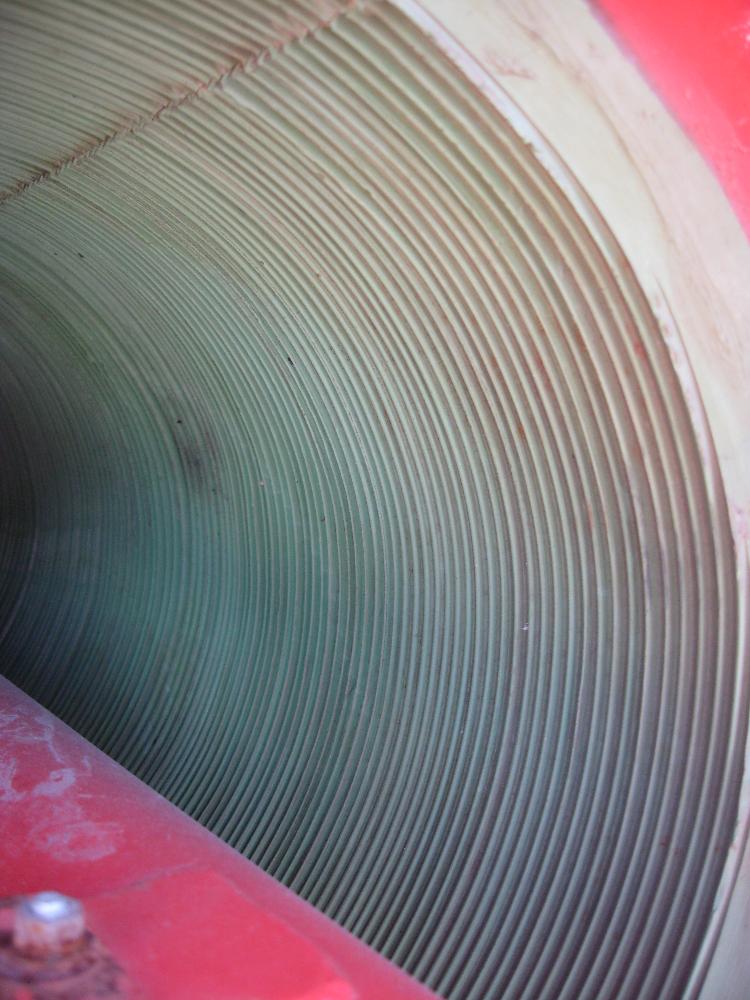

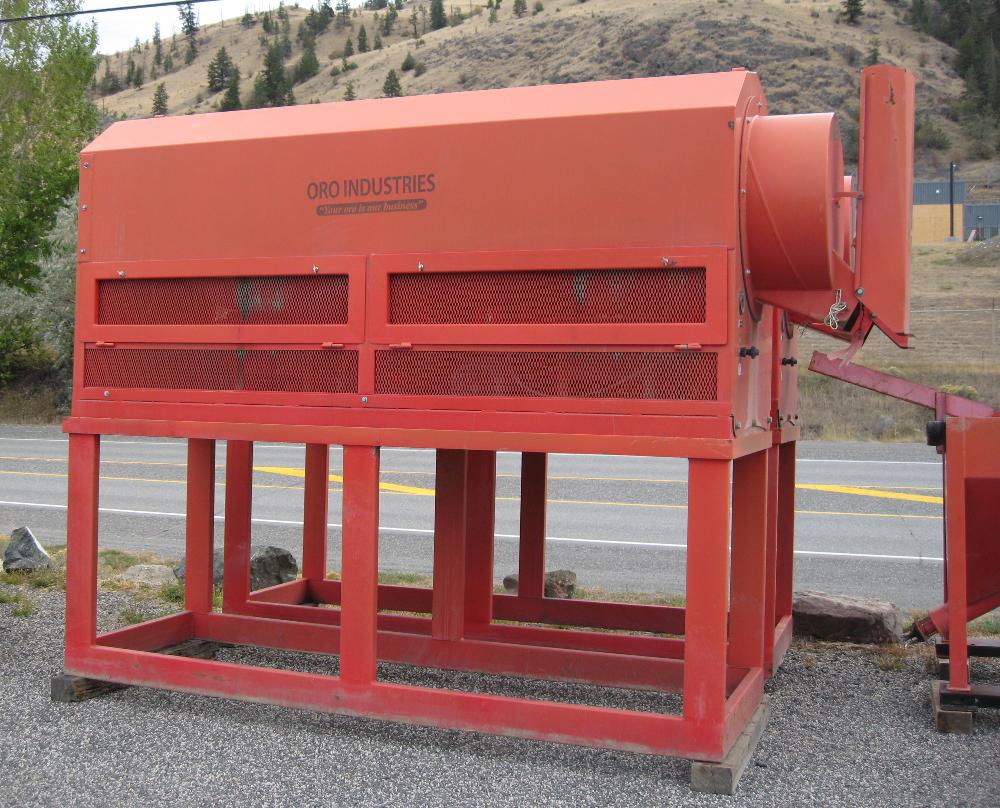

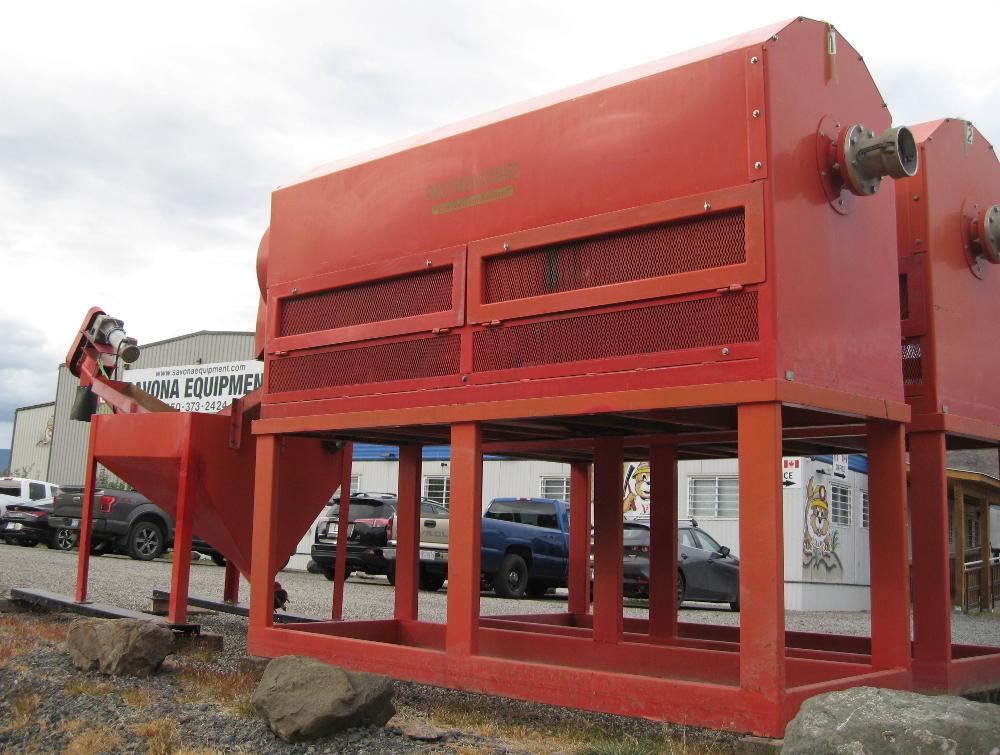

30in Dia. Oro Industries Low-G Horizontal Centrifuge
- Quantity: (2) Units Available
- Make: Oro Industries
- Model: Low-G Horizontal Centrifuge
- Type: Gold Concentrator
- Style: Primary Batch-Type Concentrator for Both Alluvial and Milled Hard Rock Ores
- Condition: Used, Reported in Good Working Condition
- Size: 30in Diameter
- Recovery: 99% Recovery of Free Gold Down to 100 Mesh - 80% to 90% Recovery Down to 200 Mesh
- Classified Material Feed: 1/4” or 3/8”
- Production Capacity: 40 TPH (25 Cubic Yards or 20 Cubic Meters)
- Water Consumption: 200-400 GPM (755-1500 Liters Per Hour)
- Concentrate Capacity: 50 Gallons (880 Lbs./200 Liters)

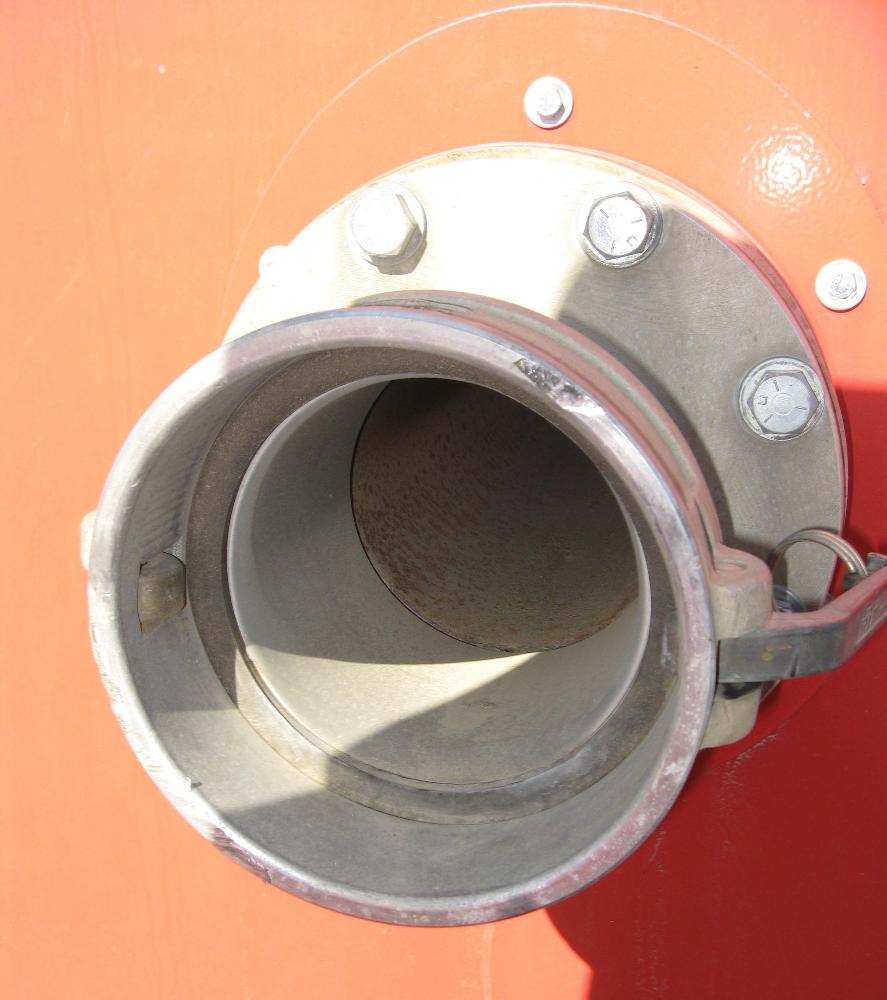

- Intake: 6in Dia.
- Discharge: 6in Dia.

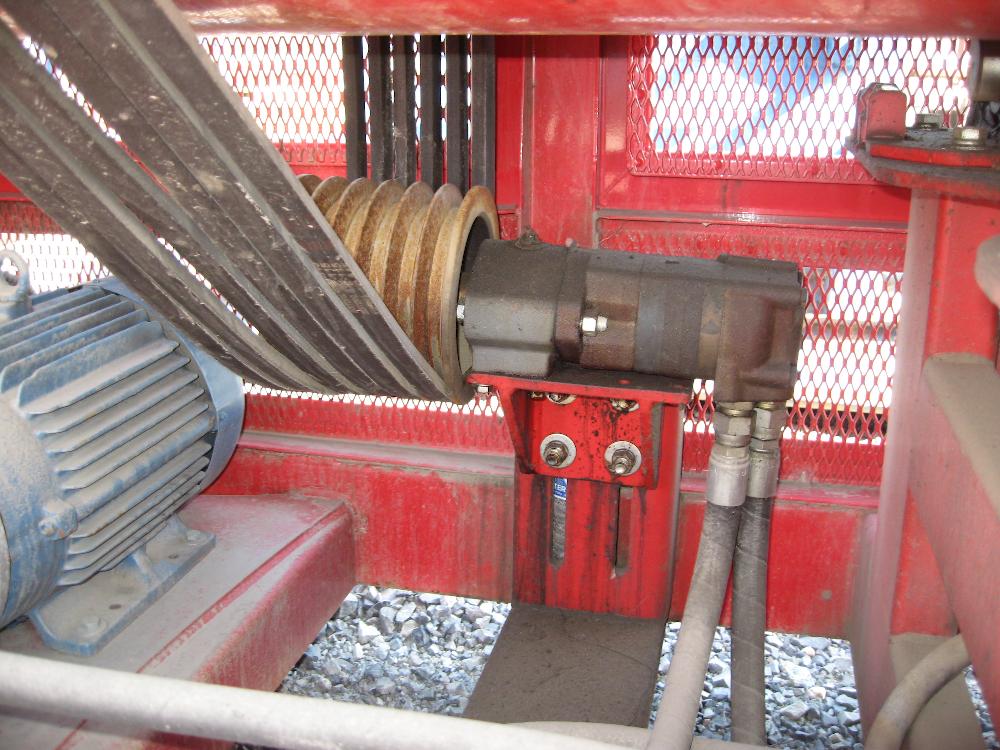

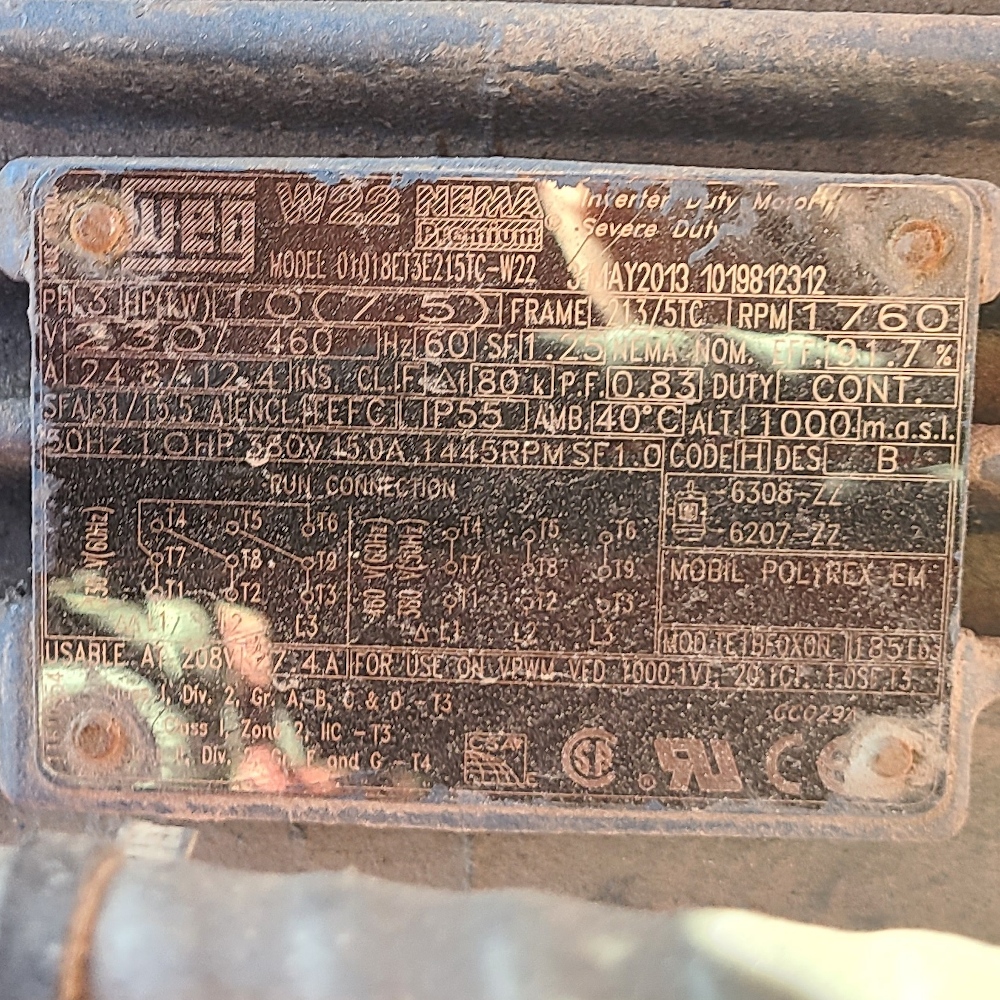

- Drive: Electric Over Hydraulic

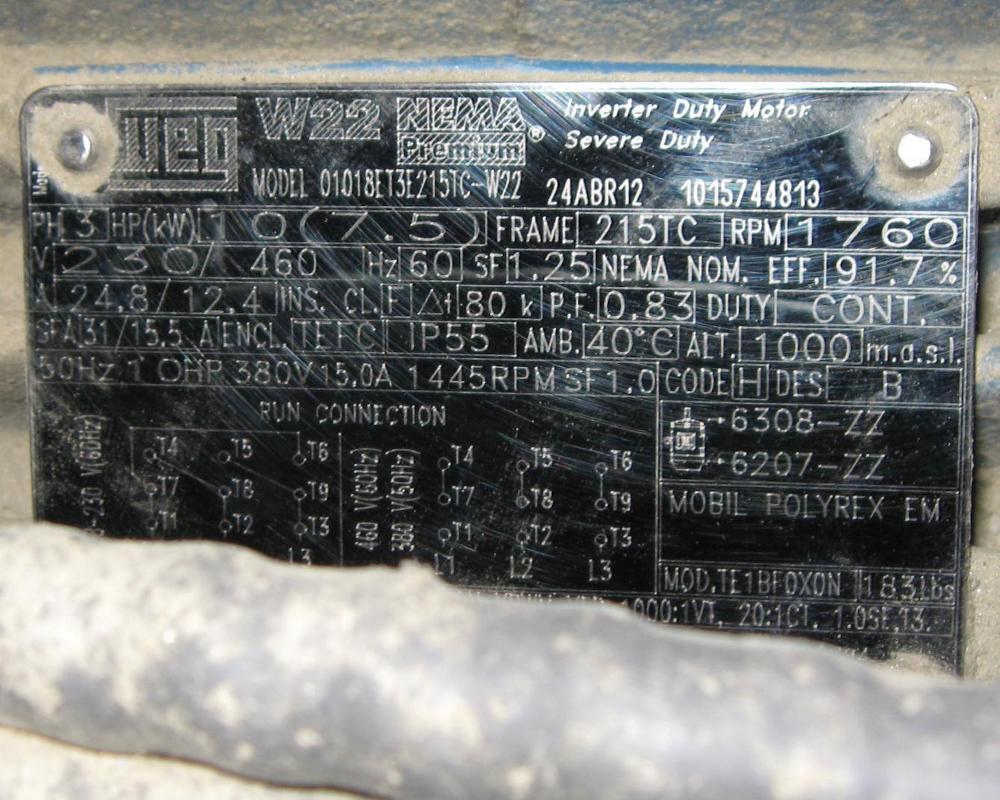

  - Power Output: 10HP
  - Voltage: 230/460 Volt
  - Frequency: 60Hz
  - Phase: 3-Phase

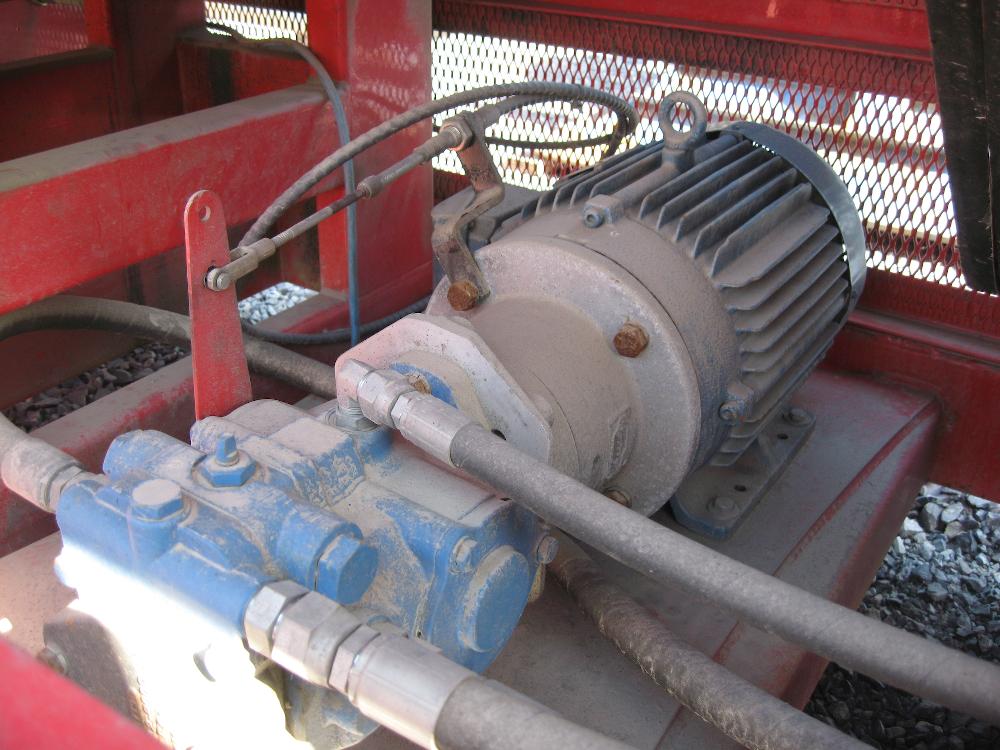

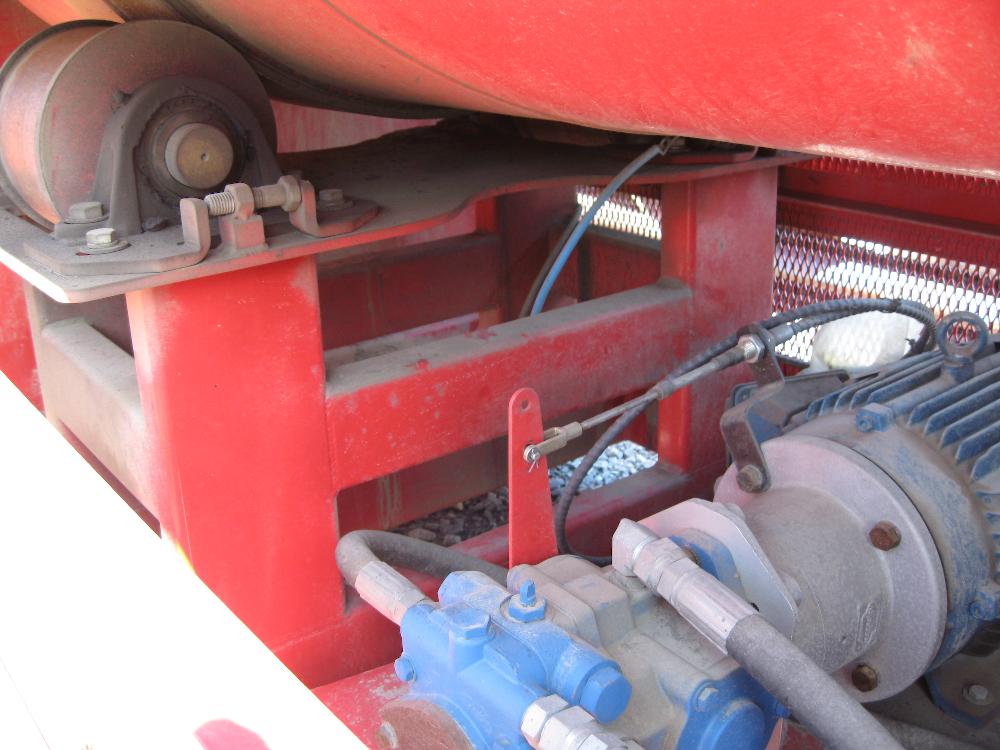

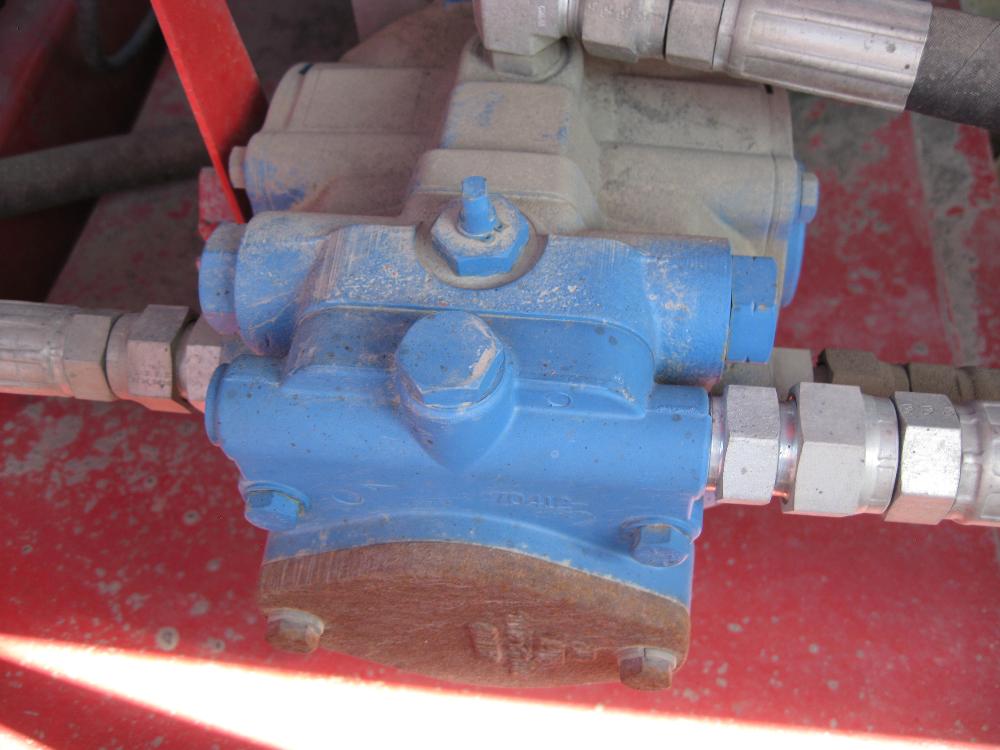

  - Variable Speed Hydraulic Drive with On-Board Hydraulic Tank, Pump and Filter
- Overall Dimensions:
  - Length: 158.5in
  - Width: 86.25in
  - Height: 68in
  - Shipping Weight: 4,200 lbs.

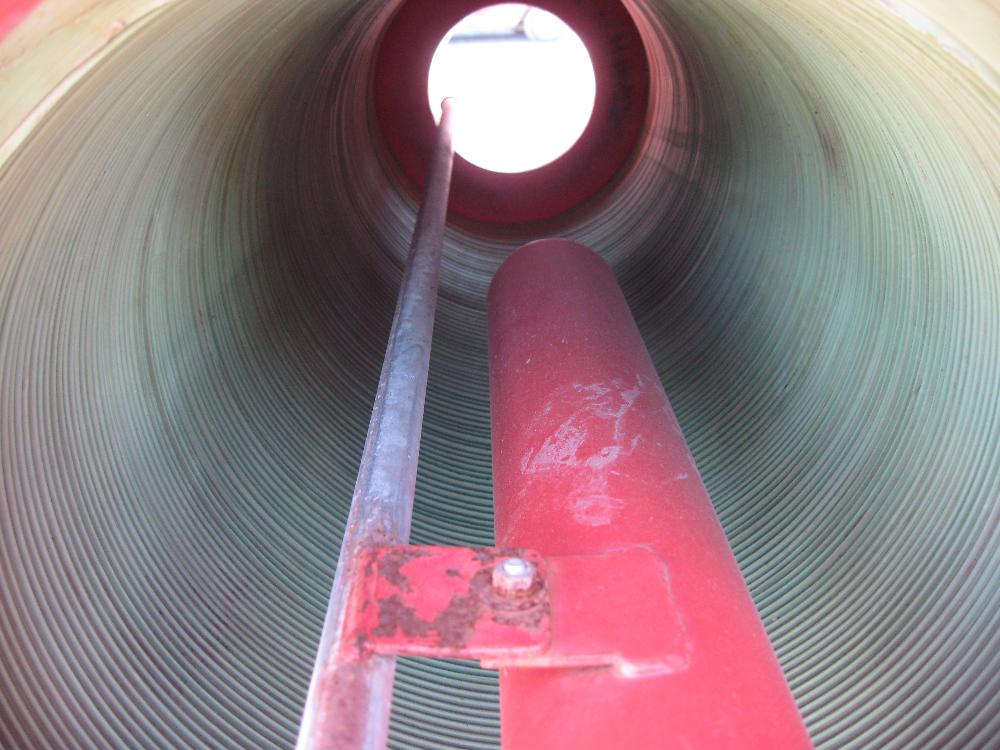

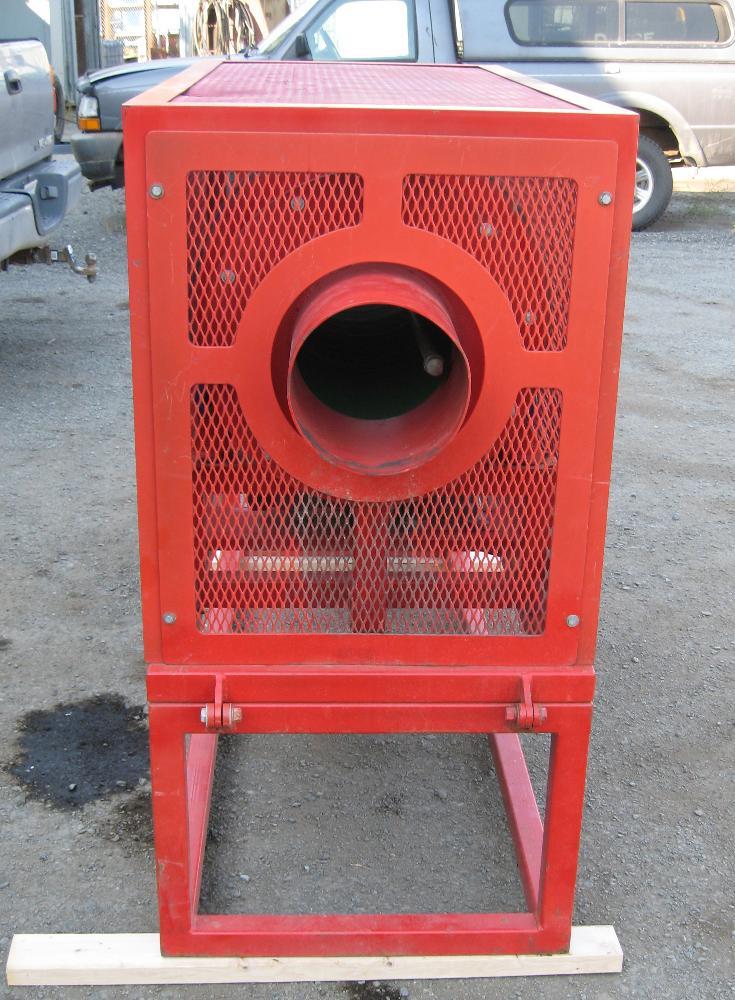

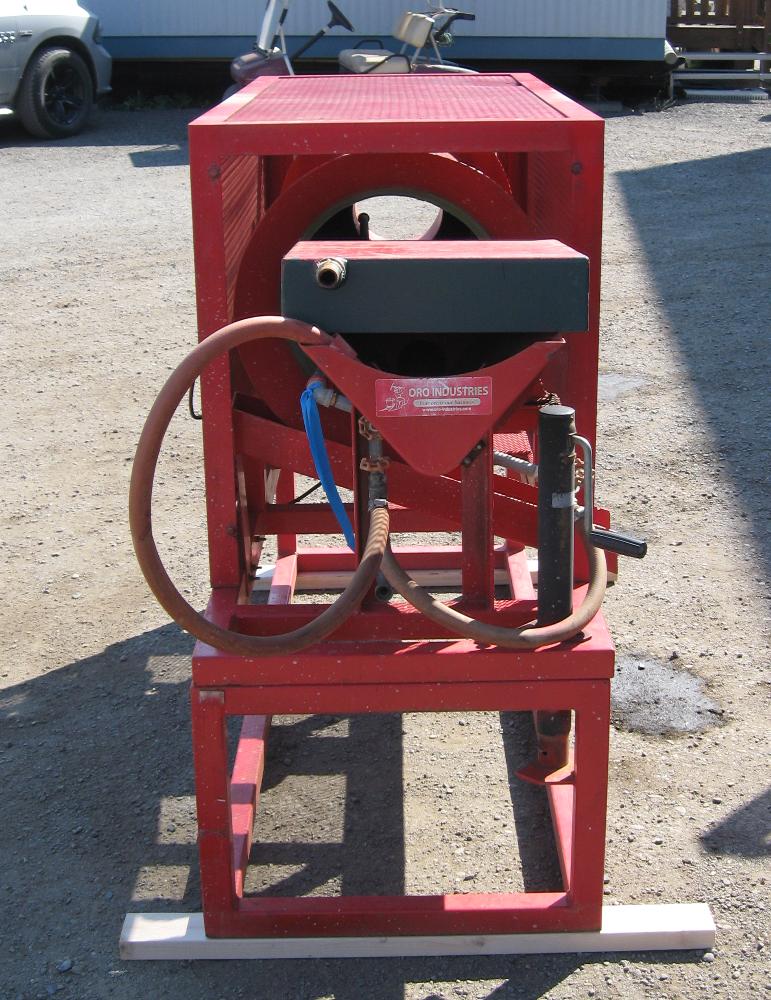

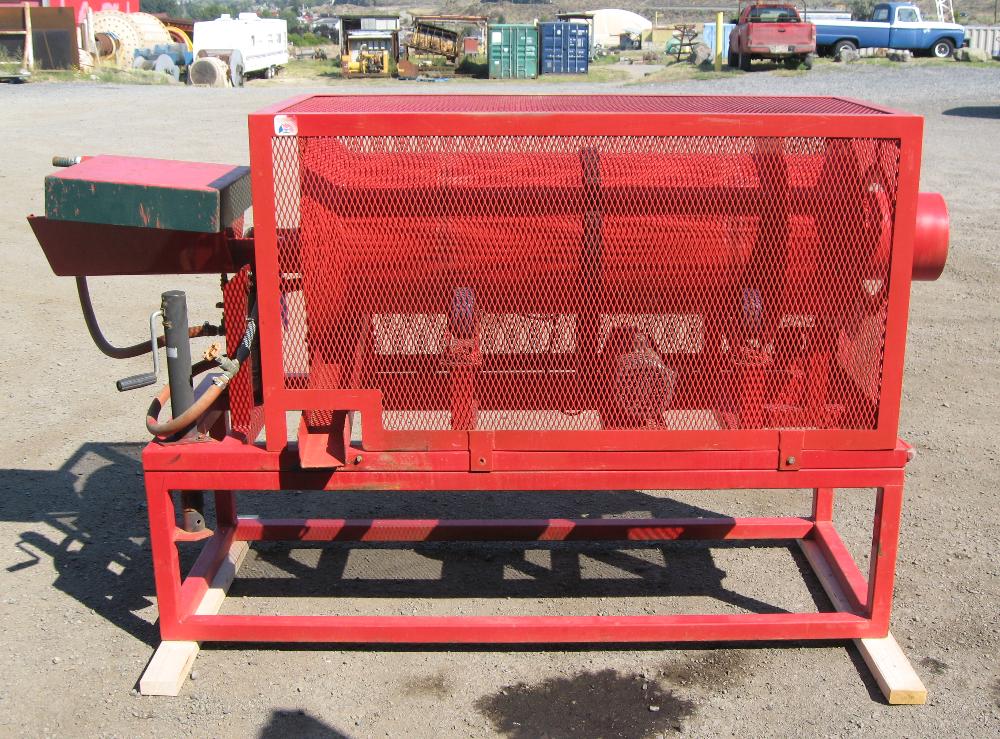

Oro Industries 16in Dia. Reverse Spiral Concentrator
- Make: Oro Industries
- Model: 16in Reverse Multi-Helix Spiral Concentrator
- Style: Cleaner
- Description: This is a Continuous or Batch Feed Secondary Concentrator for Processing Primary Sluice Concentrate, Primary Jig Concentrate, Centrifuge Concentrate, and Milled Hard Rock Ores. Setup as a Cleaner, the 16" Spiral Concentrator is Perfect for the Application of Mercury Recovery and Tailings Projects. For the Highest Production Performance, it is Recommended to Classify Material to Minus 1/4 inch
- Condition: Used Condition
- Production Rate: 1-2 TPH
- Water Consumption: 15-20 GPM @ 20-40 PSI

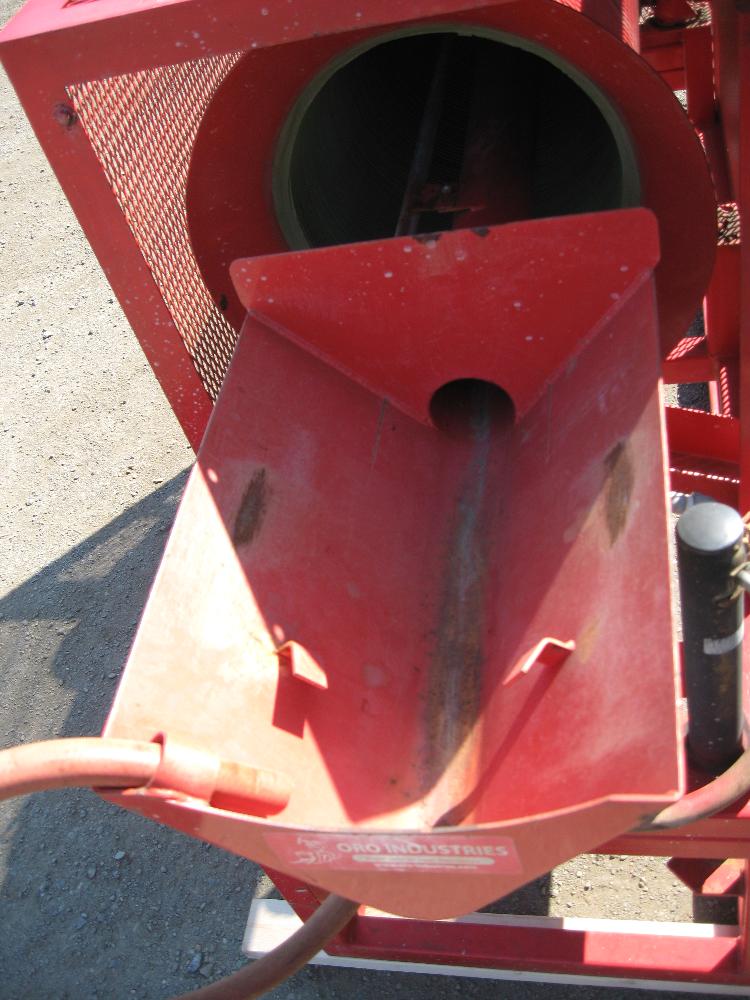

- Feed Hopper: 13.5in Wide x 18in Long x 5in Deep
  - Water Hose Hook-Up
- Collection Pan: 16in x 16in x 3-7/8in Deep
  - External 1in Hose Barb
- Angle Adjustment: Hand Crank
- Powder Coat Finish

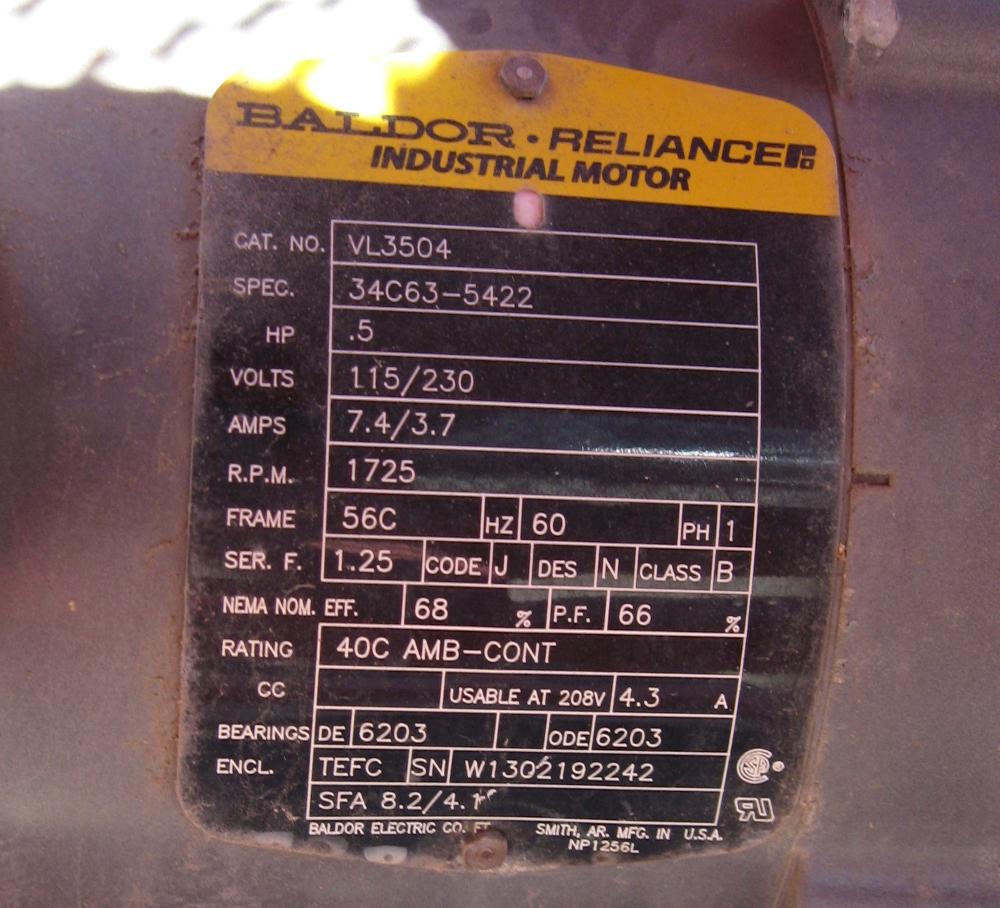

- Drive: Baldor Reliance Electric Motor
  - Power Output: 0.5HP
  - Rotation Speed: 1725RPM
  - Voltage: 115/230 Volts
  - Speed Reducer: Tigear²
    - Ratio: 30:1
- Overall Dimensions:
  - Length: 90in
  - Width: 30in
  - Height: 53in

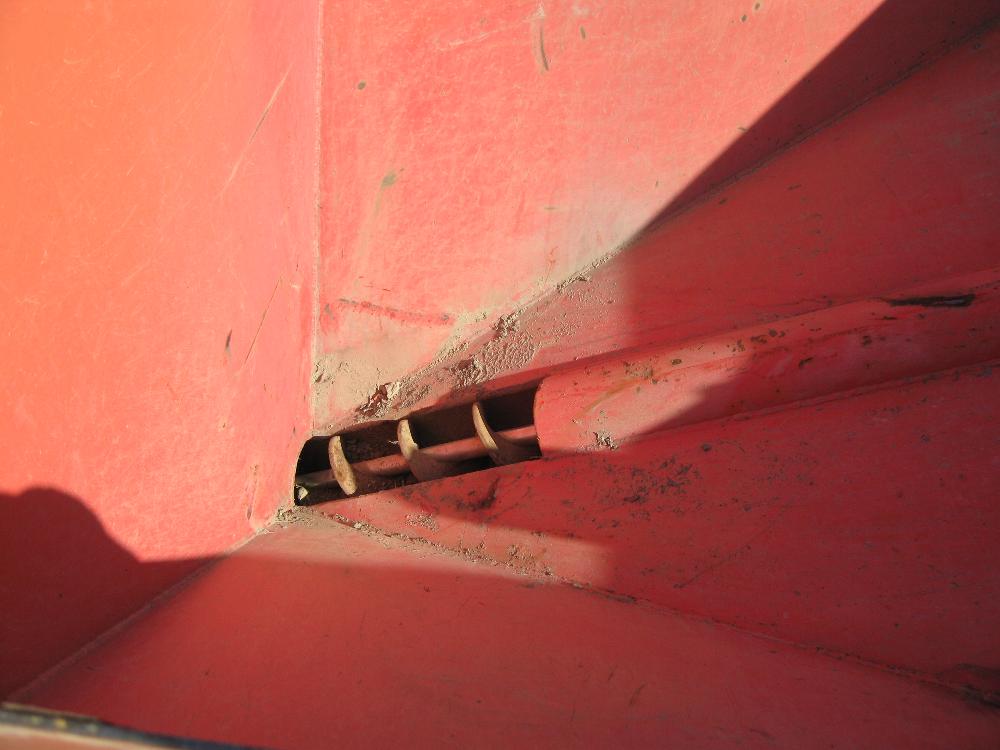

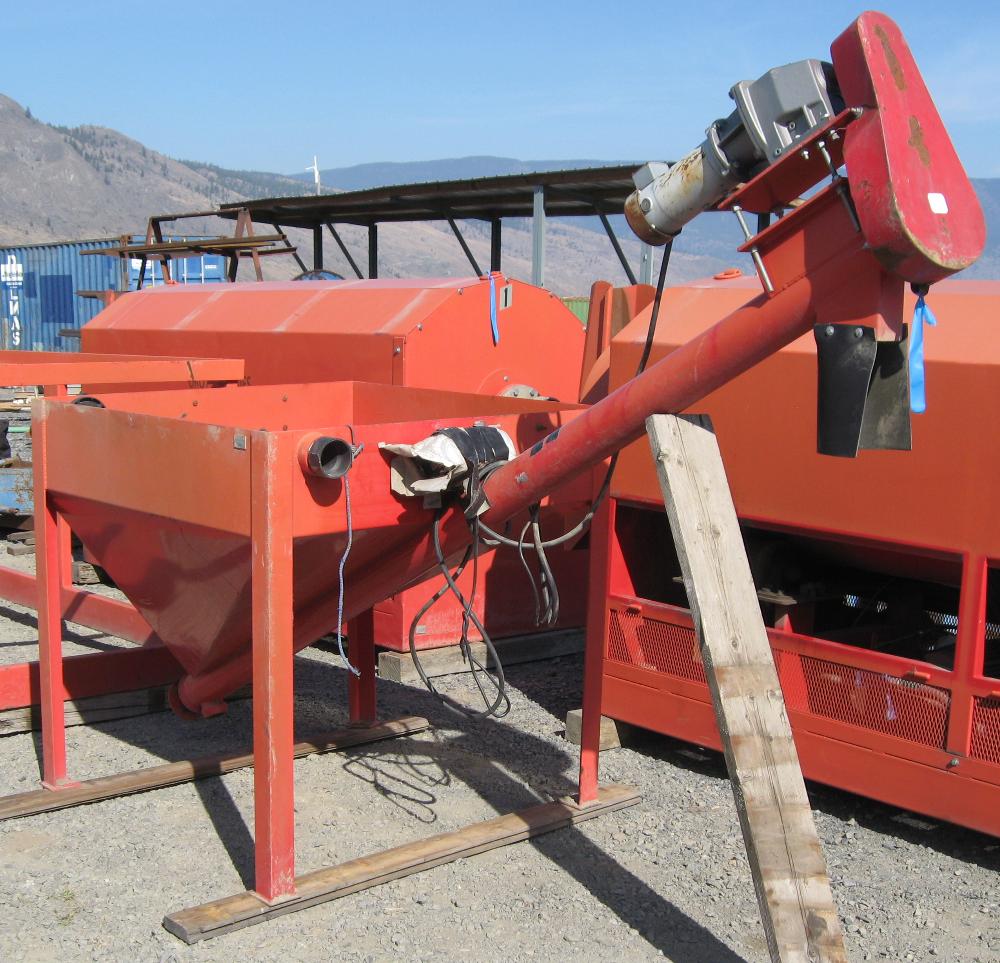

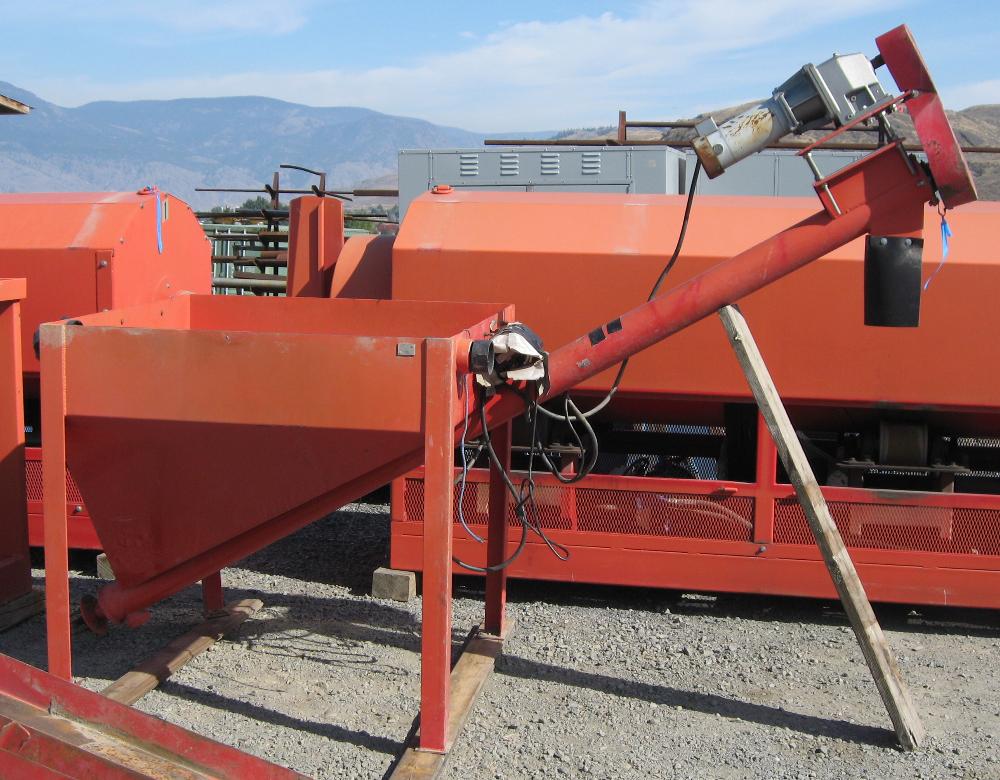

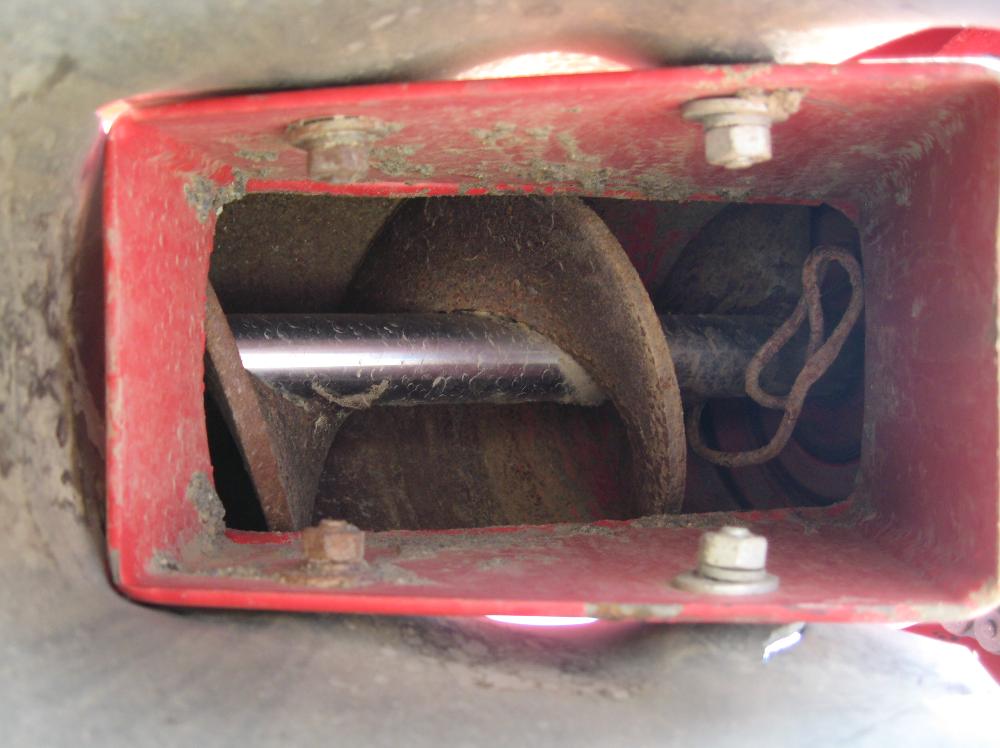

Auger Feeder:
- Hopper Dimensions: 4ft Wide x 4ft Long x 37.5in Deep Tapered
- 6in OD Auger Pipe
- Discharge Height: 61in High
- Discharge Chute: 6.25in x 3.625in
- Chain Driven through Nord SK 22 VL N56C Reducer
- VFD Controlled: KB Electronics Model KBPW240D Variable Frequency Drive
- Overall Dimensions:
  - Length: 116in
  - Width: 50in
  - Height: 88in
Location: Savona, British Columbia, Canada
