24in Dia. Twin City Blowers

Equipment details

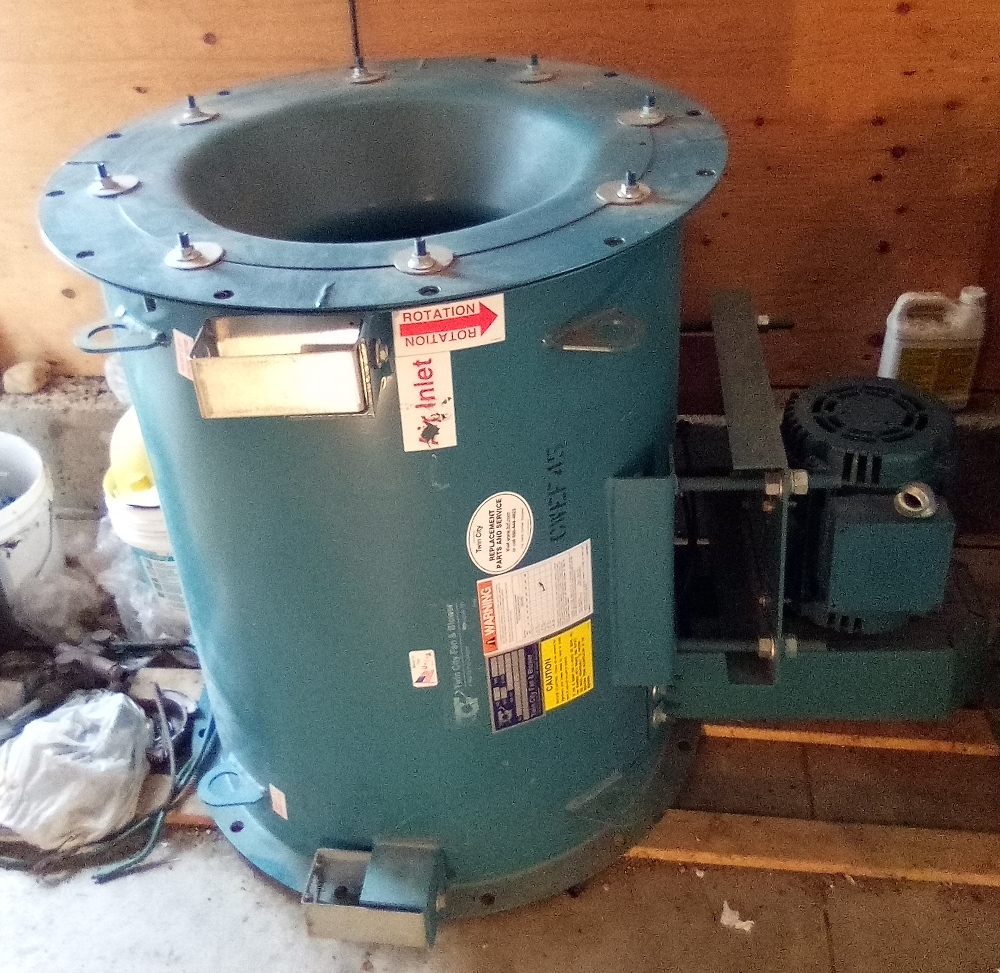

24in Dia. Twin City Blowers

Quantity: (4) Units Available

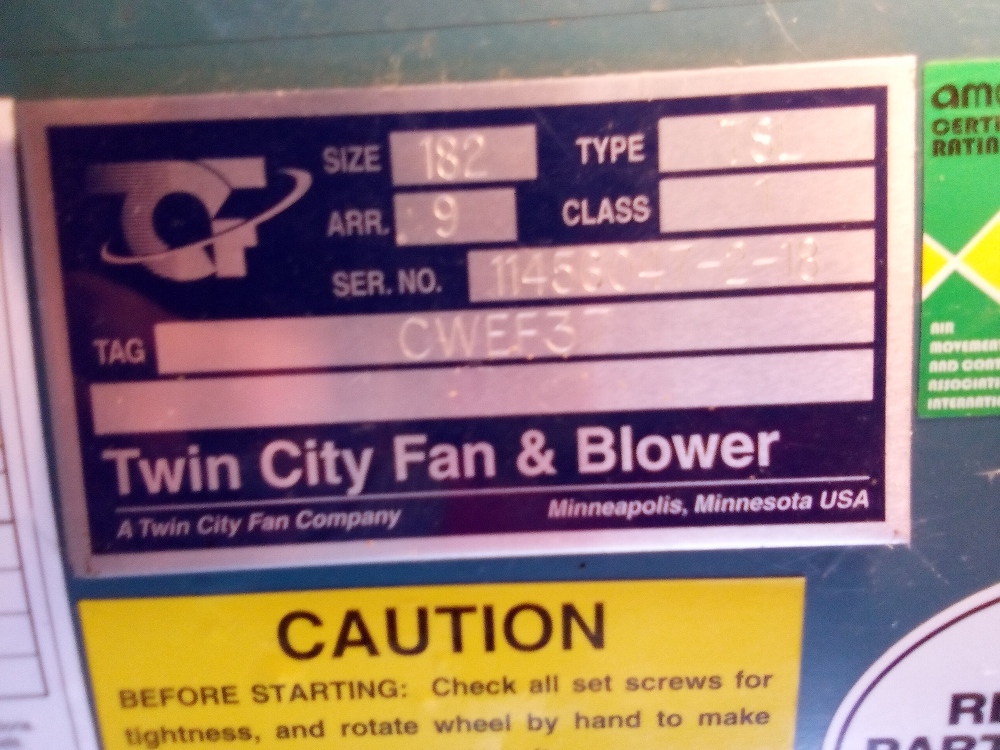

• Make: Twin City Fan & Blower Company
• Type: TSL
• Size: 182
• Style: Inline Electric Ventilation Fan
• Condition: Used Condition
• Diameter: 24in Diameter
• Arrangement: 9
• Class: 1
• Impeller: Open Back Plate Airfoil Impeller
• Max RPM: 2237 RPM
• Weight: 32 Lbs.
• Drive: Belt Drive via Electric Motor

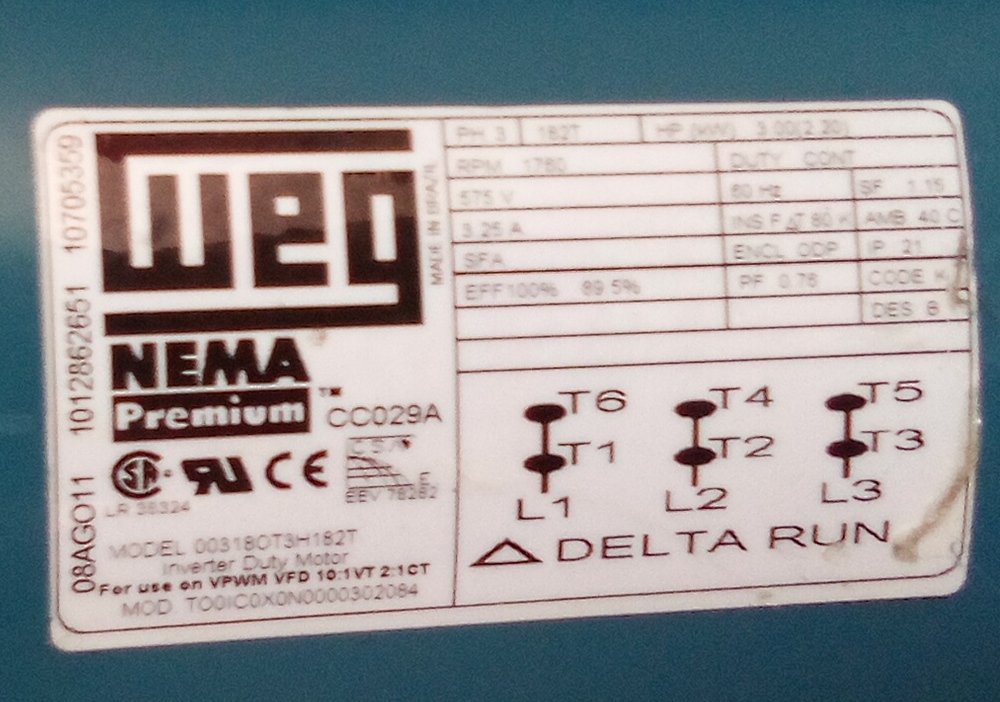

  • Make: WEG Motors
  • Power Output: 3HP (2.2kW)
  • Rotating Speed: 1760 RPM
  • Voltage: 575 Volt
  • Current: 3.25 Amps
  • Frequency: 60Hz
  • Phase: 3-Phase


• See Fan Curve Below:


• Location: Western Canada
