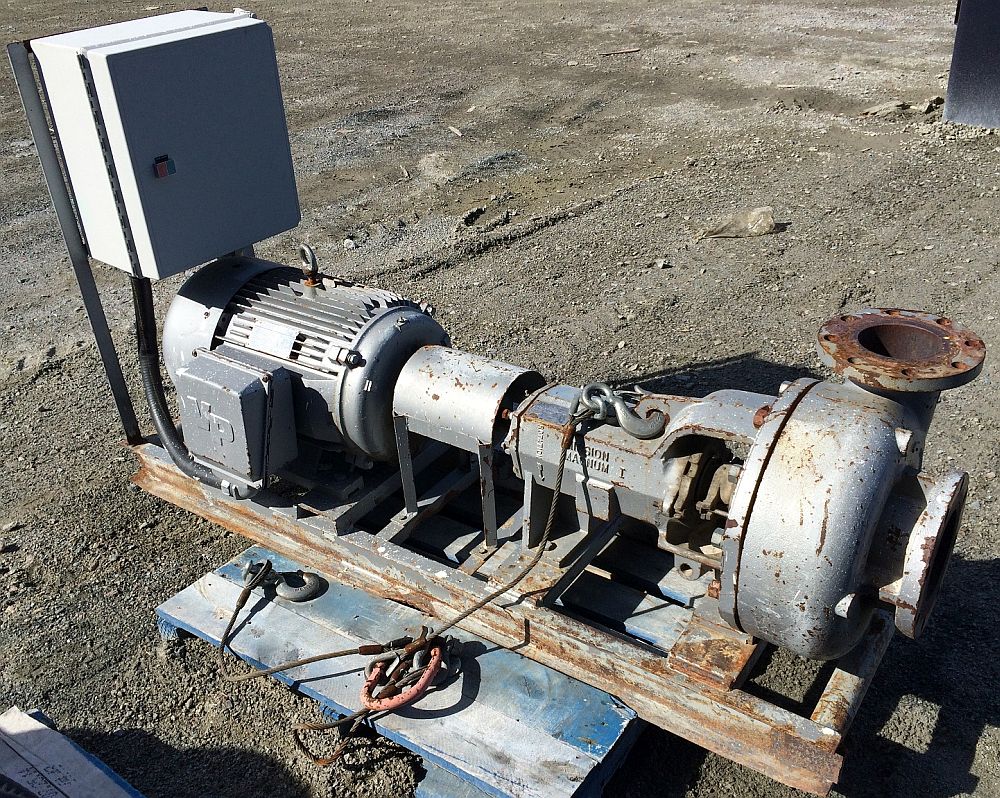

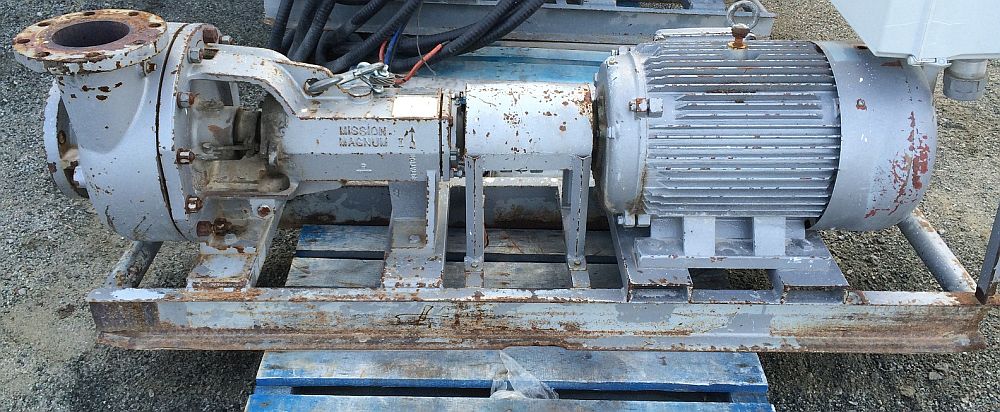

Mission Magnum 6 x 5 x 11 Centrifugal Pump
Inventory ID: 105166
- Category: Centrifugal Pumps
- Availability: Available
- 6 verified equipment photos
Equipment details

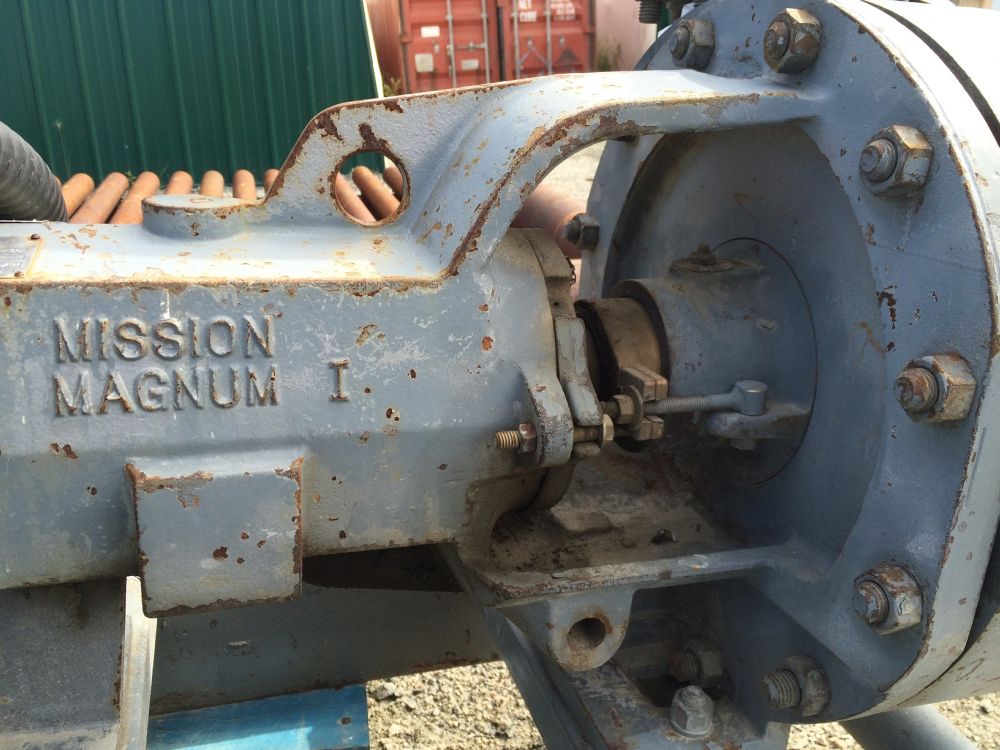

- Mission Magnum 6 x 5 x 11.
- Manufactured by National Oilwell Varco.
- Pressure rated at 1.5x the flange rating and are designed with a 1/8" erosion allowance.
- Heavy duty shaft to increase operating
- Open impeller design that contains wide tipped vanes to create a smoother flow pattern.
- Equipped with anti-loosening impeller lock bolt to ensure the pump is not damaged if run in reverse.
- Easily accessible front access drain.
- Solid frame base strengthens the pump and eliminates broken feet compared to pumps with a split base.

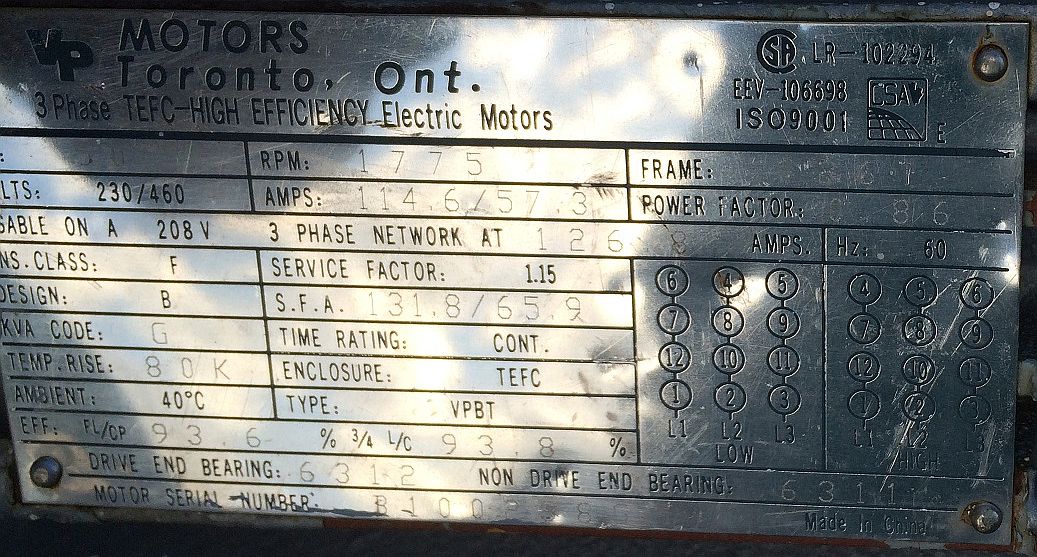

- 50 hp Electric Motor.
- TEFC high efficiency.
- 230/460V.
- 1775 rpm.
- Serial No. 100047H/B100288G

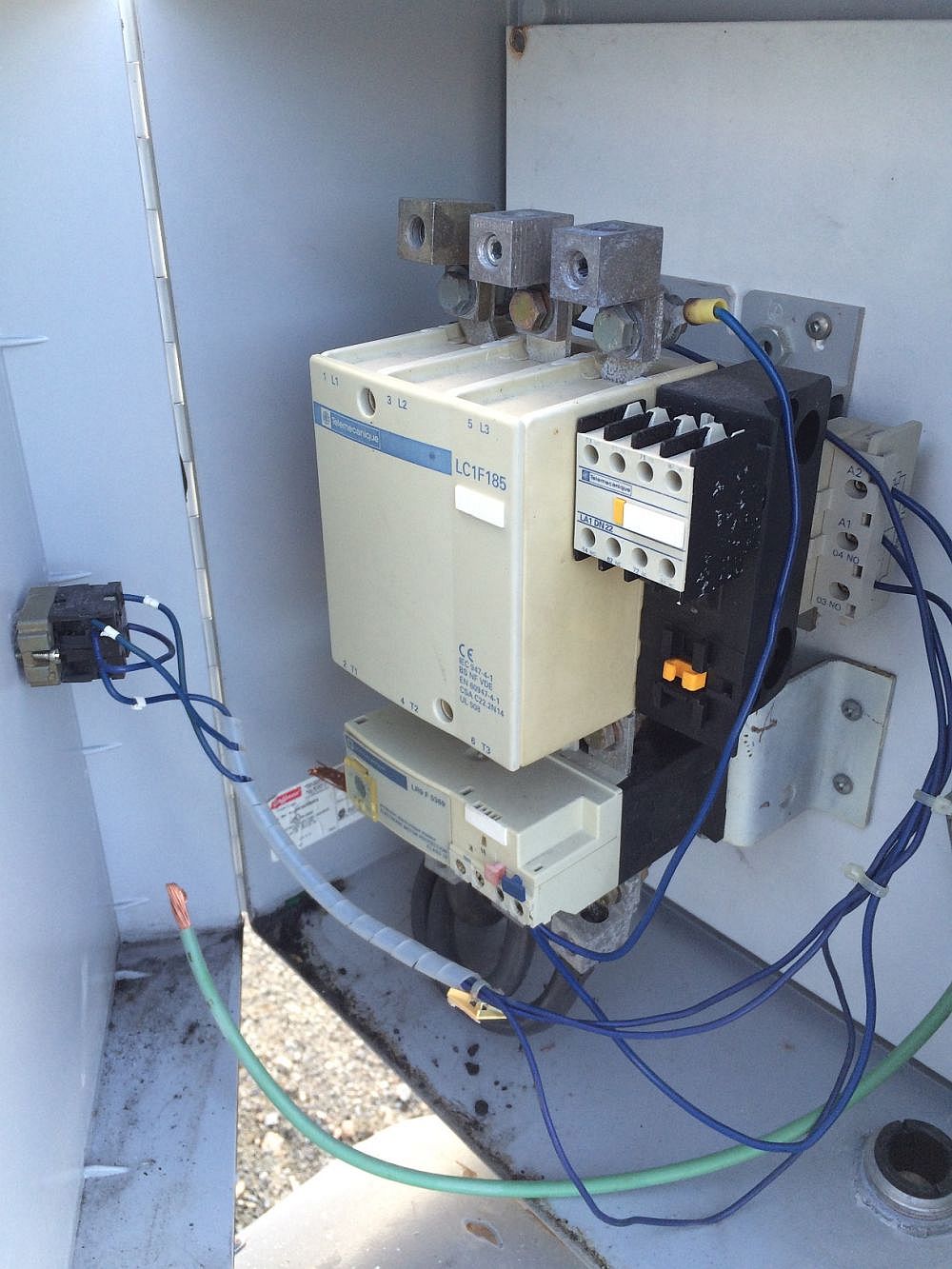

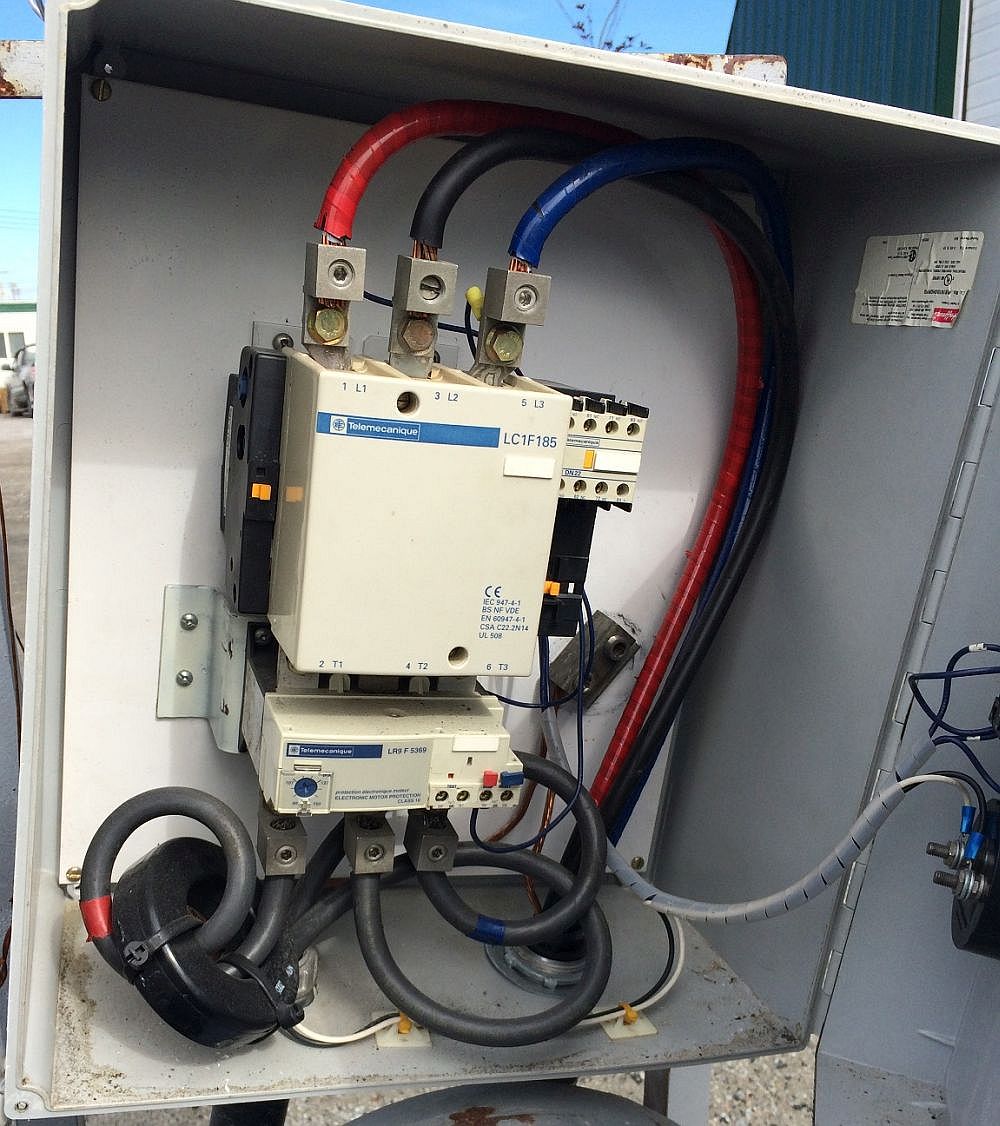

- Electrical Starter consisting of:
- telemecanique LC1F185 contactor.
- telemecanique LR9F5369 electronic thermal over load relay.
- All mounted on common steel frame.
- Two available. - Only 1 Remaining
