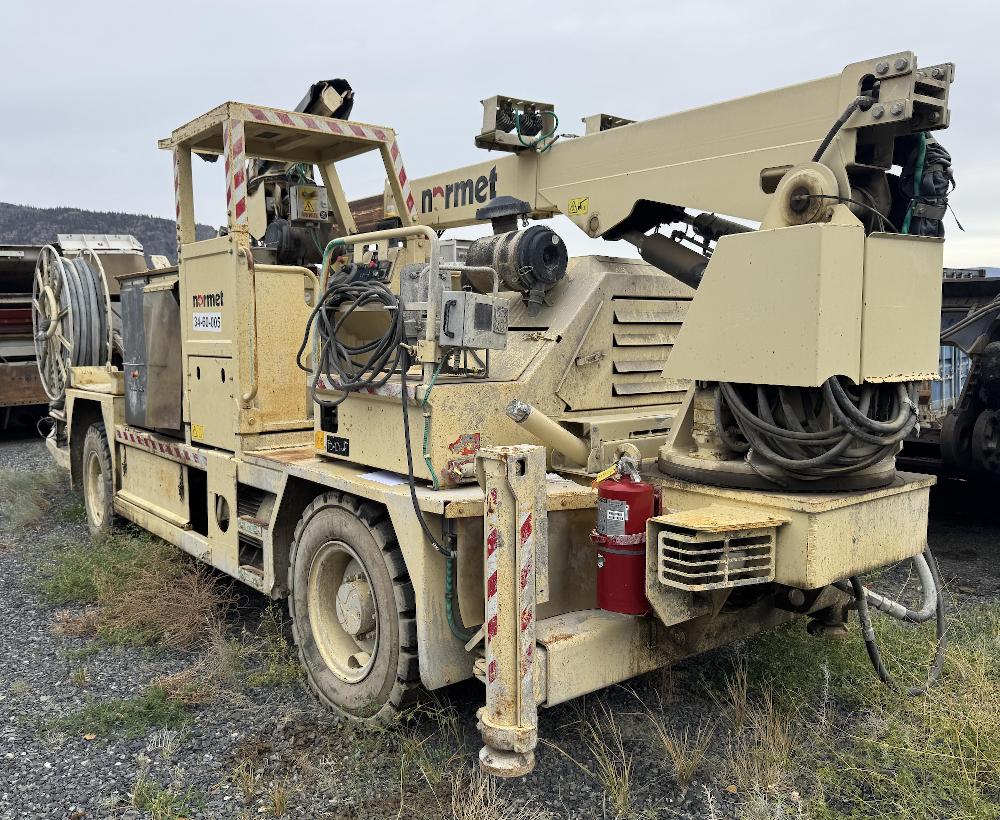

Normet Spraymec 8100 Shotcrete Sprayer
Inventory ID: 1592117
- Category: Shotcrete Equipment
- Availability: Available
- 11 verified equipment photos
Equipment details

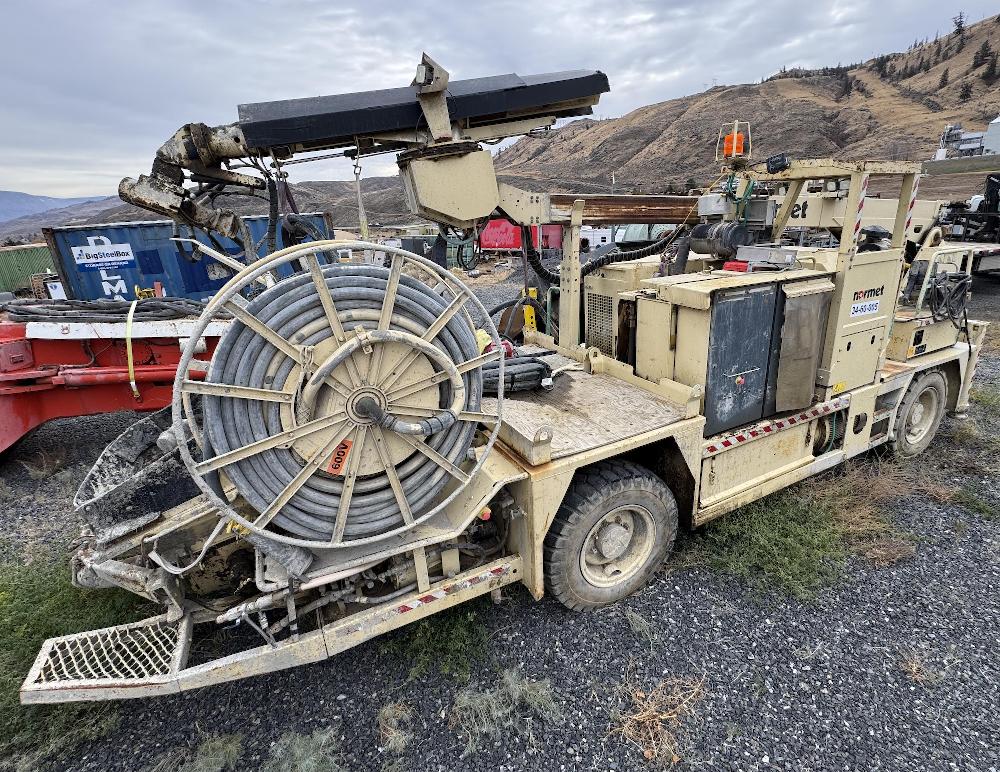

Normet Spraymec 8100 Shotcrete Sprayer
- Make: Normet
- Model: Spraymec 8100
- Type: Underground Shotcrete Sprayer
- Year: 2014
- Hours: 2,293
- Condition: Used Condition

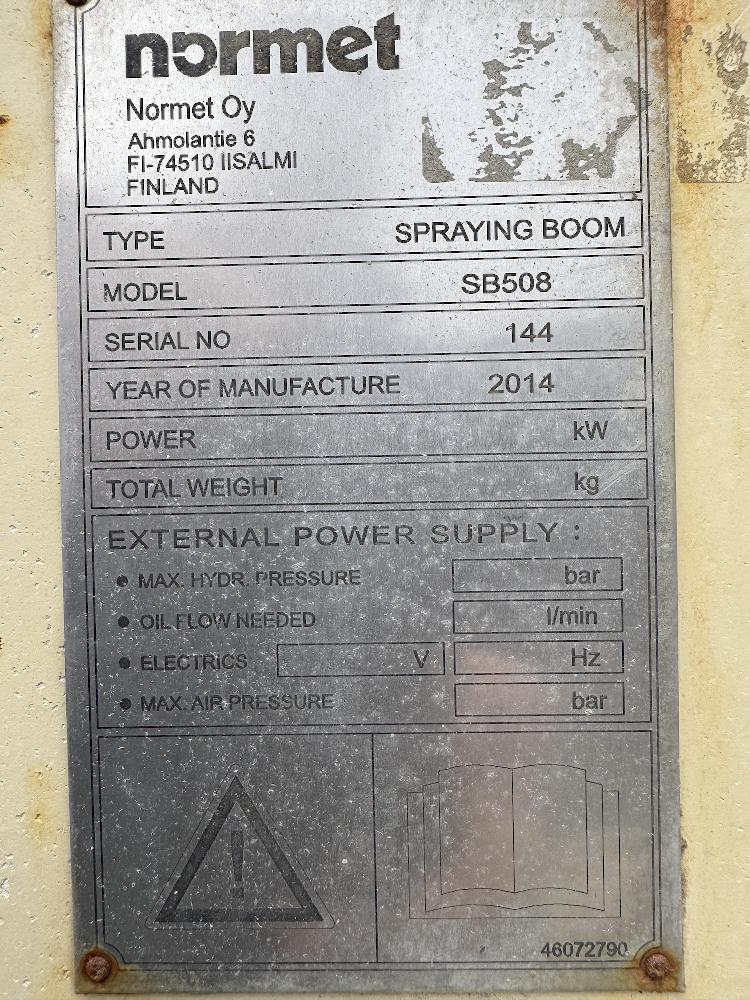

- SB 508 Spray Boom
- Lateral: 16m
- Vertical Max: 14.0m
- Vertical Normal: 10.3m
- Spraying Cross Section: 15m²-140m²
- Spraying Capacity: 30m³/h
- 4-Cylinder Diesel Engine
- Ansul Fire Suppression
- Canopy: ROPS/FOPS Canopy

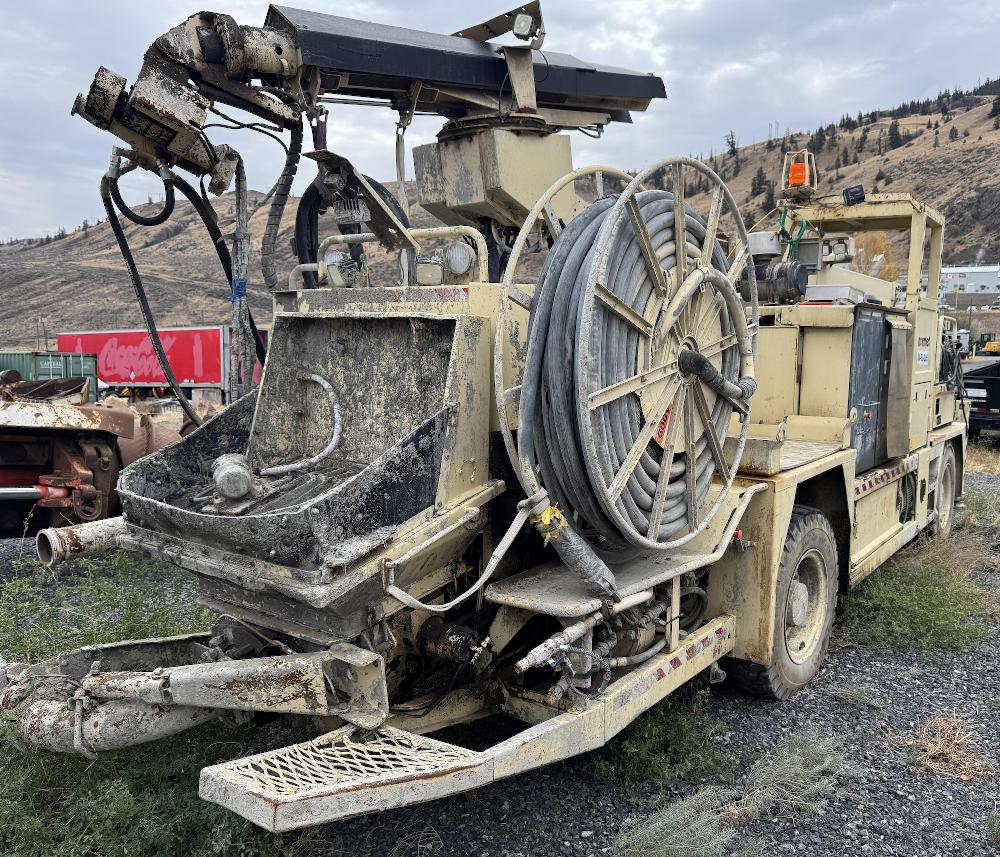

- Water Reel
- General Model Specifications:
- Spray Pump: NSP 40 Double Piston Pump,
- Capacity, Theoretical: 3 - 30m³/h
- Cylinder Diameter: 200mm
- Cylinder Stroke: 920mm
- Pumping Pressure: 51 bar
- Hydraulic Pressure: 250 bar
- Air Compressor: Electric Screw Compressor
- Accelerator System: Hydraulically-Driven Mono Pump
- Engine: Deutz TCD 2011 L4, Turbo-Charged
- Power Output: 74.9kW @ 2600RPM
- Transmission: Hydrostatic 4-Wheel Transmission
- Spray Pump: NSP 40 Double Piston Pump,
- Overall Dimensions:
- Length: 8,800mm
- Width: 2,500mm
- Height: 3,150mm
- Weight: 14,500 Kg
- Location: Savona, British Columbia, Canada
