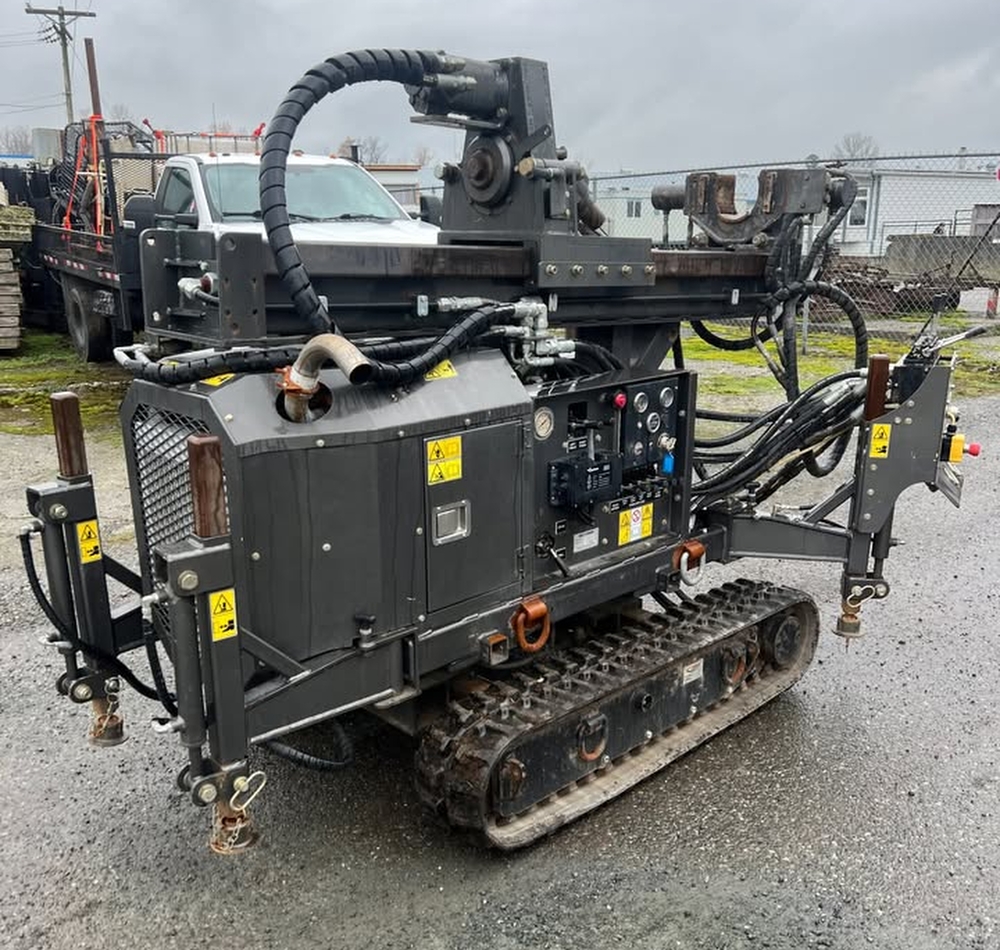

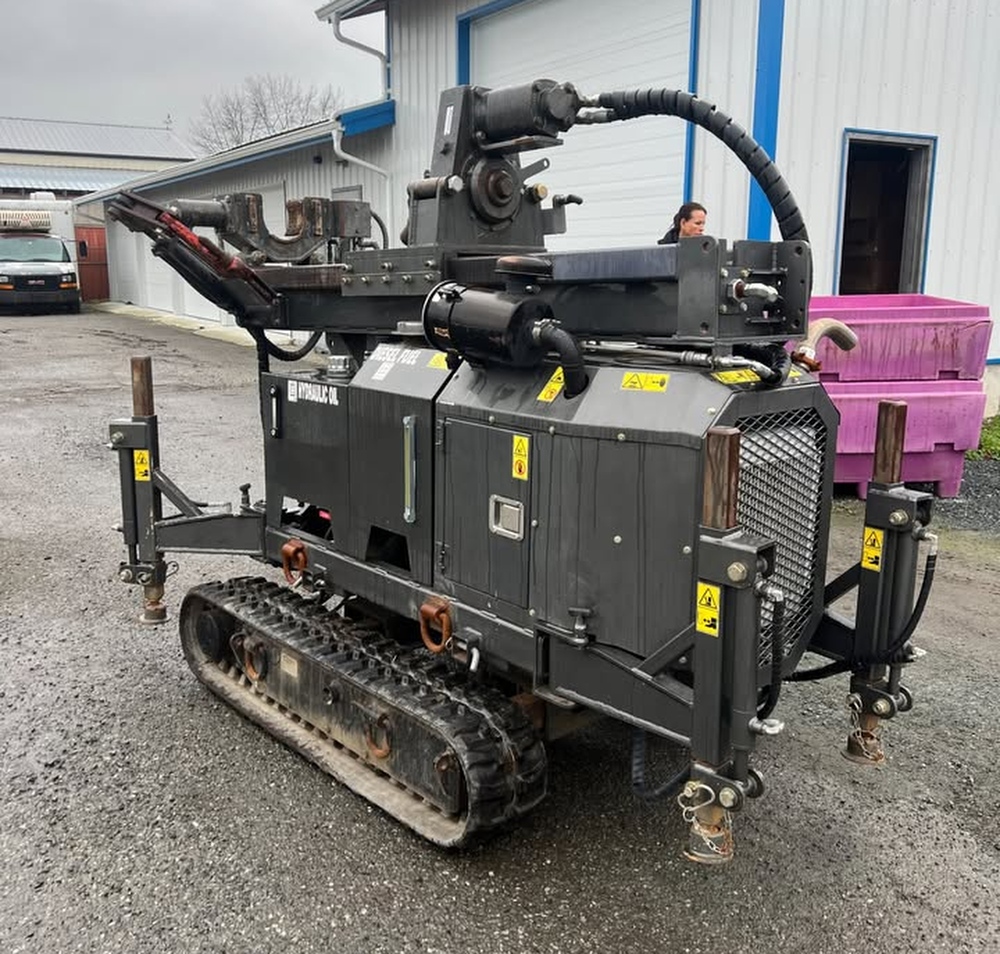

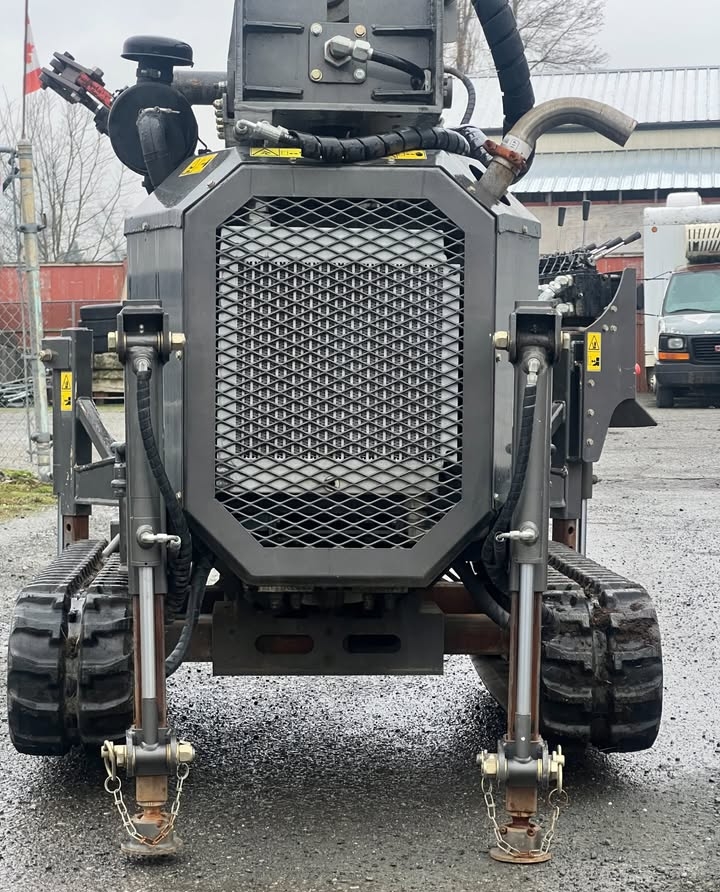

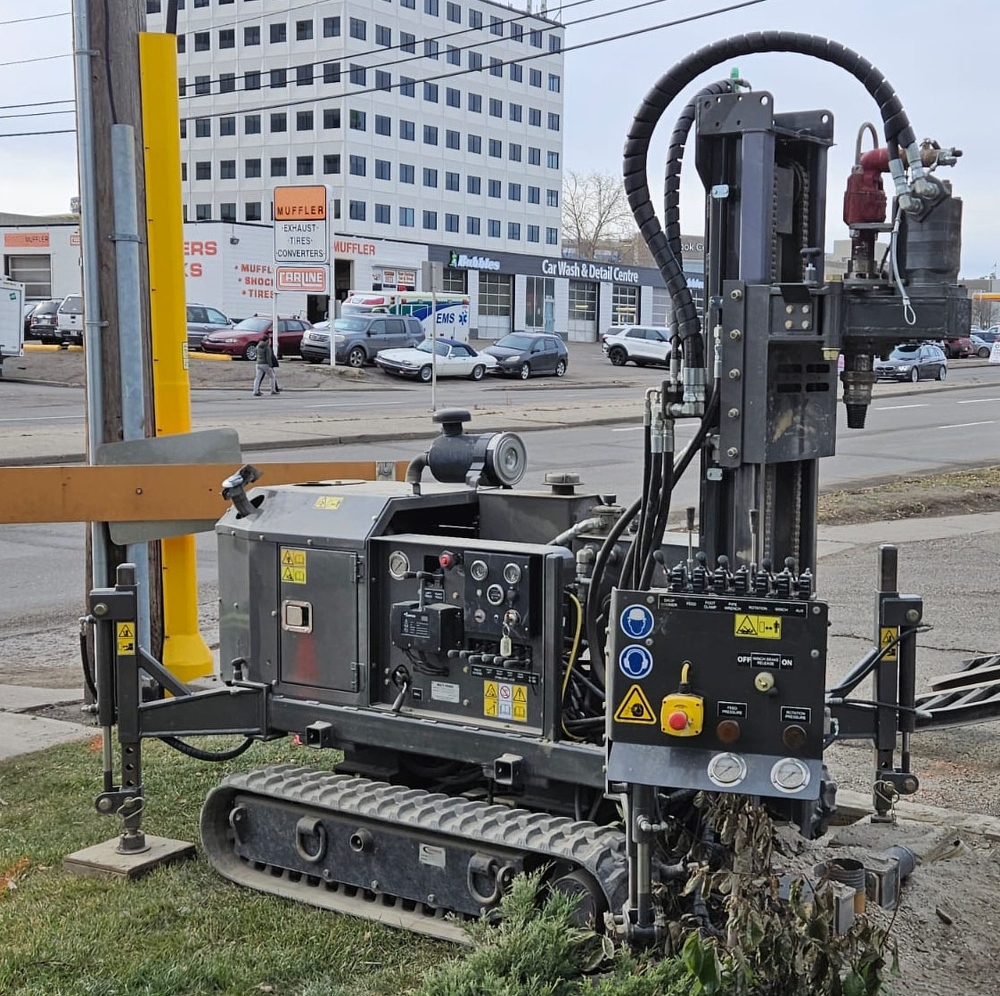

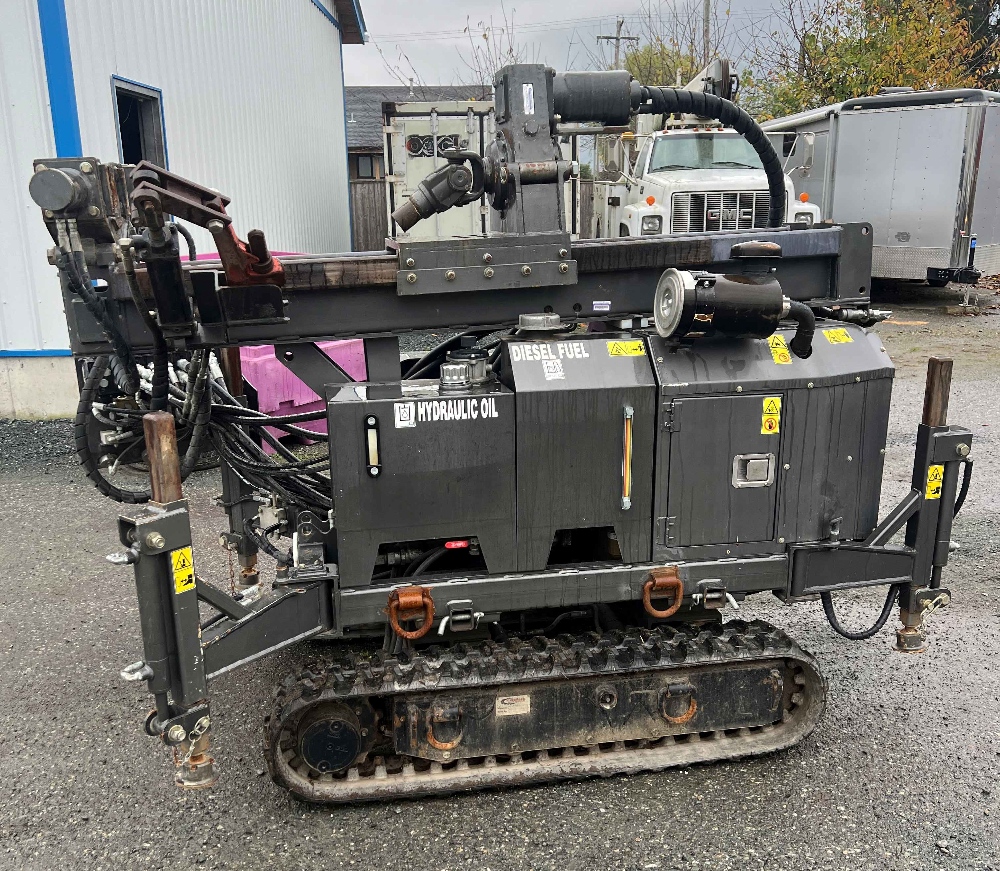

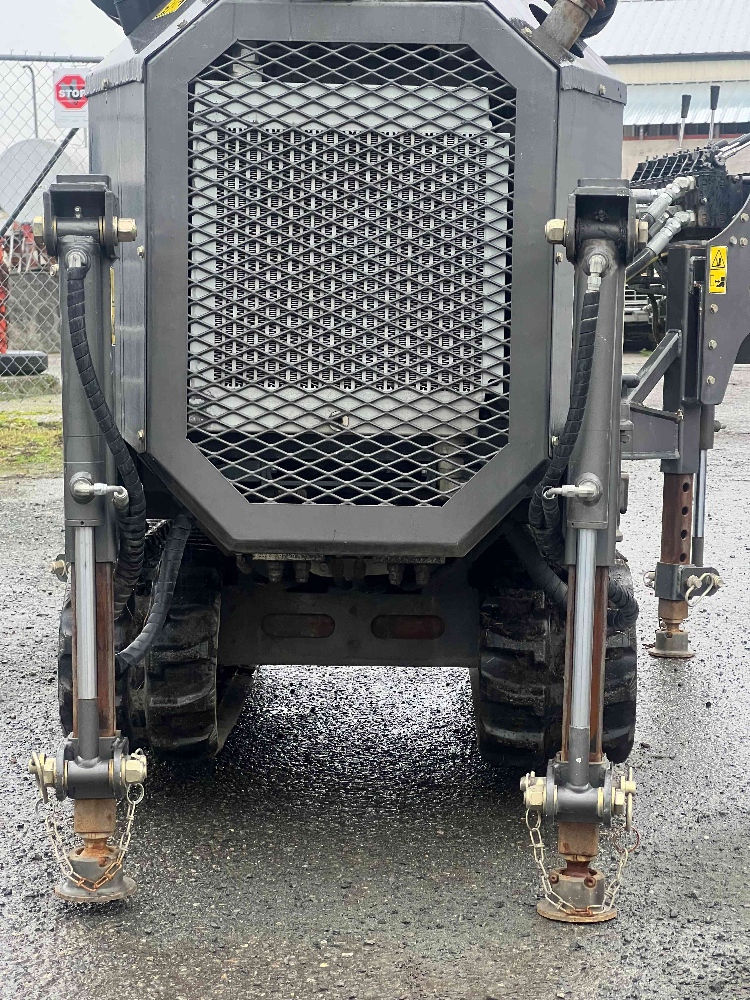

2023 Multipower L.A.D. Geotechnical Drill

Inventory ID: 1592552

Category: Crawler Drills
Availability: Available
9 verified equipment photos

Equipment details

Make: Multi-Power Products
Model: L.A.D.
Type: Track-Mounted Limited-Access Geotechnical and Environmental Drill
Year: 2023
Hours: 227 Hours on Meter
Condition: Used Condition
Applications:
- Drilling Auger (Hollow and Solid Stem)
- RAB and RC (Rotary Air Blast and Reverse Circulation)
- Advancing Casing ODEX
- Mud Rotary
- Micro Piles
- SPT Hammer (Needs Hammer)
- Diamond Core (Needs Additional Accessory Package)
Features:

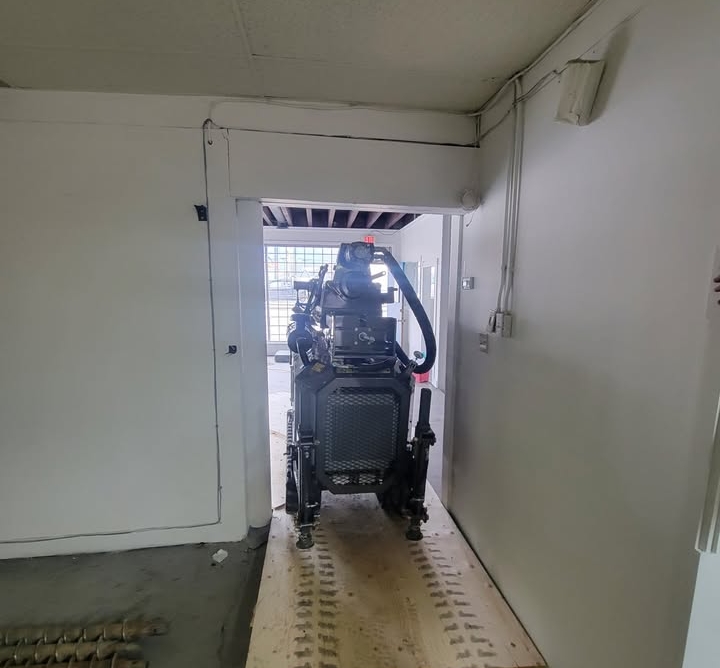

- 34” Width for Tight Access - Fits Through Doorways
- 89" Height
- 10,000 lbs. Pullback
- 3,500 lbs. Torque
- Retractable/Extendable Tracks
- Low-Impact Rubber Tracks
- Class Leading 45HP Power Unit
- Runs 2.5ft Tooling
- Removable Foot Clamp and Breakout Wrench
- Can be Broken Down into (3) Light-Weight Modules for Helicopter Transport
Depth Capacities: (Based on 300 CFM/200 PSI Compressor - *Depending on ground conditions)
- 4-1/2” Solid Stem Auger: 200ft/60m*
- 6-5/8” Hollow Stem Auger: 75ft/23m*
- 3-1/2” (89mm) Air Rotary Drilling: 300ft/100m*
General Model Specifications:
- Prime Mover:
  - Standard Unit: Kubota V1505T, 4-Cylinder, Turbo-Charged Diesel Engine
  - Power: 44.2 HP @ 3000 RPM
- Track & Undercarriage Package:
  - Model: Chermack 2B 60” Track
  - Design: Compact, Rubber Track Set
  - Speed: 2.6 MPH
  - Stabilizers: (4) Hydraulic Stabilizers
- Top Drive Rotation Unit:
  - Max Torque: 2,500 lbs./ft
  - RPM: 0-95 RPM
  - Spindle: Floating w/ HD U-Joint Assembly 1-5/8” Hex
  - Rotation Motor: Char-Lynn 6K Series
- Mast and Feed:
  - Design: Double Rod Cylinder and Chain Feed
  - Pullback: 12,500 lbs.
  - Pulldown: 12,500 lbs.
  - Feed Stroke: 66” - Longer Feed Stroke Option Available
  - Working Angle: 45° to 90° Degree
- Hydraulic System:
  - Design: Fully Hydraulic, No Electronics, Open Loops
  - Capacity: 20 GPM
  - System Pressure: 3000 PSI
  - Filtration: 10 micron
  - Components: Sauer Danfoss, Char-Lynn & Parker
  - Heat Exchanger: Air-Oil

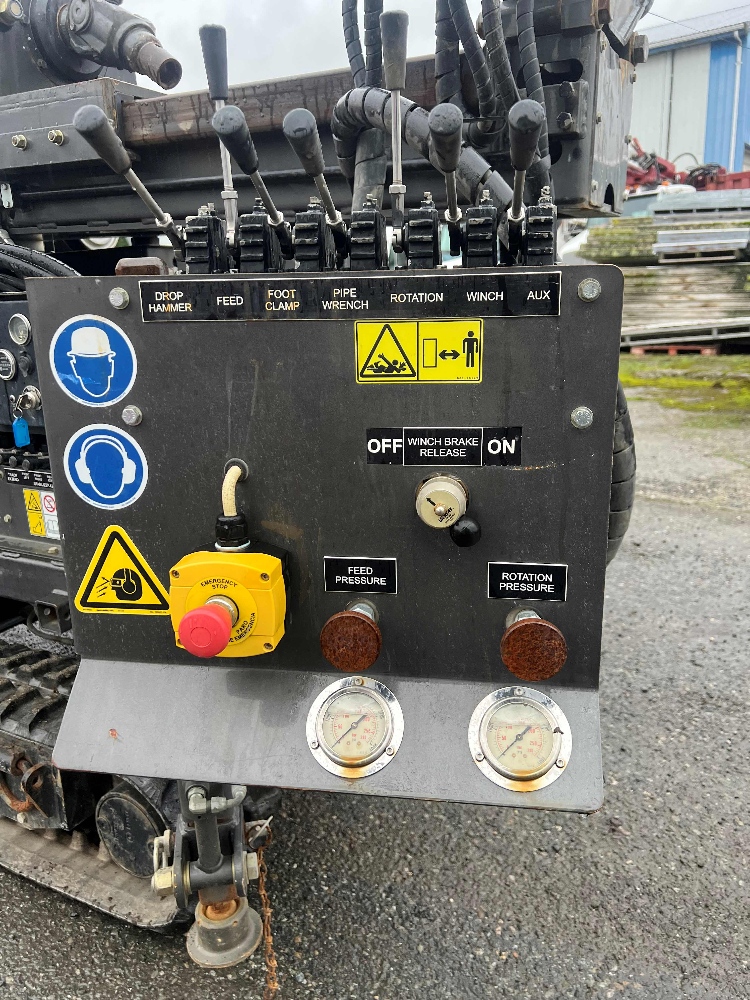

- Control Panel:
  - Panel: Feed, Rotate, L&R Track, SPT Hammer Control and Setup Functions
  - Gauges: Rotation, Holdback & Air Pressure
  - Opening: 6 - 1/4”
- Footclamp:
  - Design: Two Hydraulic Cylinder & Jaw/Bolt-on, Removable Design
  - Clamping Force: 20,000 lbs.
  - Opening: 6 -1/4”
Dimensions: (Working)
- Length: 8ft 3in (2.5m)
- Width:
  - Tracks Out: 5ft 6in (1.7m)
  - Tracks In: 2ft 8in (0.85m)
- Height:
  - Mast Up: 7ft 5in (2.4m)
  - Walking: 6ft (1.8m)
Dimensions: (Transport)
- Length: 115in
- Width: 34in
- Height: 69in
- Weight: 3,500 Lbs.
Location: Western Canada
