Available
United Conveyor 6050 Pin-Paddle Mixer
Inventory ID: 1628208
- Category: Agitators and Mixers
- Availability: Available
- 7 verified equipment photos
Equipment details

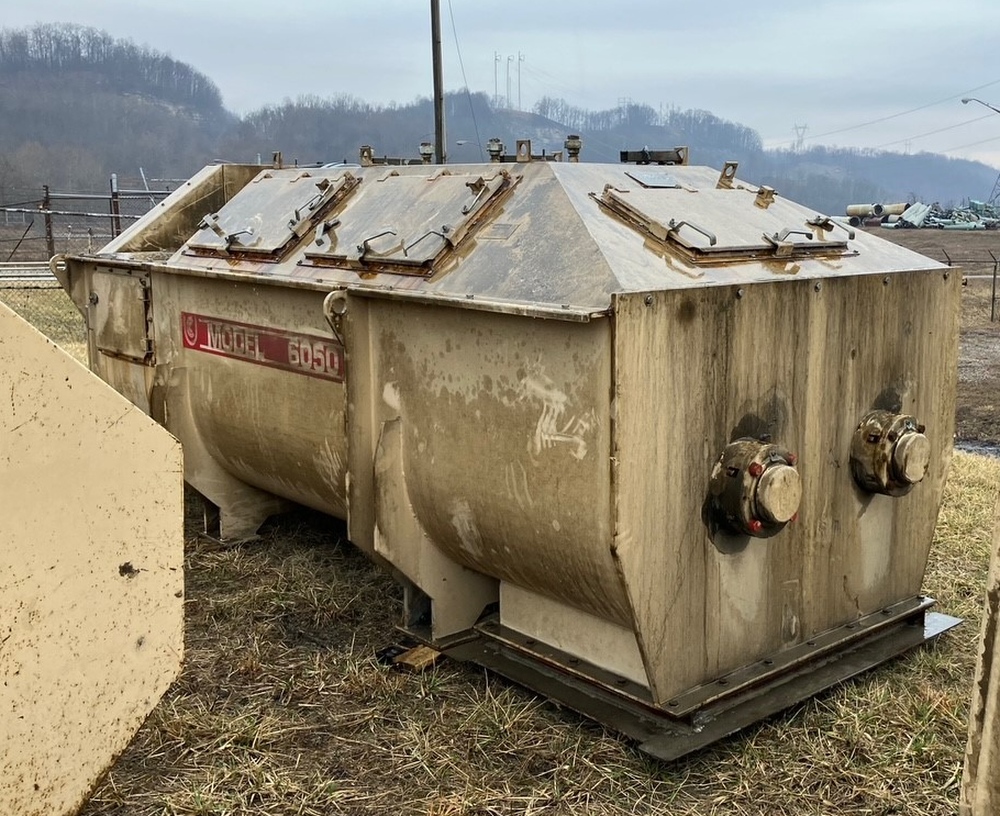

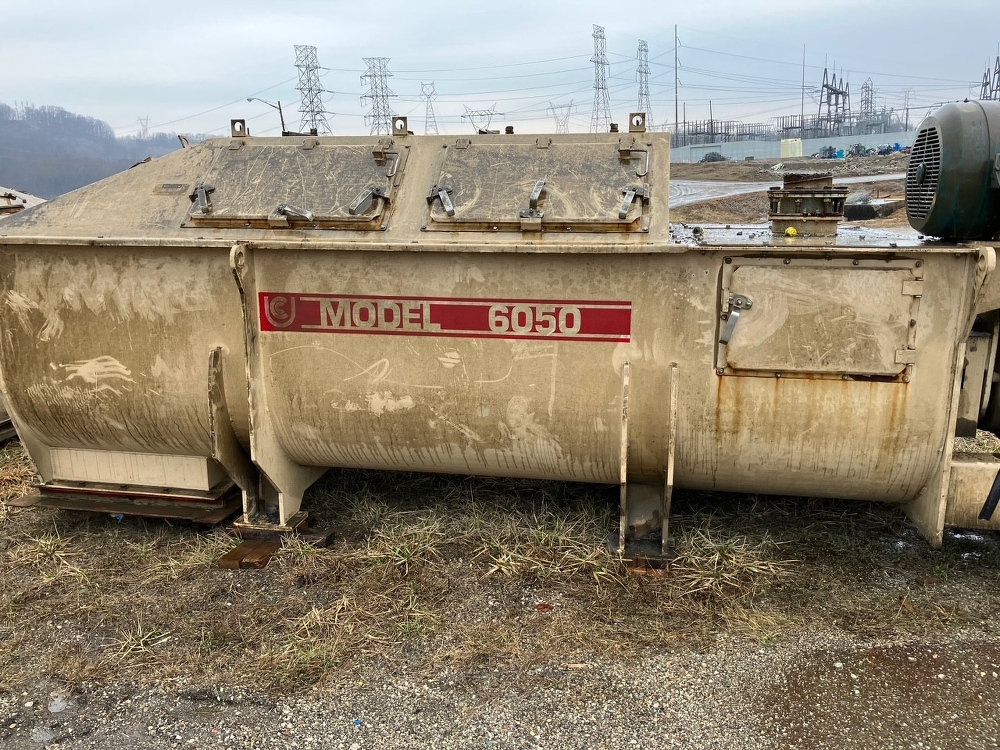

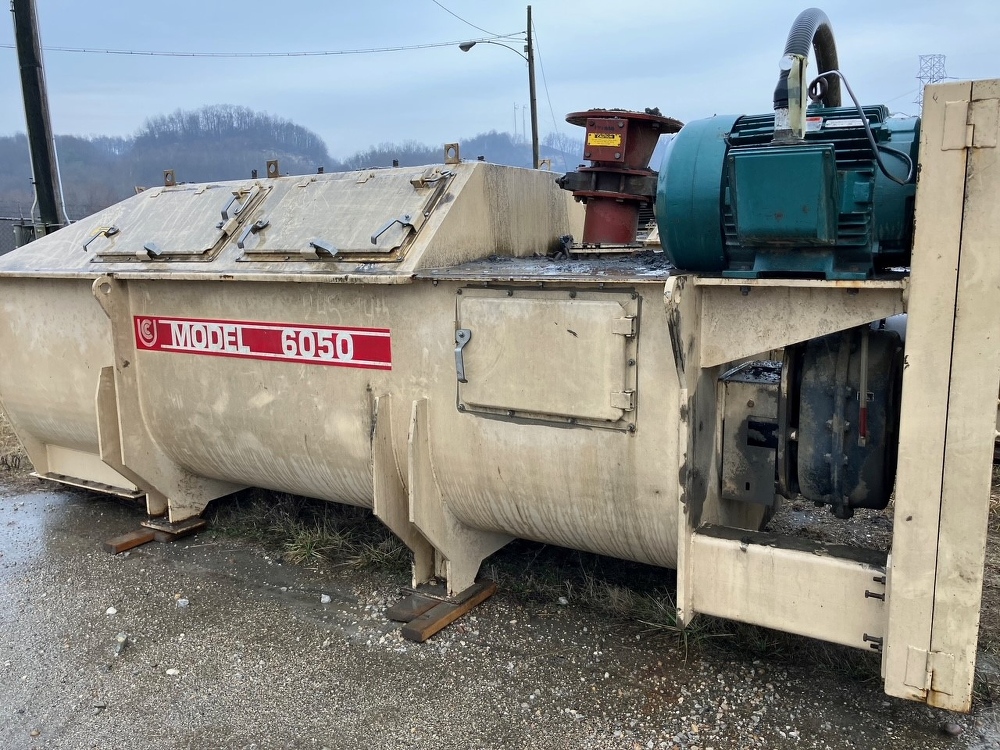

United Conveyor 6050 Pin-Paddle Mixer
Quantity: (3) Units Available
Description: Specifically Designed to Condition High Calcium Ash. The Pin-Paddle Design Reduces Buildup and Maintenance Frequency, Time and Expense
- Make: United Conveyor Corporation
- Model: Model 6050
- Type: Pin-Paddle Mixer / Unloader
- Condition: Used Condition - Previously Used in Power Plant

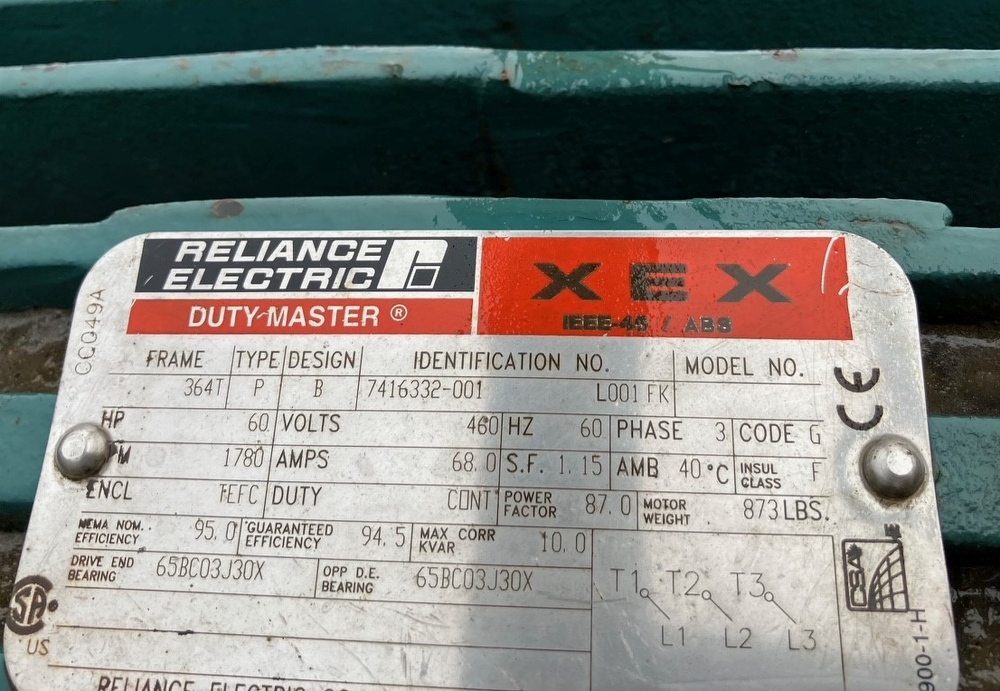

- Drive: Reliance Electric Motor
- Power Output: 60HP
- Voltage: 460 Volt
- Operation: The UCC Pin-Paddle Mixer/Unloader Solves the Calcium Compound Challenges with it's Unique Design and Operation:

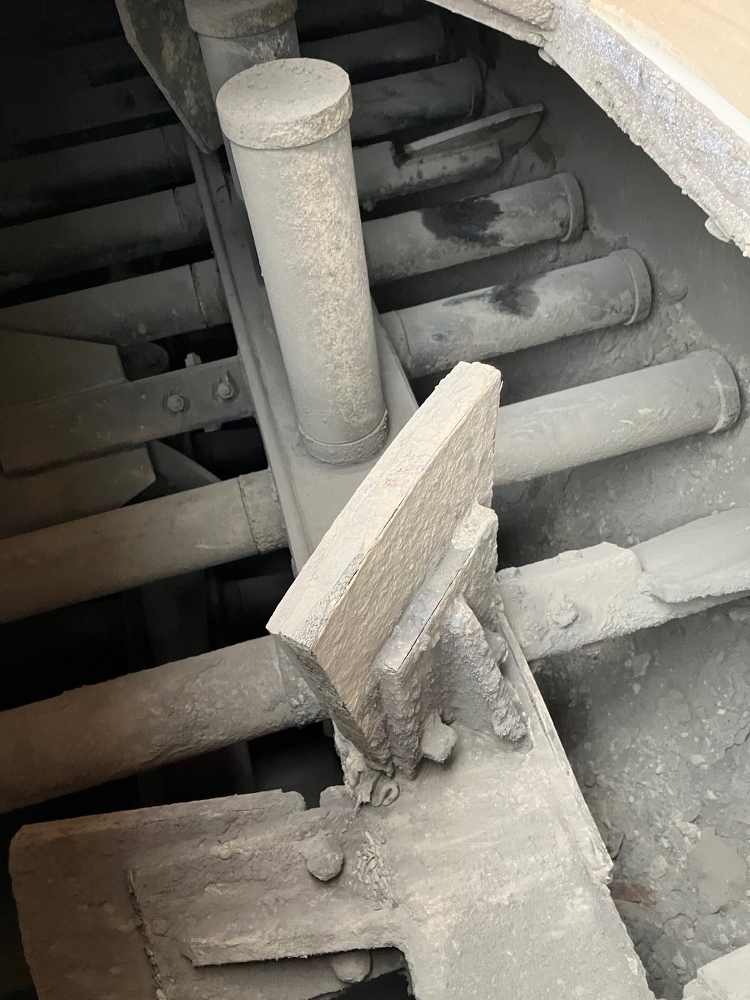

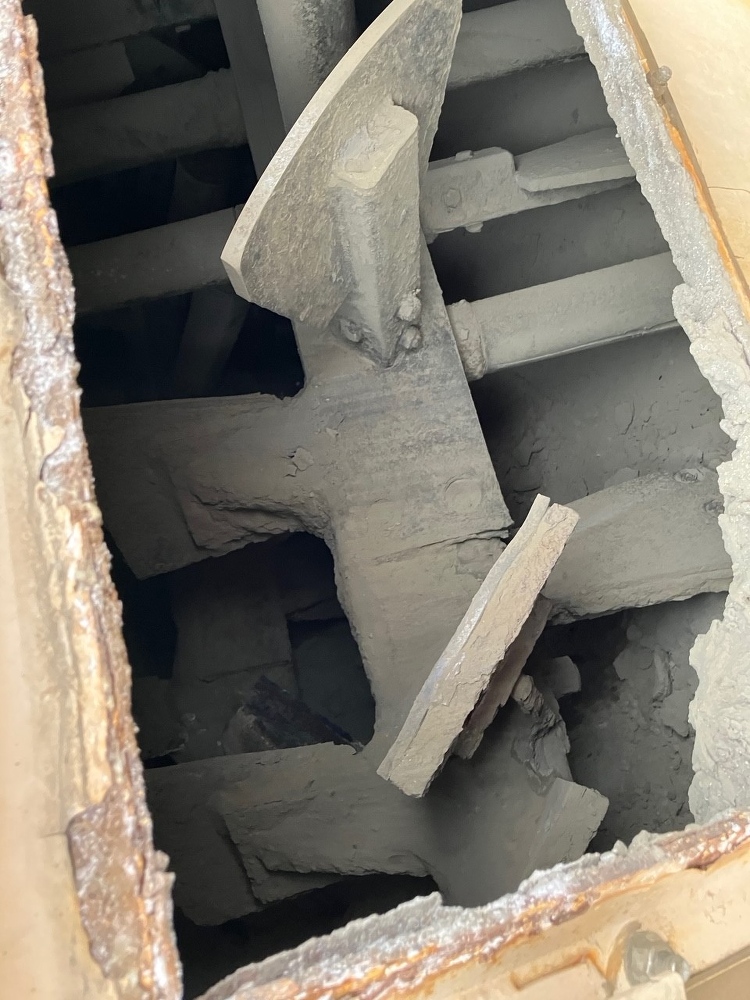

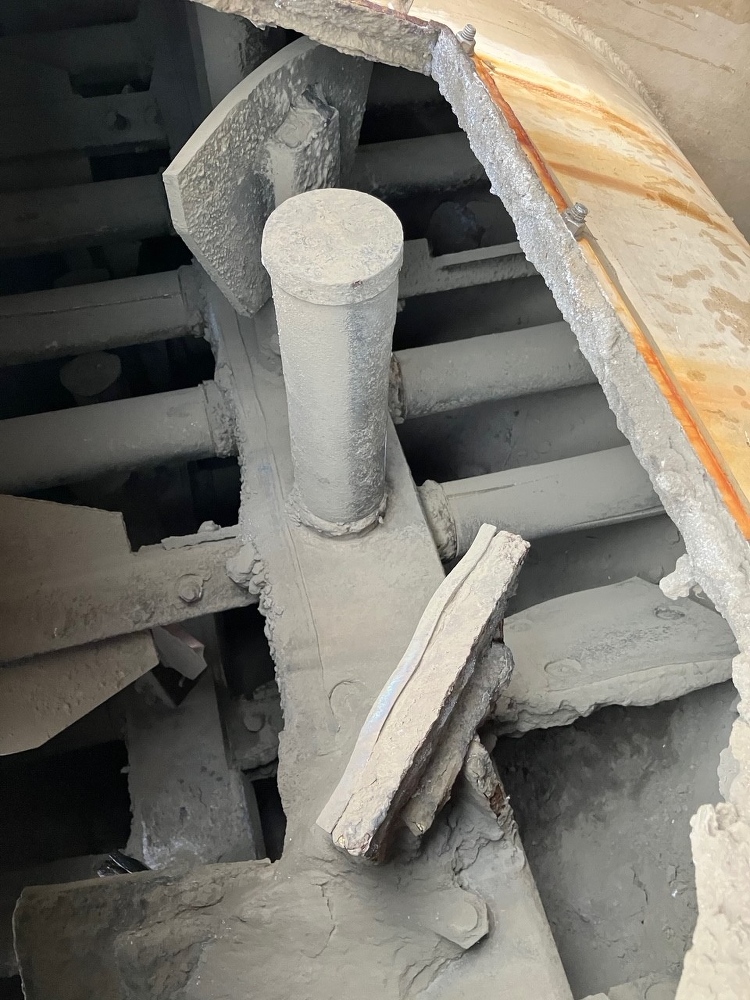

- Paddles Push Material Forward through the Mixer/Unloader
- Fast, Counter-Rotating shafts and Pins Create Turbulent Mixing While Lifting the Material to Expose the Ash for Optimal Wetting and Mixing
- Nozzles are Designed for Improved Water Penetration into the Bed of Material
- Nozzles Can Be Independently Controlled to Allow Precise Water Discharge during Start-Up, Mixing and Shutdown
- Cleaning Chains Generate Contact against Material and Pin-Paddles to Reduce Buildup during Each Cycle Stop
- General Model Specifications:
- Discharge Capacity: Up To 300 TPH (272 MTPH)
- Volumetric Capacity: 12,000 ft³/hr. (340 m³/hr.)
- Pin-Paddle Rotation Speed: 50 RPM
- Motor: 60HP (45kW)
- Paddle Diameter (Feeding): 29"
- Weight: 12,500 Lbs.
- Distance from Center of Ash Inlet Flange to Center of Ash Outlet Flange: 106-13/16" to 126-5/16"
- Mixer Body: 3/8" Carbon Steel
- Feeding Paddles: Tivar Clad AR500
- Mixing Paddles: 304 Stainless Steel
- Mixing Pins: UHMW-PE Pin Cover - DURITE® H Wear Caр
- Location: Eastern USA
