1500HP Nidec Titan II Electric Motors
Inventory ID: 1641438
- Category: 1,500 Horsepower
- Availability: Available
- 7 verified equipment photos
Equipment details

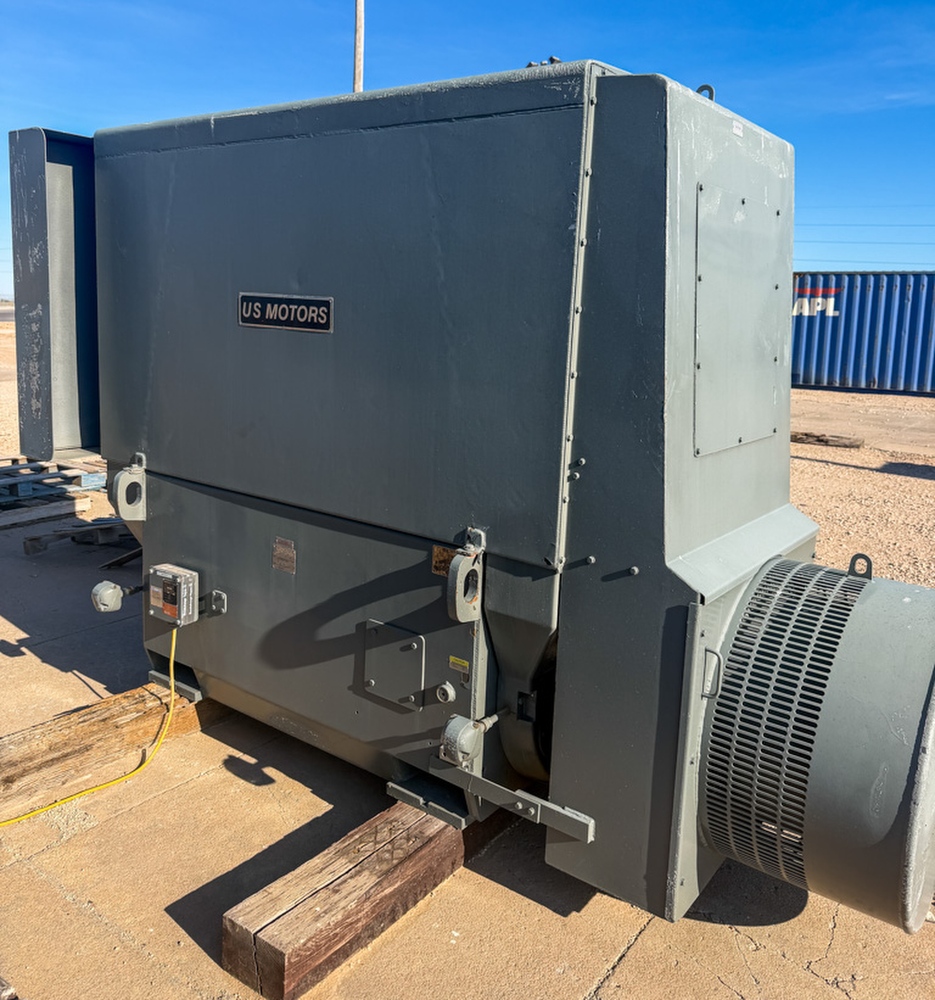

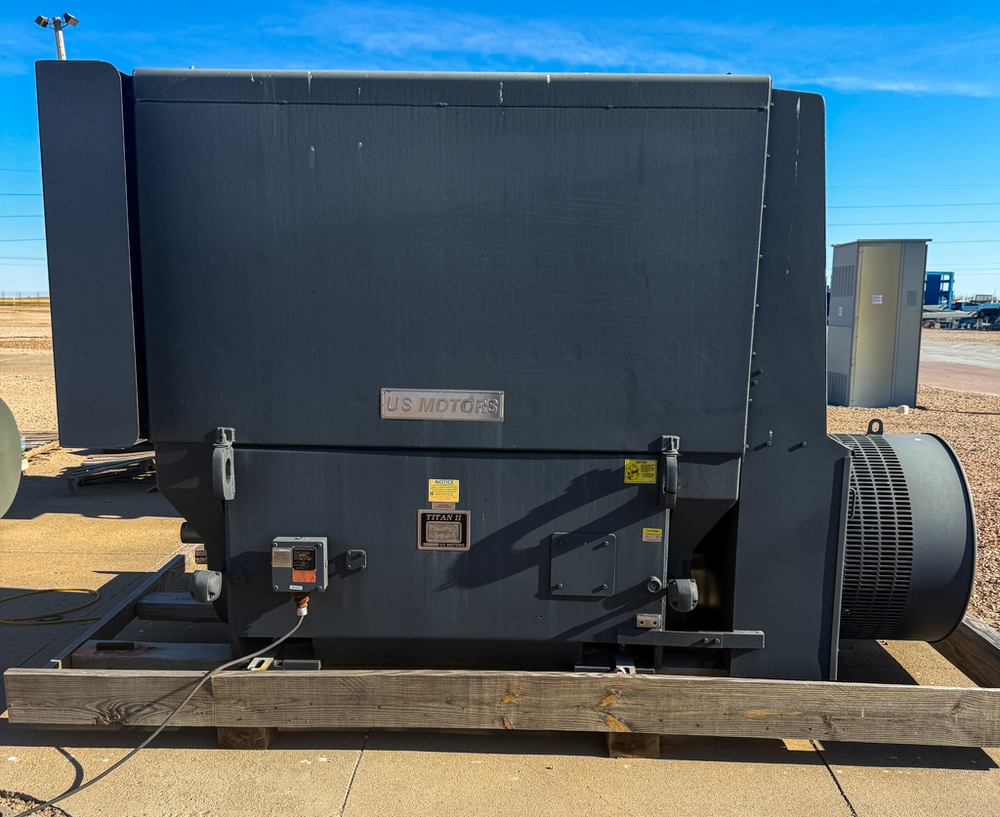

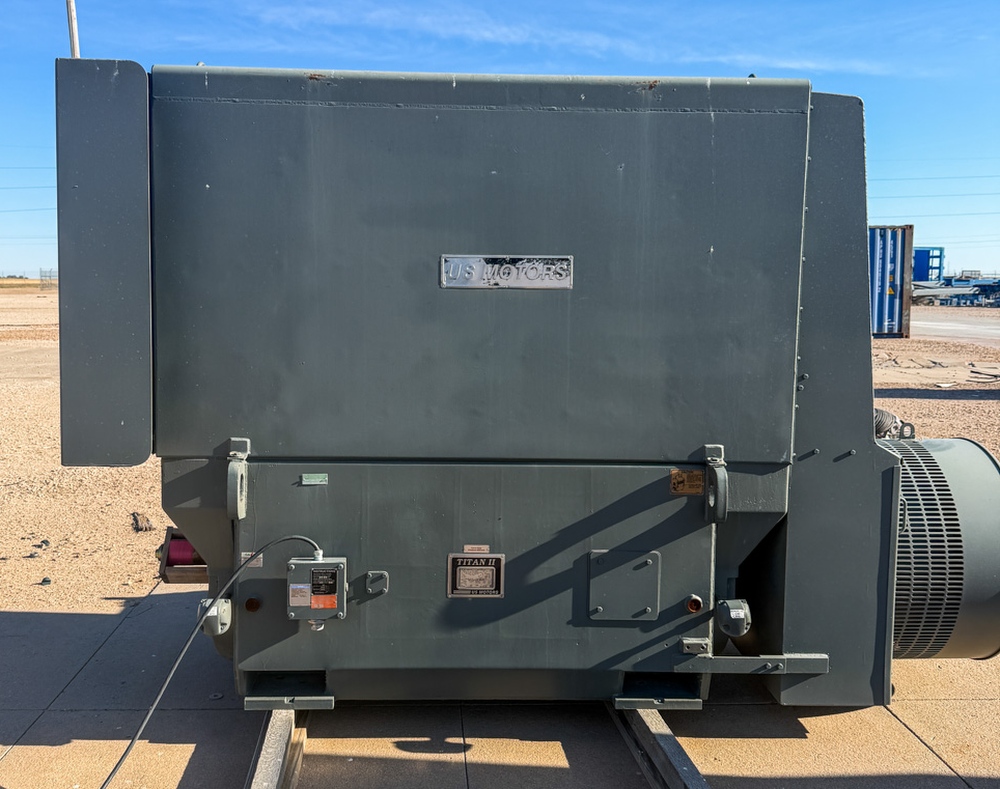

1500HP Nidec Titan II Electric Motors

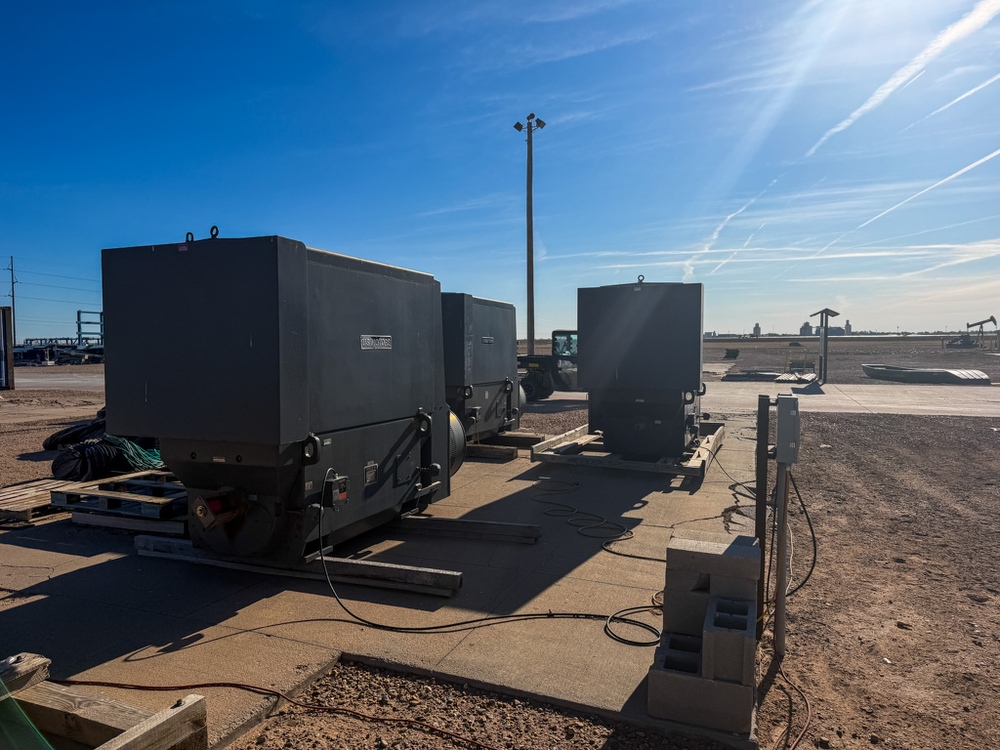

Quantity: (3) Units Available
Description: The Totally Enclosed Tube Cooled Titan® Motor Type JT has a cast iron brackets and heavy fabricated steel frame construction with oversized grease lubricated anti-friction bearings. To ensure a high degree of corrosion resistance, steel tube construction is standard. Further, the top hat assembly is treated with a Vacuum Pressure Impregnation cycle of 100% solid epoxy coating all surfaces. The VPI system, along with other internal and external protective treatments, provides exceptional durability in hostile environments. The winding is constructed with full Class F materials and receives two cycles of 100% solid epoxy VPI.
- Make: Nidec US Motors
- Model: Titan II
- Type: Electric Motor
- Style: High Voltage Electric Motor
- Duty: Inverter Duty
- Year: 2023
- Condition: New Unused Condition - New "Old" Stock
- Power Output: 1500 HP
- Torque: 2198.4 ft.-Lbs.
- Rotating Speed: 3585 RPM
- Voltage: 4160 Volts
- Current: 177 Amps
- Frequency: 60Hz
- Phase: 3-Phase
- Enclosure: TETC (Totally Enclosed, Tube Cooled)
- Weight: 11,200 Lbs.
- Frame: 5813 S
- Location: Mid West USA
