Available
Mars Mineral P-30 Disc Pelletizer
Inventory ID: 1642008
- Category: Agglomerators
- Availability: Available
- 6 verified equipment photos
Equipment details

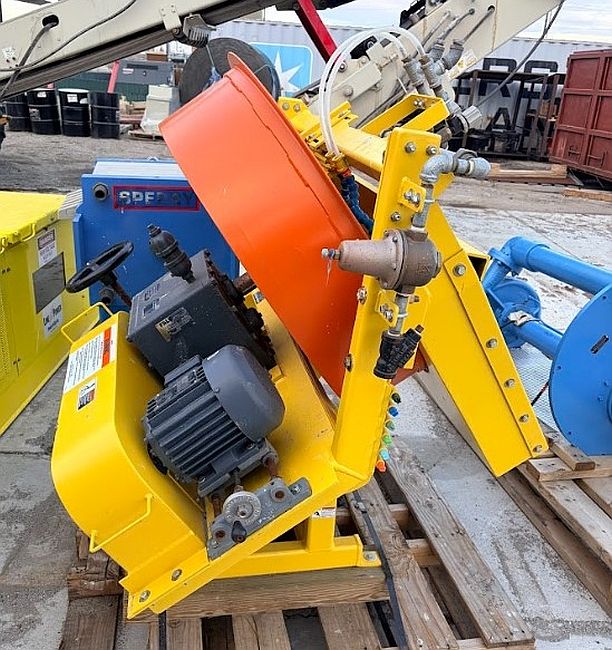

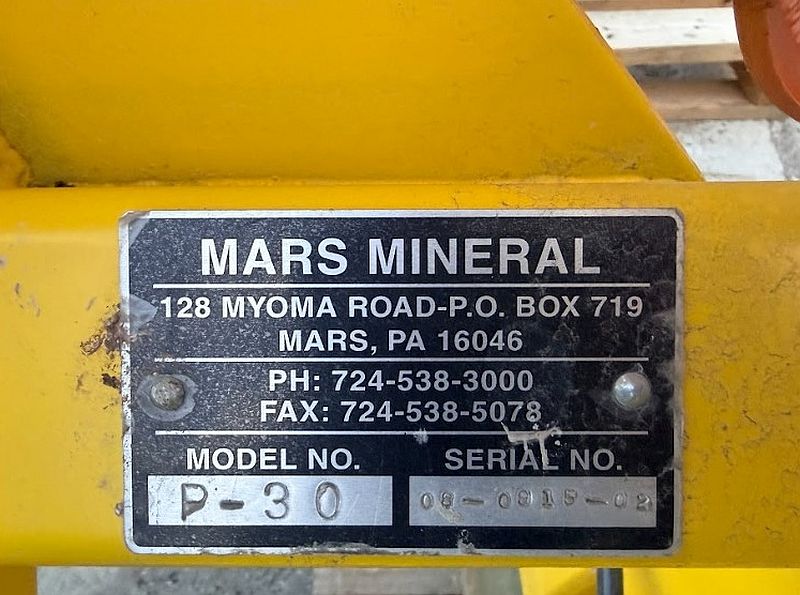

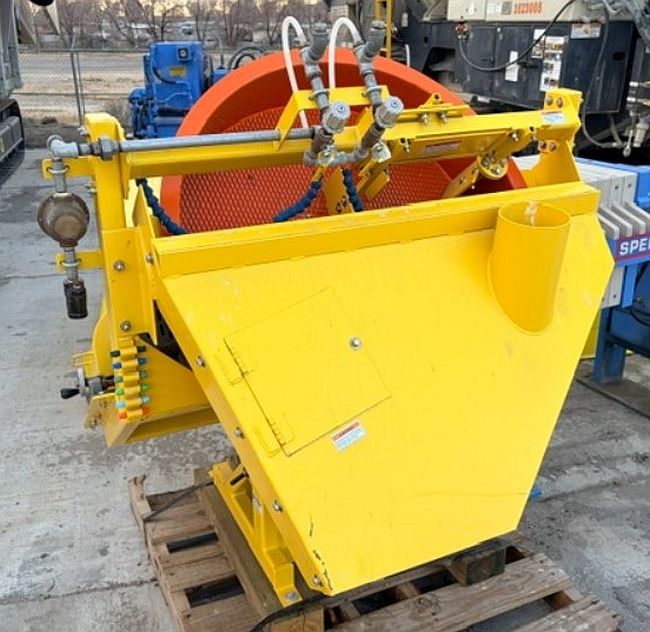

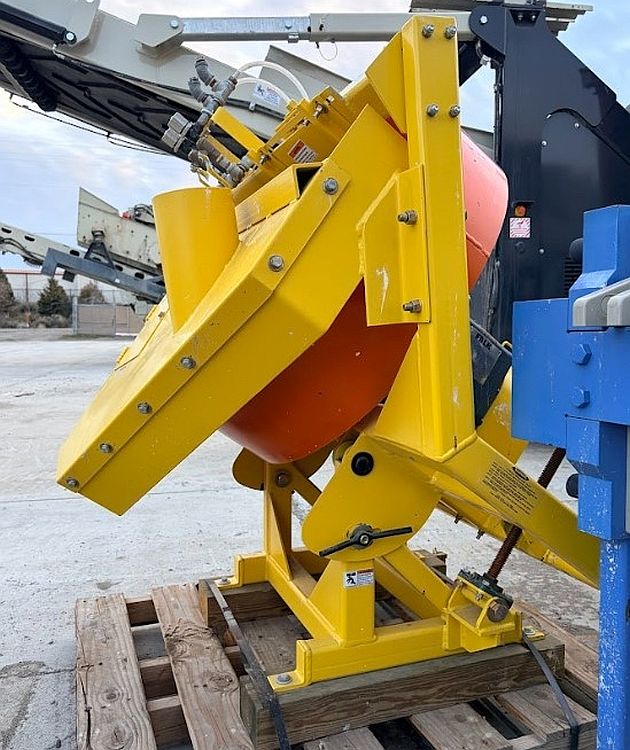

Mars Mineral P-30 Disc Pelletizer
- Make: Mars Mineral
- Model: P-30
- Type: Disc/Pan Pelletizer - Agglomerator
- Style: Lab Scale Pelletizing Unit
- Condition: Unused New Surplus
- Application: Designed for Pelletizing and Agglomeration Testing in Mining, Chemical, and Materials Processing Applications
- Diameter: 3ft Dia.
- Depth: 8in Depth
- Capacity: 19ft³/hr. (0.54m³/hr.)
- Horsepower: 1HP
- Includes Drive System, Adjustable Pan Angle, and Spray System

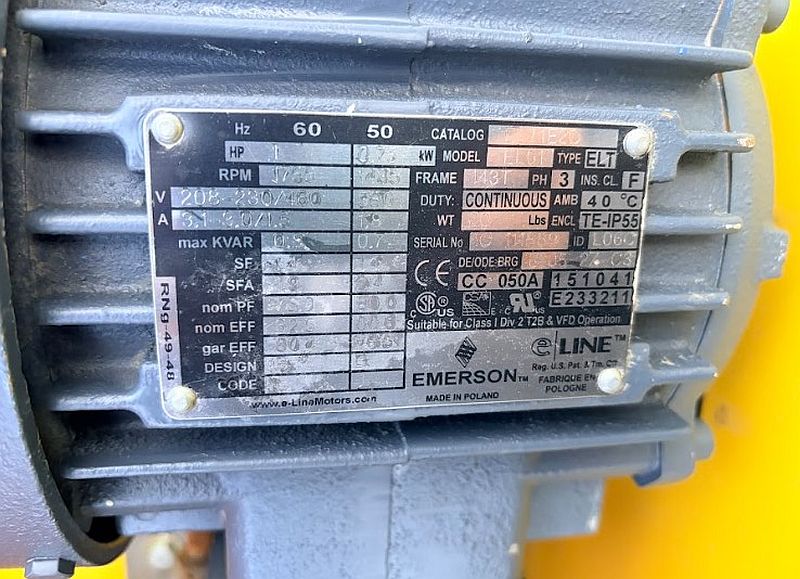

- Drive: Emerson Electric Motor
- Power Output: 1HP (0.75kW @ 50Hz)
- Rotating Speed: 1750 RPM (1435 RPM)
- Voltage: 208-230/460 Volt (380V)
- Current: 3.1-3.0/1.5 Amps (1.8 Amps @50Hz)
- Frequency: 50/60Hz
- Phase: 3-Phase

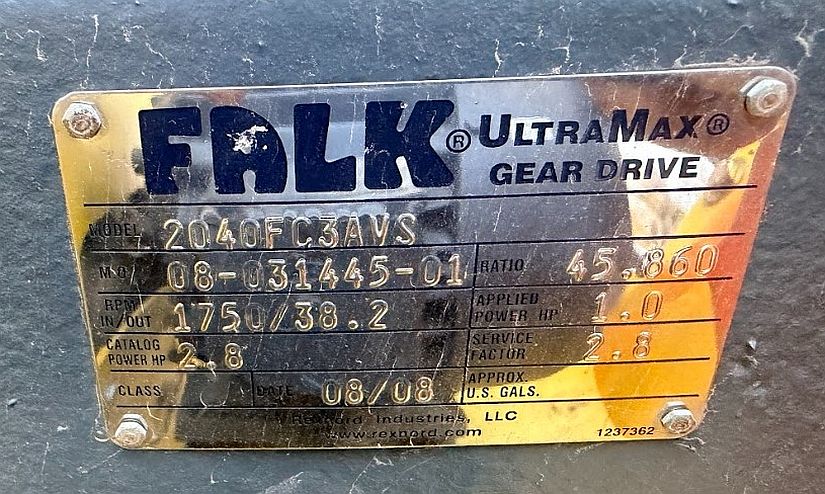

- Speed Reducer: Falk UltraMax 2040FC3AVS Gear Reducer
- Ratio: 45.860:1
- RPM: 1750 RPM In / 38.2 RPM Out
- Dimensions:
- Length: 4.5ft
- Width: 4ft
- Height: 4ft
- Weight: 1,100 Lbs.
- Location: Western USA
