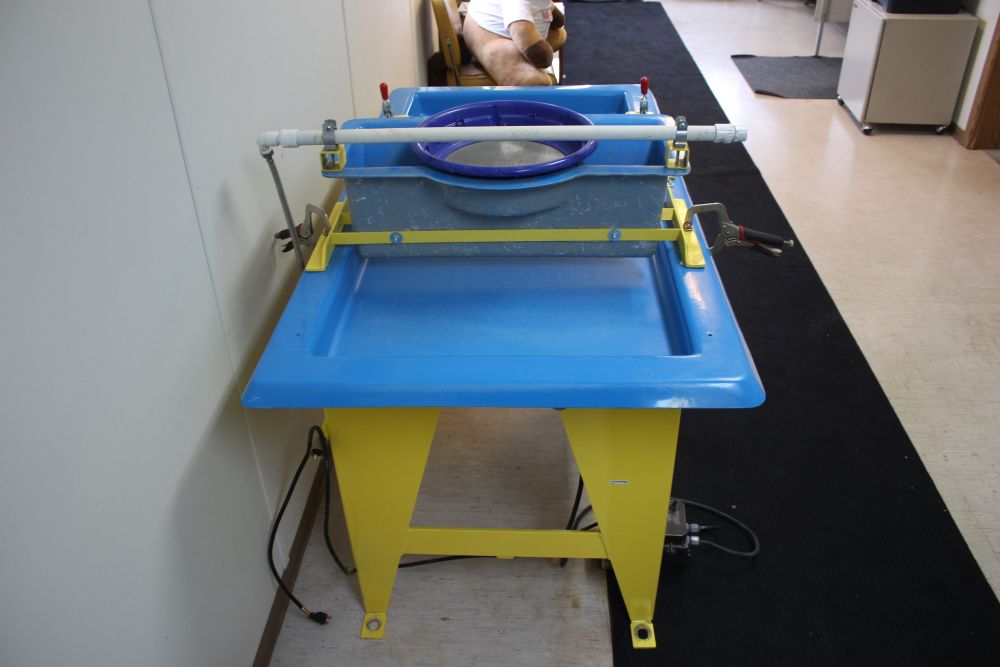

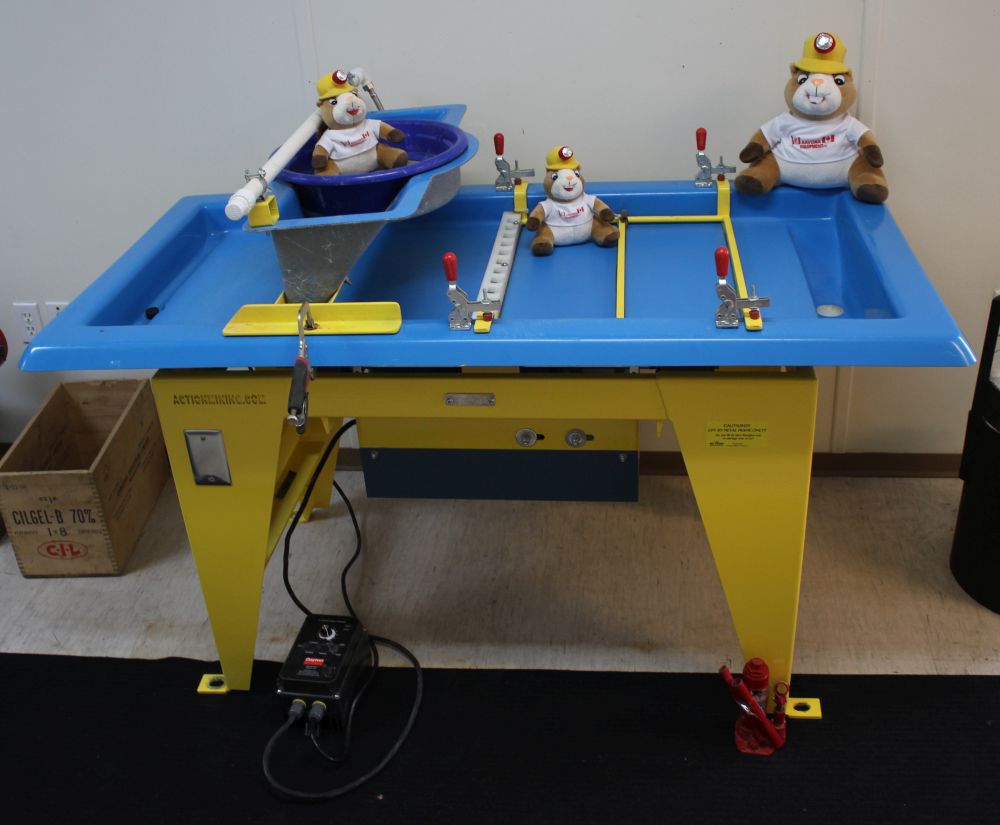

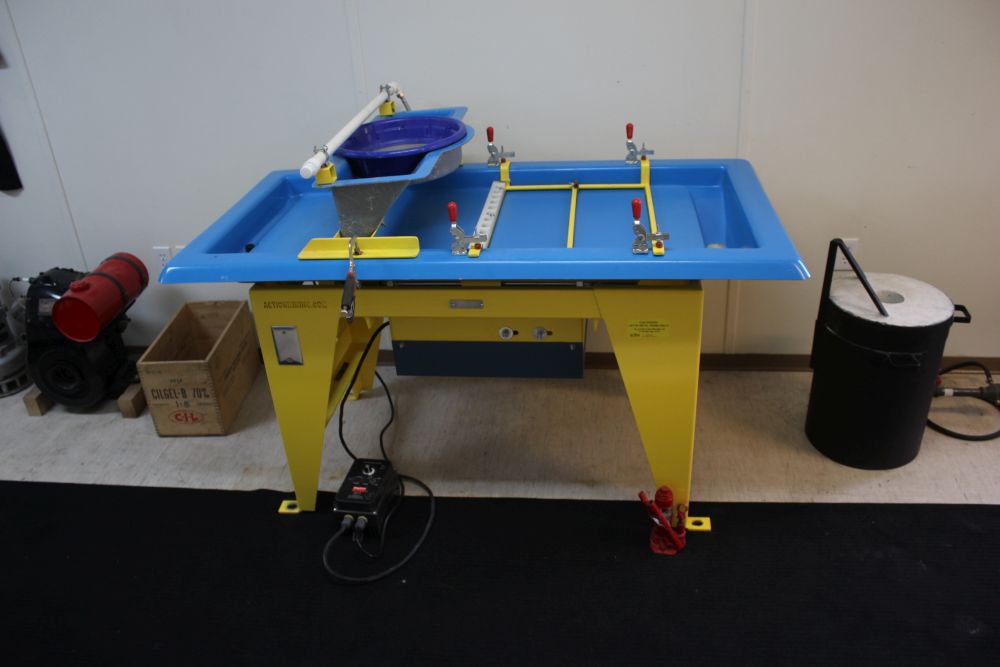

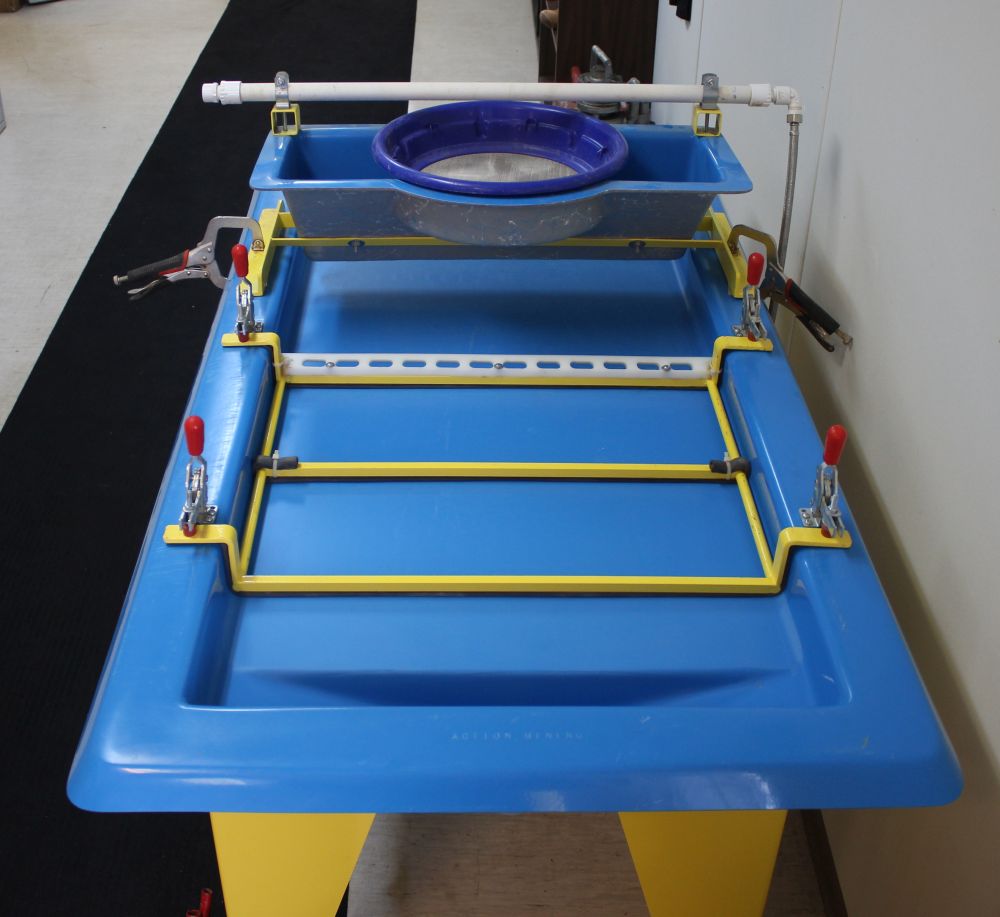

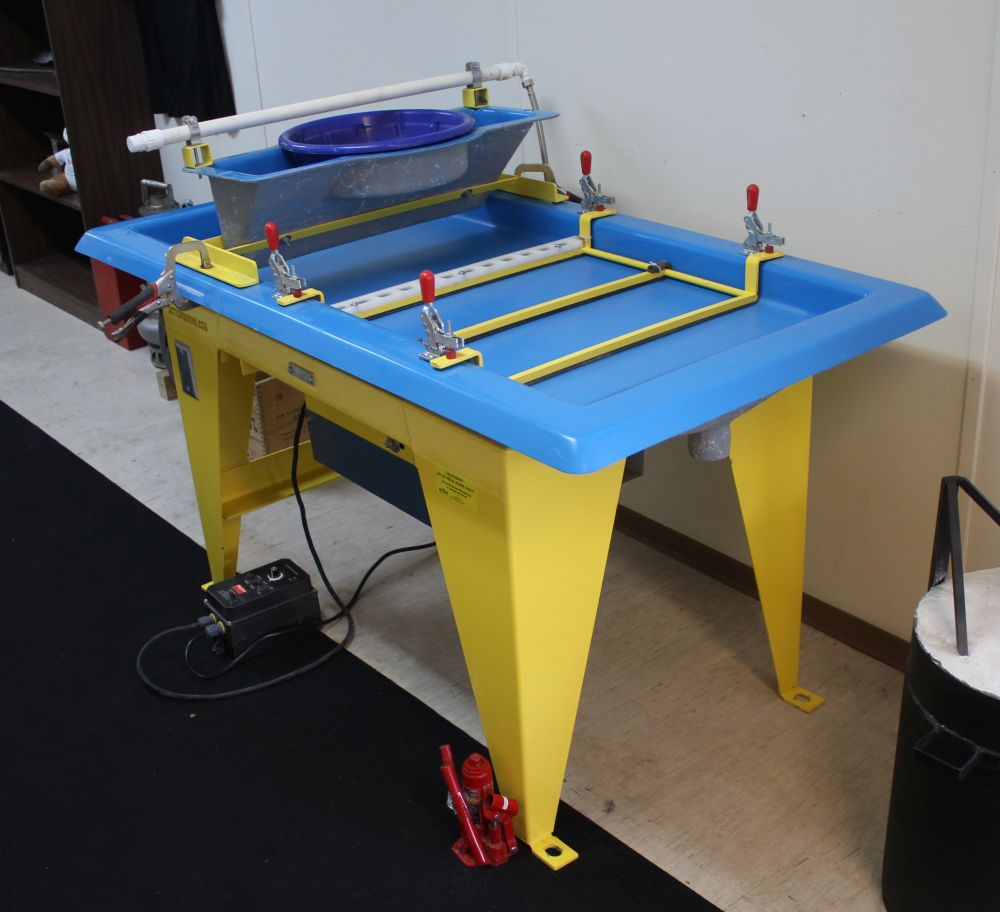

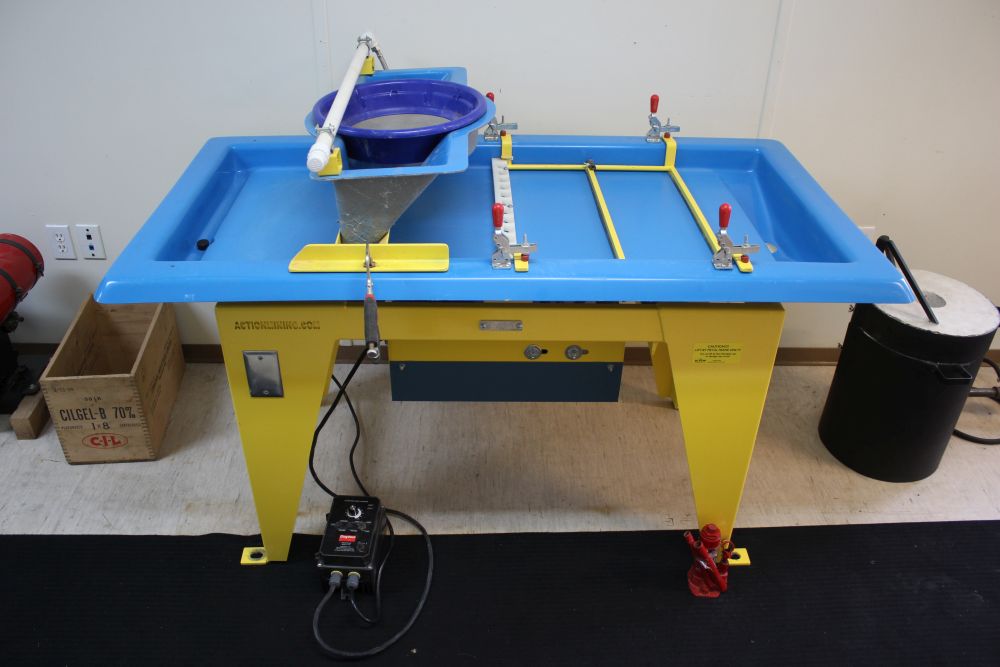

Action Mining M7 Wave Concentrating Table

Equipment details

• Model: M7 Micron Mill Wave Table.
• 3 Available
• Lightly used and complete.
• Capacity: 1,500 - 2,500 lbs. of head ore material per hour.
  • Recovery of gold particles: Between 10 mesh and microscopic.
    • 80-99% of gold recovery from classified black sands.
    • 92-99% of gold reccovery.
• Water requirements: 5-12 GPM.
  • 2 adjustable water spray bars.
• Table top and hopper constructed of fiberglass.
  • Vacuum-sealed and gel-coated in blue finish.
  • Adjustable table top.
• 1/2 HP electric motor drive.
  • 110V AC, 60 Hz.
• Steel frame with yellow powder coated epoxy paint.

 Shipping information:

• • Dimensions (L x W x H):
    • 61 in. x 32 in. x 39 in.
    • 1.55 m x 0.81 m x 0.99 m.
  • Weight:
    • 409 lbs. / 186 kg.
•  Please contact us for more information.
