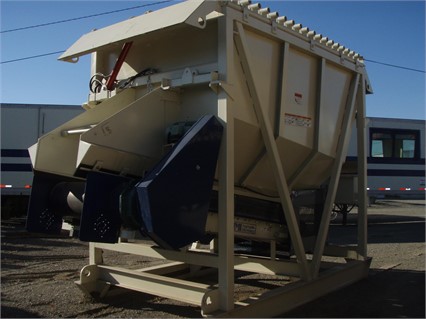

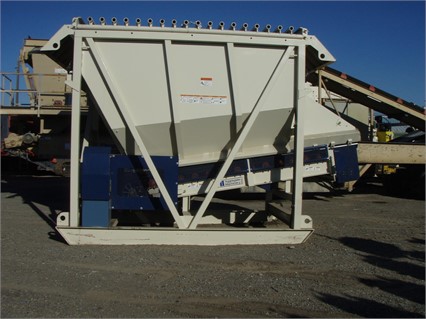

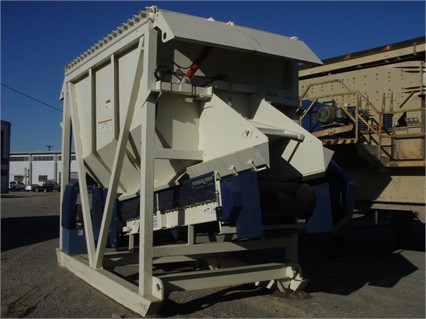

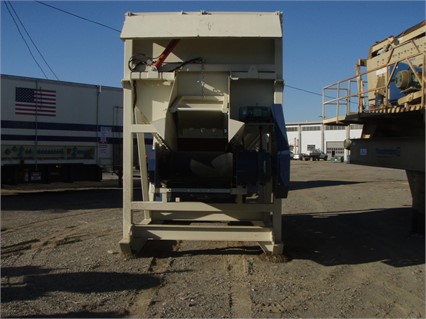

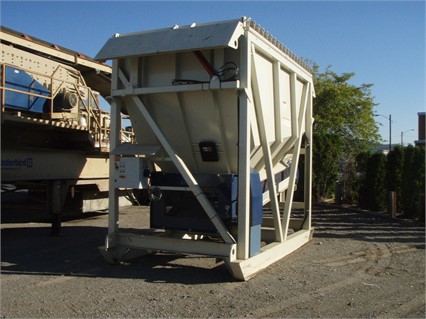

AMI 3613BFH Belt Feeder
Inventory ID: 158346
- Category: Belt Feeders
- Availability: Sold
- 5 verified equipment photos
Equipment details
- Year: 2015.
- 36 in. wide conveyor.
- Adjustable gate.
- Variable frequency drive.
- ~19 yd³ (struck) hopper with reinforced ¼ in. MS plate hopper walls.
- Feed height is ~13 ft.
- Feed width is ~12 ft.
- Lower hopper skirts to belting and adjustable skirt rubber.
- I-beam skid and supports.
- 36 in. wide x 15 ft. channel frame conveyor with ~4 ft. discharge height.
- 10 hp TEFC electric drive motor, gearbox and V-belts.
- 14 in. lagged head pulley.
- 14 in. wing type tail pulley.
- Head and tail pulley guards.
- Flat belt C5 idlers in load area.
- 3-ply belting ¼ in. x 1/16 in. covers and mechanical fasteners.
- Head end belt scraper.
- Manual screw type take-ups at tail end.
- Adjustable throat gate to regulate material bed depth on belt.
- Wing extensions for hopper.
- Variable frequency AC drive.
- Hydraulic tipping grid.
