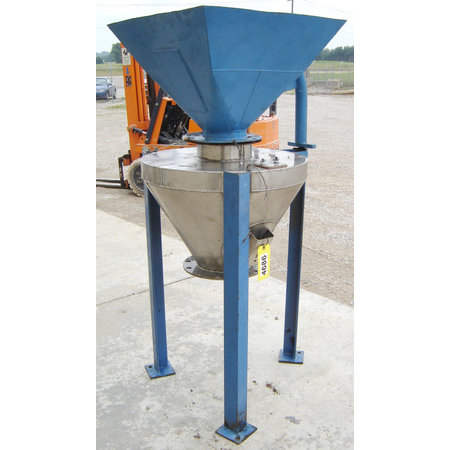

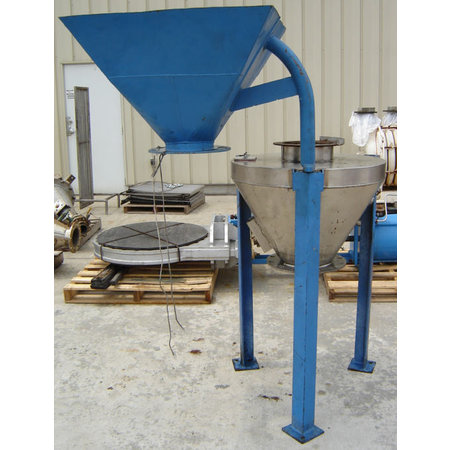

Rage Engineering 3 cu. ft. SS Charge Hopper
Inventory ID: 192974
- Category: Hoppers
- Availability: Sold
- 3 verified equipment photos
Equipment details

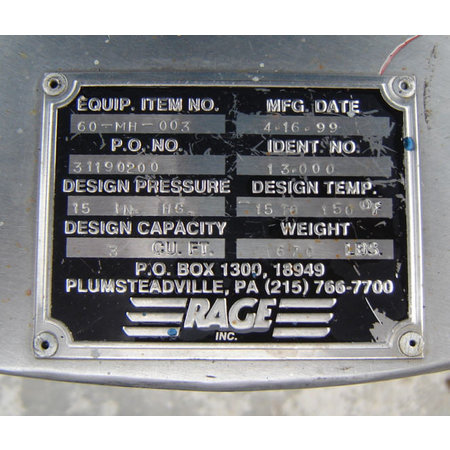

- Equip. Item No.: 60-MH-003.
- Designed for 15 Inches Mercury @ -15 TO 150 DEGREES F.
- Weight: 670 lbs.
- Stanless Steel Main Hopper.
- 30 In. Diameter.
- Small Carbon Steel Open Top Charge Hopper With Davit Arm Mounted Above Stainless Steel Charge Hopper.
- Inlet Nozzle to Stainless Steel Hopper is 10 In. Diameter.
- Outlet Nozzle is 10 In. Flanged.
- Hopper also has side mounted Vibrator Channel.
- Vertical Clearance under Hopper Outlet is 27 In.
- Unit is mounted on three legs.
- Overall height to top of Inlet of Stainless Steel Hopper is 51 In.
- Overall height to top of Carbon Steel Charge Hopper is 71 In.
- Inlet Flange to the Stainless Steel Hopper is Carbon Steel.
