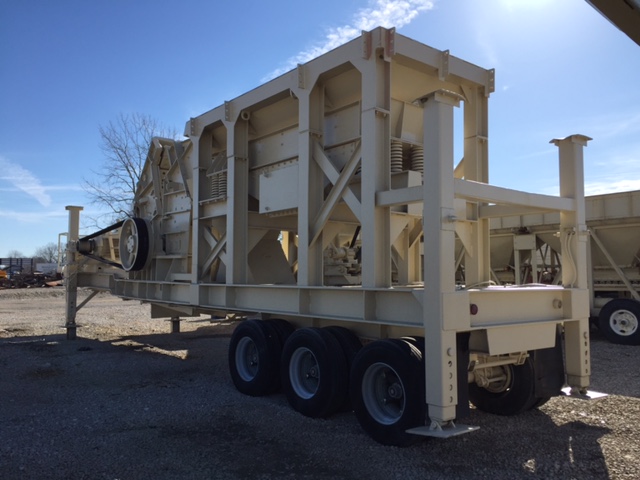

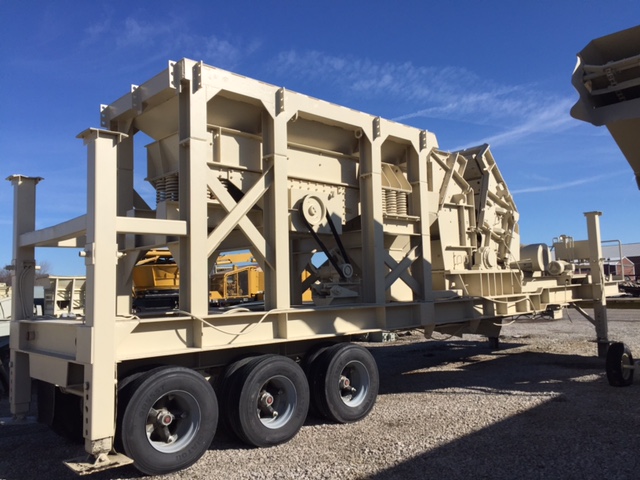

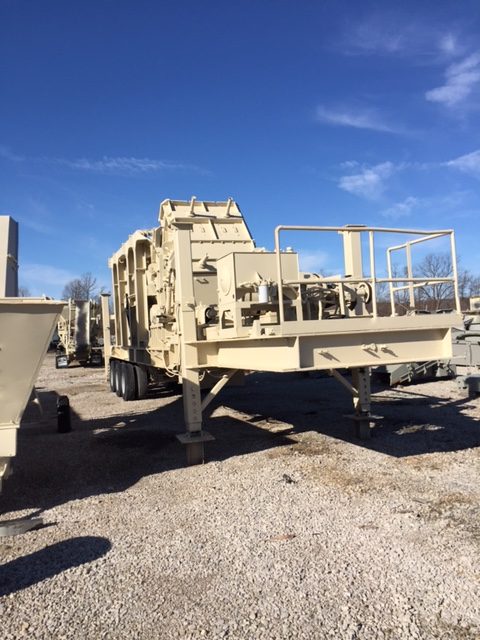

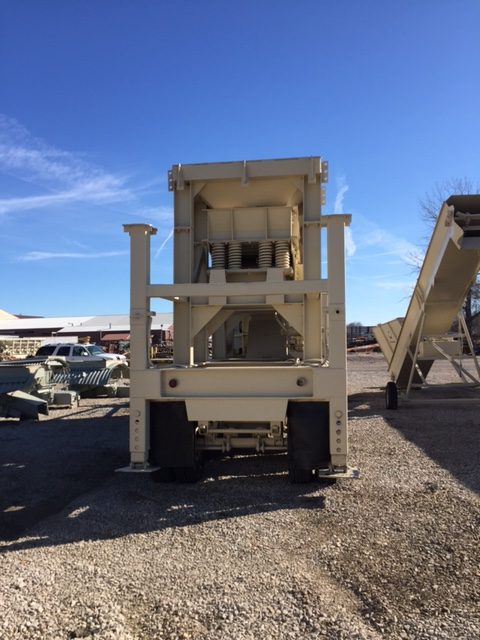

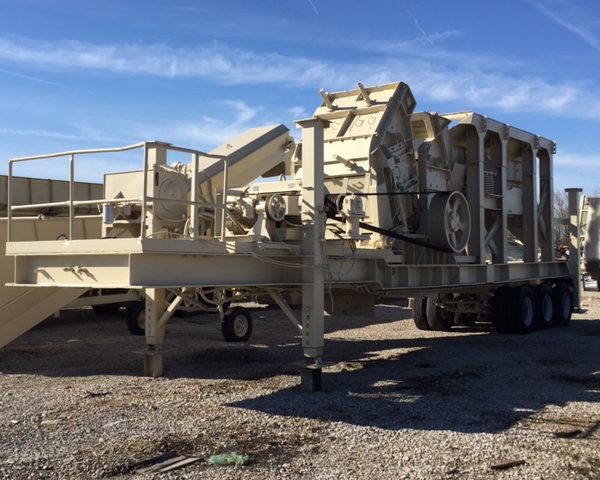

Portable Hazemag APSE1313 Impact Crushing Plant
Inventory ID: 195299
- Category: Impact Crushers
- Availability: Sold
- 5 verified equipment photos
Equipment details
- S/N: HU1258.
- Crusher inlet dimensions: 54 in x 34 in (W x H).
- Crusher has a 4-bar rotor with manganese-alloy bars designed to be flipped and turned for maximum wear life and (2) adjustable curtains with replaceable wear segments.
- Crusher shell is opened and closed hydraulically and lined with replaceable wear segments.
- Feed rock box with chains to minimize fly rock.
- Crusher is powered by a 250 HP electric motor.
- SECO 48×16 vibrating grizzly feeder with grizzly section plated over and electric motor.
- Feeder is mounted in an 8 ft wide steel feed hopper that is designed as a skid assembly for easy removal of the feeder as a unit.
- All mounted on a heavy-duty tri-axle chassis with hydraulic leveling legs and 5th wheel pin.
