45 ft. Double Bay Kiln
Inventory ID: 197641
- Category: Sawmill Equipment
- Availability: Sold
- 13 verified equipment photos
Equipment details

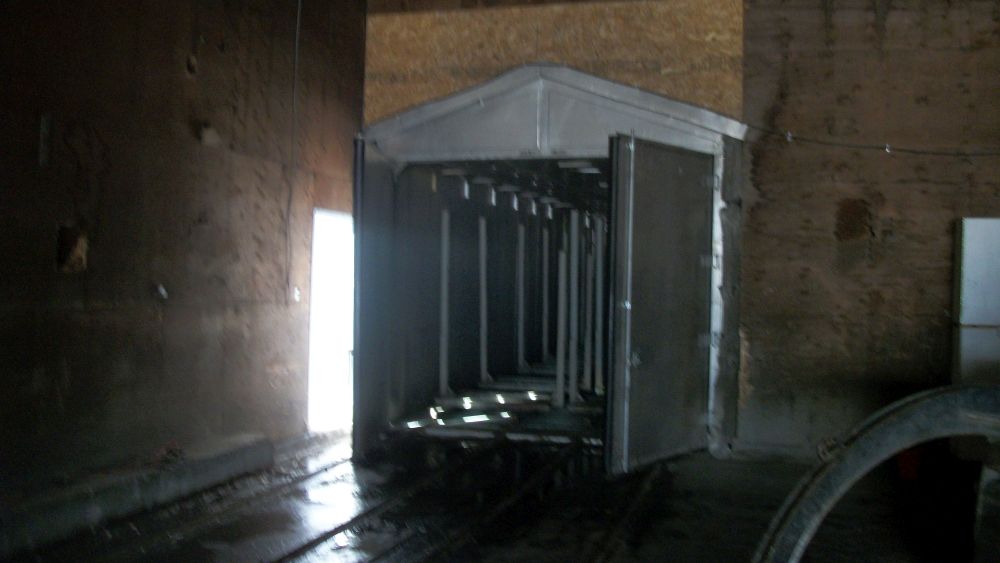

- Kiln Building:
- Number of Kilns: 1 Double Bay Double High Unit.

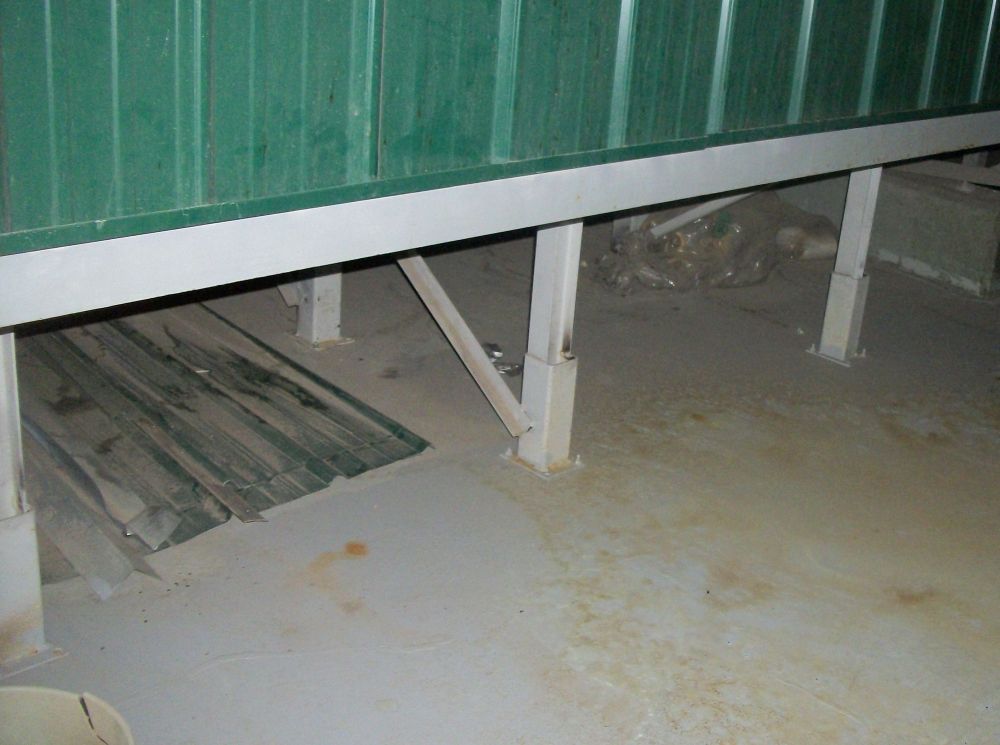

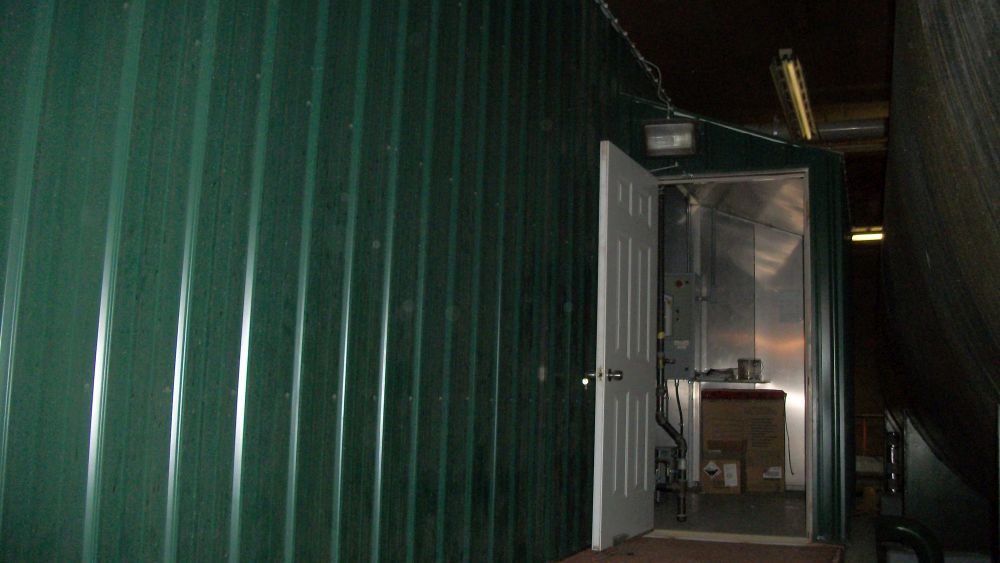

- Building Type: Aluminium/Painted Steel siding roof and one side.

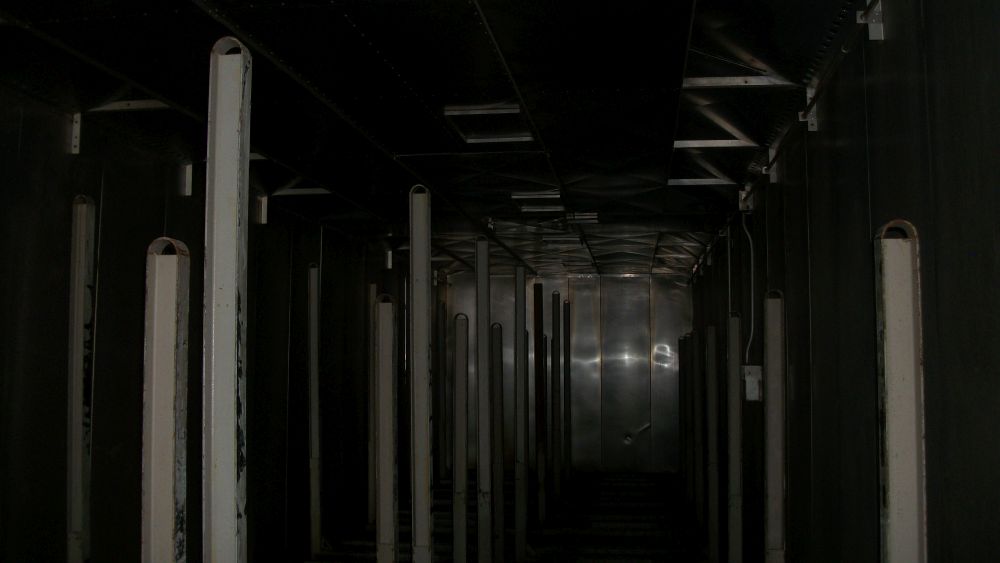

- All Stainless: Interior lining and Baffle system.
- Secondary Liner: Mild Steel welded solid.
- Insulation type: 4" High for 250 F.
- Wood Bundle Inside Length: 45' long inside.
- Pre-wired and Pre-piped.

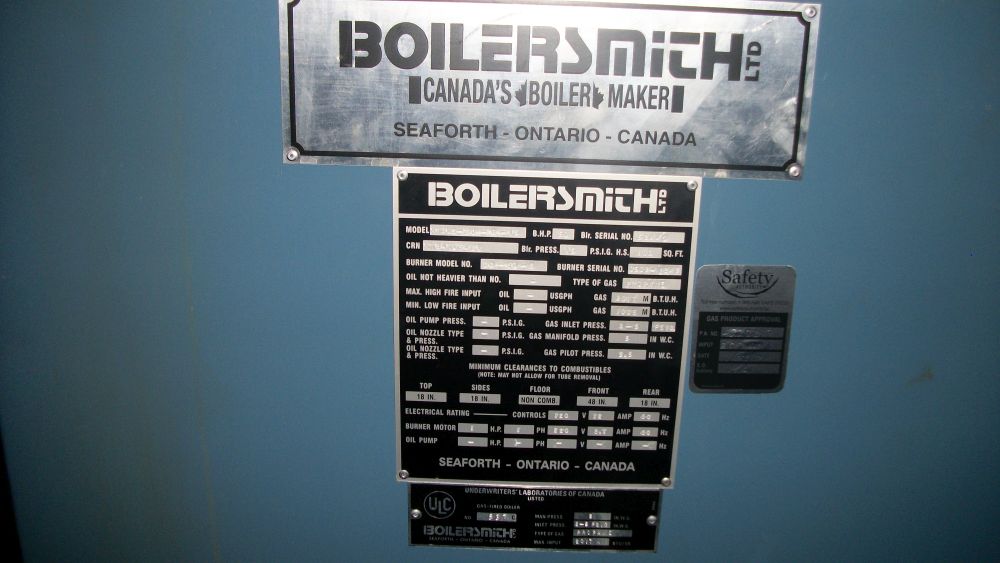

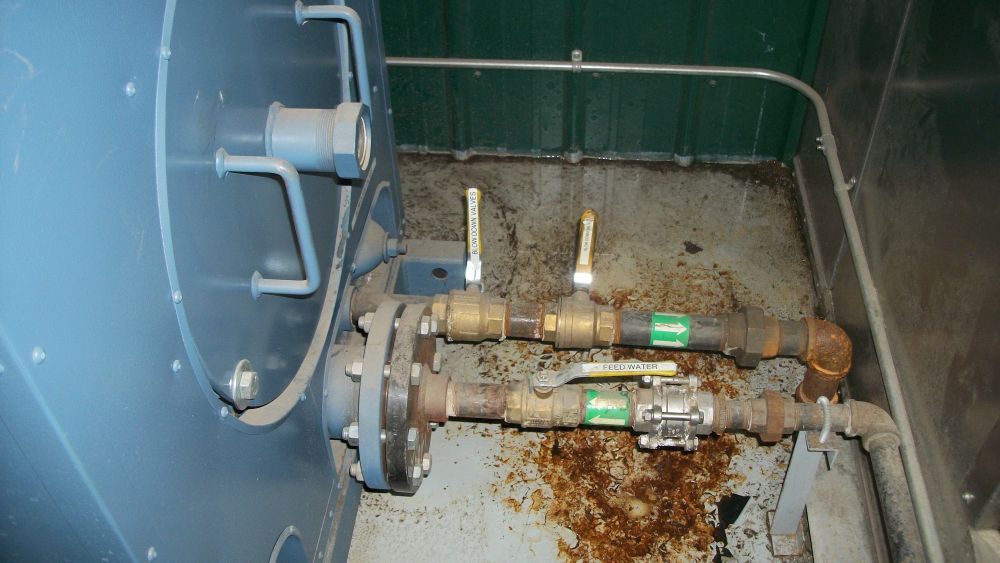

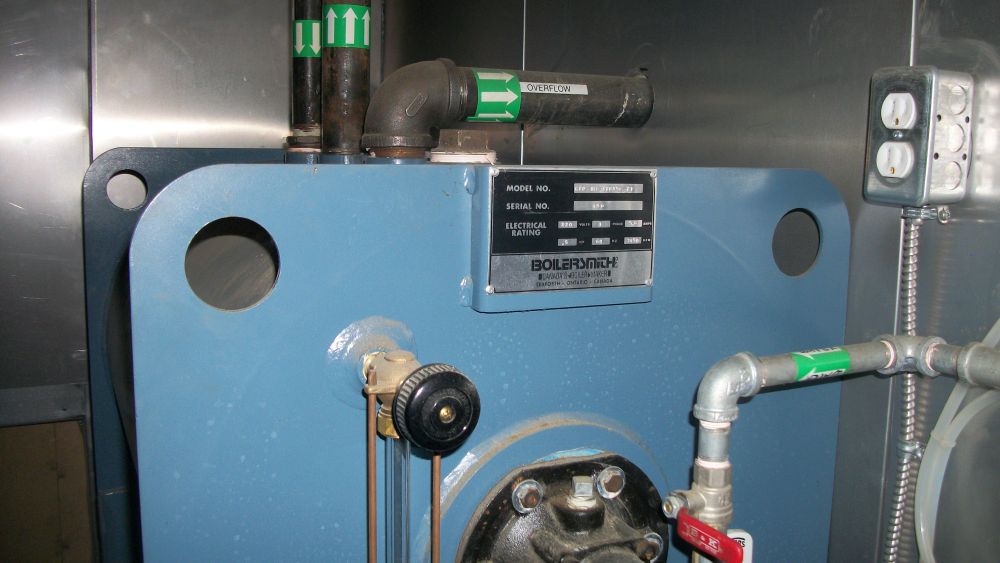

- Heating System:

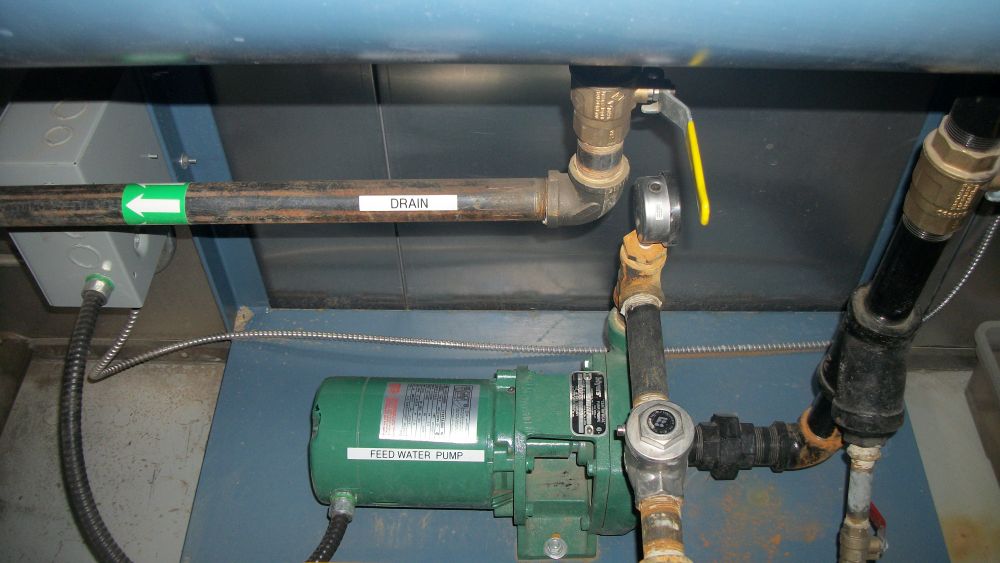

- Unit Type: Low PSI steam.
- Configuration: Stand alone.
- Fuel: Propane.
- Btu per hour: 1,500,000 btu/hr optimum.

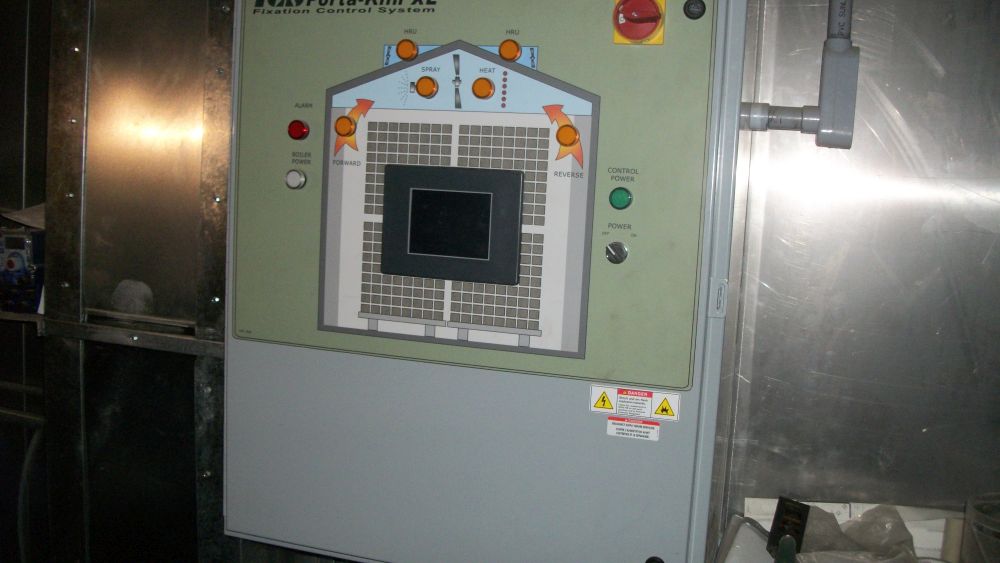

- Control: Automatic valves.
- Fin type: Aluminium/Stainless steel.
- Fan System:
- Number of fans: 6.
- Fan diameter: 24".
- Fan Type: Adjustable Pitch GRP (reversing).
- Fan Horsepower and class: 2 HP, TEFC, Klin-Duty, 600/3.
- Drive Type: Direct.
- Ventri: All Aluminium stainless steel hardware.
- Loading:

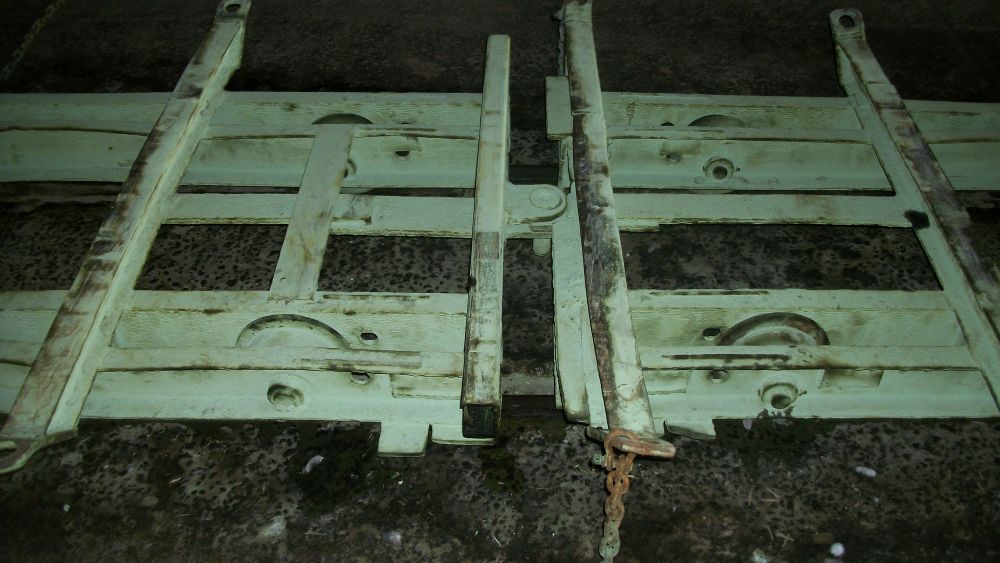

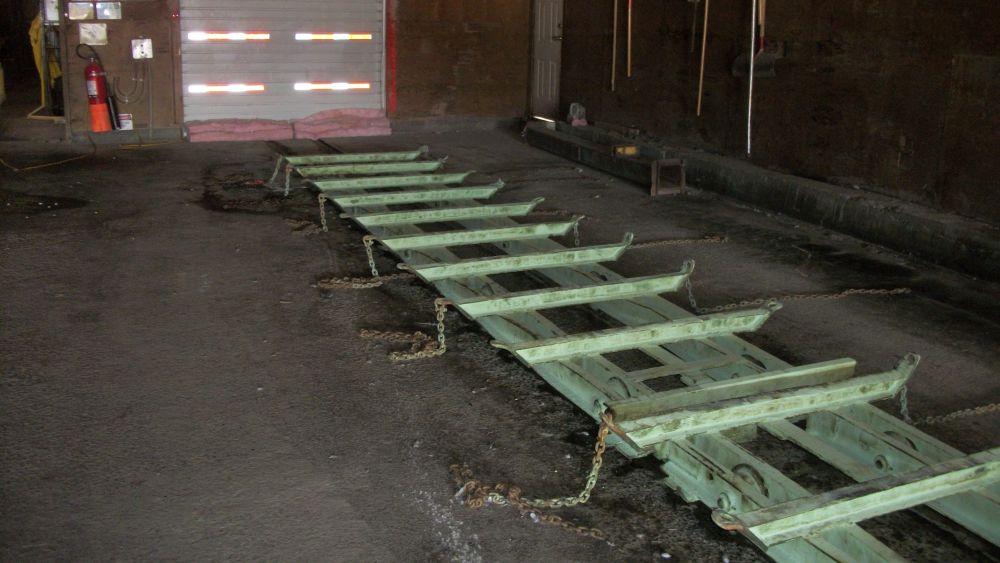

- Track Style: Double stack ICS post carts 36" track.
- Cart Spec: long arms for fence posts. Each cart to be 10" long and require 8 carts.

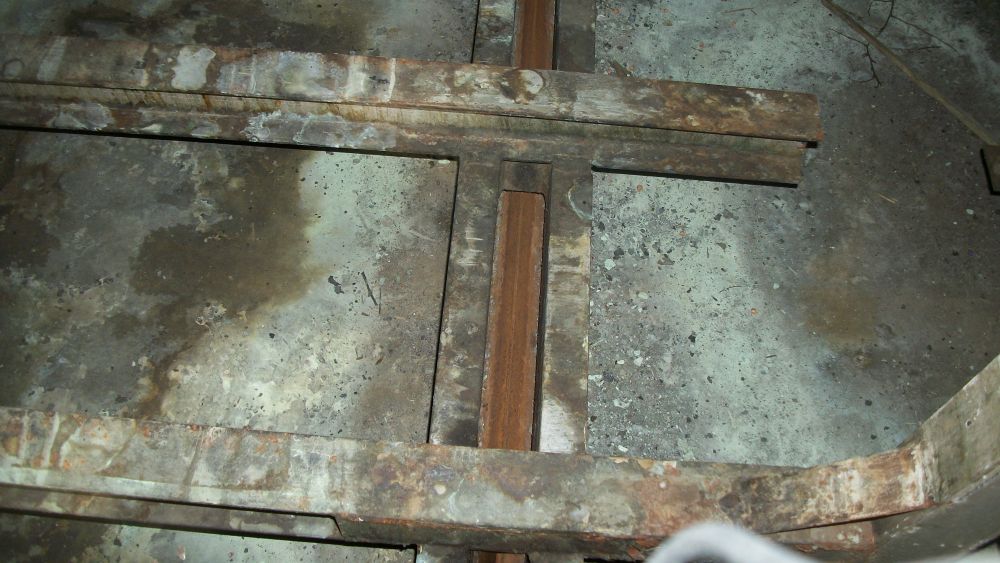

- Track spec: ICS standard V grove.
Wood Bundle Length: To fit 4' round bundles. - Wood Bundle Width: Width up to 4' wide.
- Wood Bundle Height: Height up to 8'6" height.
