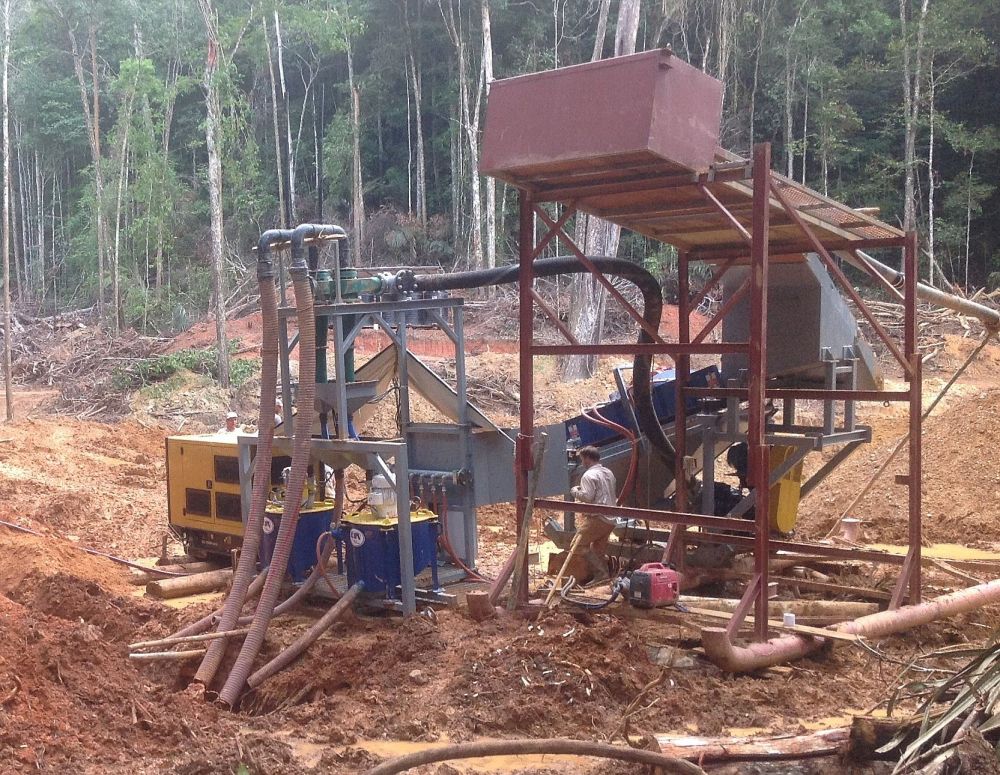

iCON IGR 500-2 Gold Recovery Plant
Inventory ID: 214907
- Category: Gold Wash Plants
- Availability: Sold
- 3 verified equipment photos

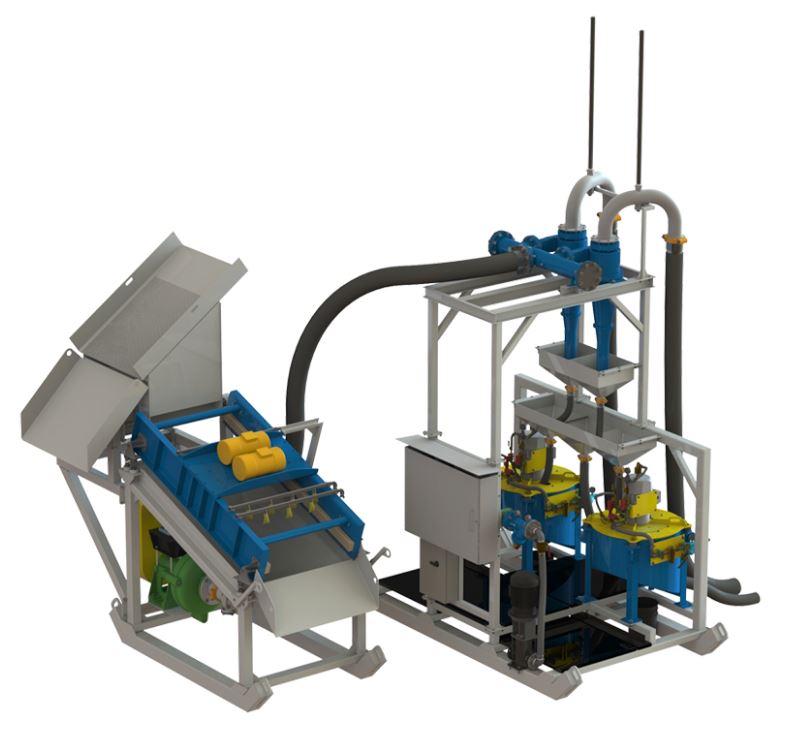

Equipment details

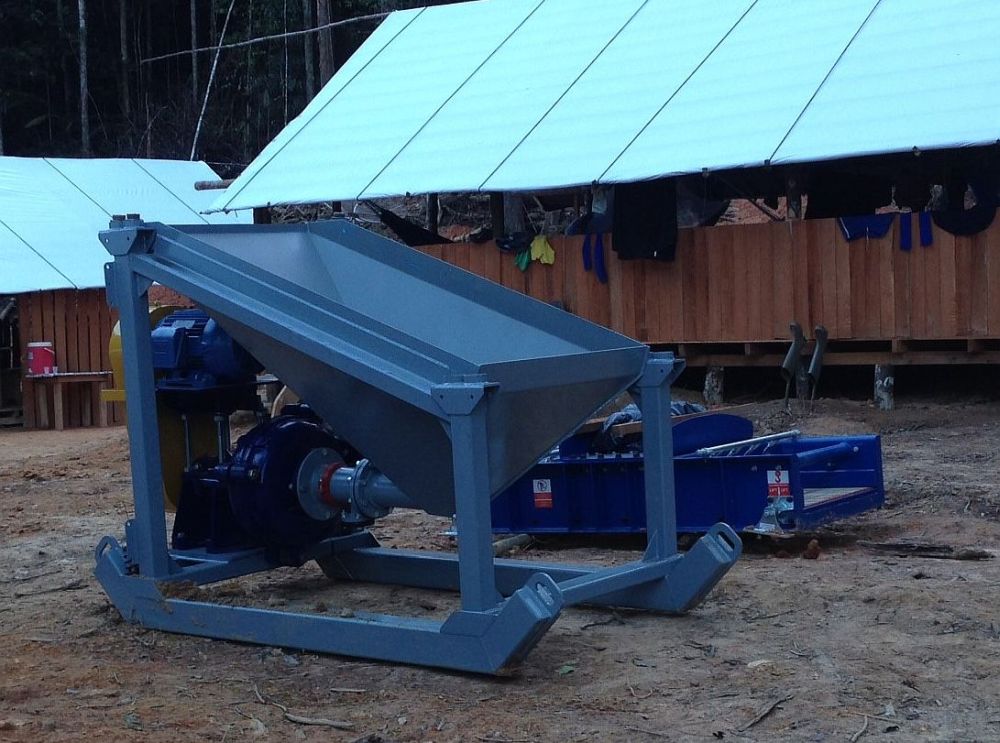

- Static grizzly with 12mm openings.
- Sepro 1.0m x 2.0m inclined vibrating screen.
- 2mm polyurethane screen media.
- Dual 2 hp electric vibrating drive motors.
- Spray bar assembly with nozzles.
- 30 hp heavy duty slurry pump (link to slurry pump category).
- Two iCON i350 gold concentrators complete with VFD drive and push button rinse operation.
- 5 hp electric motor.
- iCON components mounted in a custom steel frame assembly.
- Two 5 inch dewatering cyclones.
- Electrical controls for all plant equipment.
- Two skid frame assemblies for mounting vibrating screen, cyclone, concentrator, slurry pump water manifold, and electrical control panel.
- Slurry capacity: Up to 800 GPM.
- Efficient solids capacity: 20 TPH of -2mm.
- 30 TPH maximum.
- Located: South America
