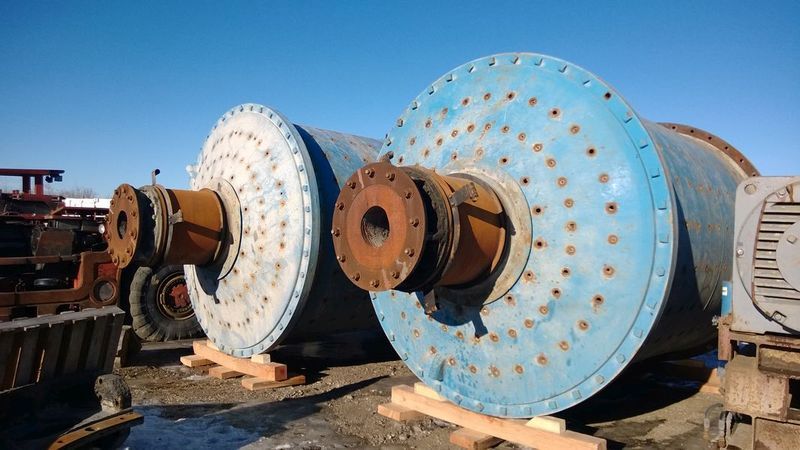

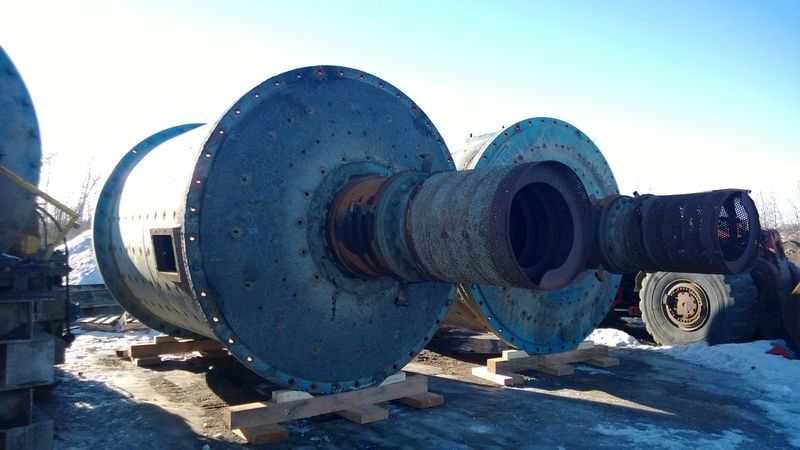

Allis Chalmers 9 ft. x 12 ft. Rod Mill
Inventory ID: 220162
- Category: Rod Mills
- Availability: Sold
- 8 verified equipment photos
Equipment details
- Welded steel shells - 2 inches thick, with (2) 24 inch x 12 inch manholes.
- Cast steel feed and discharge heads.

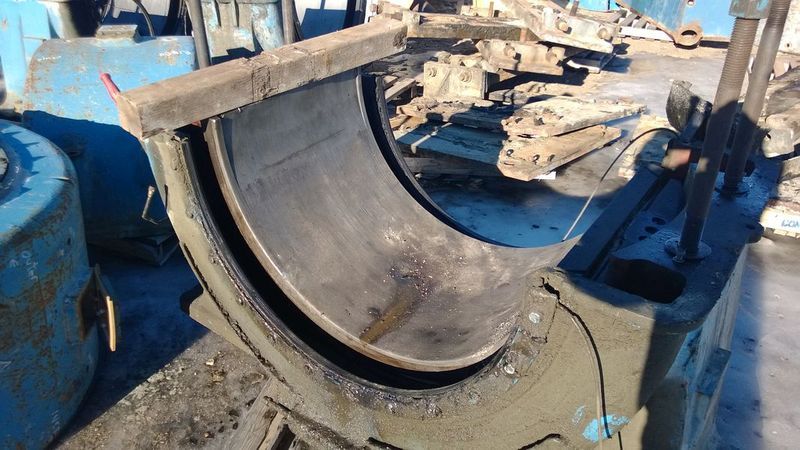

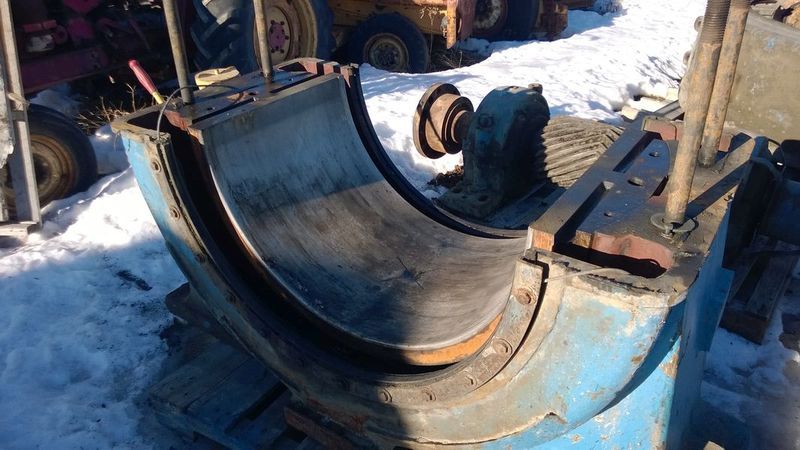

- Main bearings, 42" dia. x 18" face, oillubricated
- Babbited 120 deg inserts.

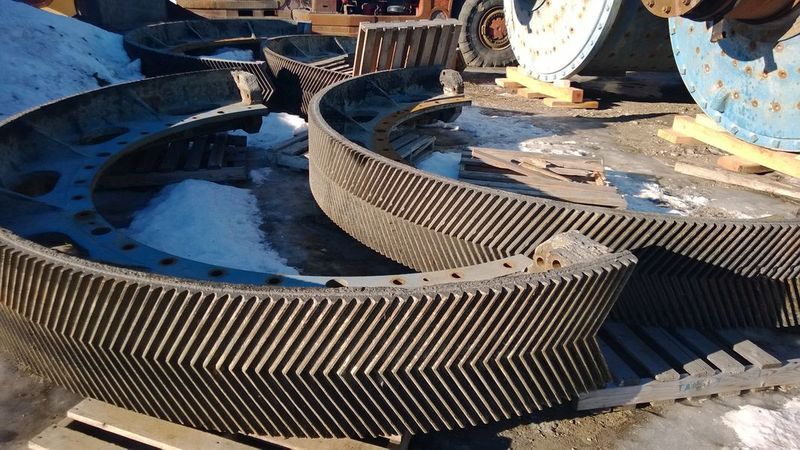

- Ring gear, 2 piece, double helical.
- 302 teeth x 20 in. face width.

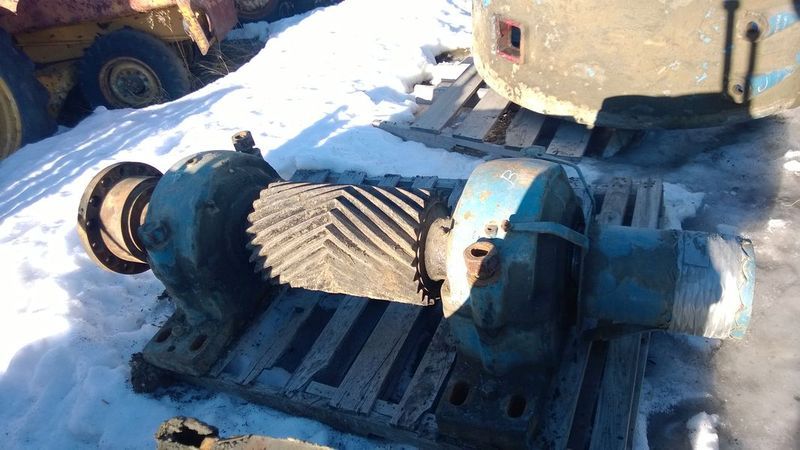

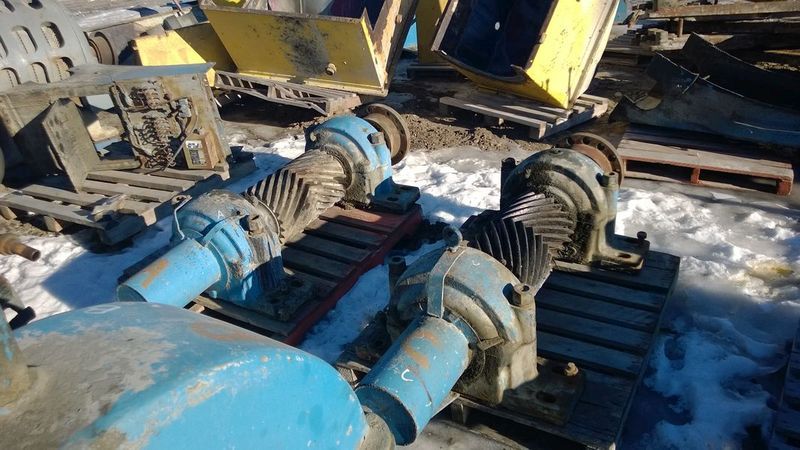

- Pinion shaft assemblies, 22 teeth, 20": Face Width
- SKF pillow block bearings.

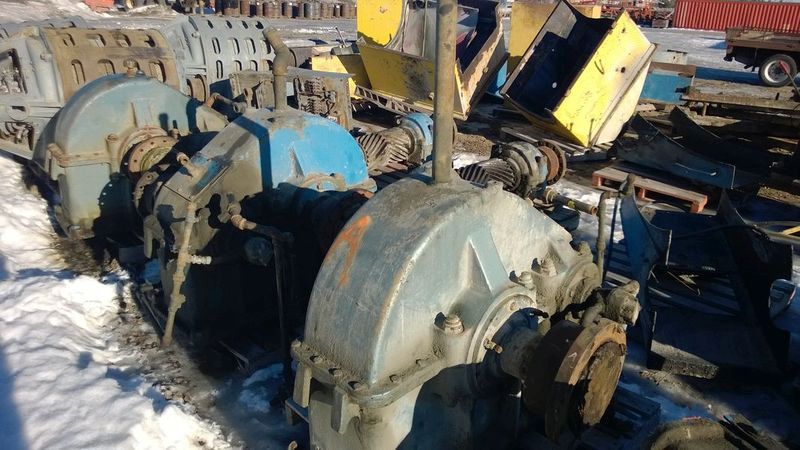

- Farrek SR-1810 Gear Reducer 3.19:1 Ratio
- 500 HP, 900 RPM English electric motor
- 2300/4160 Volt, 3PH 60 hz
- All sole plates and gear guards
- Discharge technical screen
- Located: Western Canada
