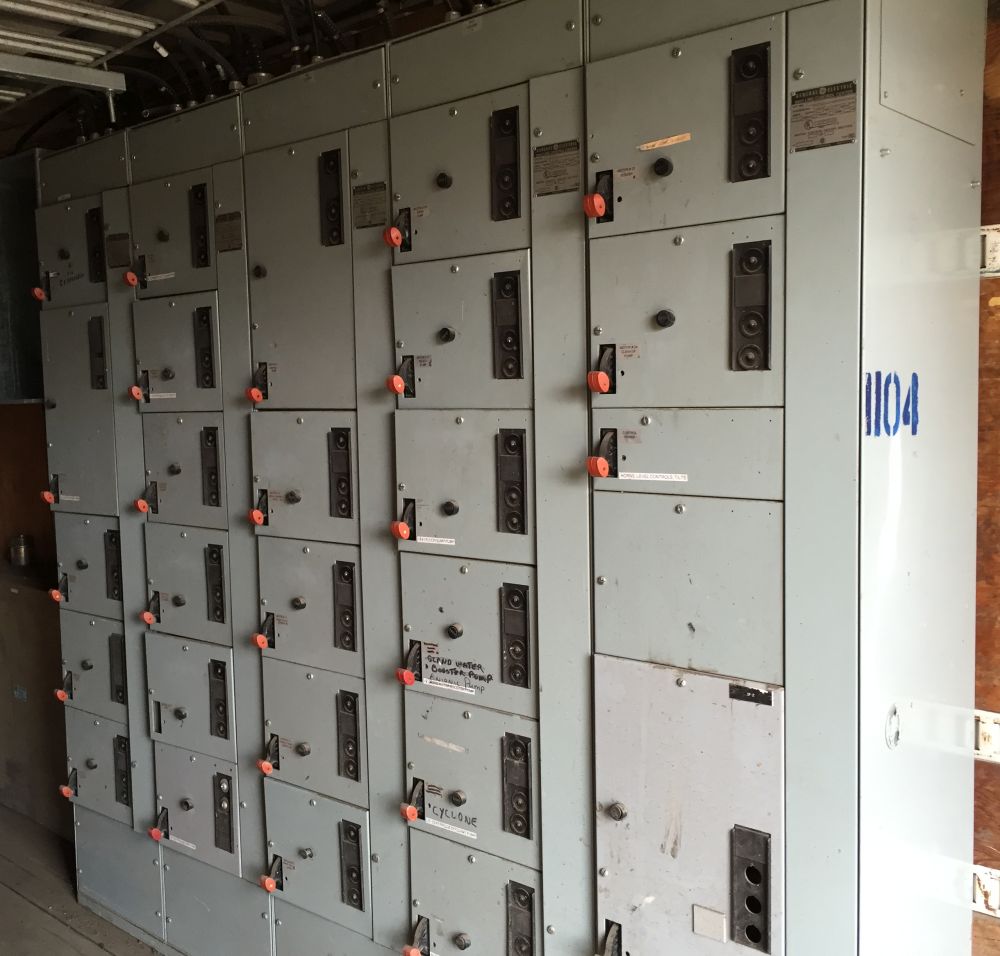

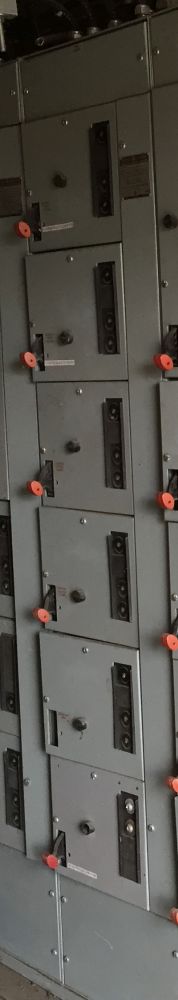

General Electric 600 Volt 8000 Line MCC Section

Equipment details

• 600A vertical.
• 600A horizontal.

• Bucket 1, 2, 3 & 4:
  • GE size 1 starter - 120 coil.
  • Overload: C8.67A.
  • 75 VA control transformer - 600/120V.
  • GE 15A breaker - adjustable trip.
• Bucket 5:
  • Moeller size 2 starter - 120 coil.
  • Adjustable overload = 16-24A.
  • 100VA control transformer - 600/120V.
  • GE 50A breaker - adjustable trip.
• Bucket 6:
  • Telemecanique size 2 starter - 120 coil.
  • Adjustable overload: 23-32A.
  • 100VA control transformer - 600/120V.
  • GE 50A new style breaker - adjustable trip.

• Dimensions (Single section) L x W x H:
  • 20 in. x 20 in. x 94 in.
  • 51 cm x 51 cm x 239 cm.
