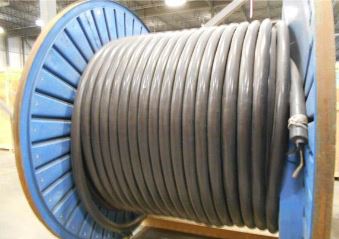

Câble de protection aérienne Prysmin 500 KCM
ID d'inventaire : 316820
- Catégorie : {category}
- La Disponibilité
- 5 photos vérifiées de l'équipement
Details de l'équipement

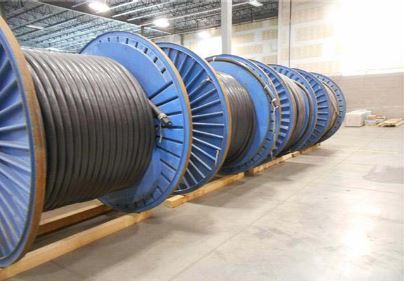

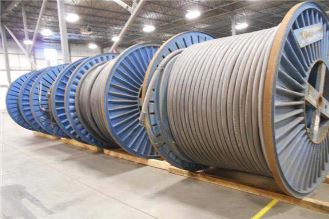

- 1 Reel of New Surplus 375 Meters

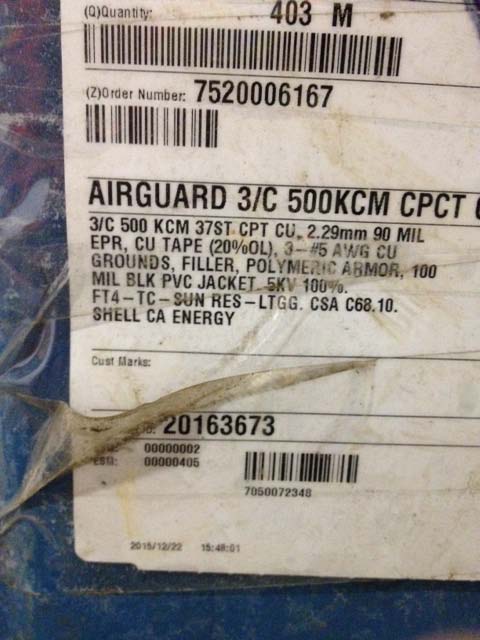

- 3/C 500 KCM AWG Compact CU 5 KV
- Black Jacket
- Crush Resistant
- Stretch Resistant
- CSA: CSA C68.10
- C22.2 No. 230
- C96.1
- MSHA
- IEEE
- 105'C Continuous
- 140'C Emergency
- 250'C Short Circuit
- Conductor: Class B Compact Concentric Strand Aluminum Alloy 1350 or Soft Drawn Annealed Copper per ASTM
- Conductor Shield: Extruded thermosetting semiconducting shield which is free stripping from the conductor and bonded to the insulation.
- Insulation: Natural high dielectric strength EPROTENAX EPR-based insulation, combined with other materials and agents that enhance the electrical & mechanical characteristics assuring extended cable life.
- Jacket: Sunlight & moisture resistant polyvinyl chloride (PVC) jacket.
- Location: Western Canada
