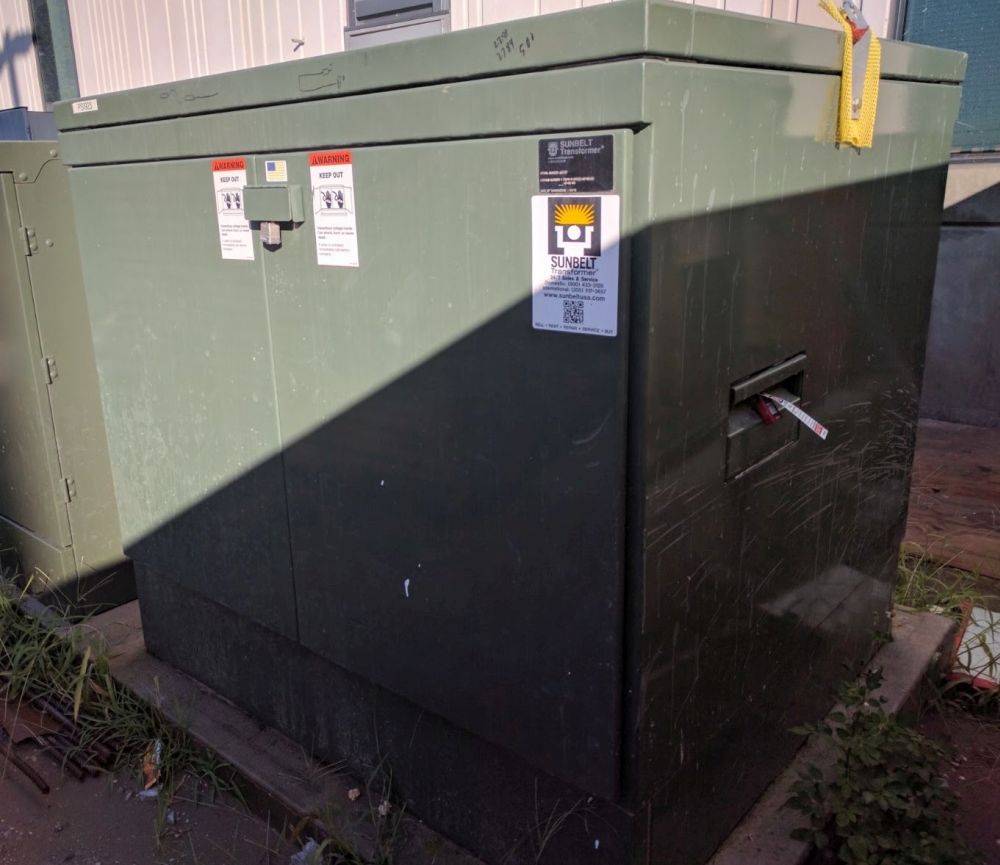

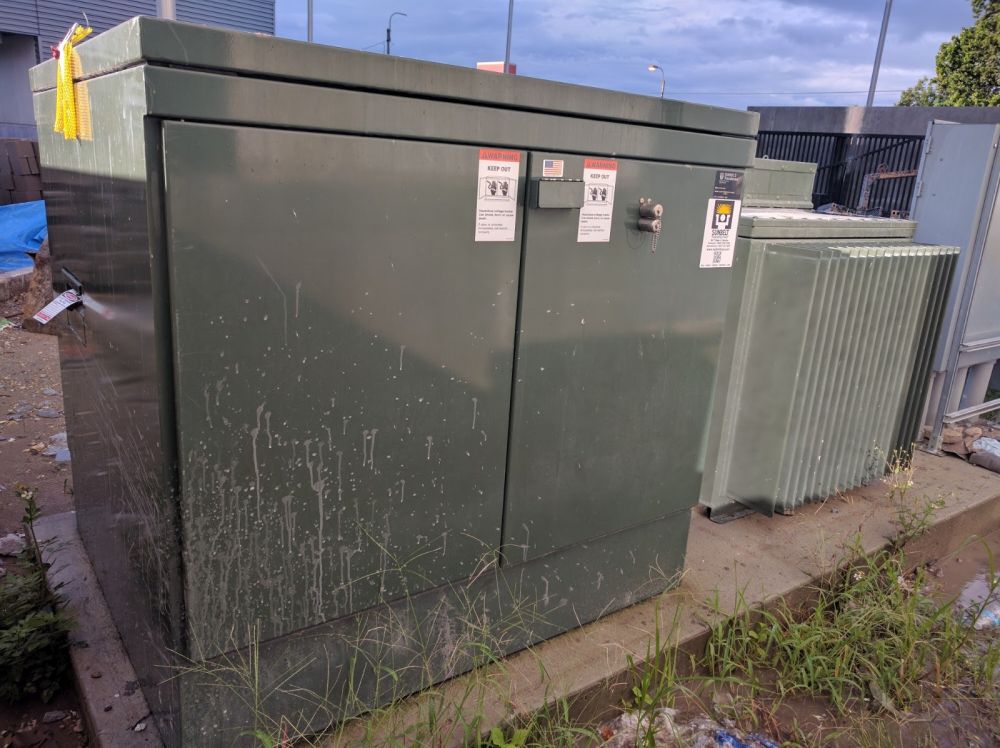

Transformateur Sunbelt 15,5 kV

Details de l'équipement

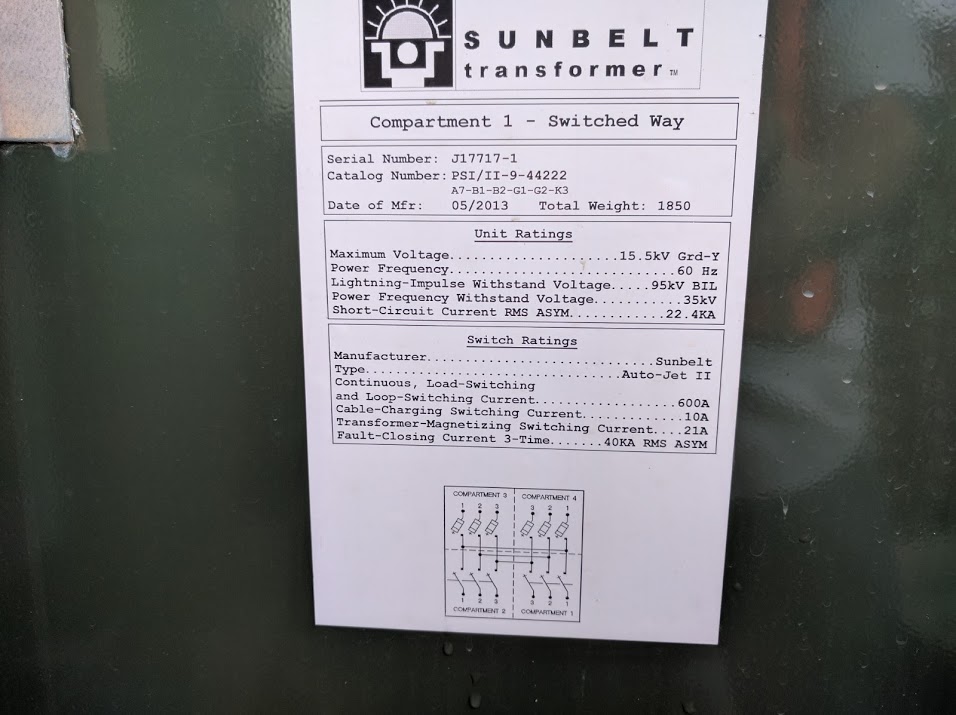

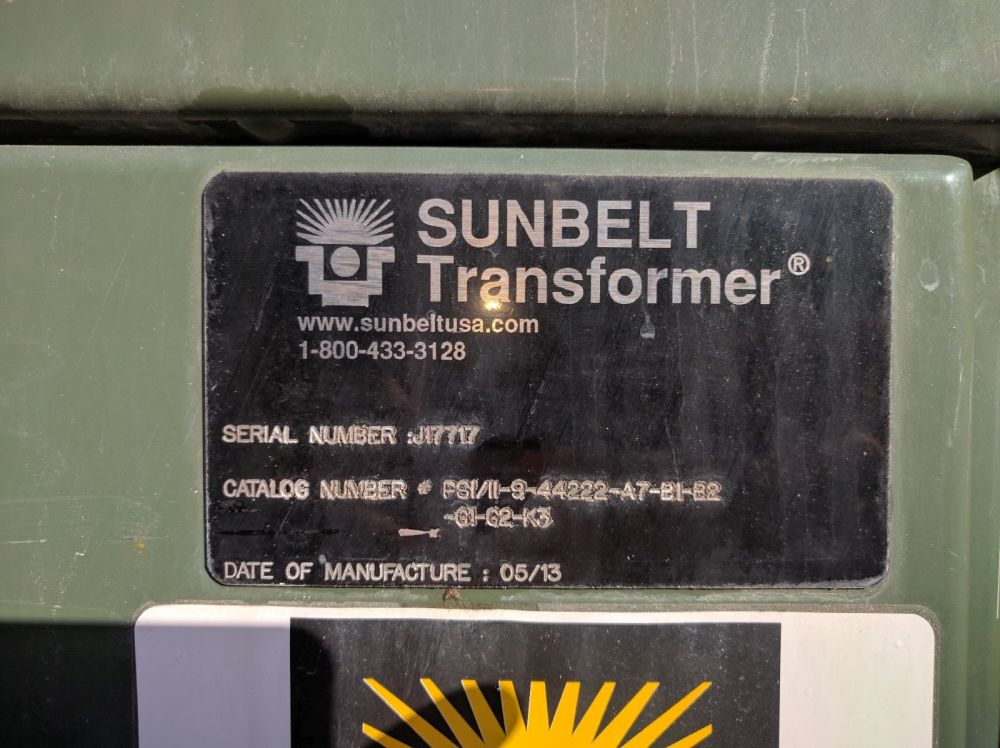

• Serial Number: J17717 - 1.
• Unit Ratings:
  • Maximum Voltage: 15.5 kV Grd-Y.
  • Power Frequency: 60 Hz.
  • Lightning Impulse Withstand Voltage: 95 kV BIL.
  • Power Frequency Withstand Voltage: 35 kV.
  • Short Circuit Current RMS ASYM: 22.4 KA.
• Switch Ratings:
  • Manufacturer: Suneblt.
  • Type:
    • Auto-Jet II
    • Continuous, Load-Switching.
    • Loop Switching Current: 600 A.
    • Cable Charging Switching Current: 10 A.
  • Transformer Magnetizing Swithcing Current: 21 A.
  • Fault Closing Current 3 Time: 40 KA RMS ASYM.
• Total Weight: 1850.
• Date of Manufacturing: May, 2013.
