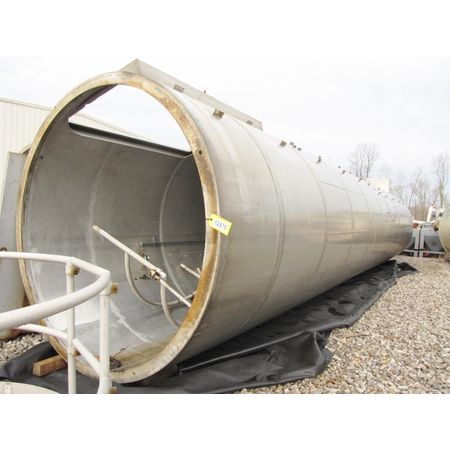

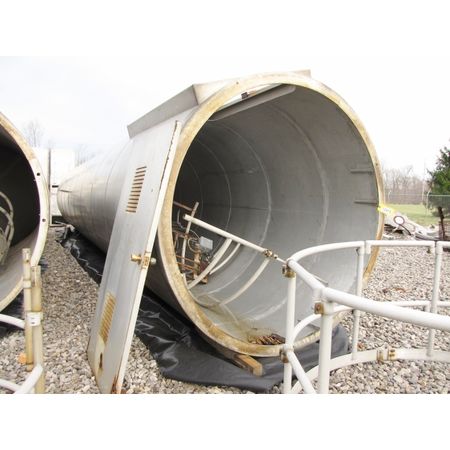

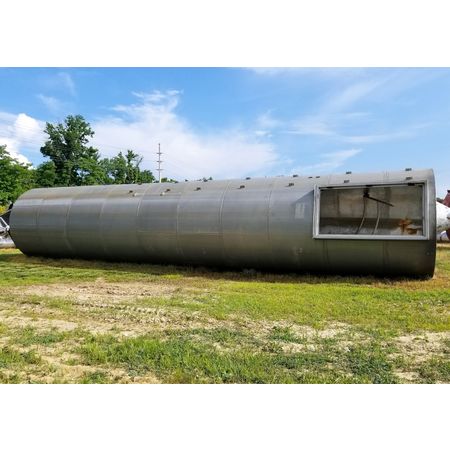

Silo en aluminium de 882 pieds cubes

Details de l'équipement

• 8' Dia. x 39' High
• 1/4" Thick all Welded 5052 Aluminum Alloy Construction
• Multi-Ported Top Fill with:
  • Sloped Cover & Handrail Ring
  • Skirted Base
  • Eccentric Cone Discharge with:
    • 6"ø Ansi 150 Flange Connection with:
      • 15'-3" Clearance to Base.
• Designed for 100mph Max
• Wind Loads and Zone I Seismic Conditions
• For Dry, Free Flowing Material (60lb cu/ft)
• Empty Weight: 5034lbs
• Flange on Top of the Aluminum Silo is 24" Square
• Location: Eastern USA
