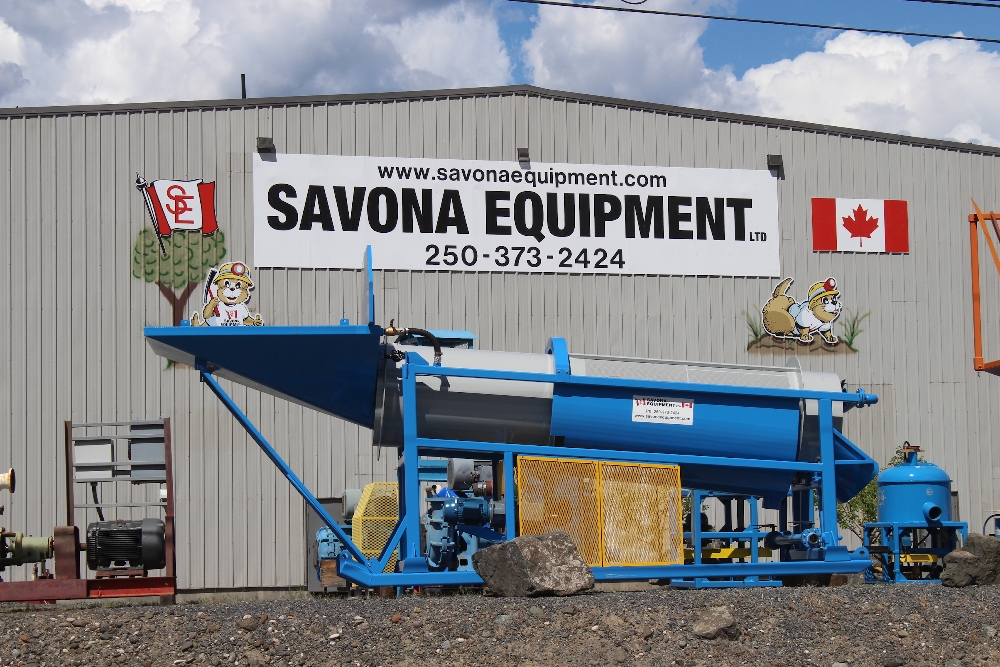

Savona Equipment ST70 Usine de lavage à trommel à épurateur personnalisé

Details de l'équipement

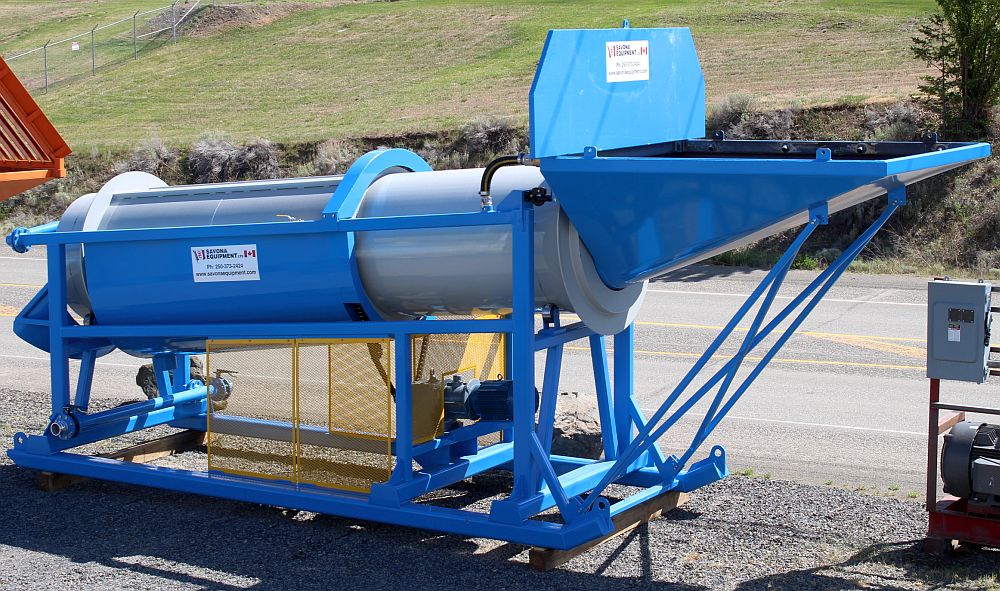

The Savona Equipment ST-Series scrubber trommel wash plants are custom designed and built as user-friendly, heavy duty, and effective wash plants. The wash plants can be operated as stand-alone processing and gold recovery systems with a sluice box or as a processing system that feeds a Hy-G Concentrator gold recovery system.

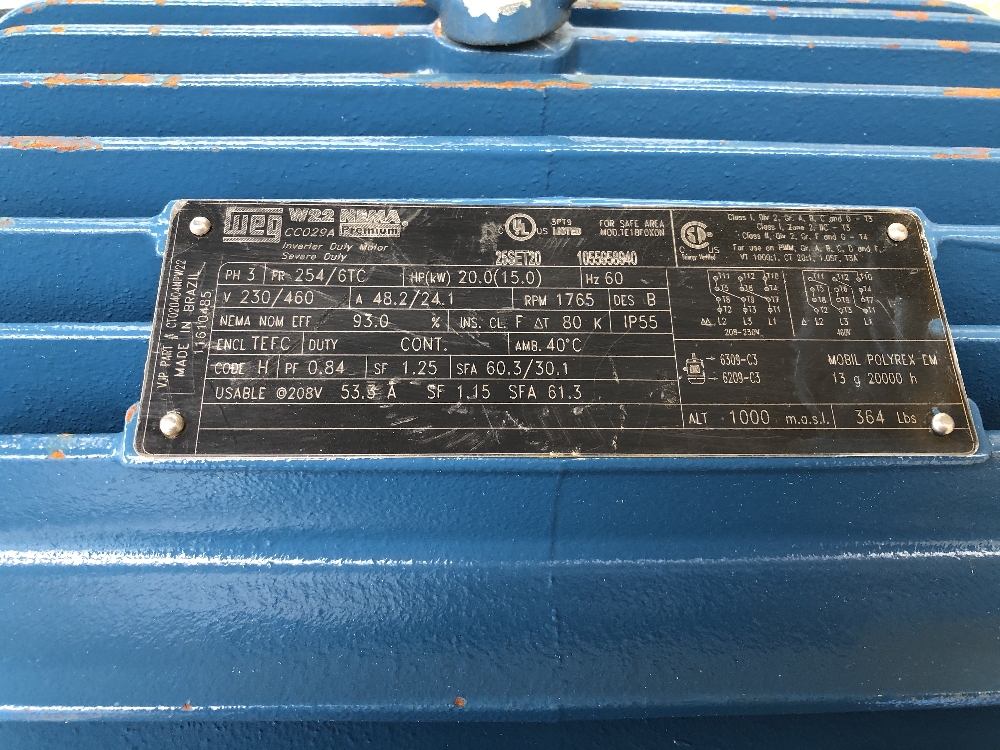

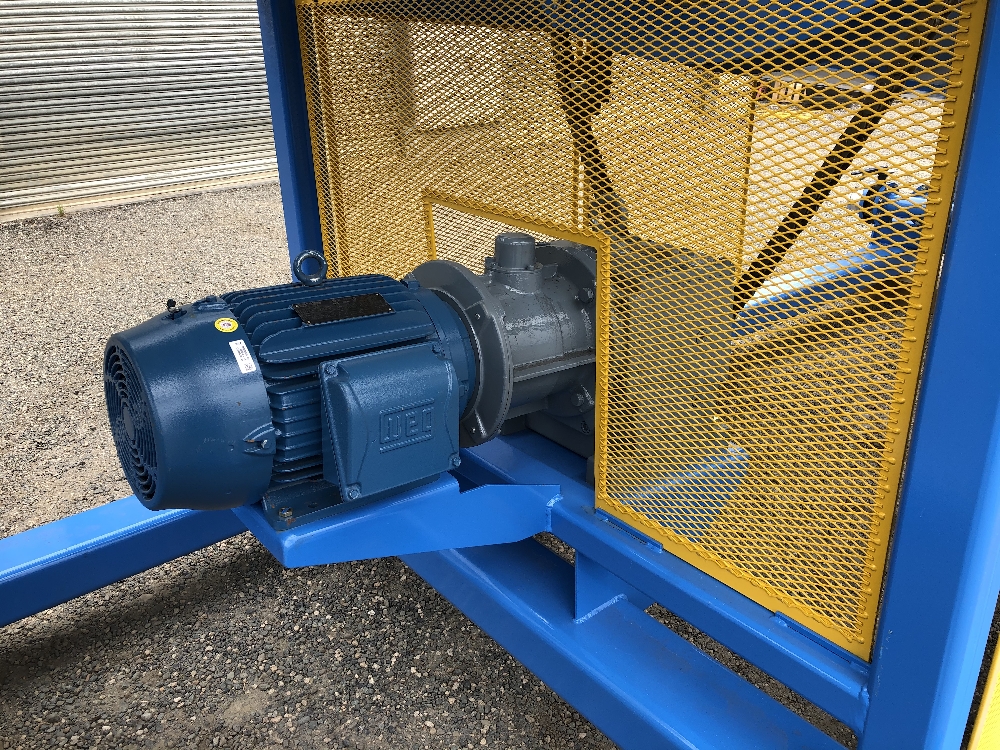

• 20 HP Electric Drive Motor

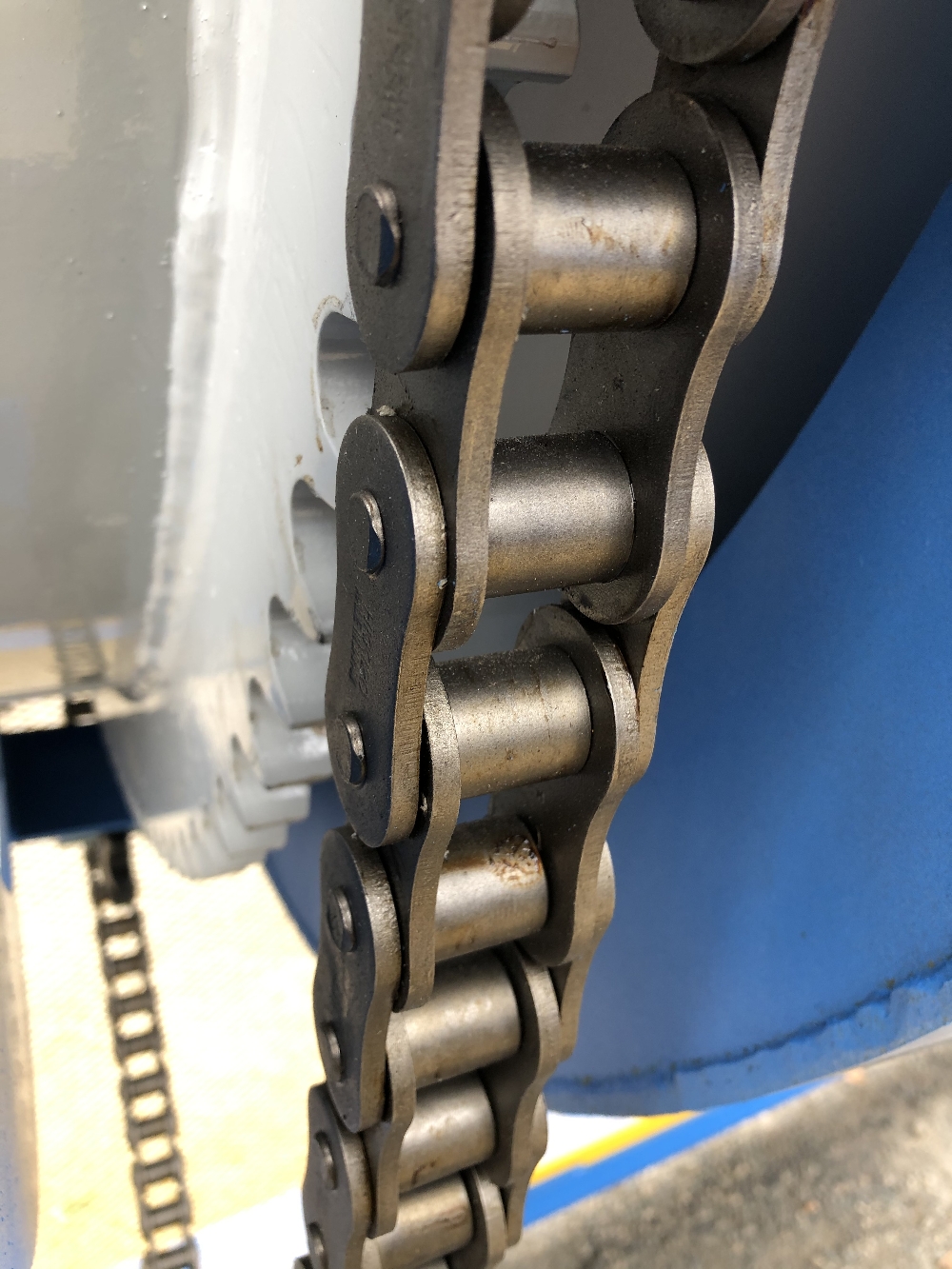

• Heavy Duty Gear Reducer, Sprocket, and Chain Driving Trommel Drum

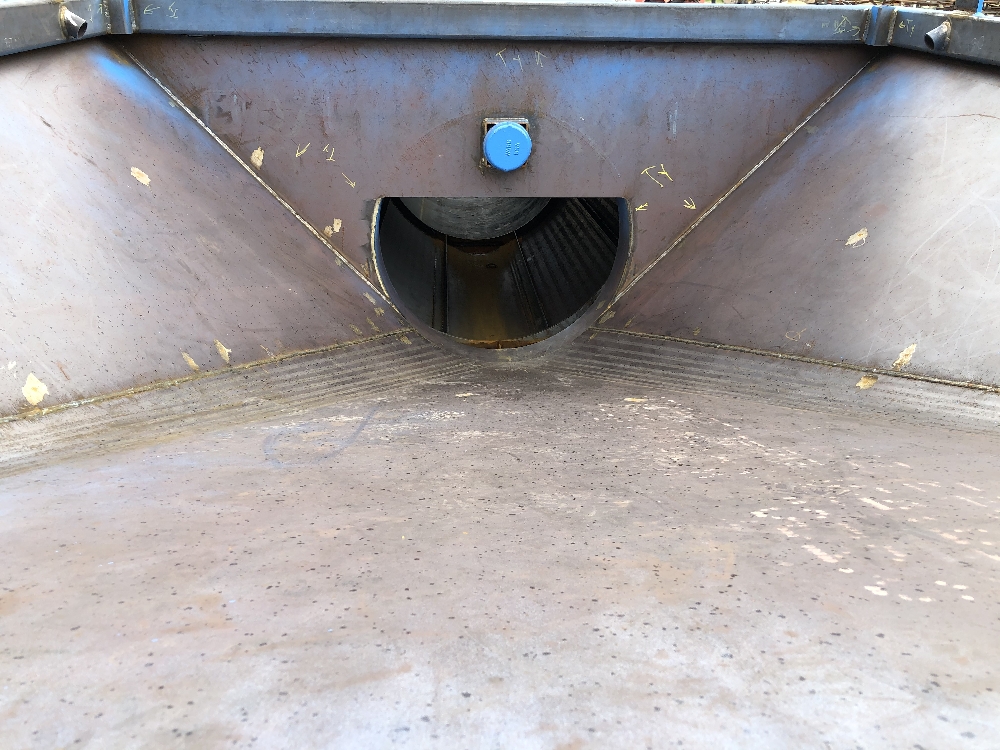

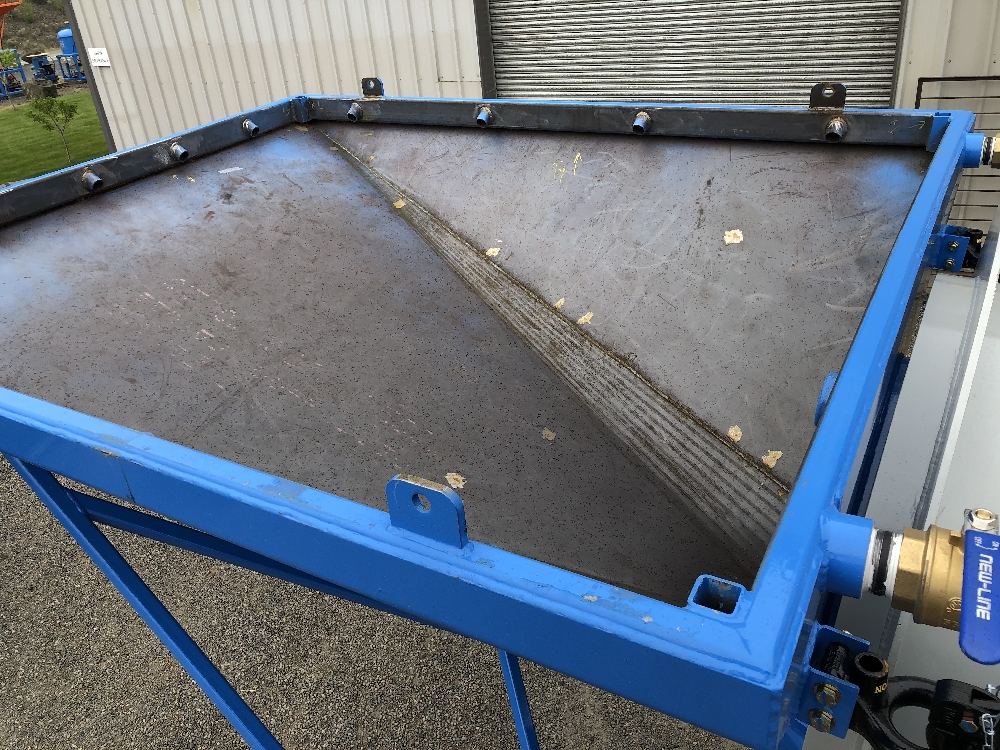

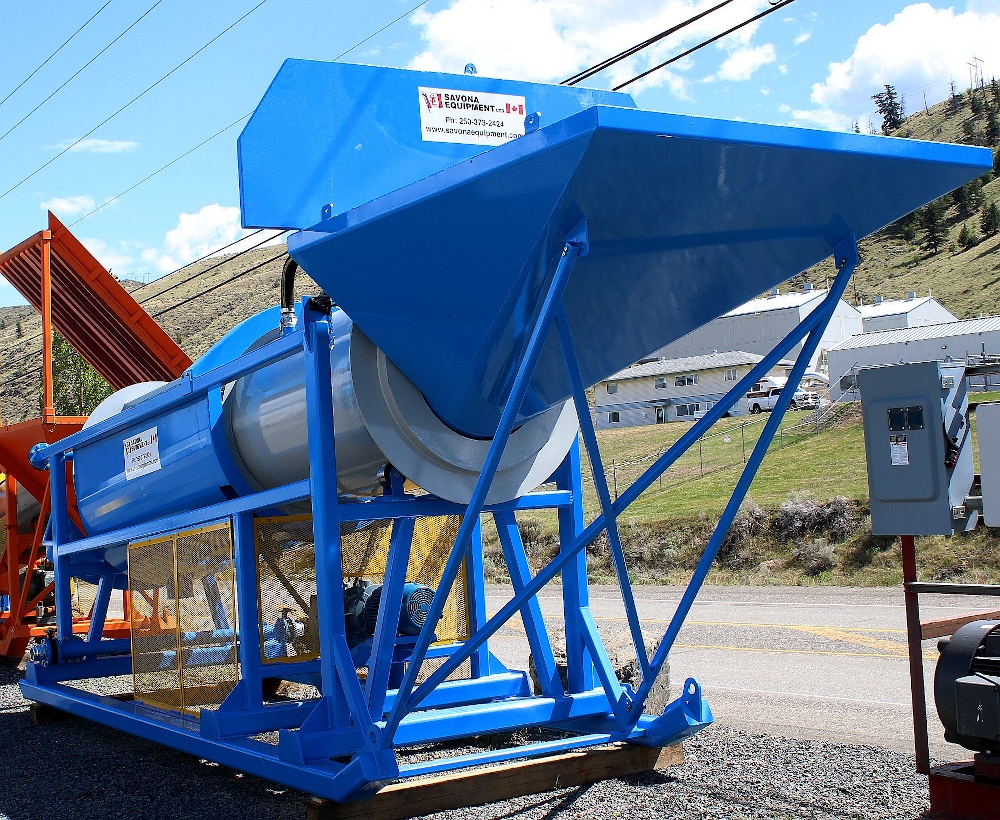

• Receiving Hopper with Wash Bars and Deflector Plate

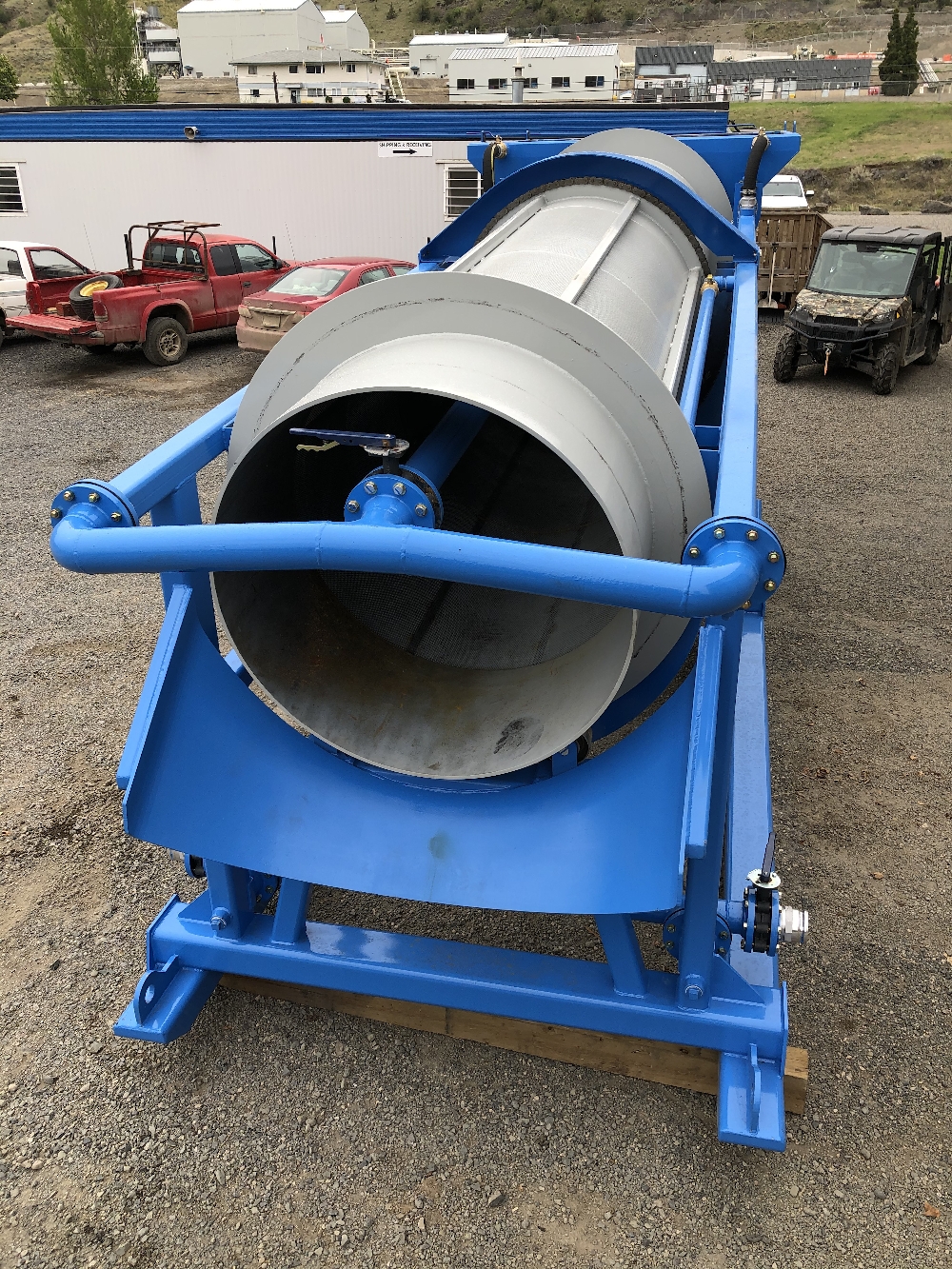

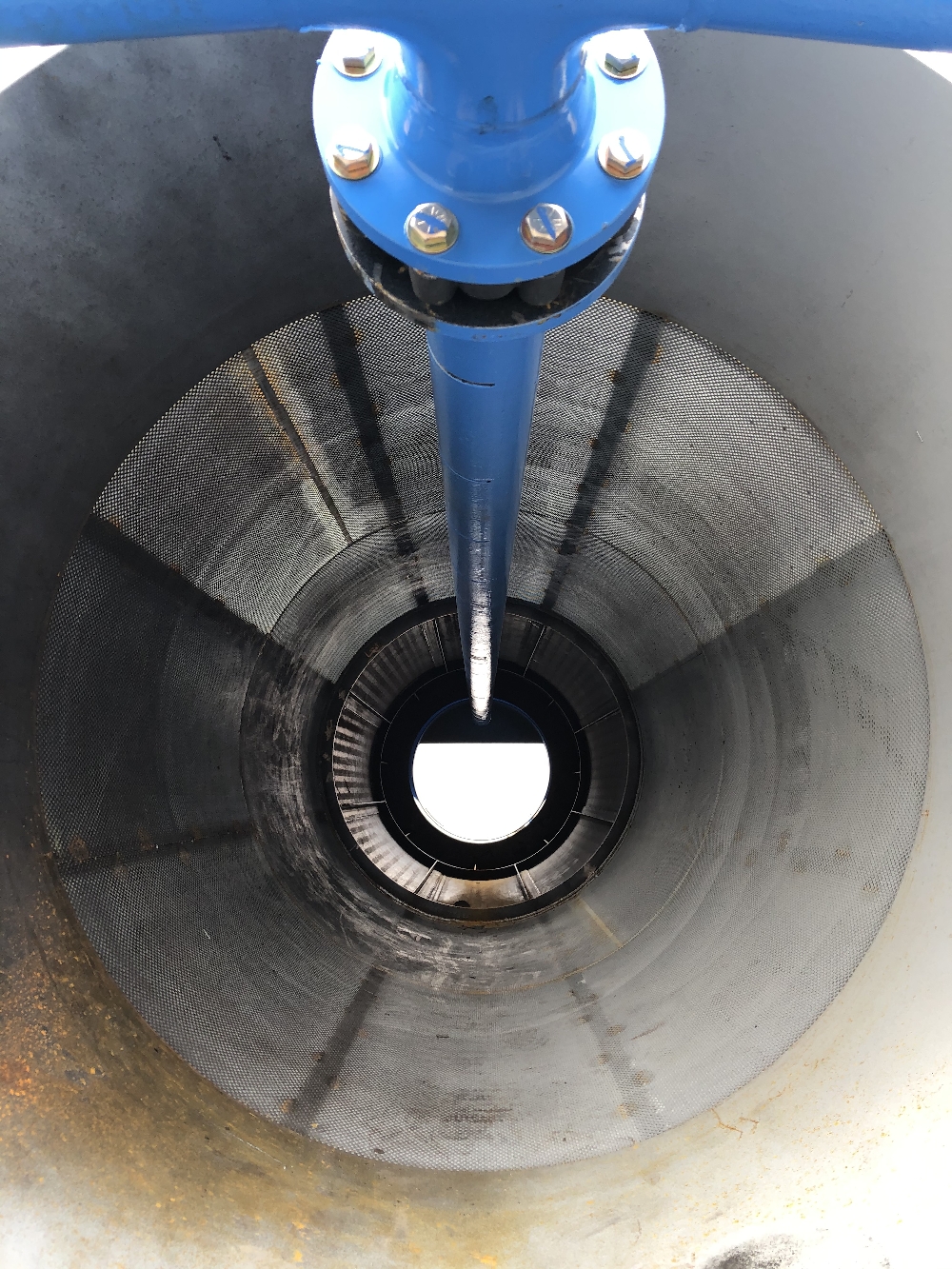

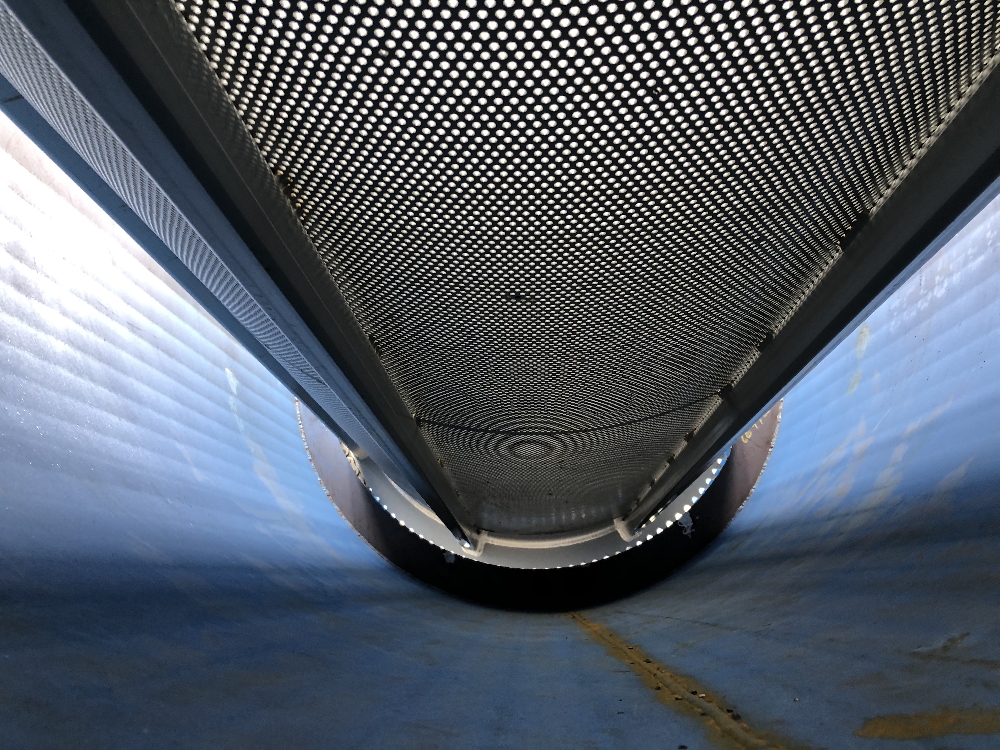

• 48 in. Diameter Trommel drum with wash bar, lifters, retention rings, and punch plate screen.
• Estimated Capacity: 50 to 100 YPH (75 to 150 TPH).
• Expected Water Consumption: 500 to 800 GPM at 40 to 60 PSI.
• Operating Dimensions and Weight:
• 28 ft. Long
• 13 ft. High to top of hopper deflector plate.
• 9.5 ft. Wide to edges of hopper deflector plate.
• Approx. 14,500 lbs.

Made in Canada.

Worldwide shipping available.
