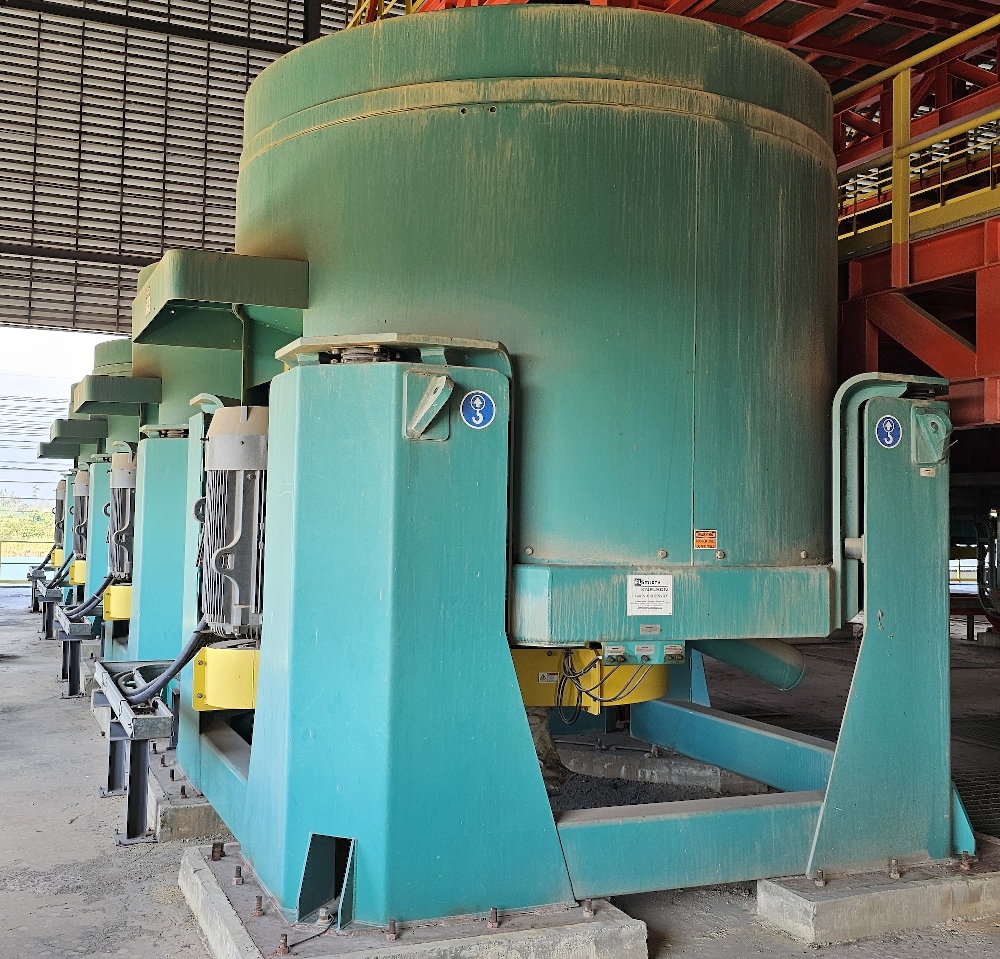

Nouveau Concentrateur Centrifuge Knelson XD70 Surplus

ID d'inventaire : 1503574

Details de l'équipement

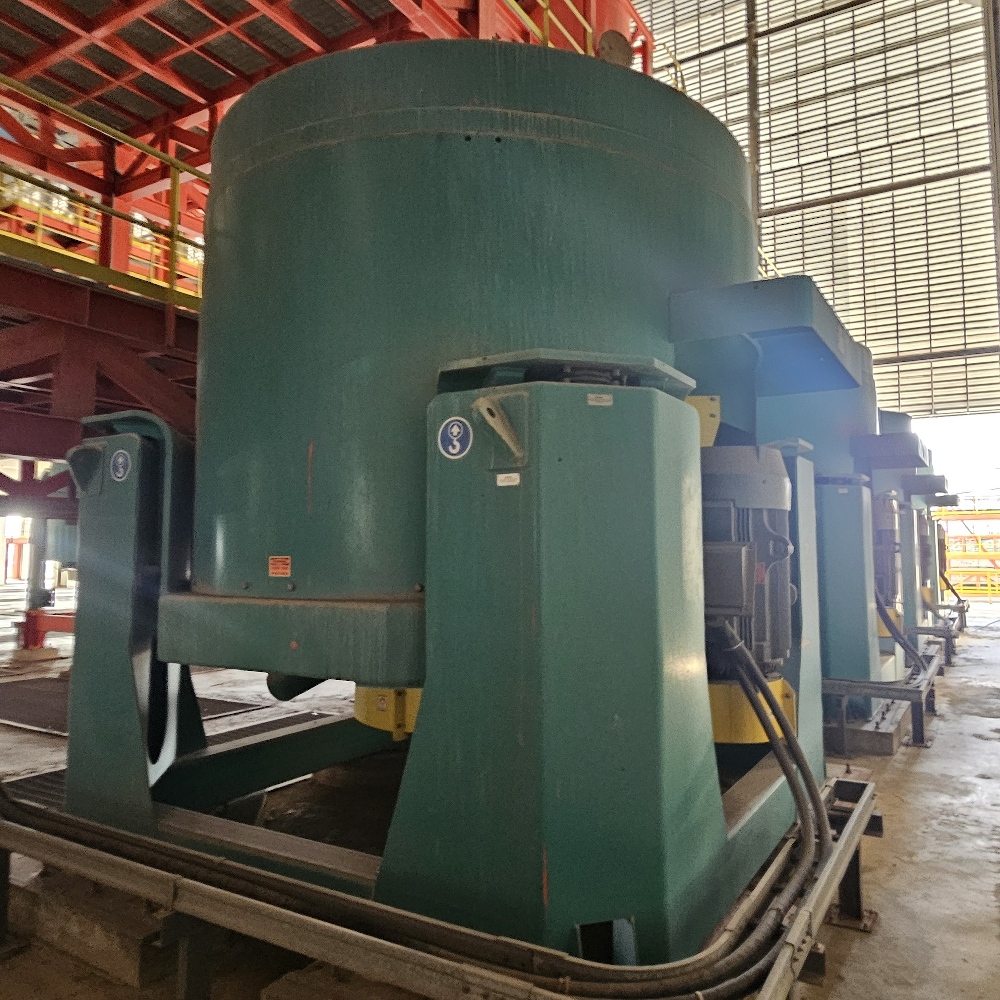

Knelson XD70 Gravity Concentrator

Quantity: 8 Units Available

Make: FLSmidth Knelson Concentrators
Model: XD70
Type: Centrifugal Gold Concentrator
Style: Gravity Concentrator
Condition: New Surplus
Cone: G5 Cone

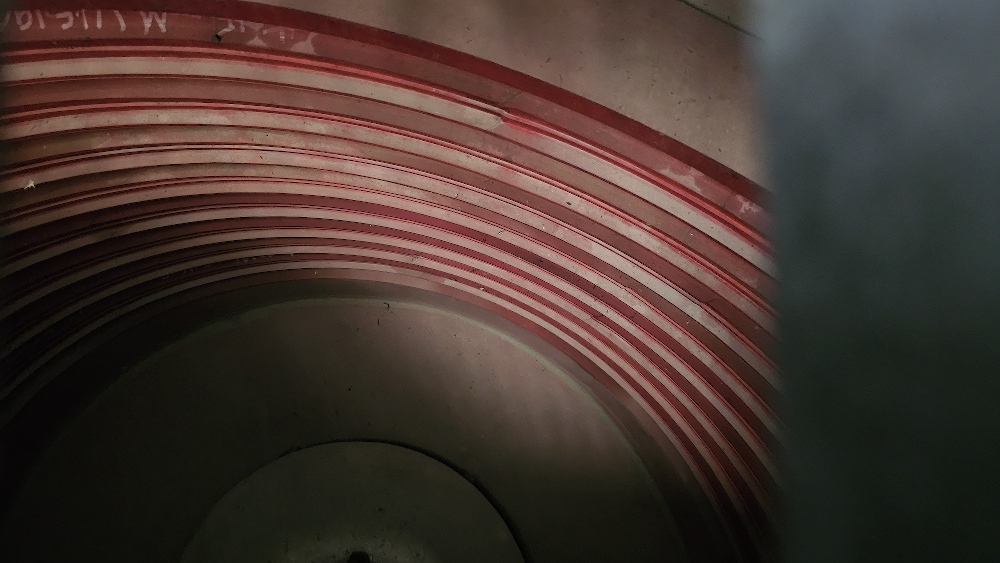

Liner: Natural Rubber Linings
Construction: Mild Steel Painted Outer Bowl and Shaft

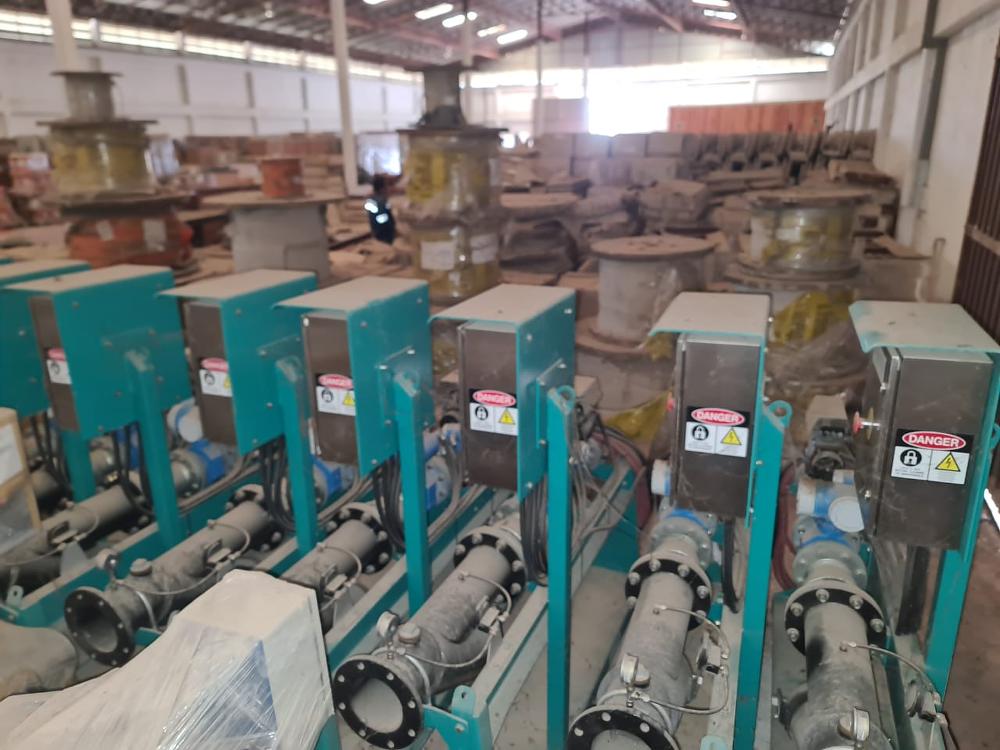

Piping and Instrumentation Assemblies Including:
- Bowl Motion Proximity Sensor and Speed Transmitter
- Fluidization Water Flow Monitoring with a Magnetic Flowmeter c/w Transmitter
- Water Control Valve c/w Actuator and Positioner for Fluidization Water Flow Control
- Pressure Transmitter for High/Low Bowl Pressure Alarms and Condition Monitoring
- Plated Steel Filter Assembly
- Plated Steel Piping Arrangement to incorporate Components
Drive: 225kW Electric Motor
- MCC Packages Including:
  - 225kW VFD c/w IP21 Enclosure Dynamic Braking and Communications
  - 3-Phase Braking Resistors c/w IP21 Enclosure c/w Cooling Fans
General Model Specifications:
- Solids Feed Capacity: 330-1100 TPH
- Fluidization Water Required: 68-125m³/hr. (300-550 US GPM)
- Max Volumetric Throughput: 1360m³/hr. (6,000 US GPM)
- Active Capture Area: 32,044cm² (4,967in²)
- Feed Size:
  - Recommended: 1.7mm (10 mesh)
  - Max: 6mm (0.25in)
- Concentrate Volume: 52 Liters
- Concentrate Weight: 220-310 Lbs. (100-140 kg)
- Concentrator Net Weight: 40,600 Lbs. (18,455 kg)
- Motor Power: 200-500HP (150-375kW)
