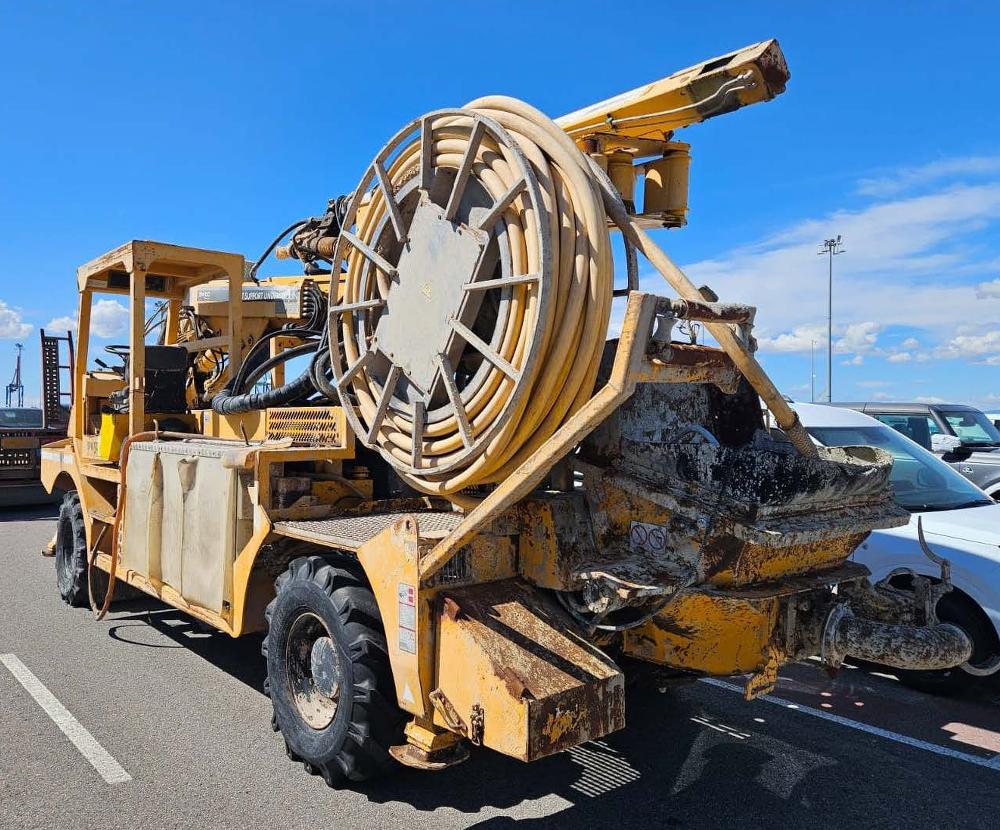

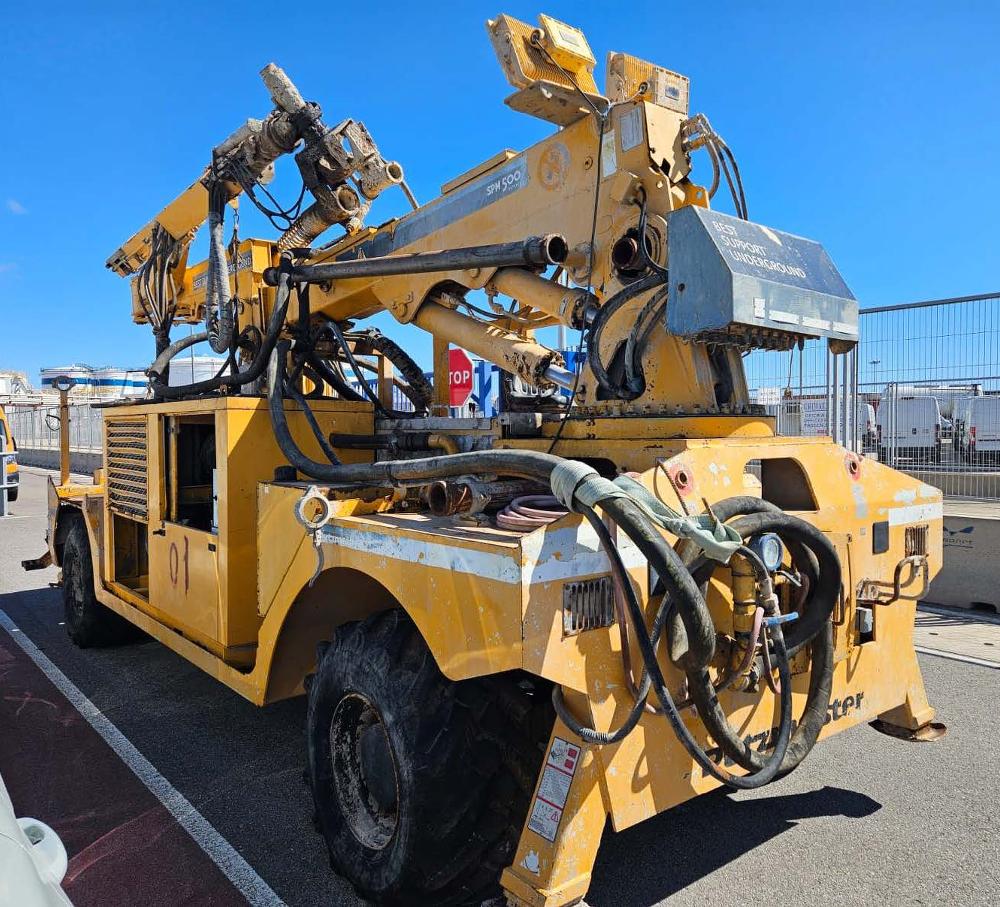

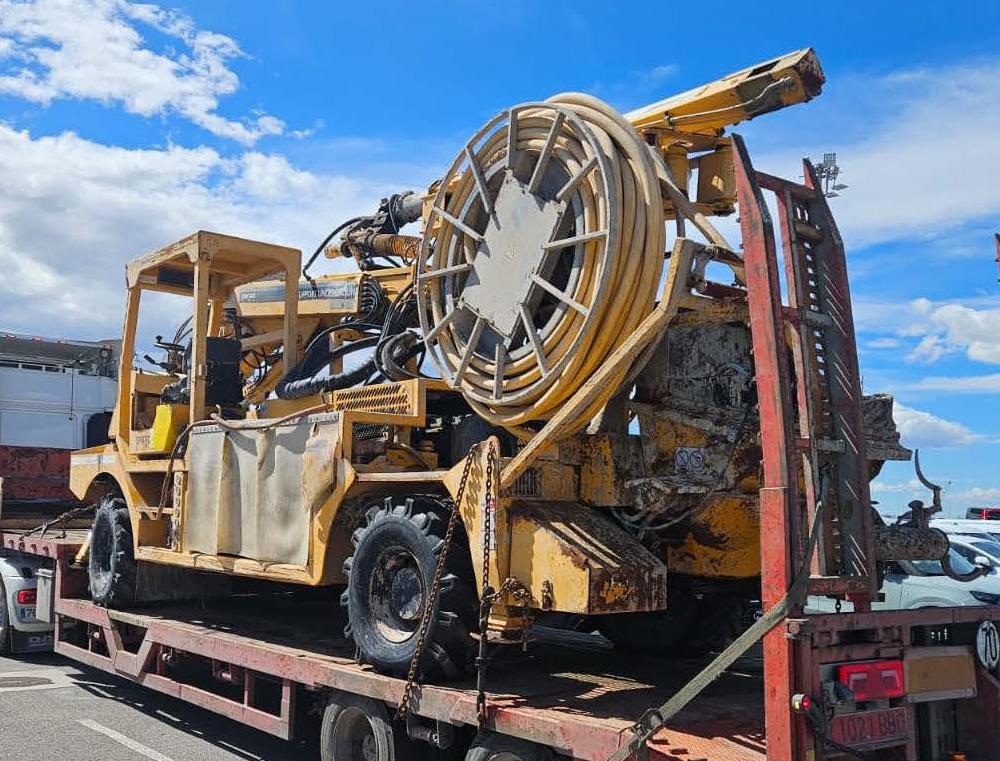

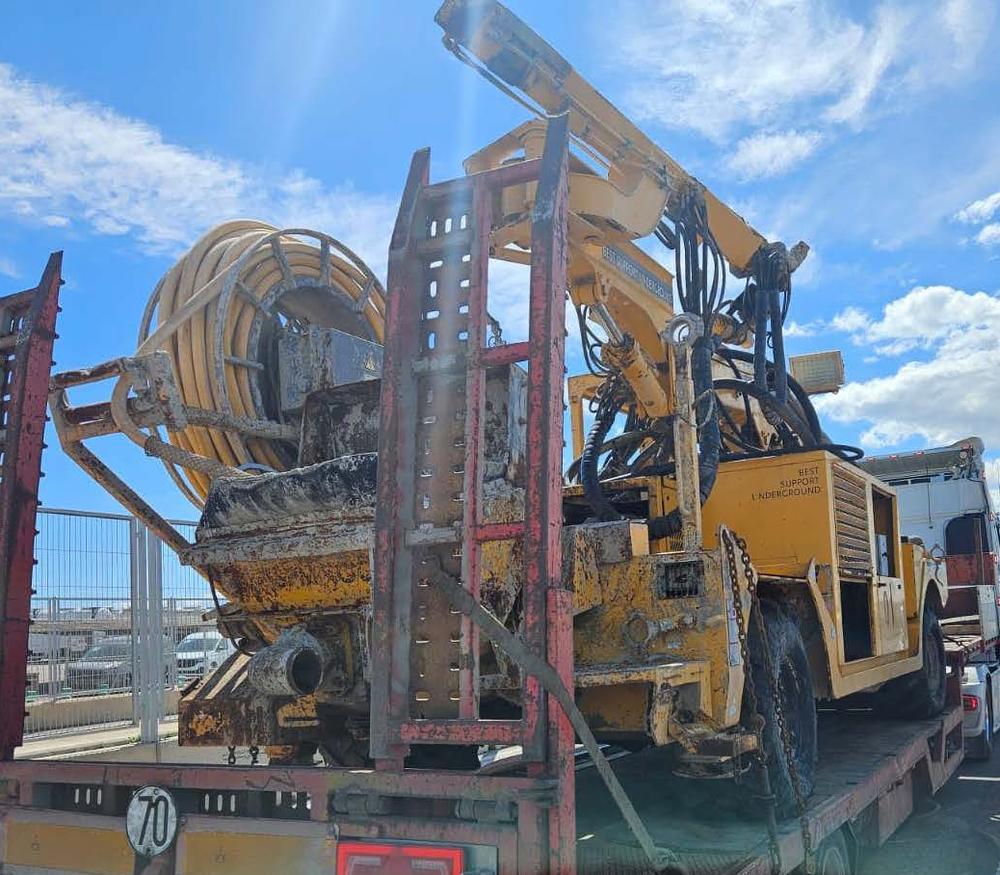

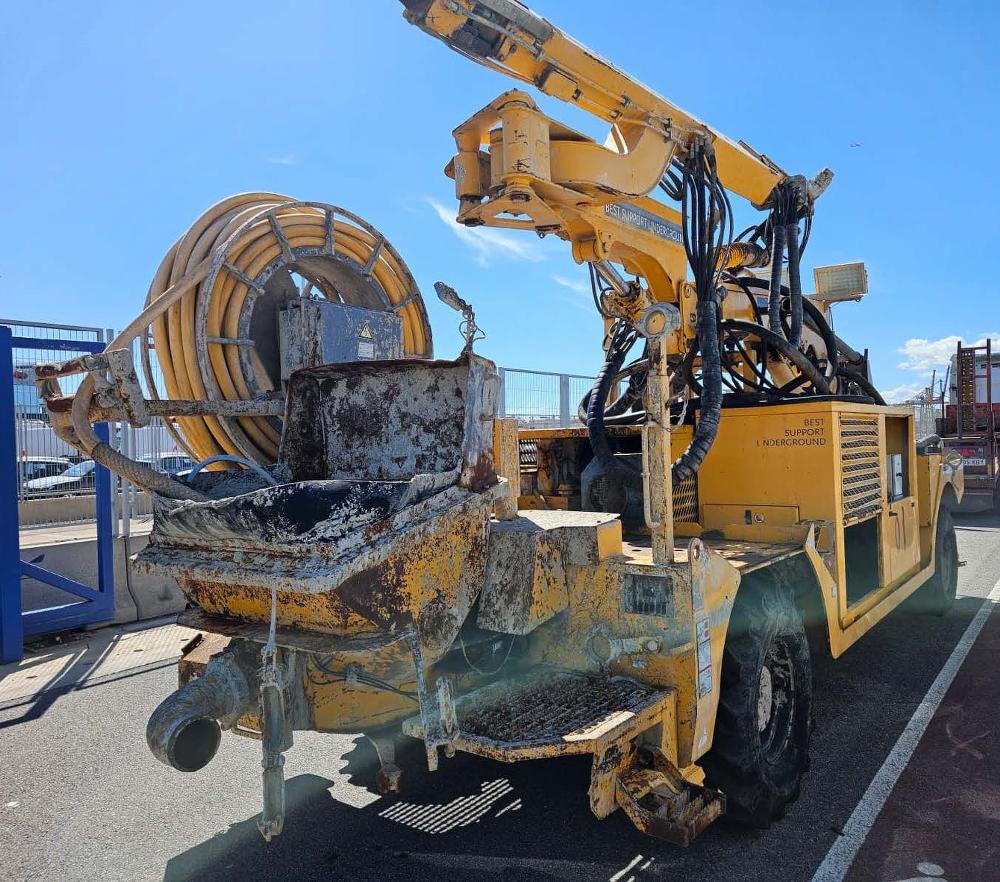

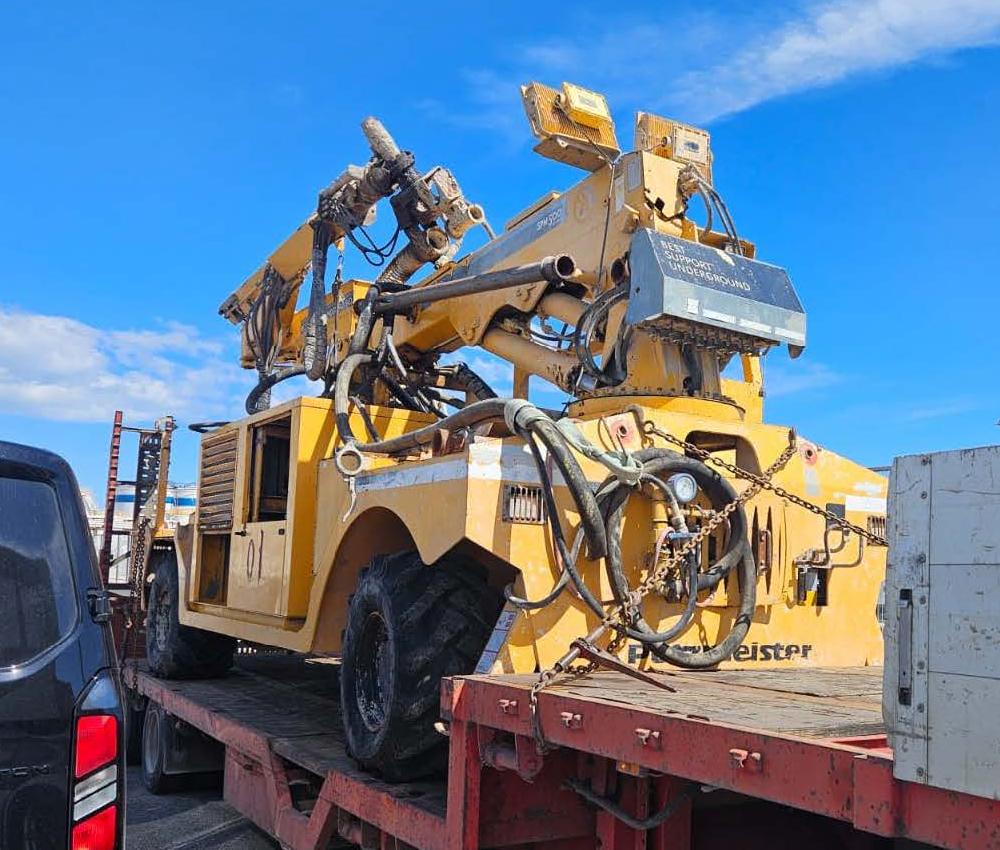

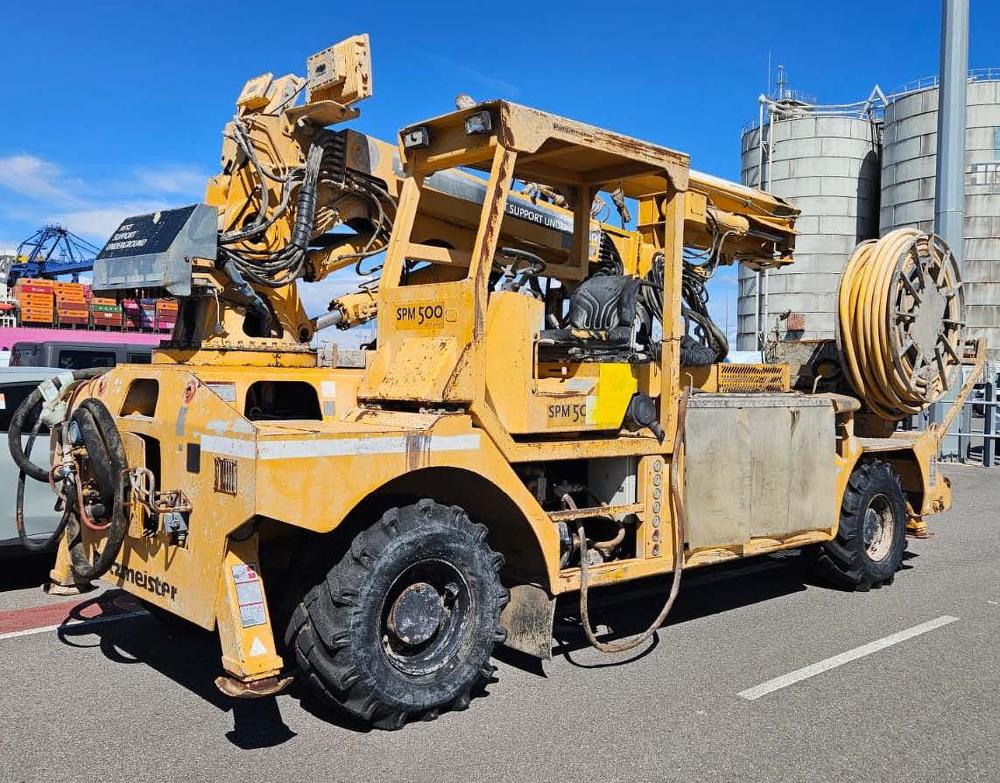

Pulvérisateur de béton projeté Putzmeister SPM-500 Wetkret

ID d'inventaire : 1561439

Catégorie : {category}
La Disponibilité
7 photos vérifiées de l'équipement

Details de l'équipement

Putzmeister SPM-500 Wetkret Shotcrete Sprayer

Make: Putzmeister
Model: SPM-500 Wetkret
Type: Shotcrete/Concrete Sprayer
Year: 2014
Hours: 2500 Hours (Approx.)
Condition: Used Condition
Spray Reach: 17m
Flow Rate: 30m³/h
General Model Specifications:
- Putzmeister Telescopic Spraying Arm SA 17.2
  - Max Spraying Reach:
    - Vertical: 17 m
    - Horizontal: 15 m
  - Min Unfolding Section:
    - Vertical: 4 m
    - Horizontal: 7.7 m
  - Min Working Section:
    - Vertical: 3 m
    - Horizontal: 2.8 m
  - Number of Arm Extensions: (2) Telescopic
  - Telescopic stroke: (2) x 2,000 mm
  - Number of Axles/Degrees of Freedom: 9
  - Maximum Arm Angle: +60º/+30º -23º/-62º
  - Lights: (2) Spotlights 750w, Halogen
- Spraying Head:
  - Rotation: 360º
  - Inclination: +120º / -120º
  - Nutation: 8º
  - Nozzle: DN40 / DN50
- Putzmeister Concrete Pump PM 1810:
  - Type: Double-Piston, Hydraulic Drive
  - Max. Flow (Theor.): 4 – 30 m3/h
  - Transport Cylinder Diameter: 180 mm
  - Max. Pressure (Theor.) on Concrete: 75 bar
  - Max. Aggregate Size: 16 mm
  - Automatic Lubrication System
- Hopper:
  - Full Hopper Capacity: 350 L
  - Filling Height: 1,440 mm
  - Spotlight: 24 V / 70 W
- Pumping and Spraying Drive System:
  - Electric: 55 kW
  - Diesel (DUAL DRIVE version): Carrier Diesel Engine
- Additive Pump Synchronized with Concrete Pumping:
  - Adjustment Range: 30 - 700 l/h
  - Max Working Pressure: 10.5 bar
  - Additive Tank: 1,000 L
  - Control System: PLC
- Cable Reel:
  - Operation: Hydraulic
  - Collector: 4 x 300 A, 36 RPM
  - Cable Length: 50 m / 100 m Optional
  - Cable Diameter: 53-61 mm
  - Power 400 Volt/50Hz or 440 Volt/60Hz
  - Diameter: 1,400 mm
- High Pressure Water Pump for Cleaning:
  - Motor Output: 6 kW
  - Max. Pressure: 200 bar
  - Flow: 15 l/min
  - Hose: 15 m
- Putzmeister Off-Road Vehicle, 4-Wheel Drive:
  - Engine: Diesel, 4 Cylinders
  - Engine Power: 70 kW @ 2,200 RPM
  - Engine Emissions: inline with EU-Stage III A / EPA-Tier 3
  - Transmission: Hydrostatic
  - Gearbox: 2-Speed in Both Directions
  - Steering: Four-Wheel Hydraulic Steering (4WS), Crab Mode
  - Traction: 4-Wheel Drive
  - Speed: Max. 20 km/h
  - Braking System:
    - Service Brakes: 4-Wheel Hydraulic Multi-Disc Brakes in Oil Bath
    - Parking Brake: 2-Wheel Independent, Hydraulic Multi-Disc Brakes in Oil Bath, Manual
    - Emergency Brake
  - Working Lights: 4 Halogen Spotlights - 24V 70W H3
  - Driver Cabin: FOPS/ROPS Certified, with 180° Swivel Seat
  - Oil Tank: 390 L
  - Electrical Equipment: (2) 12V 110A Batteries
  - Diesel Tank: 150 L
- Putzmeister Remote Control:
  - Drive: Cable / Radio (Optional)
  - Cable Length: 15 m
  - Weight: 16,000 kg / 15,500 kg without Compressor Brake Hydraulic
Location: Europe
